Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

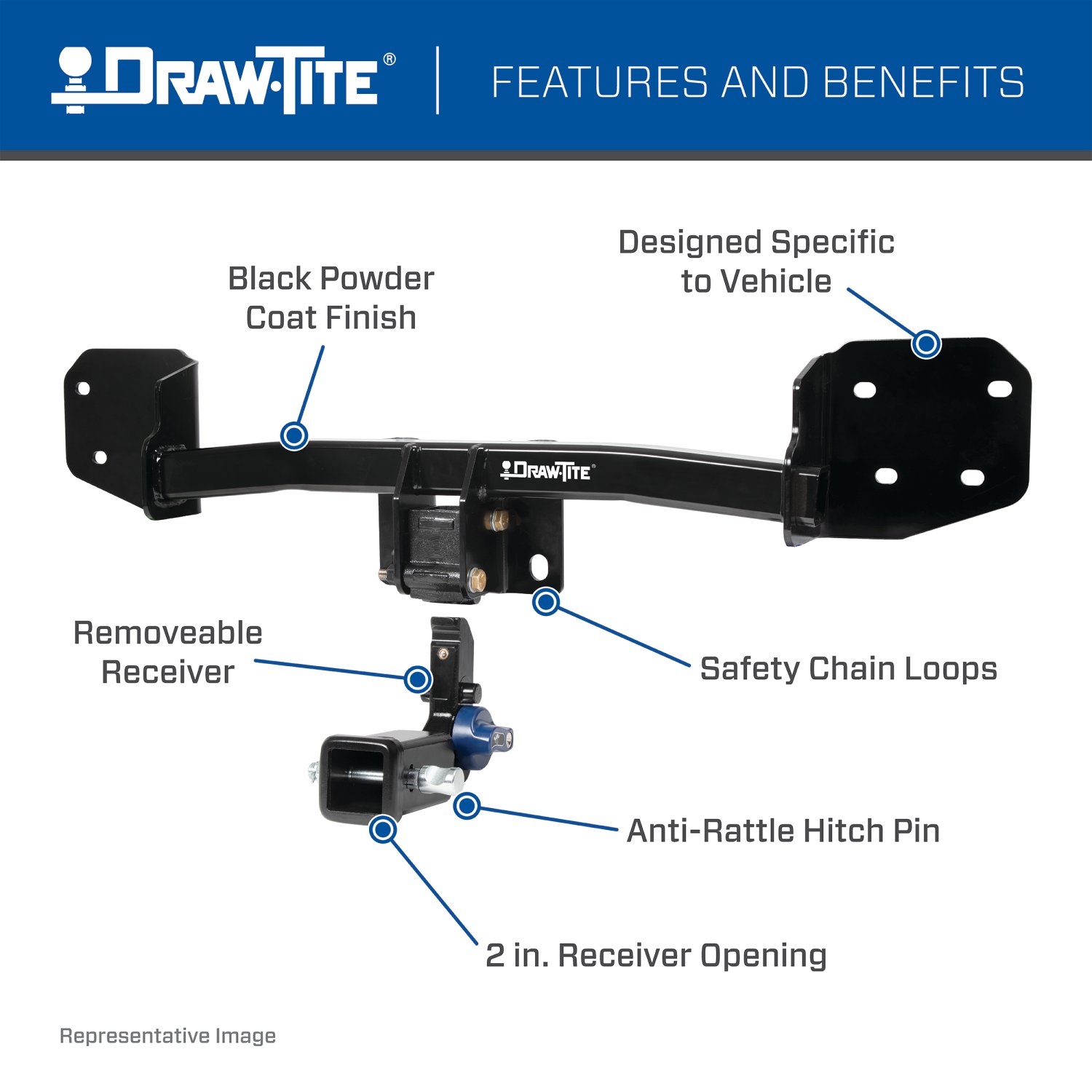

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 350 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76902 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 46.15 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 525 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw-Tite® Trailer Hitches | Receiver Hitches
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2018 | Acura RDX | Class 3 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
Yes, the Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Acura RDX 76902 (Part #DT76902) is designed to fit the 2010-2018 Acura RDX.
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Acura RDX 76902 (Part #DT76902) fits the following vehicles: 2010-2018 Acura RDX. Always verify your specific year, make, and model before ordering.
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Acura RDX 76902 (Part #DT76902) fits 2010-2018 Acura RDX models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Acura RDX 76902 (Part #DT76902) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part 76902 is designed for 2010-Current Acura RDX models. Visit the manufacturer's website for the most up-to-date information regarding specific application years and trim levels.
The 76902 is a weight-carrying hitch with a maximum gross trailer weight of 3500 lb (1589 kg) and maximum tongue weight of 350 lb (159 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools: ratchet, torque wrench, safety glasses, sockets (19mm and 3/4"), and a 6" socket extension. Installation time is approximately 30 minutes for professional installers.
Tighten M12 × 1.25 CL 10.9 fasteners to 76 Lb-Ft (103 N·M). Tighten 1/2-13 GR 5 fasteners to 50 Lb-Ft (68 N·M). Tighten housing fasteners (M12 bolt, flat washer, prevailing torque nut) to 92 Lb-Ft (125 N·M).
Professional installation is not required, but recommended if you are not comfortable performing the installation yourself. The average installation time for professional installers is 30 minutes. Contact a professional installer if you need assistance.
The maximum tongue weight is 350 lb (159 kg). Do not exceed this limit or your towing vehicle manufacturer's rating, whichever is lower.

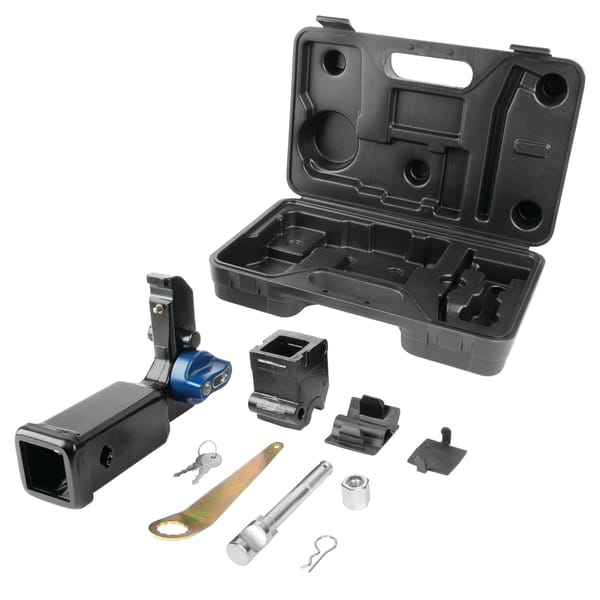

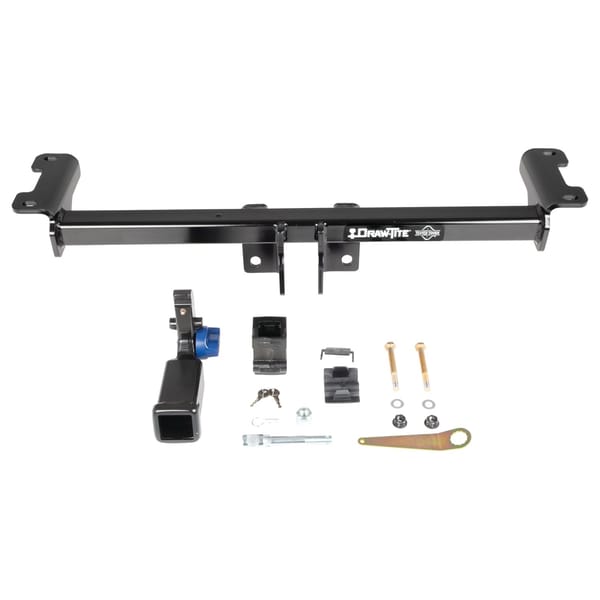

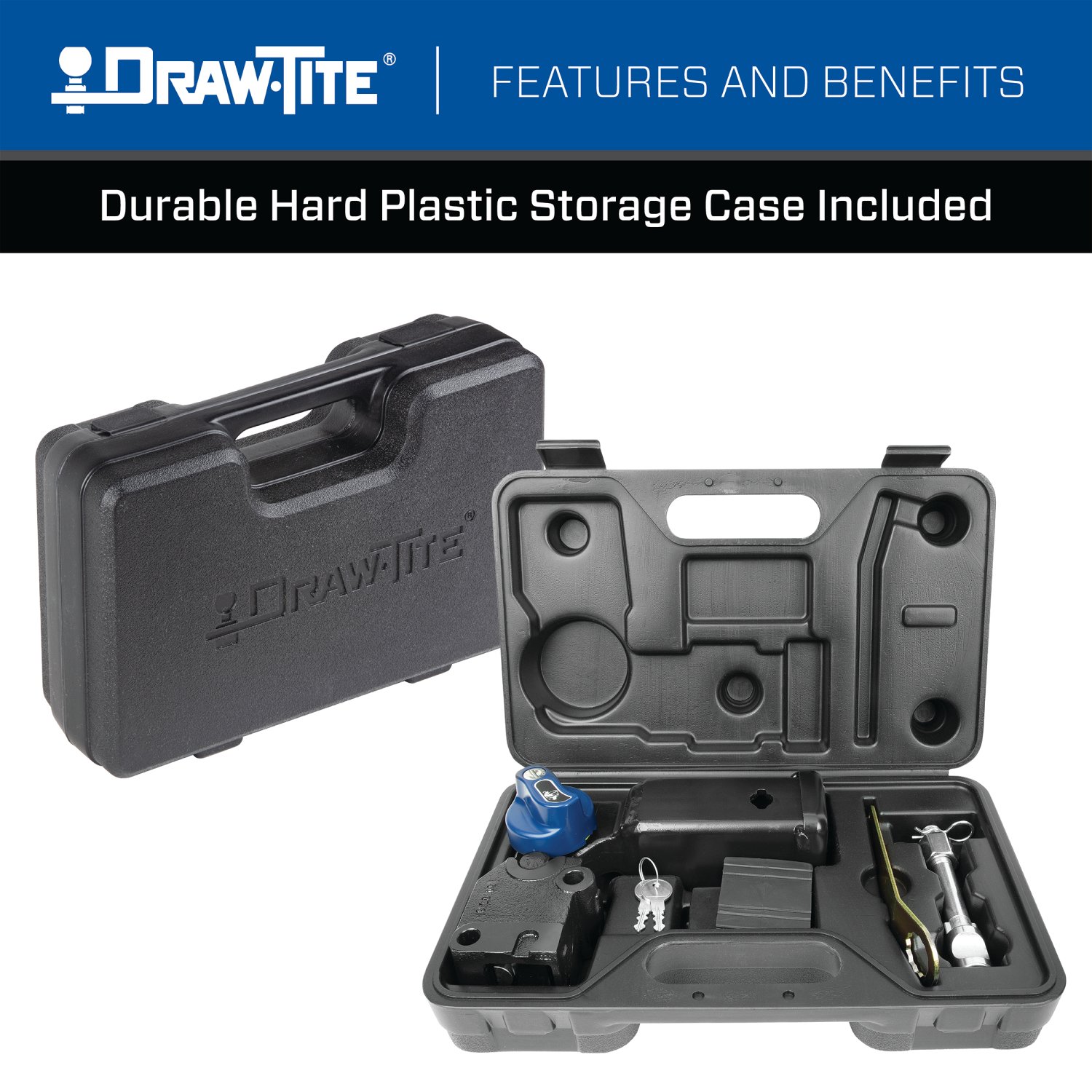

The 76902 kit includes the hitch receiver, weather covers (top and bottom), a blue-handled receiver housing with lock and key, an M12 bolt, flat washer, and prevailing torque nut for housing attachment, a warning card for the glove compartment, and two warning labels. The fastener kit 76902F includes all bolts, washers, nuts, and spacer blocks needed for frame attachment. A separate receiver kit 76900N is required for receiver installation and use.
The 76902 is a weight-carrying hitch only. Weight-distributing functionality is listed as N/A in the manual. You must use a weight-carrying ball mount compatible with the hitch's 3500 lb GVWR and 350 lb tongue weight ratings.
Fastener kit 76902F includes: (2) M12×1.75×100mm CL10.9 bolts, (2) 7/16" flat washers (Part# 0116007), (2) M12×1.75 CL10 prevailing torque nuts, (2) 1/2-13×1.75 Grade 5 hex bolts, (4) 1/2" conical washers (Part# 01292008), (2) M12×1.25×40mm CL10.8 bolts, (2) 1/2" handle nuts (Part# 1332), and (2) 0.25"×1.50"×2.0" spacer blocks (Part# 01097002).

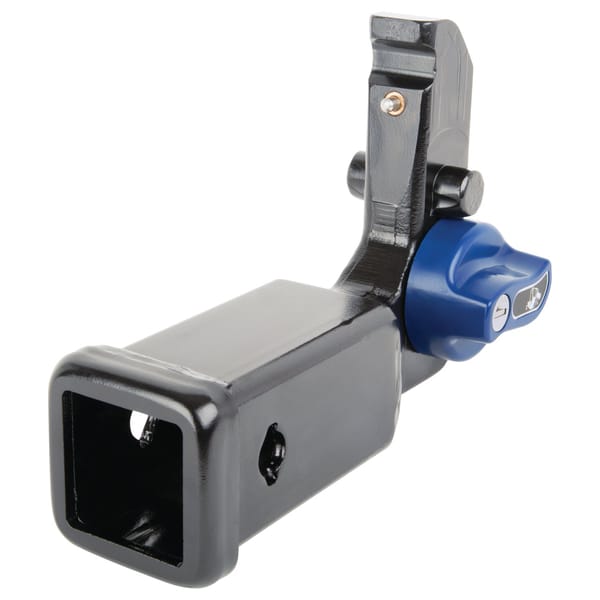

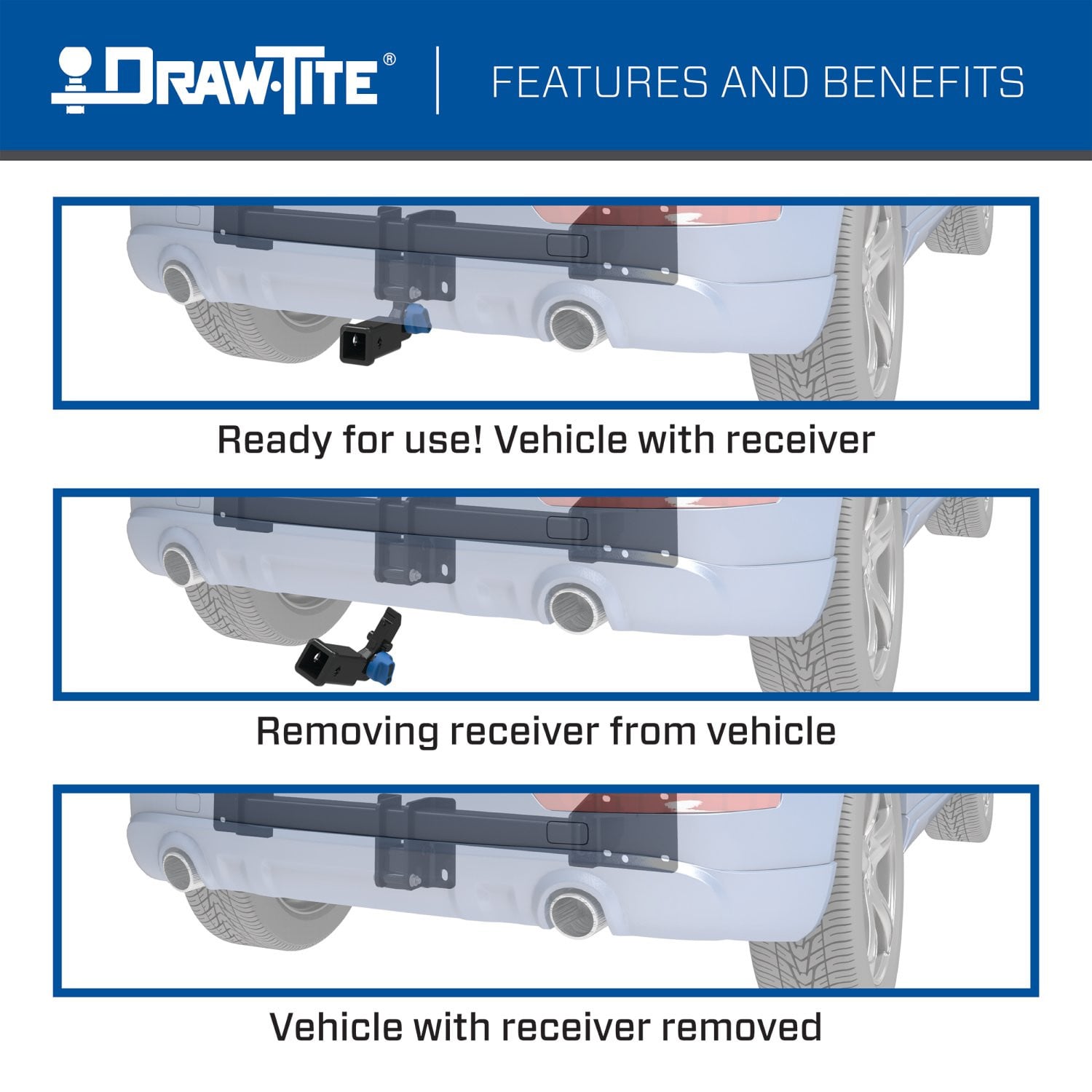

To remove the receiver housing: (1) Unlock the blue handle using the attached key. (2) Press the blue handle and rotate it clockwise until you hear a click sound. (3) The housing will then separate from the receiver. To reinstall, reverse the process by pressing the blue handle and rotating counterclockwise until it clicks into place.
The 76902 includes top and bottom weather covers that install onto the receiver housing. These covers protect the receiver from weather and debris when the hitch is not in use.
The conical washer teeth must be oriented against the hitch. Install the conical toothed washers with the teeth facing the hitch receiver, not facing away from it.
No. The spacer block (item q, Part# 01097002) is not required for 2010-2012 models. It is only required for 2013 and later models, where it must be taped to the top of the hitch at the rearmost hole before beginning installation.
For 2013 and later models, tape the spacer block (item q, 0.25"×1.50"×2.0") to the top of the hitch at the rearmost hole before starting Step 1 of the installation. The block provides clearance for the frame attachment.
Installation sequence: (1) Raise the hitch into position and align the receiver slots with the frame rail weldnuts. (2) Install the M12×1.25×40mm bolts and conical toothed washers through the hitch into the weldnuts. (3) Insert the 1/2" handle nuts through the large hole in the vehicle frame rails. (4) Install the 1/2-13×1.75 bolts and conical toothed washers. (5) Tighten all fasteners to specification: M12×1.25 CL10.9 to 76 Lb-Ft (103 N·M) and 1/2-13 GR5 to 50 Lb-Ft (68 N·M).
To install the housing: (1) Take the receiver and weather covers out of the case. (2) Unlock the blue handle using the attached key and remove the housing by pressing the handle and rotating clockwise until a click sound. (3) Install the top and bottom weather covers to the housing. (4) Attach the housing to the hitch using an M12 bolt, flat washer, and prevailing torque nut. (5) Tighten the housing fasteners to 92 Lb-Ft (125 N·M).
Keep the warning card (item ⑨) in the glove compartment for future reference. Peel off the two warning labels (item ⑩) and apply one to the top of the receiver and one to the door jamb of the vehicle.
The M12 bolt, flat washer, and prevailing torque nut that attach the housing to the hitch must be tightened to 92 Lb-Ft (125 N·M).
All M12×1.25 CL10.9 fasteners that attach the hitch to the vehicle frame must be tightened to 76 Lb-Ft (103 N·M).
All 1/2-13 Grade 5 fasteners that attach the hitch to the vehicle frame must be tightened to 50 Lb-Ft (68 N·M).
Always wear safety glasses during installation. Observe safety precautions when working beneath a vehicle. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A damaged hitch or ball must be removed and replaced immediately.
If excess sway occurs while towing, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Reduce speed and maintain steady steering until the sway subsides.
Always load the trailer heavier in front. This helps maintain proper weight distribution and reduces the risk of sway or instability while towing.
Slow down when towing and never exceed any posted speed limit. Always wear your seatbelt while towing.
Check all fasteners on the hitch frequently to ensure they are tight and the hitch is securely mounted to your vehicle. Proper torque is needed to keep the hitch secure during towing. Perform periodic inspections before each towing trip.
Check all fasteners periodically to ensure they remain tight and the hitch is securely mounted. Inspect the hitch and ball before each towing trip. If the hitch is removed for any reason, plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry. Replace any damaged hitch or ball immediately.
The 76902 includes a Limited Lifetime Warranty covering material defects and workmanship, excluding ordinary wear and tear. The warranty is valid only if the product is installed, maintained, and used according to the manufacturer's instructions. To make a warranty claim, contact Horizon Global Americas Inc. at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, or call 1-800-632-3290. You must provide the product model number, purchase receipt, and follow the claim instructions provided. Product replacement is the sole remedy under this warranty.
No. Do not cut, weld, or modify the receiver under any circumstances. Modifications will void the warranty and compromise the structural integrity and safety of the hitch. Do not cut access or attachment holes with a torch.
The 76902 accepts ball mounts with a maximum rise of 10.5" (measured from the center of the ball hole to the center of the pin hole) and a minimum rise of 0.75" (measured from the top of the shank to the top of the ball platform). The ball mount must be rated for the hitch's 3500 lb GVWR and 350 lb tongue weight capacity.
Two quick-link safety chain attachment options are available (sold separately): #49131 (5/16") rated for maximum 3500 lb GTW, and #44133 (3/8") rated for maximum 3500 lb GTW. Select the appropriate size based on your trailer's requirements.
The receiver kit 76900N is not included with the 76902. It is sold separately and is required for receiver installation and use. Refer to the 76900N instructions for receiver installation and operation details.
The manual does not specify whether the battery must be disconnected before installation. Contact the manufacturer at 800-632-3290 or TechnicalSupport@horizonglobal.com for guidance on battery disconnection requirements specific to your vehicle.
The manual does not specify whether bumper removal is required. However, it notes that you may need to gently pull down and rearward on the fascia attachment for additional clearance at the cross tube if needed. Contact the manufacturer at 800-632-3290 for vehicle-specific preparation instructions.
The manual does not address sensor or exhaust clearance issues specific to the Acura RDX. Contact the manufacturer at 800-632-3290 or TechnicalSupport@horizonglobal.com for information about potential interference with sensors, exhaust systems, or other vehicle components.
The manual does not address potential interference with spare tires, steps, bumpers, or other vehicle components. Contact the manufacturer at 800-632-3290 or TechnicalSupport@horizonglobal.com for information about clearance and compatibility with your specific vehicle configuration.
No drilling is required. The 76902 uses existing frame weldnuts on the Acura RDX for attachment. The hitch bolts directly into these factory weldnuts without modification to the vehicle frame.
The 1/2" handle nuts (Part# 1332) are inserted through the large hole in the vehicle frame rails and provide a threaded connection point for the 1/2-13 bolts. They allow the hitch to be securely fastened to the frame without requiring access to the opposite side of the frame rail.
Stop towing immediately and check all fasteners. Retighten M12×1.25 CL10.9 fasteners to 76 Lb-Ft (103 N·M) and 1/2-13 Grade 5 fasteners to 50 Lb-Ft (68 N·M). Also check the housing fasteners and tighten to 92 Lb-Ft (125 N·M) if needed. Perform frequent fastener checks before and after towing to prevent loosening.
Use the key attached to the hitch to unlock the blue handle. If the handle still will not move, do not force it. Contact the manufacturer at 800-632-3290 or TechnicalSupport@horizonglobal.com for assistance. Forcing the handle may damage the locking mechanism.
Ensure the hitch is raised into position correctly and the receiver slots are properly aligned with the frame rail weldnuts before installing the bolts. If alignment is difficult, you may need to gently pull down and rearward on the fascia attachment for additional clearance at the cross tube. If alignment issues persist, contact the manufacturer at 800-632-3290 for assistance.
The handle nuts must pass through the large hole in the vehicle frame rails. If they do not fit, verify you are using the correct 1/2" handle nuts (Part# 1332) and that you are inserting them through the correct hole. If the hole appears too small or obstructed, contact the manufacturer at 800-632-3290 for guidance.
Ensure the top and bottom weather covers are installed correctly on the housing before attaching the housing to the hitch. The covers should fit snugly around the housing. If they do not fit, verify you have the correct covers for your hitch model. Contact the manufacturer at 800-632-3290 if the covers are damaged or do not fit.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
