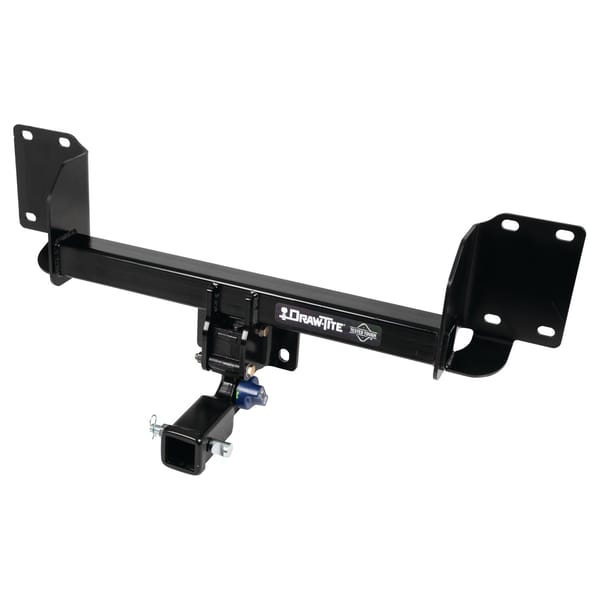

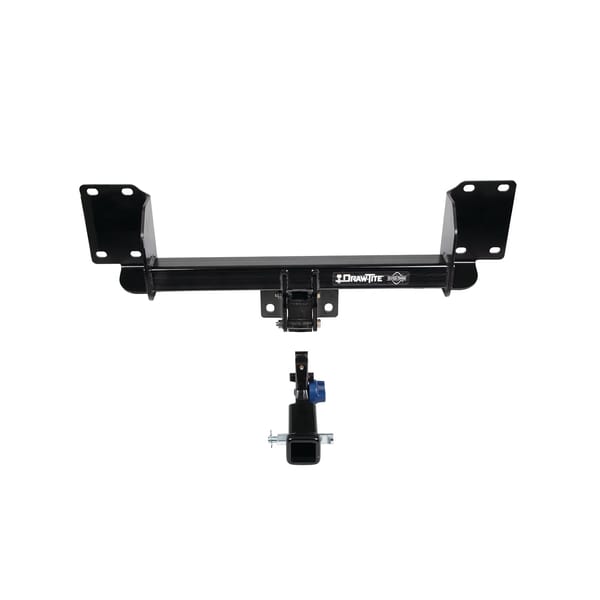

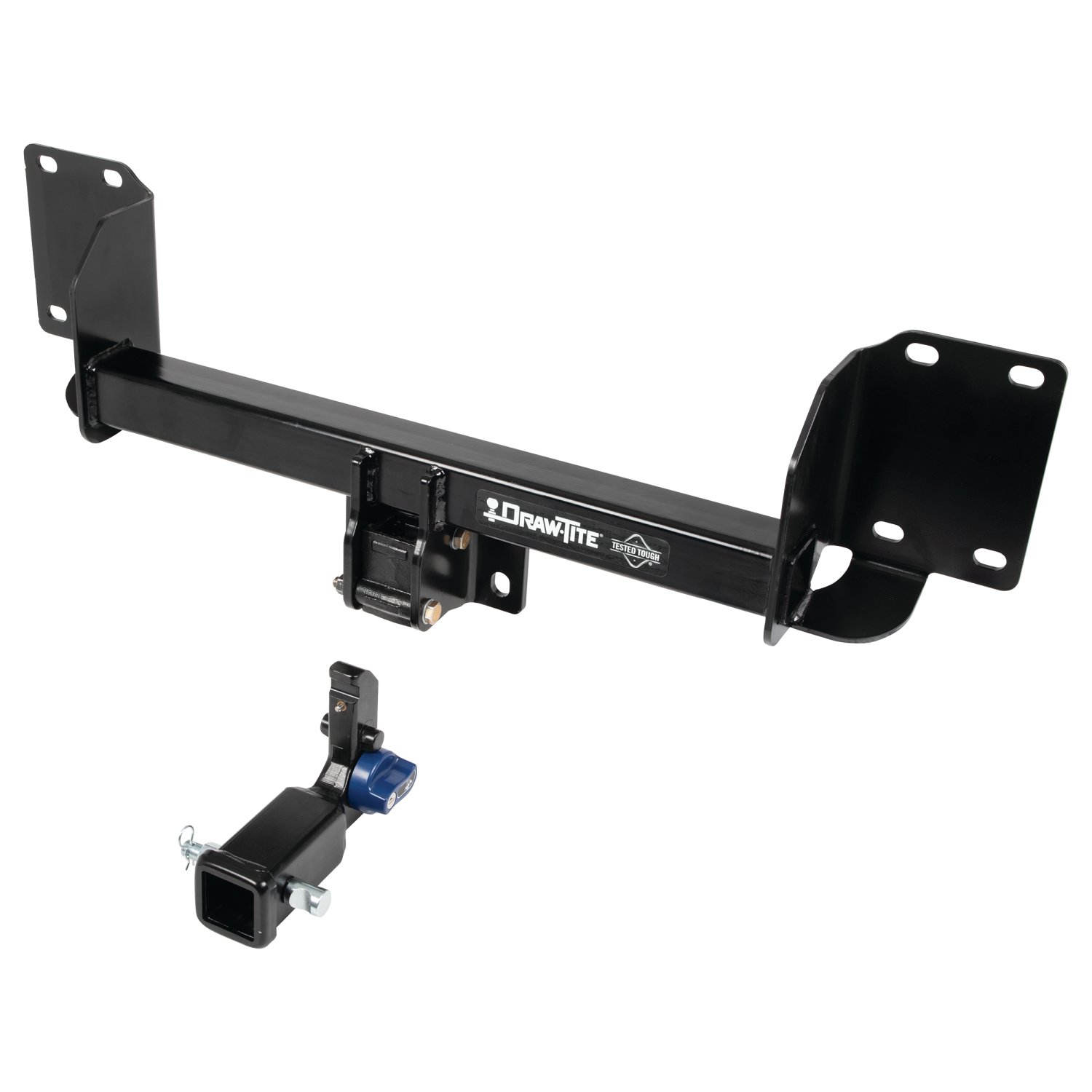

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 350 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76908 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 42.15 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 350 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |

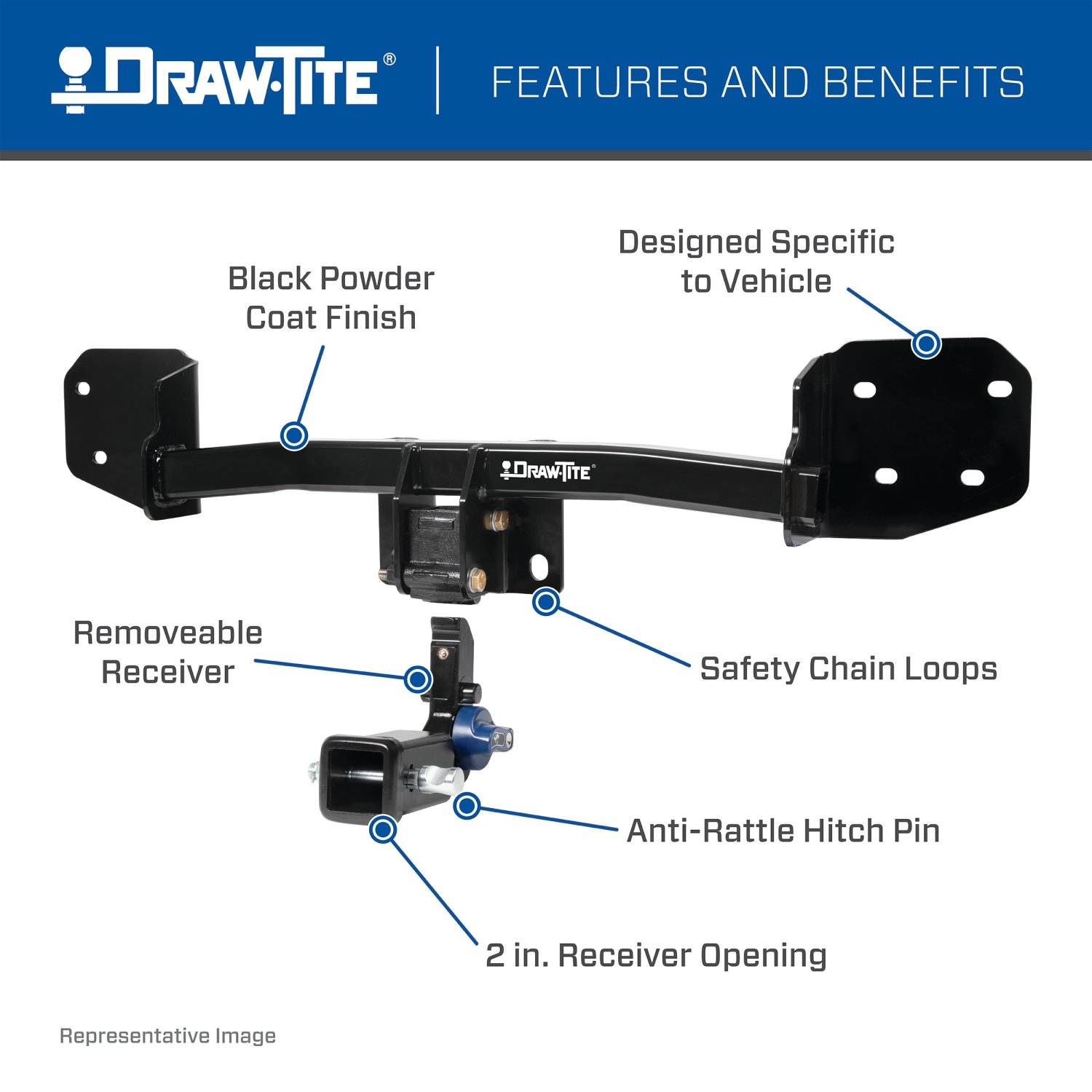

| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.

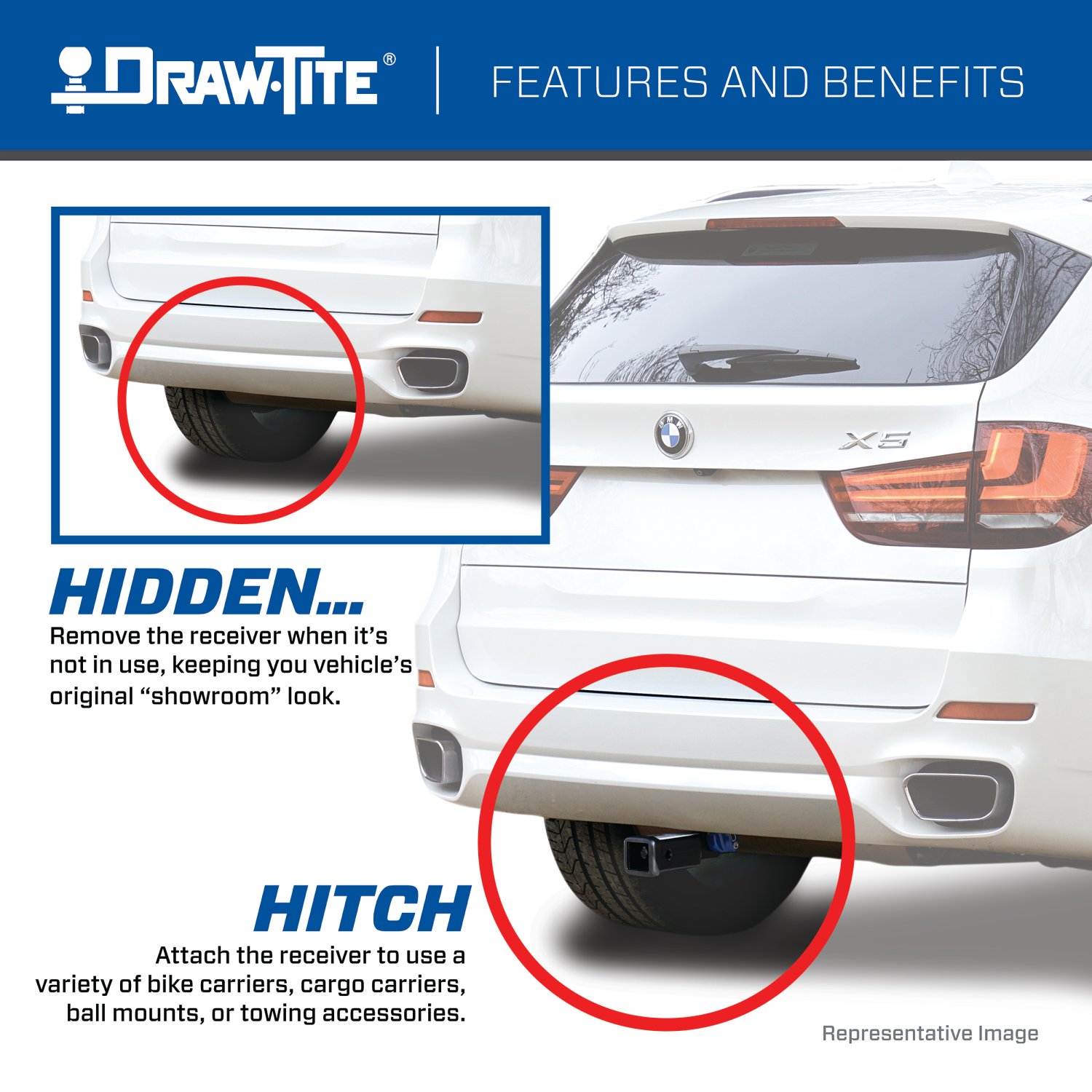

The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw-Tite® Trailer Hitches | Receiver Hitches
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2026 | BMW X5 | Class 3 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 90 minutes |
Yes, the Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select BMW X5 76908 (Part #DT76908) is designed to fit the 2019-2026 BMW X5.
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select BMW X5 76908 (Part #DT76908) fits 2019-2026 BMW X5 models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select BMW X5 76908 (Part #DT76908) fits the following vehicles: 2019-2026 BMW X5. Always verify your specific year, make, and model before ordering.
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select BMW X5 76908 (Part #DT76908) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 76908 fits 2019-Current BMW X5 models. Visit www.horizonglobal.com for the most up-to-date information regarding specific application years and trim levels, as compatibility may vary.
Yes, part number 76908 fits 2019-Current BMW X7 models. Visit www.horizonglobal.com for the most up-to-date information regarding specific application years and trim levels, as compatibility may vary.
The 76908 fits 2019-Current BMW X5 and X7 models. Check www.horizonglobal.com for the most current trim level and year information.
The 76908 is a Weight Carrying hitch with a maximum Gross Trailer Weight (GVWR) of 3,500 lb (1,587 kg) and a maximum tongue weight of 350 lb (158 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Maximum tongue weight is 350 lb (158 kg). Do not exceed the lower of your vehicle manufacturer's rating or this limit.
Required tools include: ratchet, torque wrench, safety glasses, sockets (8 mm, 10 mm, 13 mm, 18 mm), 6-inch socket extension, utility knife, tape measure, marker, plastic rivet gun, drill with 3/16-inch bit, plastic trim tools, T30 star driver, pry bar, die grinder, and blue thread locker. A professional installer is recommended if you are not comfortable performing the installation yourself.
Yes. A torque wrench is required to tighten the M12 fasteners to the correct specification (65 lb-ft for X5, 68 lb-ft for X7).
Fastener Kit 76908F includes: 6 plastic rivets, 2 M12 bolts (1.75×100 mm, CL10.9), 2 washers (7/16 inch), and 2 prevailing torque nuts (M12×1.75, CL10). Fastener Kit 76908F2 includes 1 warning card and 2 warning labels. The existing M12 nuts from the bumper beam are reused for hitch installation.
The average installation time for professional installers is 90 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
The manual does not specify whether battery disconnection is required. Contact Horizon Global technical support at 800-632-3290 or TechnicalSupport@horizonglobal.com for guidance on this step.
The first step is to remove the rear bumper fascia. Gently pull back the wheel well molding with plastic trim tools to locate plastic rivets (1 on each side). Use a drill to remove 2 plastic rivets from each side of the plastic wheel well molding and fascia. Rivets cannot be reused; replacements are supplied.

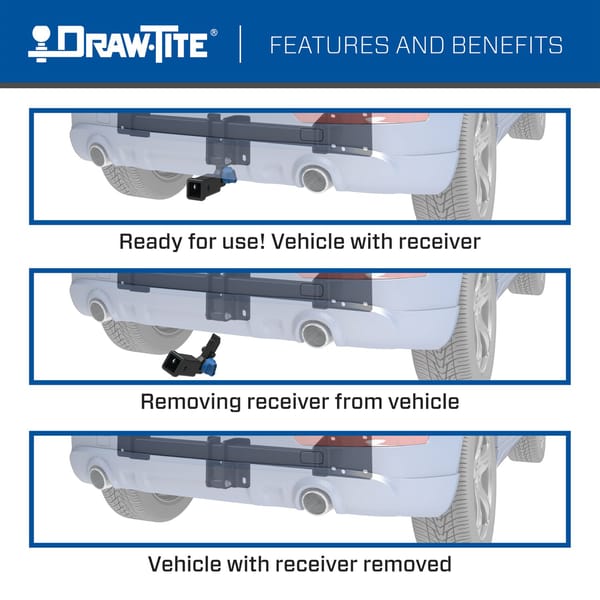

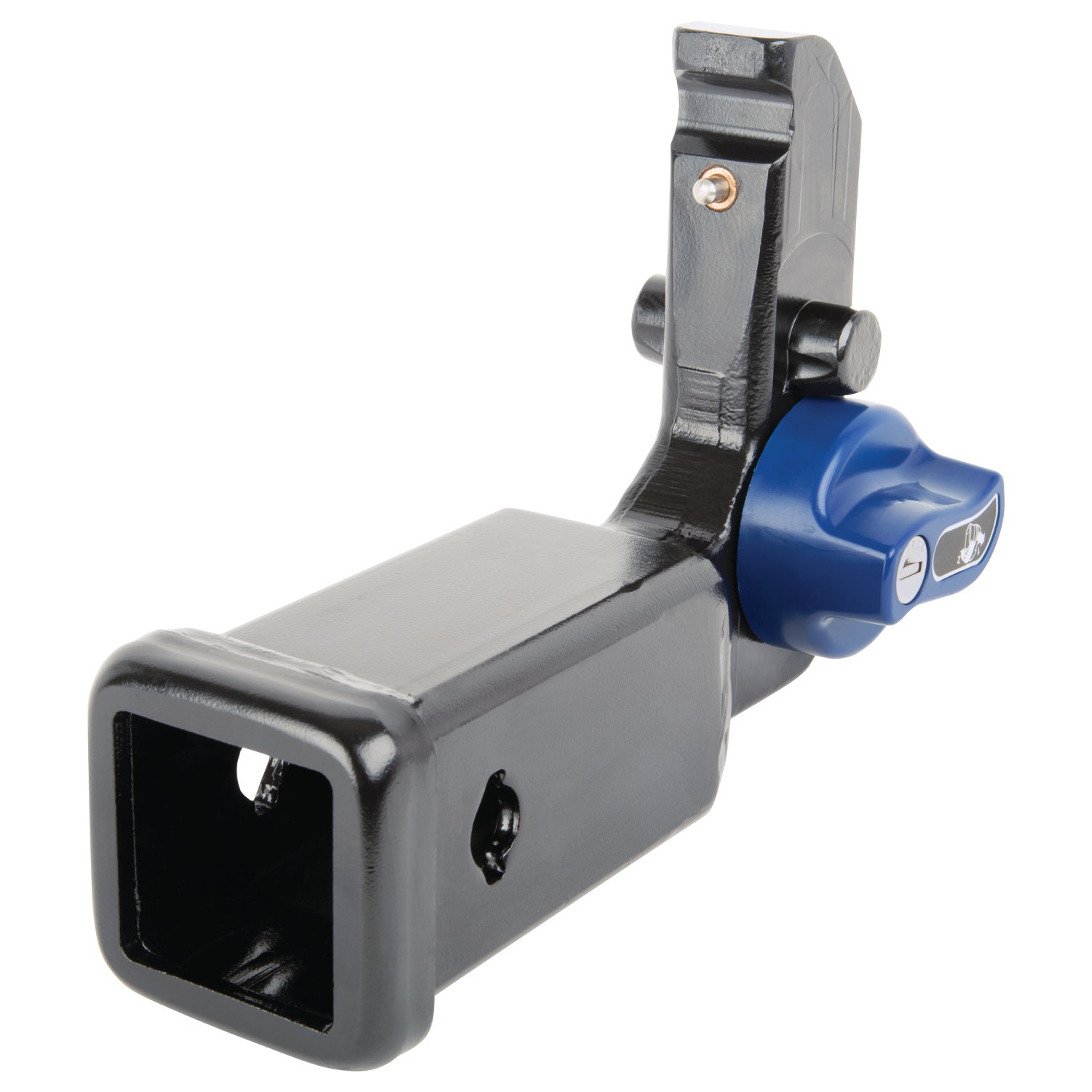

Use the key to unlock the blue knob. Push in the blue knob and rotate it clockwise until you hear a click sound. At that point, you can separate the receiver from the receiver housing.
Two fastener assemblies are used: each consists of an M12 bolt, a flat washer, and a prevailing torque nut. Insert them through the holes in the receiver housing and hitch brackets, then torque each to 92 lb-ft (125 N·m).
Yes. Install the weather covers to the top and bottom of the receiver housing before attaching it to the hitch.
Yes. A drill with a 3/16-inch bit is required to remove plastic rivets from the wheel well molding and fascia during bumper removal. Rivets cannot be reused; replacement rivets are supplied.
Yes. The bumper beam mounting plate must be trimmed by 1 inch on each side. Additionally, the fascia panel must be trimmed in the area shown in the installation figures. A utility knife is used for fascia trimming, and a die grinder is used for bumper beam trimming. Obtain vehicle owner approval before cutting.
Trim the bumper beam mounting plate by 1 inch on each side using a die grinder.
No. Do not cut access or attachment holes with a torch. Use a die grinder for the bumper beam and a utility knife for the fascia.
Torque each of the two M12 fastener assemblies (bolt, washer, and prevailing torque nut) to 92 lb-ft (125 N·m).
Torque all M12 fasteners to 65 lb-ft (88 N·m).
Torque all M12 fasteners to 68 lb-ft (92 N·m).
X5 models require M12 fasteners to be torqued to 65 lb-ft (88 N·m), while X7 models require them to be torqued to 68 lb-ft (92 N·m). Both use the same fastener size and type but different torque values.
Yes. For both X5 and X7 models, you must disconnect the back-up sensor wiring and hands-free sensor before lowering the exhaust. The electrical connector on the passenger side of the fascia must also be disconnected before removing the bumper fascia.
Yes. The electrical wiring harness must be disconnected from the vehicle before removing the bumper fascia. For X7 models, a rivet securing wiring to the bumper beam must be removed with a pry bar before removing the bumper beam.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Load the trailer heavier in front. Do not exceed the lower of your towing vehicle manufacturer's rating or the hitch rating of 3,500 lb GVWR and 350 lb tongue weight.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. Proper torque is needed to keep the hitch secure to the vehicle when towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact retorque interval; contact Horizon Global technical support at 800-632-3290 for guidance on retorque schedules.

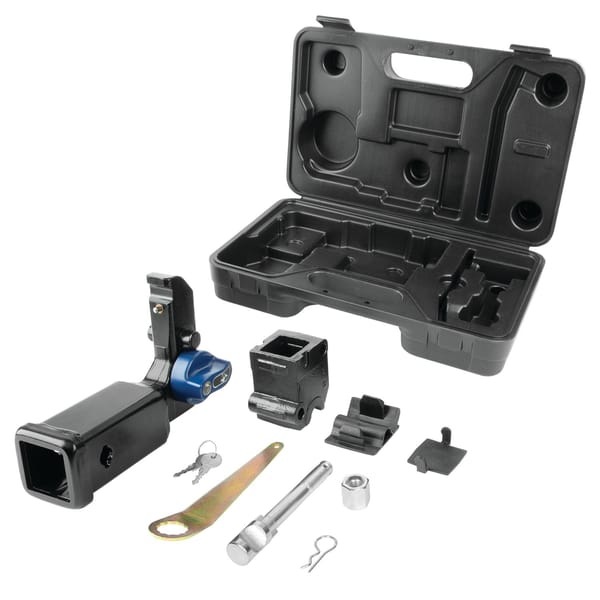

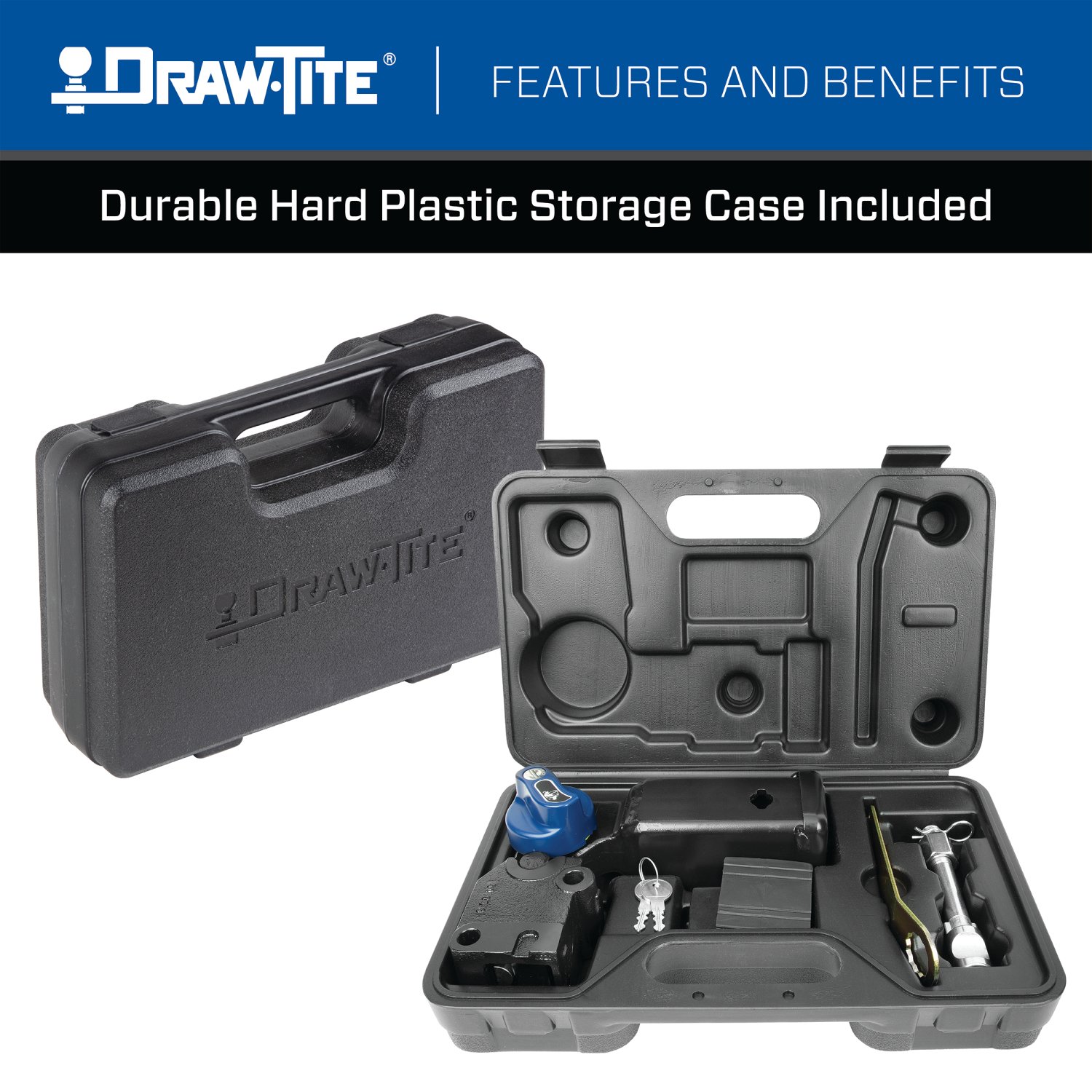

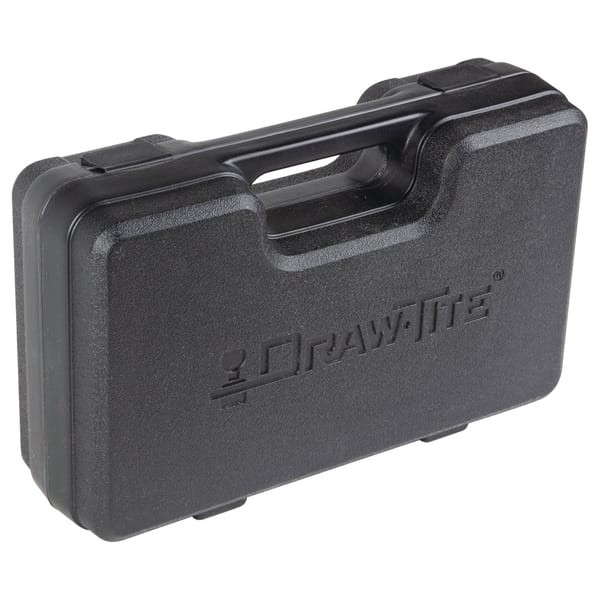

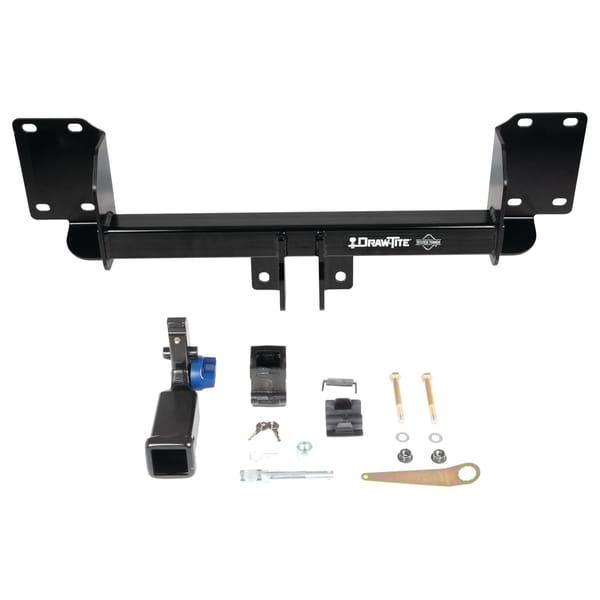

The 76908 hitch package includes the hitch receiver assembly, receiver housing with weather covers, fastener kits (76908F and 76908F2), a warning card, and warning labels. The receiver assembly (part 76900N) may be included or sold separately; check with your retailer or visit www.draw-tite.com.
For X5 models, the removal order is: (1) Remove rear bumper fascia, (2) Lower exhaust and disconnect sensor wiring, (3) Remove bumper beam, (4) Trim bumper beam mounting plate by 1 inch, (5) Apply blue thread locker to studs, (6) Raise hitch into position and sandwich with trimmed impact bar, (7) Tighten all M12 fasteners to 65 lb-ft, (8) Trim fascia using utility knife, (9) Reinstall all components.
For X7 models, the removal order is: (1) Remove taillights, (2) Remove reflector, (3) Lower exhaust, (4) Remove bumper fascia, (5) Remove panels under tailgate, (6) Remove bumper beam, (7) Trim bumper beam plate by 1 inch, (8) Install hitch with blue thread locker on studs, (9) Tighten all M12 fasteners to 68 lb-ft, (10) Trim fascia panel, (11) Reinstall all components.
Yes. Apply blue thread locker to the studs before raising the hitch into position and sandwiching it with the trimmed impact bar.
Yes. The existing M12 nuts from the bumper beam should be kept and reused for hitch installation. The manual states to 'Keep the nuts for hitch installation.'
Remove the spacer beam and return it to the vehicle owner. Leave the gasket seal in place.
Keep the warning card in the vehicle glove compartment. Apply one label to the top of the receiver and one label to the vehicle door jamb.
The 76908 includes a Limited Lifetime Warranty covering material defects in materials and workmanship, ordinary wear and tear excepted. The warranty is valid only if products are returned for inspection, the defect is confirmed to be material and not caused by misuse, neglect, improper installation, or accident, and the product was installed, maintained, and used according to instructions. Product replacement is the sole remedy. Contact Horizon Global at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, 1-800-632-3290, or TechnicalSupport@horizonglobal.com to initiate a claim.
No. Do not cut, weld, or modify this receiver. Any modification may compromise safety and void the warranty.
The 76908 accepts ball mounts with a maximum rise of 10.5 inches (distance from center of ball hole to center of pin hole) and a minimum rise of 0.75 inches (distance from top of shank to top of ball platform). Safety chain attachments include quick links #49131 (5/16 inch, max GTW 3,500 lb) and #44133 (3/8 inch, max GTW 3,500 lb), sold separately.
Quick link #49131 (5/16 inch) and #44133 (3/8 inch) are compatible, both rated for max GTW 3,500 lb. These are sold separately.
For X5 models, 2 plastic rivets must be removed from the wheel well molding (1 on each side) during bumper fascia removal, and 4 push rivets must be removed from the top fascia area. Replacement rivets are supplied and cannot be reused.
For X5 models, 16 screws must be removed from the bottom of the fascia (8 on each side) using an 8 mm socket.
For X7 models, 23 screws must be removed from the bottom edge of the fascia using an 8 mm socket.
Eight M12 nuts must be removed from the bumper beam (4 on each side) using an 18 mm deep socket. These nuts should be kept for hitch installation.
For X5 models, 2 nuts must be removed from the exhaust (1 on each side) using a 13 mm socket.
For X7 models, 1 bolt must be removed from the exhaust hanger bracket on each side (2 total) using a 13 mm socket.
Two fastener assemblies are used, each consisting of an M12 bolt, a 7/16-inch flat washer, and an M12×1.75 prevailing torque nut (CL10). These are torqued to 92 lb-ft (125 N·m).
The M12 bolts are 1.75×100 mm, Class 10.9 (CL10.9). Two are included in Fastener Kit 76908F.
The prevailing torque nuts are M12×1.75, Class 10 (CL10). Two are included in Fastener Kit 76908F.
Two taillights must be removed (one on each side). Each requires removal of 2 screws using a T30 star driver, 1 screw using an 8 mm socket, and 1 nut using a 10 mm socket from inside the trunk access panel.
Two reflectors must be removed (one on each side). Each requires removal of 1 screw using an 8 mm socket.
One rivet must be removed from the wheel well trim on each side (2 total) using a drill.
Two rivets must be removed from the panel under the tailgate on each side (4 total) using a plastic trim tool.
One nut must be removed from the panel under the tailgate on each side (2 total) using a 10 mm socket.
Blue thread locker is applied to the studs before raising the hitch into position. This helps prevent fasteners from loosening due to vibration during towing.
Plastic rivets cannot be reused. Replacement rivets are supplied with the fastener kit. To remove a broken rivet, insert a small center punch or drill bit into the center to push the pin through.
Check all fasteners and the ball to ensure they are properly tightened. Retorque all M12 fasteners to the correct specification (65 lb-ft for X5, 68 lb-ft for X7). A hitch which has become loose should be inspected for damage and may need to be removed and replaced.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
