Fulton has produced marine and utility trailer hardware for more than a century, and its jacks, winches and couplers are a standard for light and medium-duty trailering. The XLT and F2 series cover swivel and fixed jacks, hand and powered winches from 1,500 to 3,200 pounds, and couplers built to keep working in wet, salty conditions.
With more than a hundred years of production behind it, Fulton has become the reference point for light and medium-duty trailer hardware, particularly on the marine side. That environment is the toughest test a trailer component faces. A boat trailer is reversed into fresh or salt water on every launch and left to sit wet, which finds every weakness in plating, sealing and material choice. Fulton's stated position is that the brand performs best when the weather is at its worst, and its product engineering reflects that. It sits within the Horizon Global towing group alongside Reese, Draw-Tite, Bulldog, Tekonsha and Wesbar.
Marine and utility jacks anchor the line. The XLT Series marine jack uses a bolt-through swivel mount built from three-dimensionally formed heavy-gauge steel stampings with a proprietary bushing material, a combination chosen to minimise deflection under tongue load while keeping the swivel action working after years of exposure. The F2 Series takes corrosion resistance further as the industry's only extruded aluminium marine jack with an anodised finish, which removes the rust problem at its source rather than coating over it. The wider trailer jack range covers topwind, sidewind and drop-leg configurations.
Trailer winches pull boats onto bunks and rollers. XLT Series winches use efficient gear ratios, full-length drum bearings, oil-impregnated shaft bushings and a Comfort Grip handle that makes the last few turns under load bearable, in 1,500 and 1,800 pound capacities. F2 Series winches use an enclosed frame for a cleaner look and added protection, in 1,600, 2,000 and 3,200 pound models, including two-speed options that trade line speed for cranking effort.
Couplers complete the range, including A-frame couplers matched to common tongue sizes and load ratings, serving boat owners, utility trailer users and trailer manufacturers.
Experts available to answer your questions
Call 888-634-9494Lifetime

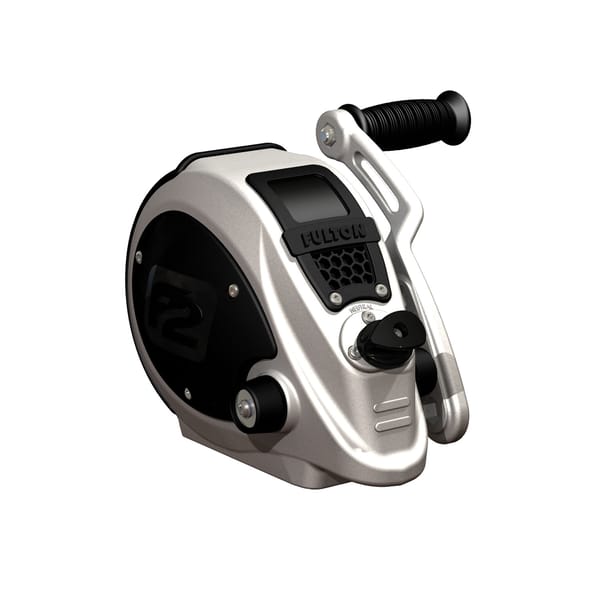

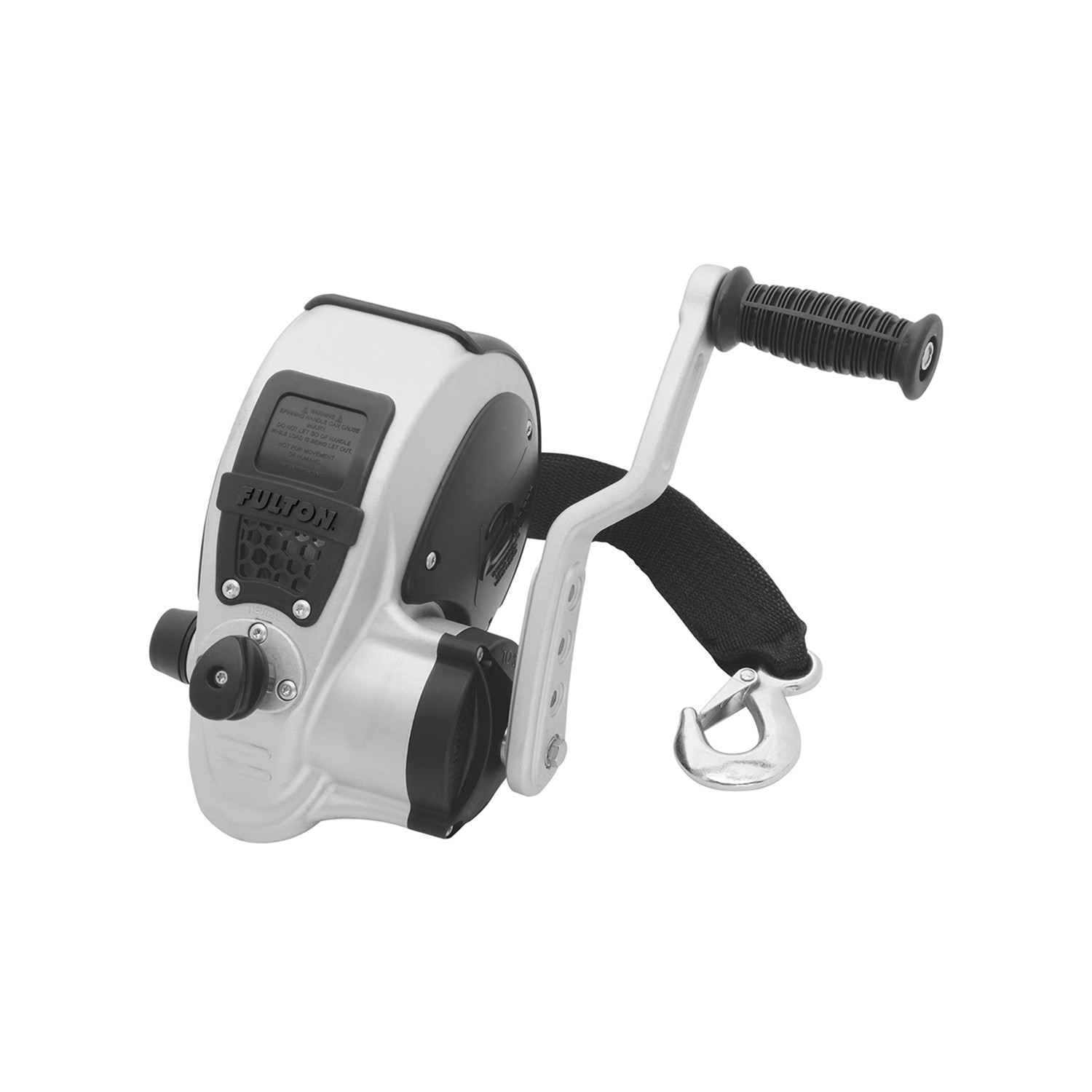

Fulton® F2® Winches
The product is model F3647, revision Rev-B 19169, published 05/13. This is a manual-operation trailer winch manufactured by Cequent Performance Products, Inc. under the Fulton brand.
The manual does not state a specific maximum load capacity. You must refer to the stamped markings on the top of the winch to obtain the rated capacity. If uncertain, contact Cequent Trailer Products at 1-800-632-3290 or www.cequentgroup.com.
Three 3/8" diameter grade-5 carriage bolts with lock nuts are supplied. These are torqued to 28–30 ft-lbs during installation to the mounting structure.
A 9/16" socket is required to torque the handle locknut to 20–25 ft-lbs. A torque wrench capable of 28–30 ft-lbs is needed to secure the three mounting bolts. The manual does not specify other tools required for mounting the winch to the trailer structure.
The mounting surface must be equal to or greater than the footprint of the winch frame. The winch is secured using three supplied 3/8" diameter grade-5 carriage bolts and lock nuts, torqued to 28–30 ft-lbs. After installation, verify that the winch is secure to the mounting structure.
Assemble the handle assembly as shown in the diagram. Torque the locknut to 20–25 ft-lbs using a 9/16" socket. Do not over-torque.
Yes. The adjustable handle (6" to 9" length) can be mounted in right or left-hand orientation. To switch orientation, first remove the bolt and washers from each side of the drive shaft. Push the hex shaft 1/2"–3/4" through to the other side. Do not remove the shaft completely, as this keeps internal gears and bushings aligned. Place the handle bolt and washers on the handle side and torque to 22–25 ft-lbs. Repeat for the opposite side. Do not over-torque.
Use the strap anchor provided with the winch. Pass the strap loop under the cross bolt, insert the strap anchor into the strap loop, then pull tight. Always maintain a minimum of three complete wraps of strap on the drum.
Torque the handle locknut to 20–25 ft-lbs using a 9/16" socket.
When configuring the handle for right or left-hand operation, torque the handle bolt and washers to 22–25 ft-lbs on each side of the shaft. Do not over-torque.
Torque the three 3/8" diameter grade-5 carriage bolts with lock nuts to 28–30 ft-lbs when attaching the winch to the mounting structure.
Fulton brand winches require a maximum of 45 lbs of handle force to pull the rated load. If you cannot crank the winch with one hand, you are potentially overloading the winch. Excessive force in turning the winch handle may indicate overload.
Always maintain a minimum of three complete wraps of strap on the drum. Capacity is based on direct line pull on the third layer of strap on the drum and is reduced as strap builds up on the drum.
Never position any part of your body under or in the path of the product or load. Never stand alongside the winch or guide the strap with your hands. Never operate with slippery, wet, or oily hands; always maintain a firm grip on the winch handle. Do not attempt to stop the winch by grabbing the handle while in motion. Never release the crank handle unless the ratchet plunger is fully engaged and the load is supported. Do not allow children to play on or around the product or load. Do not use the winch to move humans.
No. Winches are not designed to secure boats to trailers while towing. Boat tie-downs must be used for this purpose.
Do not use cable or rope with the F3647 winch. Use only the strap provided or approved replacements.
Check the final installation and make sure the winch is secure to the mounting structure. Verify that all three mounting bolts are properly torqued to 28–30 ft-lbs.
Periodically check mounting hardware for proper torque and tighten if necessary. Inspect the strap and replace if damaged. Gears, ratchet contact points, and shaft bushings must be kept lubricated with thin oil or grease. Occasional cleaning with mild soap and water along with light oil lubrication of contact points will prolong peak performance and appearance.
Periodically check mounting hardware for proper torque and tighten if necessary. The manual does not specify an exact interval; check before each use and at regular intervals during the season.
A loud clicking sound from the ratchet must be heard when pulling the load. If the winch is properly engaged but you do not hear a loud clicking sound, do not use the winch and replace the ratchet components immediately.
If you cannot crank the winch with one hand, you are potentially overloading the winch. Excessive force in turning the winch handle may indicate overload. Fulton brand winches require a maximum of 45 lbs of handle force to pull the rated load. Reduce the load or check that you have not exceeded the maximum rated capacity.
The F3647 is a universal trailer winch. The mounting surface must be equal to or greater than the footprint of the winch frame. Consult the manual or contact Cequent at 1-800-632-3290 for fitment to your specific trailer.
Three 3/8" diameter grade-5 carriage bolts with lock nuts are supplied for mounting to the trailer structure.
Torque the three 3/8" diameter grade-5 carriage bolts to 28–30 ft-lbs.
Always maintain a minimum of three complete wraps of strap on the drum.
Gears, ratchet contact points, and shaft bushings must be kept lubricated with thin oil or grease. Light oil lubrication of contact points will prolong performance.
A loud clicking sound from the ratchet must be heard when pulling the load. If the winch is properly engaged but you do not hear a loud clicking sound, do not use the winch. Replace the ratchet components immediately. Contact Cequent Performance Products at 1-800-632-3290 for replacement parts.
Excessive force in turning the winch handle may indicate overload. Fulton brand winches require a maximum of 45 lbs of handle force to pull the rated load. If you cannot crank the winch with one hand, you are potentially overloading the winch. Reduce the load and verify that you have not exceeded the maximum rated capacity stamped on the winch. Also check that gears and contact points are properly lubricated.
The winch will not hold the load when the load is being let out. Ensure the ratchet plunger is fully engaged in the forward or loading position before releasing the handle. Never release the crank handle unless the ratchet plunger is fully engaged and the load is supported. If the ratchet plunger does not engage properly, replace the ratchet components immediately.
