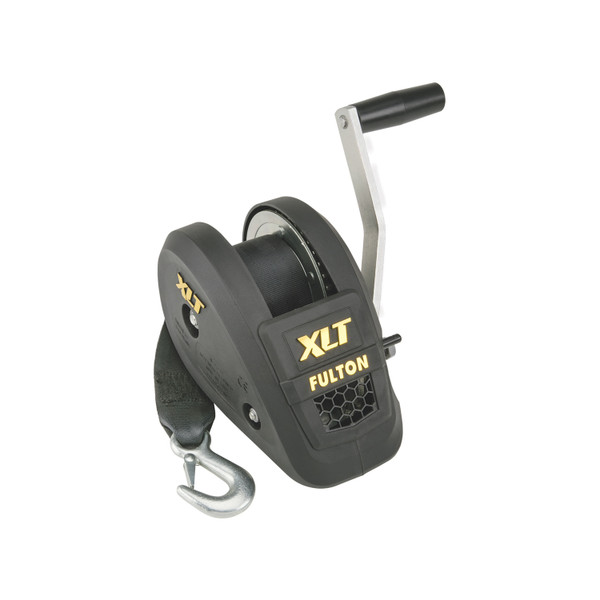

Fulton XLT Marine Trailer Winch, Single-Speed, 1,500 lbs. Capacity, 20 ft. Strap, 8 in. HandleFulton$128.83Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Fulton
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Fulton XLT single speed winches are designed to meet your toughest pulling demands. Featuring solid drum gear construction, factory-lubricated drive systems, and industry-leading Z-MAX 600 high performance zinc finish. Our XLT Series includes a stylized polypropylene shell with strap and hook
| BRAND: | FULTON |
| PART NUMBER: | 142320 |
| WARRANTY: | LIMITED 5 YEAR WARRANTY |
| WEIGHT: | 8.45 LBS |
| CAPACITY: | 1,500 LBS. |
| UNIVERSAL OR SPECIFIC FIT: | UNIVERSAL |
| TYPE: | SINGLE SPEED |
| WATERPROOF: | YES |
| HOOK INCLUDED: | YES |
| CABLE LENGTH: | 20 FT. |
| BRAKE ACTIVATION: | MANUAL |
| RATED LINE PULL: | 1,500 LBS. |
| GEAR MATERIAL: | STEEL |
| MATERIAL: | STEEL |
| FREE SPOOLING: | YES |
| HARDWARE INCLUDED: | YES |
| HOUSING MATERIAL: | PLASTIC |
| TREE SAVER: | NO |
| FRAME MATERIAL: | Aluminum |
| COLOR: | BLACK |
Fulton has produced marine and utility trailer hardware for more than a century, and its jacks, winches and couplers are a standard for light and medium-duty trailering. The XLT and F2 series cover swivel and fixed jacks, hand and powered winches from 1,500 to 3,200 pounds, and couplers built to keep working in wet, salty conditions.
With more than a hundred years of production behind it, Fulton has become the reference point for light and medium-duty trailer hardware, particularly on the marine side. That environment is the toughest test a trailer component faces. A boat trailer is reversed into fresh or salt water on every launch and left to sit wet, which finds every weakness in plating, sealing and material choice. Fulton's stated position is that the brand performs best when the weather is at its worst, and its product engineering reflects that. It sits within the Horizon Global towing group alongside Reese, Draw-Tite, Bulldog, Tekonsha and Wesbar.
Marine and utility jacks anchor the line. The XLT Series marine jack uses a bolt-through swivel mount built from three-dimensionally formed heavy-gauge steel stampings with a proprietary bushing material, a combination chosen to minimise deflection under tongue load while keeping the swivel action working after years of exposure. The F2 Series takes corrosion resistance further as the industry's only extruded aluminium marine jack with an anodised finish, which removes the rust problem at its source rather than coating over it. The wider trailer jack range covers topwind, sidewind and drop-leg configurations.
Trailer winches pull boats onto bunks and rollers. XLT Series winches use efficient gear ratios, full-length drum bearings, oil-impregnated shaft bushings and a Comfort Grip handle that makes the last few turns under load bearable, in 1,500 and 1,800 pound capacities. F2 Series winches use an enclosed frame for a cleaner look and added protection, in 1,600, 2,000 and 3,200 pound models, including two-speed options that trade line speed for cranking effort.
Couplers complete the range, including A-frame couplers matched to common tongue sizes and load ratings, serving boat owners, utility trailer users and trailer manufacturers.
Experts available to answer your questions
Call 888-634-94945 Years
Cequent trailer winches are available in capacities ranging from 900 lbs to 3700 lbs. The exact capacity depends on the specific model. You can find the rated capacity stamped on markings or decals on the product itself. If you are uncertain of the capacity, contact Cequent Performance Products at 1-800-632-3290 or visit www.cequentgroup.com.
Cequent trailer winches are designed for manual operation only. The load rating is based on an intermittent duty cycle. They are hand-crank operated and are not designed for motorized or powered operation.
No. Only winches with a hub diameter of 1 3/4" can accommodate steel cable. Winches designed for steel cable have a larger drum hub to reduce bending fatigue and extend cable life. Check the Winch Information Chart to confirm your model supports steel cable before purchasing or using steel cable. Neatly wrapping the cable is necessary to reduce the chance of kinking or fraying.
Cequent trailer winches can accommodate rope, strap, or steel cable, depending on the model. Rope requires no bolts, nuts, or clamps and is woven through the drum outer wall and secured beneath itself. Strap requires a grade 5 bolt of the largest possible diameter through holes in the drum. Steel cable can only be used on winches with a 1 3/4" hub diameter and is looped around the drum bearing and clamped. Check the Winch Information Chart to confirm which line types your specific model supports.
Three 3/8" diameter grade-5 bolts are required to mount the winch to the stand or frame. These bolts are not supplied with the winch. The mounting bolts vary in length depending on the application, so you must determine the correct length for your specific installation. The mounting surface must be equal to or greater than the footprint of the winch frame, and the winch stand must be capable of supporting at least five times the rated capacity of the winch.
A grade 5 bolt of the largest possible diameter is required for strap mounting. The exact size depends on your winch model. Refer to the Winch Information Chart for your specific model's strap bolt size. For example, 900 lbs and 1100 lbs models use M6 x 65mm (metric) or 1/4" x 2-3/4" (standard), while larger models use M8 x 66mm or 5/16" x 2-3/4". Tighten the locknut just to where end play in the bolt is taken up; over-tightening can deform the drum.
The manual does not address battery disconnection. Since these are manual hand-crank winches with no electrical components, battery disconnection is not applicable. However, consult the installation instructions for your specific trailer or mounting structure, as they may have electrical requirements.
Attaching a rope requires no bolts, nuts, or clamps. The rope must weave through the drum outer wall and be secured beneath itself, as shown in the manual illustration. Always maintain a minimum of three complete wraps of rope on the drum. The rope is self-securing through this weaving method.
For winches with a strap anchor included: 1) Pass the strap loop under the cross bolt. 2) Insert the strap anchor into the strap loop. 3) Pull tight. The cross bolt goes through holes in the drum and uses a grade 5 bolt of the largest possible diameter for your model. Tighten the locknut just to where end play in the bolt is taken up. Do not over-tighten, as this can deform the drum.
If attaching a strap without a strap anchor to a plastic-covered winch: 1) Remove the drum bolt. 2) Gently separate the plastic cover to allow the winch drum to be removed. 3) Install the strap according to the instructions (pass it through the drum holes and secure with the cross bolt). 4) Re-install the winch drum as it was before. Tighten the locknut just to where end play in the bolt is taken up. Do not over-tighten, as this can deform the drum.
1) Pass the cable from the inside of the drum through one of the dimpled holes in the outer plate. 2) Loop the cable around the drum bearing, under itself. 3) Leave 1" of cable extending past the clamp location. 4) Tighten the clamp nuts to approximately 2 ft-lbs. Steel cable can only be used on winches with a 1 3/4" hub diameter. Neatly wrap the cable to reduce the chance of kinking or fraying.
1) Assemble the handle onto the flatted input shaft end. 2) Tighten the 1/2" - 13 locknut against the handle. 3) Torque the locknut to 22-25 ft-lbs. Do not over-torque the locknut.
When attaching the winch to the stand or frame, use three 3/8" diameter grade-5 bolts and torque them to 28-30 ft-lbs. The mounting bolts vary in length depending on the application. After installation, check that the winch is secure to the mounting structure.
The 1/2" - 13 handle locknut should be torqued to 22-25 ft-lbs. Do not over-torque.
On single-speed winches, torque the drum locknut to 9-10 ft-lbs. Do not over-tighten, as this may crush the spacer between the frame and keep the drum from turning.
On two-speed winches, torque the drum locknut to 24 ft-lbs. Do not over-tighten, as this may crush the spacer between the frame and keep the drum from turning.
Tighten the clamp nuts for steel cable to approximately 2 ft-lbs.
Winches require a maximum of 45 lbs of handle force to pull their rated load. If you cannot crank the winch with one hand, you are potentially overloading the winch. Excessive force in turning the winch handle may indicate overload.
Always maintain a minimum of three complete wraps of rope, strap, or cable on the drum. For strap, maintain at least three layers on the drum. Never fully unwind the line from the drum.
Before each use: 1) Inspect rope, strap, or cable and replace if damaged. 2) Check mounting hardware for proper tightness and tighten if necessary. 3) Always inspect the cable or strap and its attachment before each use to make sure they are not damaged. Never use them if they are worn, kinked, or frayed. 4) Apply a drop or two of #30 weight engine oil to each bushing I.D. and to the ratchet pawl pivot points. 5) Maintain a thin layer of chassis grease on the gear teeth.
No. Do not use a winch to move humans. Winches are designed only for lifting and lowering loads, not for moving people.
No. Winches are not designed to secure boats to trailers while towing. Boat tie-downs should be used for this purpose.
A loud clicking sound from the ratchet must be heard when lifting the load. If a loud clicking sound is not heard, do not use the winch and replace the ratchet components immediately. This clicking indicates that the ratchet pawl is properly engaged and holding the load.
Never operate the winch with slippery, wet, or oily hands. Always maintain a firm grip on the winch handle. Never stand alongside the winch cable, strap, or rope, and never guide the cable, strap, or rope with your hands. Do not attempt to stop a winch by grabbing the handle while it is in motion.
Never release the crank handle unless the ratchet pawl is fully engaged and the load is supported. Always ensure the ratchet is holding the load before letting go of the handle.
No. Never leave a weight supported from the winch while the winch is unattended. Another person may attempt to operate the winch, thereby creating an unsafe condition.
Assure there is adequate safety factor of at least 3 times the maximum load for all components used. This means if you are lifting a 1000 lb load, all components in the system must be rated for at least 3000 lbs.
After installation: 1) Check final installation and make sure the winch is secure to the mounting structure. 2) Verify that the mounting surface is equal to or greater than the footprint of the winch frame. 3) Confirm that the winch stand is capable of supporting at least five times the rated capacity of the winch. 4) Check that all three 3/8" diameter grade-5 mounting bolts are torqued to 28-30 ft-lbs.
Periodically check mounting hardware for proper torque and tighten if necessary. The manual does not specify an exact interval, but regular inspection before use is recommended.
Apply a drop or two of #30 weight engine oil to each bushing I.D. and to the ratchet pawl pivot points. Maintain a thin layer of chassis grease on the gear teeth. This should be done before each use.
Always replace bent, broken, or worn parts before using the product. Inspect the rope, strap, or cable before each use and replace if damaged. Never use cable or strap if they are worn, kinked, or frayed.
Cequent Performance Products warrants the winch to the original consumer purchaser only that the product will be free from material defects in both material and workmanship for a period of five years, ordinary wear and tear excepted, provided that installation and use of the product is in accordance with product instructions. The warranty does not cover normal wear and tear, damage from abuse, neglect, misuse, accidents, misapplication, overloading, improper installation, improper maintenance and repair, or product alteration by anyone other than Cequent. To make a warranty claim, contact Cequent at 47912 Halyard Dr. Suite 100, Plymouth, MI 48170, 1-800-632-3290.
Use only Cequent Performance Products' parts or parts of equal quality for repair. Replacement parts are available through Cequent Performance Products' Customer Service Department at 1-800-632-3290. Please specify the product model number when ordering.
Cequent trailer winches are available in capacities from 900 lbs to 3700 lbs in single-speed and two-speed models. Check the Winch Information Chart for your model's specifications. The winch stand must support at least 5 times the rated capacity, and the mounting surface must equal or exceed the winch frame footprint. Consult your trailer documentation or contact Cequent at 1-800-632-3290 for fitment confirmation.
Three 3/8" diameter grade-5 bolts are required (not supplied). Bolt length varies by application. Torque to 28-30 ft-lbs. The mounting surface must equal or exceed the winch frame footprint, and the stand must support at least 5 times the winch's rated capacity.
The manual does not specify whether drilling is required. This depends on your mounting structure. If your trailer or stand does not have pre-drilled holes for the three 3/8" diameter mounting bolts, drilling will be necessary. Consult your trailer documentation or contact Cequent at 1-800-632-3290 for guidance specific to your application.
Never exceed the maximum rated capacity stamped on the product. Capacities range from 900 lbs to 3700 lbs depending on model. If you cannot crank the winch with one hand, you are potentially overloading it. Winches require a maximum of 45 lbs of handle force to pull their rated load. Check the product markings or contact Cequent at 1-800-632-3290 if uncertain.
Mounting bolts: 28-30 ft-lbs (three 3/8" grade-5 bolts). Handle locknut: 22-25 ft-lbs (1/2" - 13). Drum locknut single-speed: 9-10 ft-lbs. Drum locknut two-speed: 24 ft-lbs. Steel cable clamp nuts: approximately 2 ft-lbs. Do not over-torque drum locknuts as this may crush the spacer.
Before each use: inspect rope/strap/cable for damage, check mounting hardware tightness, apply #30 weight engine oil to bushings and ratchet pawl pivots, maintain thin chassis grease on gear teeth. Periodically check mounting hardware torque. Always replace bent, broken, or worn parts. Never use damaged cable or strap.
Only if your winch has a 1 3/4" hub diameter. Check the Winch Information Chart for your model. Winches designed for steel cable have a larger drum hub to reduce bending fatigue. Neatly wrap the cable to prevent kinking or fraying.
If a loud clicking sound is not heard when lifting the load, do not use the winch. The ratchet pawl is not properly engaged. Replace the ratchet components immediately. Do not attempt to operate the winch until the ratchet is repaired or replaced.
Excessive force in turning the winch handle may indicate overload. Winches require a maximum of 45 lbs of handle force to pull their rated load. If you cannot crank the winch with one hand, you are potentially overloading the winch. Reduce the load or verify that you are not exceeding the winch's maximum rated capacity.
Check that the drum locknut is not over-tightened. Over-tightening the drum locknut may crush the spacer between the frame and prevent the drum from turning. On single-speed winches, the locknut should be torqued to 9-10 ft-lbs. On two-speed winches, torque to 24 ft-lbs. Also verify that the winch is not overloaded and that the ratchet pawl is properly engaged.
No. Never use cable or strap if they are worn, kinked, or frayed. If the cable or attachment breaks, the cable will whip violently, causing property damage, serious bodily injury, and/or death. Always inspect the cable or strap and its attachment before each use. Replace damaged line immediately before using the winch.
Verify that the ratchet pawl is fully engaged and properly holding the load. If the ratchet is not holding, do not use the winch. Check that you hear a loud clicking sound from the ratchet when lifting; if not, the ratchet components need to be replaced immediately. Also ensure that the load does not exceed the winch's maximum rated capacity and that you are not overloading the winch.
Jennifer
The staff was able to quickly assist me with locating the correct product I needed. Shipping was really fast. Item arrived in 2 days. Will be using TowUniverse again!!
May 22, 2023
Free Shipping
Ships free on all orders
Authorized Dealer
FREE ShippingFREE SHIPPING
Estimated delivery Tue, Aug 11 - Fri, Aug 14
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
| Part Number | Capacity (lbs.) | Handle Length (in.) | Max Mechanical Advance** | Rope (ft. x in.) | Strap (ft. x in.) | Recommended Strap Bolt Sizes (in.) | Strap Included | Cover |
|---|---|---|---|---|---|---|---|---|
| 142311 | 1,500 | 8.00 | 43:1 | - | 20 x 2 | 5/16 x 2-1/2 Grade 5 | Yes | Black |

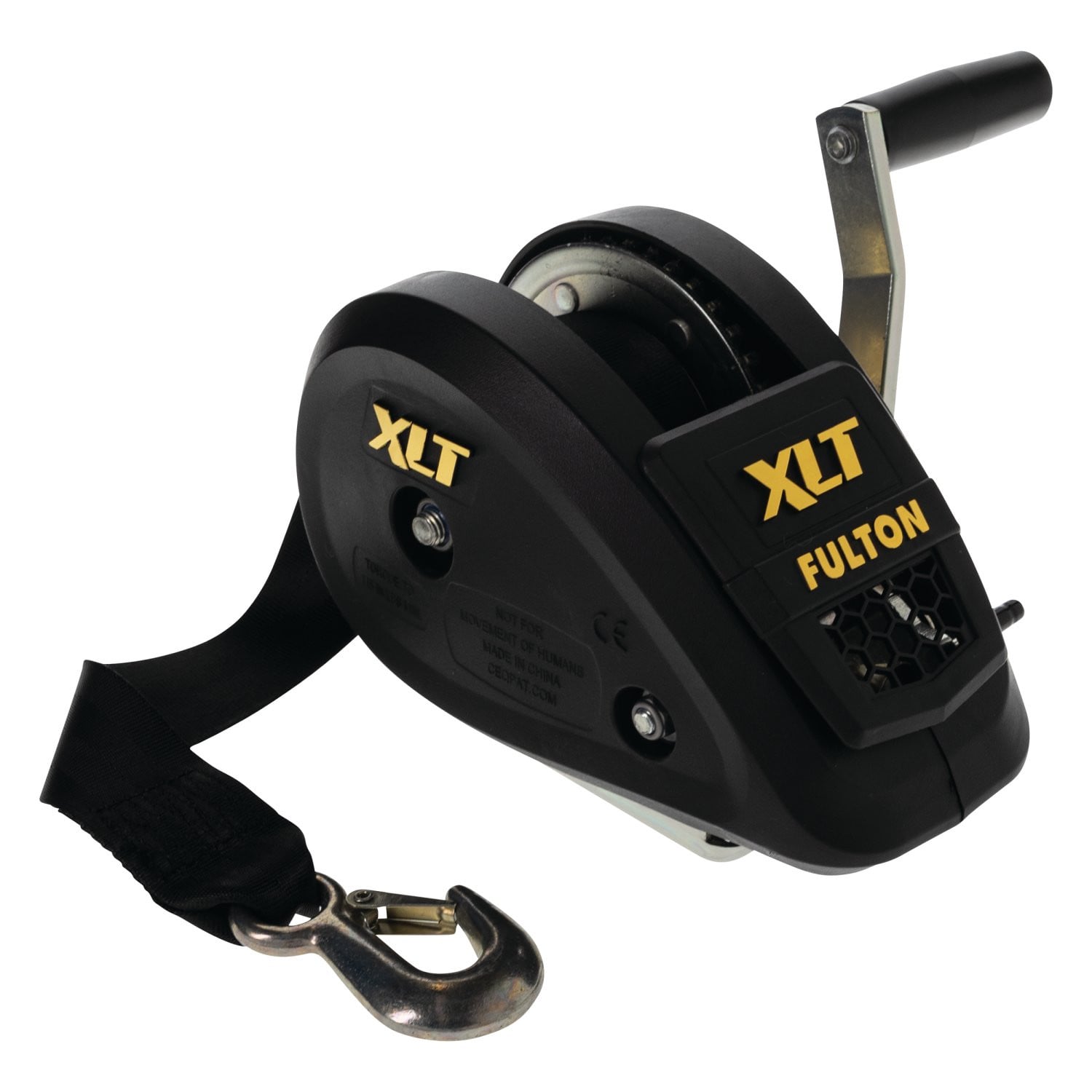

| 142313 | 1,500 | 6.00 | 43:1 | - | 20 x 2 | 5/16 x 2-1/2 Grade 5 | Yes | Black |
| 142320 | 1,500 | 10.00 | 43:1 | - | 20 x 2 | 5/16 x 2-1/2 Grade 5 | Yes | Black |
| 142314 | 1,800 | 8.00 | 62:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | Yes | Black |
| 142315 | 1,800 | 10.00 | 62:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | Yes | Black |
| 142316 | 1,800 | 8.00 | 62:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | Yes | Black |
