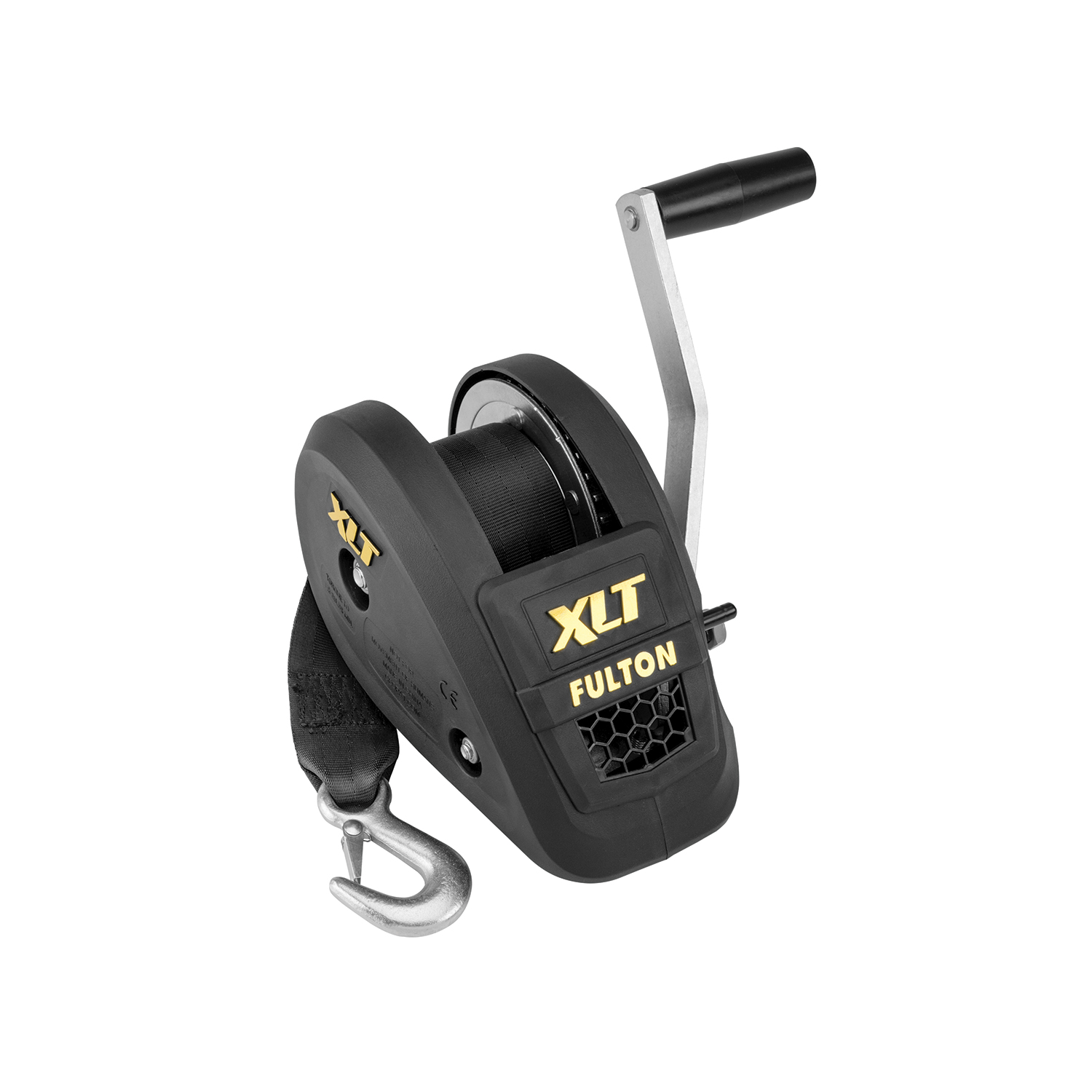

Fulton XLT Marine Trailer Winch, Single-Speed, 1,500 lbs. Capacity, 20 ft. StrapFulton$143.56Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Fulton
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Fulton XLT single speed winches are designed to meet your toughest pulling demands. Featuring solid drum gear construction, factory-lubricated drive systems, and industry-leading Z-MAX 600 high performance zinc finish. Our XLT Series includes a stylized polypropylene shell with strap and hook
| BRAND: | FULTON |
| PART NUMBER: | 142311 |
| WARRANTY: | LIMITED 5 YEAR WARRANTY |
| WEIGHT: | 8.15 LBS |
| CAPACITY: | 1,500 LBS. |
| UNIVERSAL OR SPECIFIC FIT: | UNIVERSAL |
| TYPE: | RATCHET |
| WATERPROOF: | YES |
| HOOK INCLUDED: | YES |
| HOOK TYPE: | CLEVIS SAFETY HOOK |
| CABLE LENGTH: | 20 FT. |
| REMOTE INCLUDED: | NO |
| GEAR RATIO: | 4.1:1 |
| BRAKE ACTIVATION: | MANUAL |
| HANDLE TYPE: | 8 IN. OFFSET |
| RATED LINE PULL: | 1,500 LBS. |
| GEAR MATERIAL: | STEEL |
| MATERIAL: | STEEL |
| NUMBER OF STRAPS: | 1 |
| FREE SPOOLING: | YES |
| D SHACKLE INCLUDED: | NO |
| POWER OUT: | NO |
| HARDWARE INCLUDED: | YES |
| HOUSING MATERIAL: | ALUMINUM |
| TREE SAVER: | NO |
| FRAME MATERIAL: | STEEL |
| COLOR: | SILVER |
Fulton has produced marine and utility trailer hardware for more than a century, and its jacks, winches and couplers are a standard for light and medium-duty trailering. The XLT and F2 series cover swivel and fixed jacks, hand and powered winches from 1,500 to 3,200 pounds, and couplers built to keep working in wet, salty conditions.
With more than a hundred years of production behind it, Fulton has become the reference point for light and medium-duty trailer hardware, particularly on the marine side. That environment is the toughest test a trailer component faces. A boat trailer is reversed into fresh or salt water on every launch and left to sit wet, which finds every weakness in plating, sealing and material choice. Fulton's stated position is that the brand performs best when the weather is at its worst, and its product engineering reflects that. It sits within the Horizon Global towing group alongside Reese, Draw-Tite, Bulldog, Tekonsha and Wesbar.
Marine and utility jacks anchor the line. The XLT Series marine jack uses a bolt-through swivel mount built from three-dimensionally formed heavy-gauge steel stampings with a proprietary bushing material, a combination chosen to minimise deflection under tongue load while keeping the swivel action working after years of exposure. The F2 Series takes corrosion resistance further as the industry's only extruded aluminium marine jack with an anodised finish, which removes the rust problem at its source rather than coating over it. The wider trailer jack range covers topwind, sidewind and drop-leg configurations.
Trailer winches pull boats onto bunks and rollers. XLT Series winches use efficient gear ratios, full-length drum bearings, oil-impregnated shaft bushings and a Comfort Grip handle that makes the last few turns under load bearable, in 1,500 and 1,800 pound capacities. F2 Series winches use an enclosed frame for a cleaner look and added protection, in 1,600, 2,000 and 3,200 pound models, including two-speed options that trade line speed for cranking effort.
Couplers complete the range, including A-frame couplers matched to common tongue sizes and load ratings, serving boat owners, utility trailer users and trailer manufacturers.
Experts available to answer your questions
Call 888-634-94945 Years
Cequent Performance Products offers a limited five-year warranty on trailer winches to the original consumer purchaser. The warranty covers material and workmanship defects, excluding normal wear and tear, provided the product is installed and used according to the instructions. The warranty does not cover damage from abuse, neglect, misuse, accidents, overloading, improper installation, or product alterations made by anyone other than the manufacturer.
No. Only winches with a drum hub diameter of 1 3/4" can accommodate steel cable. Winches designed for steel cable have a larger drum hub to reduce bending fatigue and extend cable life. Check your winch specifications in the Winch Information Chart to confirm steel cable compatibility before purchasing or installing cable.
A grade 5 bolt of the largest possible diameter is required for strap mounting. The specific bolt size depends on your winch capacity. Refer to the Winch Information Chart in the manual for your winch's rated capacity to find the correct strap bolt size. For example, 900–1500 lbs winches use M8 x 66mm (metric) or 5/16" x 2-3/4" (standard); 2000 lbs and higher use 3/8" x 2-3/4" (standard).
Three 3/8" diameter grade-5 bolts are required to mount the winch. The bolts must be torqued to 28–30 ft-lbs. Mounting bolt length varies by application, so verify the correct length for your specific installation. The winch stand must be capable of supporting at least five times the rated capacity of the winch, and the mounting surface must be equal to or greater than the footprint of the winch frame. Mounting hardware is not supplied with the winch.
Attaching a rope requires no bolts, nuts, or clamps. The rope must weave through the drum outer wall and be secured beneath itself, as shown in the manual illustration. Ensure the rope is properly seated and cannot slip. Always maintain a minimum of three complete wraps of rope on the drum.
For winches with a strap anchor included: pass the strap loop under the cross bolt, insert the strap anchor into the strap loop, then pull tight. For winches without a strap anchor or with a plastic cover: remove the drum bolt and gently separate the plastic cover to allow the winch drum to be removed. Install the strap according to the instructions, then reinstall the drum. Tighten the locknut just to where end play in the bolt is taken up. Do not over-tighten, as this can deform the drum. Always maintain a minimum of three complete wraps or layers of strap on the drum.
Pass the cable from the inside of the drum through one of the dimpled holes in the outer plate. Loop the cable around the drum bearing, under itself, and leave 1" of cable extending past the clamp location. Tighten the clamp nuts to approximately 2 ft-lbs. Neatly wrap the cable to reduce the chance of kinking or fraying. Always maintain a minimum of three complete wraps of cable on the drum.
Assemble the handle onto the flattened input shaft end. Tighten the 1/2" – 13 locknut against the handle and torque to 22–25 ft-lbs. Do not over-torque.
On single-speed winches, torque the drum locknut to 9–10 ft-lbs. Do not over-tighten, as this may crush the spacer between the frame and keep the drum from turning.
On two-speed winches, torque the drum locknut to 24 ft-lbs. Do not over-tighten, as this may crush the spacer between the frame and keep the drum from turning.
Torque the 1/2" – 13 handle locknut to 22–25 ft-lbs. Do not over-torque.
Tighten the steel cable clamp nuts to approximately 2 ft-lbs.
When attaching the winch to the mounting structure, use three 3/8" diameter grade-5 bolts and torque to 28–30 ft-lbs. Mounting bolt length varies by application.
Winches require a maximum of 45 lbs of handle force to pull their rated load. If you cannot crank the winch with one hand, you are potentially overloading the winch. Excessive force in turning the winch handle may indicate overload.
Always maintain a minimum of three complete wraps of cable, rope, or three layers of strap on the drum. This is critical for safe operation and load holding.
A loud clicking sound from the ratchet must be heard when lifting the load. If a loud clicking sound is not heard, do not use the winch and replace ratchet components immediately. This clicking indicates the ratchet pawl is properly engaged and holding the load.
No. Do not use a winch to move humans. Winches are designed only for lifting and lowering loads.
No. Winches are not designed to secure boats to trailers while towing. Boat tie-downs should be used for this purpose.
Before use, perform the following: (1) Inspect rope, strap or cable and replace if damaged. (2) Check mounting hardware for proper tightness and tighten if necessary. (3) Apply a drop or two of #30 weight engine oil to each bushing I.D. and to the ratchet pawl pivot points. Maintain a thin layer of chassis grease on the gear teeth.
Apply a drop or two of #30 weight engine oil to each bushing I.D. and to the ratchet pawl pivot points. Maintain a thin layer of chassis grease on the gear teeth. This should be done before initial use and periodically during operation.
Periodically check mounting hardware for proper torque and tighten if necessary. The manual does not specify an exact interval, but regular inspection is recommended to ensure the winch remains securely mounted.
Yes. Always inspect the cable or strap and its attachment before each use to make sure they are not damaged. Never use them if they are worn, kinked, or frayed. If the cable or attachment breaks, the cable will whip violently, causing property damage, serious bodily injury, and/or death.
A loud clicking sound from the ratchet is normal and indicates the ratchet pawl is properly engaged and holding the load. This is the expected sound during operation.
If a loud clicking sound is not heard when lifting the load, do not use the winch. Replace ratchet components immediately. The absence of clicking indicates the ratchet pawl is not properly engaged, which is a safety hazard.
Excessive force in turning the winch handle may indicate overload. Winches require a maximum of 45 lbs of handle force to pull their rated load. If you cannot crank the winch with one hand, you are potentially overloading the winch. Stop operation and reduce the load.
Only if your winch has a drum hub diameter of 1 3/4". Check the Winch Information Chart for your capacity rating to confirm steel cable compatibility.
Three 3/8" diameter grade-5 bolts, torqued to 28–30 ft-lbs. Bolt length varies by application. Bolts are not supplied with the winch.
The manual does not specify whether drilling is required. This depends on your mounting structure. Consult the manufacturer or your installer for guidance on your specific application.
Torque the 1/2" – 13 handle locknut to 22–25 ft-lbs. Do not over-torque.
Never exceed the maximum rated capacity stamped on the winch or shown in the Winch Information Chart for your model. Exceeding capacity can cause failure and serious injury or death.
A maximum of 45 lbs of handle force is required to pull the rated load. If you need more force or cannot crank with one hand, you are overloading the winch.
Before use and periodically: inspect cable/strap for damage, check mounting hardware torque, apply #30 weight engine oil to bushings and ratchet pawl pivot points, and maintain a thin layer of chassis grease on gear teeth.
Do not use the winch. A loud clicking sound from the ratchet must be heard when lifting the load. If it is not heard, the ratchet pawl is not properly engaged. Replace ratchet components immediately before operating the winch again.
Excessive force in turning the winch handle may indicate overload. Winches require a maximum of 45 lbs of handle force to pull their rated load. If you cannot crank the winch with one hand, you are potentially overloading the winch. Reduce the load immediately. Also check that the ratchet pawl is properly engaged and that the cable or strap is winding onto the drum correctly.
Stop operation immediately. Check that the cable or strap is not kinked, twisted, or damaged. Ensure the ratchet pawl is properly engaged in the forward or loading position. Verify that the cable or strap is being guided correctly onto the drum. If the cable or strap is damaged, replace it before continuing. Neatly wrap the cable to reduce the chance of kinking or fraying.
Do not release the handle. The ratchet pawl must be fully engaged and holding the load. Gradually release the handle to verify the ratchet pawl is holding the load before letting go completely. If the ratchet pawl is not holding the load, do not leave the load unattended. Check that the ratchet pawl is properly engaged and that you hear a loud clicking sound. If the ratchet is not functioning properly, replace ratchet components immediately.
| Part Number | Capacity (lbs.) | Handle Length (in.) | Max Mechanical Advance** | Rope (ft. x in.) | Strap (ft. x in.) | Recommended Strap Bolt Sizes (in.) | Strap Included | Cover |
|---|---|---|---|---|---|---|---|---|
| 142311 | 1,500 | 8.00 | 43:1 | - | 20 x 2 | 5/16 x 2-1/2 Grade 5 | Yes | Black |
| 142313 | 1,500 | 6.00 | 43:1 | - | 20 x 2 | 5/16 x 2-1/2 Grade 5 | Yes | Black |
| 142320 | 1,500 | 10.00 | 43:1 | - | 20 x 2 | 5/16 x 2-1/2 Grade 5 | Yes | Black |
| 142314 | 1,800 | 8.00 | 62:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | Yes | Black |
| 142315 | 1,800 | 10.00 | 62:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | Yes | Black |
| 142316 | 1,800 | 8.00 | 62:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | Yes | Black |
