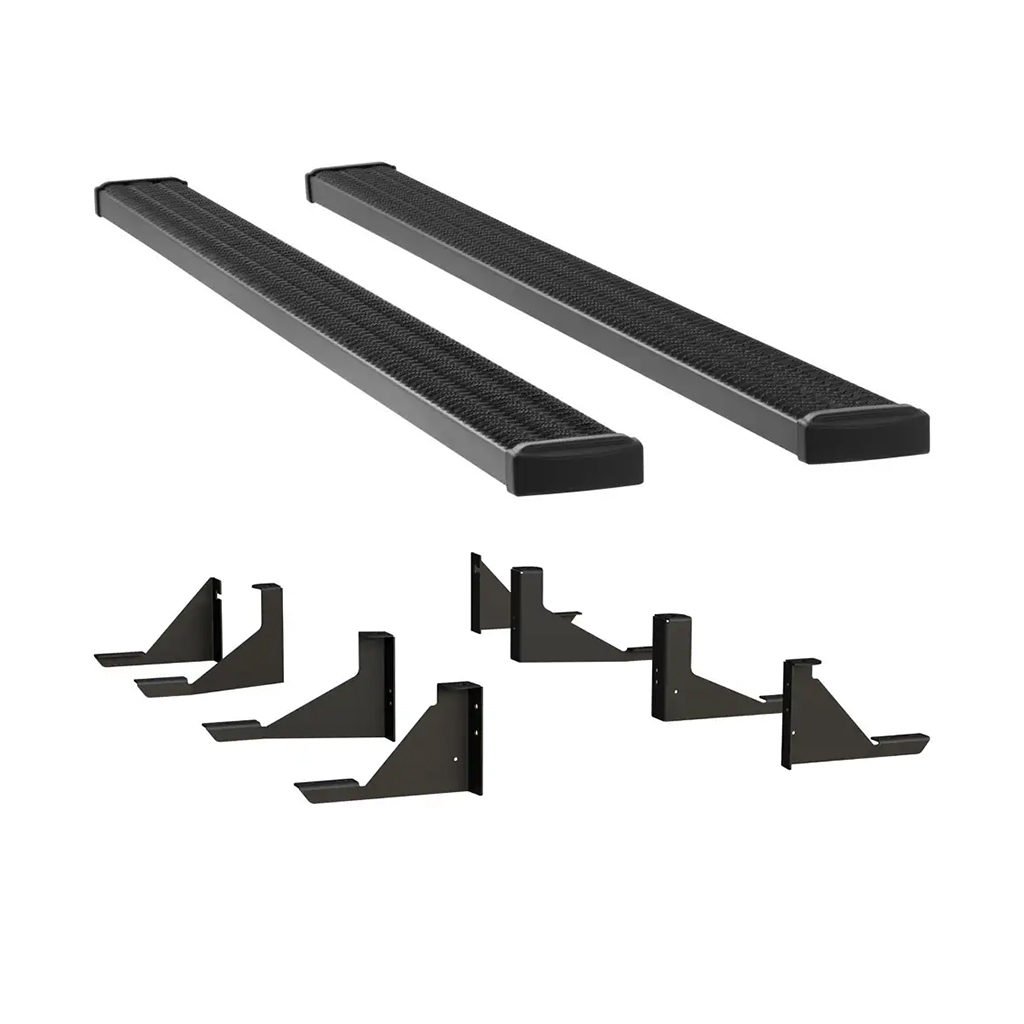

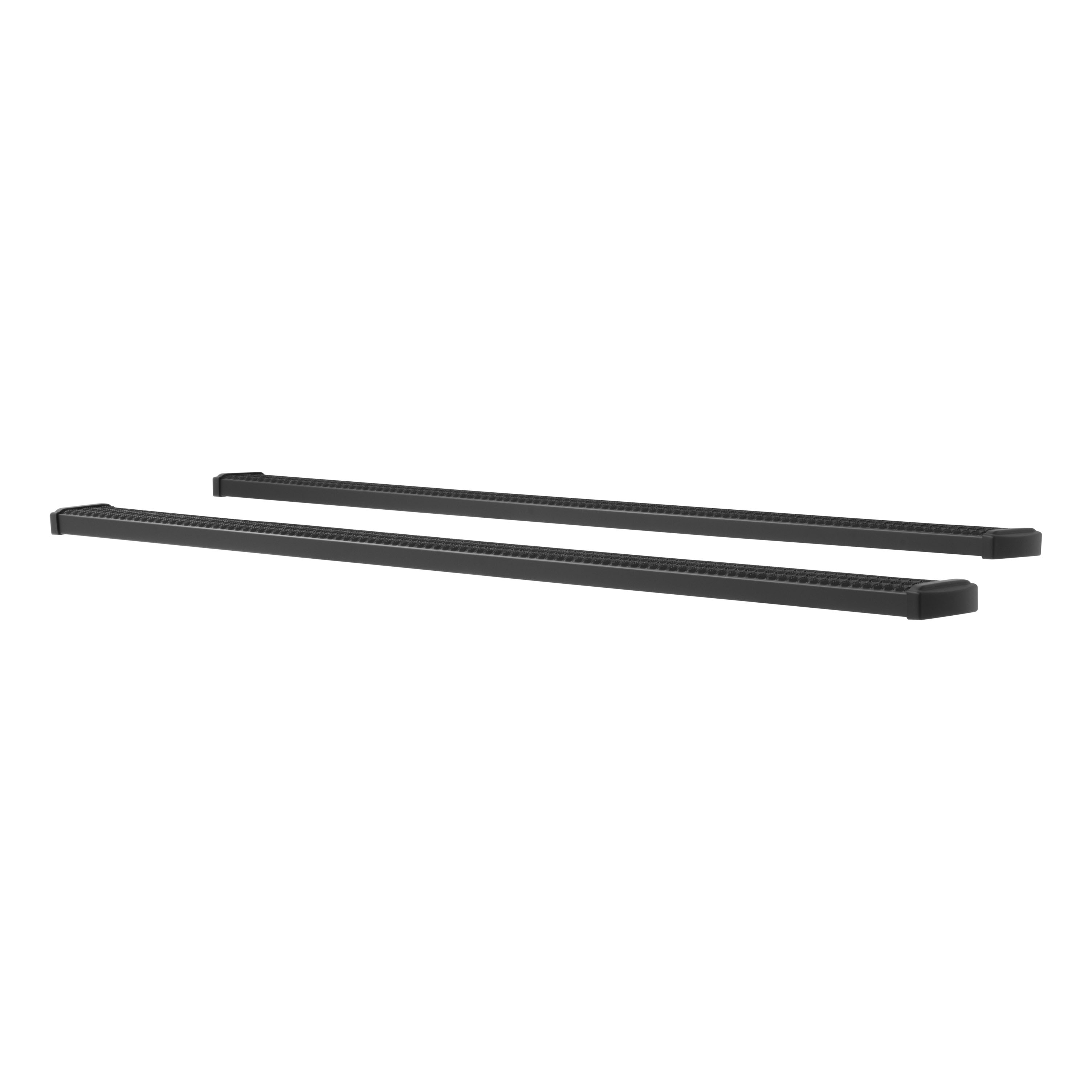

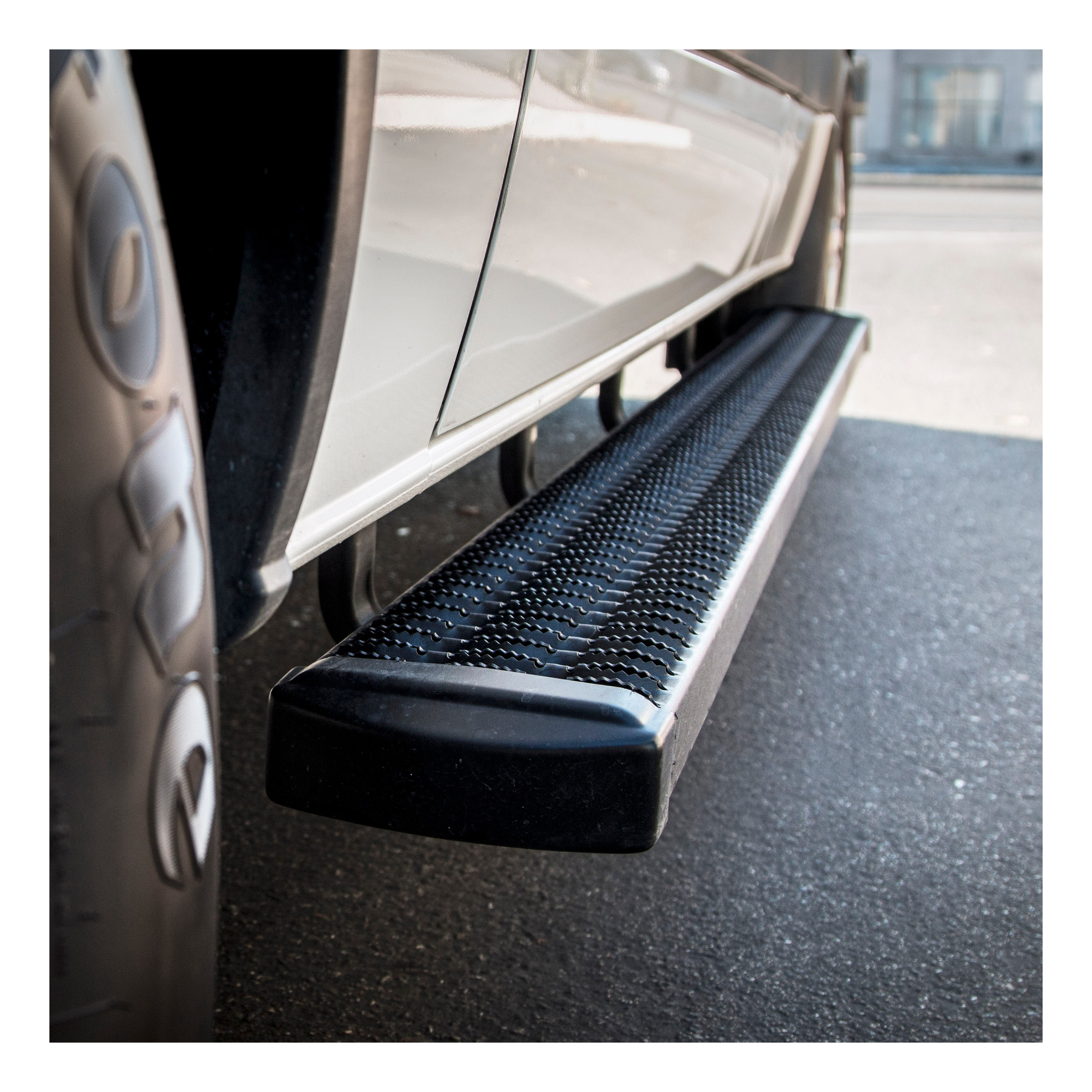

LUVERNE Grip Step 7" running boards for vans are the ideal work van accessories, adding safe, dependable footing to your cargo van with a vehicle-specific fit. Grip Step van steps are equipped with high-traction treads for fleet-approved safety, and they are made from powder-coated aluminum to be lightweight and provide long-lasting resistance to the elements. All Grip Step running boards are engineered for vehicle-specific installation. These van steps offer a custom fit for certain years and styles of the Chevy Express 2500 or 3500 and GMC Savana 2500 or 3500 (see application info to verify fitment with your cargo van). They come with two longer steps, one for the driver-side door and one for the passenger-side door. They also come with powder-coated steel brackets and stainless steel hardware for a complete install. Grip Step running boards for vans are optimized for delivery trucks, construction vehicles and other commercial vans. They feature a 7" width, covered with expanded metal treads to grip the bottom of your boots for safe entry and exit every time. The metal treads are also highly resistant to wear, and they help keep the steps clean with their open, through-hole design. The aluminum construction of LUVERNE Grip Step running boards makes them strong for a rigid step, but lightweight for optimized fuel efficiency. Aluminum is also highly corrosion-resistant. To maximize corrosion resistance, Grip Step van steps are shielded in a textured black powder coat finish. This gives them an impervious layer of protection against the elements and resists chipping and UV damage. The black running boards also complement the look and style of your cargo van, adding a professional finishing touch. To complete the look, we also offer rear Grip Step van steps, providing safe, convenient access to the rear cargo area.
Grip Step van running boards are designed to be the best running boards for work vans and cargo vans, featuring a unique expanded metal tread pattern for superior traction and a 7" width for reliable footing.
LUVERNE has manufactured truck accessories in the United States since 1963, specialising in grille guards, running boards, side steps and mud guards for pickups, commercial vans and SUVs. Products are built primarily from stainless steel, aluminium and mild steel, with model-specific mounting kits that use existing frame locations for a bolt-on installation.
LUVERNE has been manufacturing automotive accessories in the United States since 1963, and six decades of continuous production have made it a nationally recognised name in the truck accessory market. Now a Lippert brand, it concentrates on a defined set of products rather than spreading across the whole aftermarket: front-end protection, step access and spray protection for pickup trucks, commercial vans and sport utility vehicles.
Step products are the largest part of the catalog and the range is unusually deep, because the right step depends on the vehicle's ride height, the width of the rocker panel and how often people get in and out. The O-Mega II six-inch oval steps give a wide, flat standing surface in polished stainless or black powder coat, while the Regal 7 seven-inch oval steps go wider still for full-size crew cabs and lifted trucks. The broader running board and side bar range covers round tube, oval and boxed profiles across cab configurations, with treads positioned at the door openings where they are used.
Grille guards protect the front end against impacts, brush and road debris, built in tubular stainless or steel with model-specific brackets that tie into factory frame mounting points. Because the fit is engineered per vehicle, installation is a bolt-on job that does not require drilling or cutting on most applications.
Rounding out the line, LUVERNE mud guards and mud flaps shield rocker panels, paint and following vehicles from stones and road spray, in widths matched to the tyre and fender they sit behind. Material choice runs through everything the brand does: stainless steel where appearance and corrosion resistance matter most, aluminium where weight is the priority, and mild steel with protective coating where strength and value lead. Customers include contractors, fleet operators, van upfitters and truck owners.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (Five-Year Finish, One-Year Parts)
10 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2003 - 2027 | Chevrolet Express 2500 | — | — |
| 2003 - 2027 | Chevrolet Express 3500 | Extended Cargo Van | — |
| 2003 - 2027 | Chevrolet Express 3500 | Extended Passenger Van | — |
| 2003 - 2027 | Chevrolet Express 3500 | Standard Cargo Van | — |
| 2003 - 2027 | Chevrolet Express 3500 | Standard Passenger Van | — |
| 2003 - 2027 | GMC Savana 2500 | — | — |
| 2003 - 2027 | GMC Savana 3500 | Extended Cargo Van | — |
| 2003 - 2027 | GMC Savana 3500 | Extended Passenger Van | — |
| 2003 - 2027 | GMC Savana 3500 | Standard Cargo Van | — |
| 2003 - 2027 | GMC Savana 3500 | Standard Passenger Van | — |
Yes, the LUVERNE Grip Step 7" x 114" Black Aluminum Running Boards, Select Express, Savana 415114-401346 (Part #FTNF415114-401346) is designed to fit the 2003-2026 Chevrolet Express 2500.
The LUVERNE Grip Step 7" x 114" Black Aluminum Running Boards, Select Express, Savana 415114-401346 (Part #FTNF415114-401346) fits the following vehicles: 2003-2026 Chevrolet Express 2500; 2003-2026 Chevrolet Express 3500; 2003-2026 GMC Savana 2500; 2003-2026 GMC Savana 3500. Always verify your specific year, make, and model before ordering.
The LUVERNE Grip Step 7" x 114" Black Aluminum Running Boards, Select Express, Savana 415114-401346 (Part #FTNF415114-401346) fits 2003-2026 Chevrolet Express 2500 models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The LUVERNE Grip Step 7" x 114" Black Aluminum Running Boards, Select Express, Savana 415114-401346 (Part #FTNF415114-401346) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The Model 415114 GRIP STEPS is a universal grip step board system consisting of aluminum extrusions with support braces, end caps, and spacer plates. The boards are supplied at a standard length but can be cut to fit many applications. Installation requires a separate vehicle-specific bracket package, which is purchased separately and includes its own mounting instructions.
The Model 401346 GRIP STEPS is designed for 2003 and newer Chevrolet Express and GMC Savana vans with a 155" wheelbase, including 1500, 2500, and 3500 models. The installation procedure varies slightly depending on van model, particularly for U-nut hole placement.
Yes. The Model 415114 board can be modified from its original length to fit many applications. Cut the board to the desired length using a saber saw, chop saw, or hack saw. After cutting, touch up the cut ends with flat black paint to protect them.
A saber saw, chop saw, or hack saw can be used to cut the board to length. Flat black paint is required to touch up the cut ends.
1. Determine the required board length and cut using a saber saw, chop saw, or hack saw. Touch up cut ends with flat black paint. 2. Slide the appropriate number of support braces (item #2) into the channel of the step board (item #1). 3. Slide the end cap (item #3) over the front and rear of each step. 4. Attach the end cap to the bottom of the step using the supplied #8 x 1/2" self-drilling tek screw (item #8). 5. Set the step on the mounting brackets and slide each support brace over the top of each mounting bracket. 6. Attach the flat spacer plate (item #4) to the bottom of the step between the support brace and the top of the mounting bracket. 7. Attach using the supplied 5/16-18 x 1" carriage bolt, washer, and flange nuts (items #5, 6, 7). Note: Some flange nuts are supplied in the bracket package, not the step package.
Set the step on the mounting brackets and slide each support brace over the top of each mounting bracket. Attach the flat spacer plate (item #4) to the bottom of the step, positioned between the support brace and the top of the mounting bracket. Use the supplied 5/16-18 x 1" carriage bolt, washer, and flange nuts (items #5, 6, 7) to attach the step assembly, spacer plate, and mounting bracket together. Note that some flange nuts may be supplied in the bracket package rather than the step package.
All fasteners on the Model 415114 GRIP STEPS assembly must be torqued to 19 LB FT after the step plate is set in the correct position.

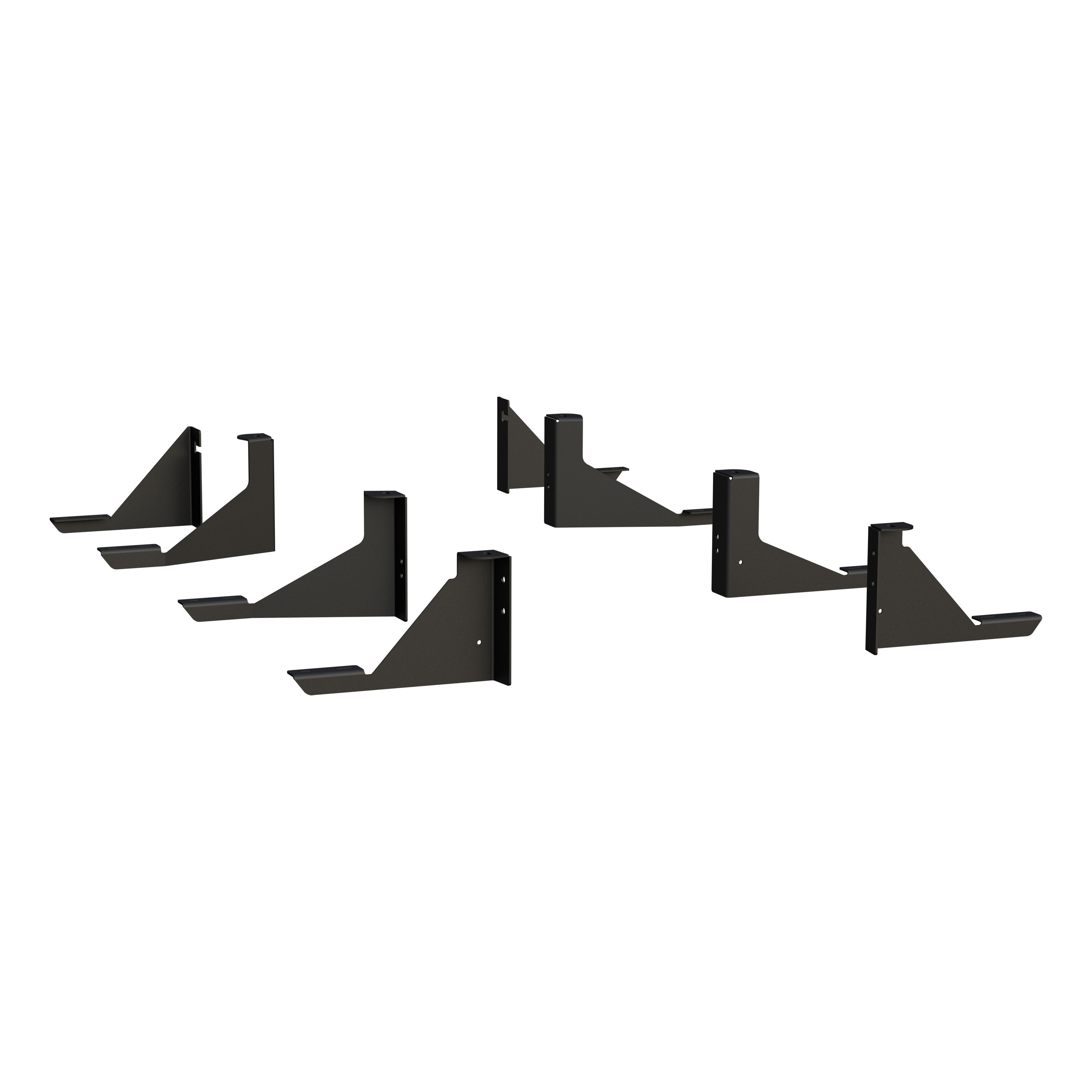

Installation is performed on the left side first, then repeated on the right side. Left side sequence: 1. Remove the front body mounting bolt (reuse bolt, steel washer, and rubber cushion). 2. Install the multi-thread U-nut (item #11) on the front mounting bracket (item #2), selecting the top hole for 1500 vans or bottom hole for 2500 and 3500 vans. 3. Install the front mounting bracket with washer and rubber cushion between bracket and body mount, with the step end perpendicular to the body. Tighten to 65 LB FT. 4. Install the load reaction bolt assembly using the 3/8"-16 x 5" hex bolt (item #9) and serrated flange nuts (item #10), with rubber washer (item #14) and flat washer (item #16). 5. Remove the second body mounting bolt (reuse bolt, washer, and cushion). 6. Install the multi-thread U-nut on the second mounting bracket (item #4) with cap plug (item #13), selecting the appropriate hole. 7. Install the second mounting bracket with washer and rubber cushion. Tighten to 65 LB FT. 8. Install the load reaction bolt assembly using the 3/8"-16 x 1-3/4" hex bolt (item #8) and serrated flange nuts. 9. Repeat for the third mounting bracket (item #5), installing the U-nut in the top hole for 2500 and 3500 vans. 10. Measure from the bottom of the body flange to the bottom of the mounting brackets to ensure they are level; adjust the third bracket as needed before final tightening. 11. Remove the nut and washer from the front spring shackle bolt (reuse nut). Install the black spacer washer (item #15), mounting bracket (item #6), 5/8" flat washer (item #12), and factory nut. Adjust height and tighten to 65 LB FT. 12. Repeat steps 1-11 on the right side.
Yes. Installation requires removal of the front body mounting bolt, the second body mounting bolt, and the front spring shackle bolt. All three bolts, along with their steel washers and rubber cushions, must be saved and reused as part of the mounting bracket installation.
The front mounting bracket (item #2) is tightened to 65 LB FT. The second mounting bracket (item #4) is tightened to 65 LB FT. The spring shackle bolt assembly is tightened to 65 LB FT.
For the front mounting bracket (item #2): install the U-nut in the top hole for 1500 vans, and in the bottom hole for 2500 and 3500 vans. For the second mounting bracket (item #4): install the U-nut in the top hole for 1500 vans, and in the bottom hole for 2500 and 3500 vans. For the third mounting bracket (item #5): install the U-nut in the top hole for 2500 and 3500 vans (note: the manual does not specify the hole for 1500 vans on the third bracket).
For the front load reaction bolt assembly (using 3/8"-16 x 5" hex bolt, item #9): 1. Install a 3/8"-16 serrated flange nut (item #10) on the bolt with the flange facing toward the end of the bolt, and turn on just short of the head. 2. Screw the bolt into the U-nut. 3. When the bolt comes through the other side, start another flange nut facing the same direction as the first nut. 4. Turn the nut on until there is 3/4" protruding from the face of the nut. 5. Install a 3/8" flat washer (item #16) and the .354 x 1.00 x .748 rubber washer (item #14) into the end of the bolt. 6. Adjust the load reaction bolt assembly so that the rubber cushion is snug against the frame and tighten down the outside flange nut. For the rear load reaction bolt assembly (using 3/8"-16 x 1-3/4" hex bolt, item #8): follow the same procedure but adjust so that the rubber plug is snug against the frame before tightening the outside flange nut.
After mounting the first, second, and third brackets, measure from the bottom of the body flange down to the bottom of the mounting brackets to ensure they are all at the same height. When installing the third bracket, adjust it to match this dimension before tightening the bolts.
Refer to the instructions included with your GRIP STEP boards (Model 415114) to mount the steps to the mounting brackets. The board assembly instructions are separate from the bracket mounting instructions.
The Model 401346 fits 2003 and newer Chevrolet Express and GMC Savana vans with a 155" wheelbase, including 1500, 2500, and 3500 models. Confirm your van's wheelbase and model year before purchasing.
All mounting brackets are tightened to 65 LB FT. The Model 415114 step board fasteners are torqued to 19 LB FT.
Yes. Cut the board to the desired length using a saber saw, chop saw, or hack saw, then touch up the cut ends with flat black paint.
The step package includes support braces (item #2), end caps (item #3), spacer plates (item #4), 5/16-18 x 1" carriage bolts (item #5), washers (item #6), flange nuts (item #7), and #8 x 1/2" self-drilling tek screws (item #8). Note: some flange nuts are supplied in the bracket package, not the step package.
Read the instructions completely and verify that all required parts listed on the service parts list are on hand before starting. For Model 415114, follow the instructions included with your specific bracket package. For Model 401346, ensure you have the correct van model (1500, 2500, or 3500) to select the correct U-nut hole placement.
