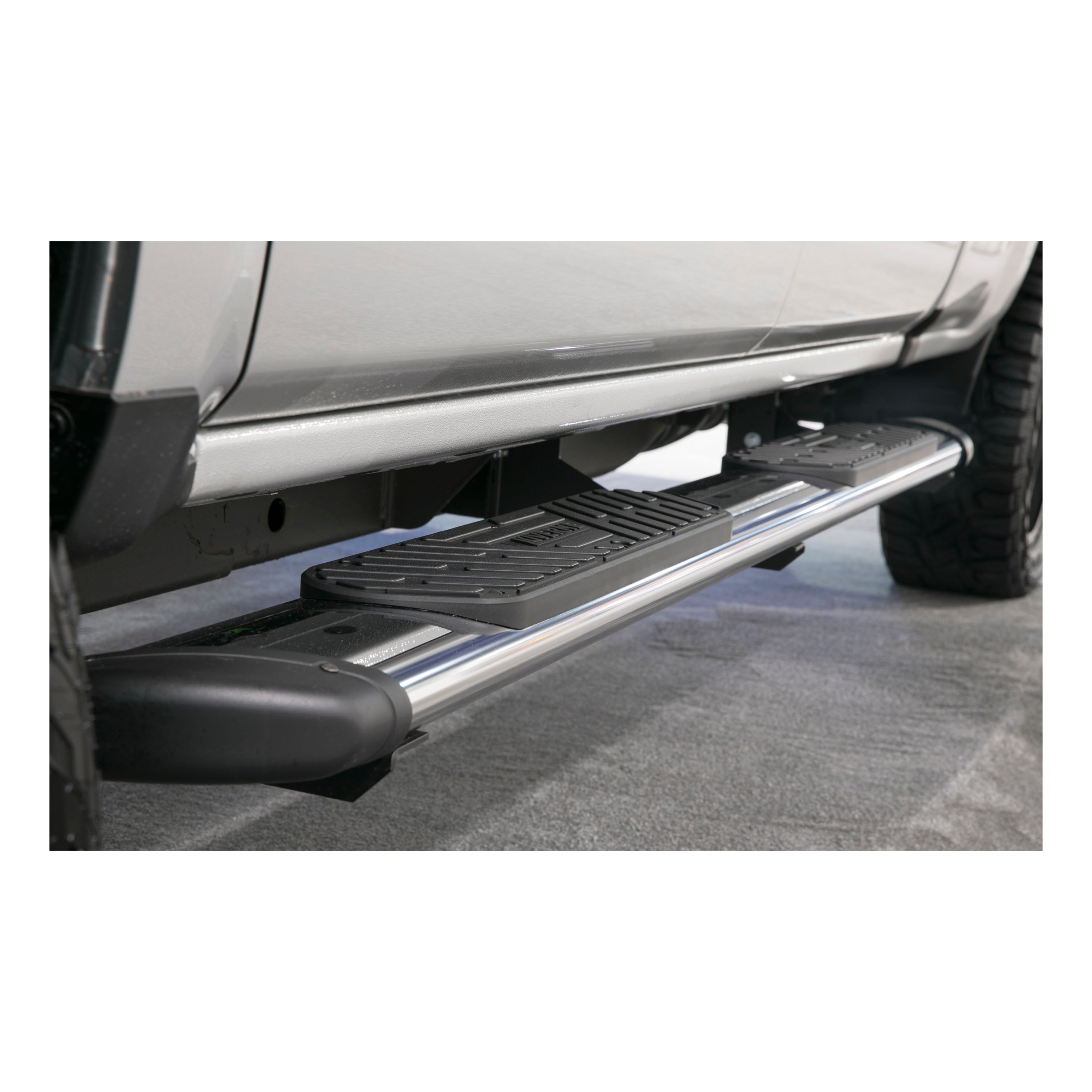

Not everyone understands the status that comes with owning a full-size truck or SUV, but for those who do, LUVERNE Regal 7 oval side steps are the side accessory of choice. They are the largest oval nerf bars on the market, featuring a patented design, non-skid step pads and a sleek nerf bar styling. Built on the idea that a deluxe ride needs a deluxe entrance, these 7" ovals have a width comparable to some of the largest running boards available. This, combined with the classic styling of popular nerf bars, allows Regal 7 oval side steps to easily live up to their name. Each is set with full-width step pads that offer a non-skid surface for ultimate comfort and safety. They are also capped on each end with contoured end caps, giving them a professional look and added protection against small rocks and road debris. Both the step pads and end caps are factory-installed and securely bolted in place. To make sure these deluxe side steps maintain their classy appearance, we construct them from stainless steel. This gives them the durability to outlast rust through every season of the year, and the strength to be offer reliable footing with every climb. They are available in a high-polish stainless steel finish for a bright, eye-catching shine or a durable black powder coat for a tough, no-nonsense accent. When it comes to our Regal 7 oval side steps, we don't trust anyone else to build them with uncompromising quality. We design each one for a vehicle-specific fit. This particular set of side steps is designed to fit specific years of the Chevy Silverado 2500 HD or 3500 HD and GMC Sierra 2500 HD or 3500 HD (see application information to verify vehicle fitment). They install using a 3" wide channel on the bottom side and high-strength steel brackets with a durable black powder coat finish (NOTE: The mounting brackets for these steps are included but shipped separately).

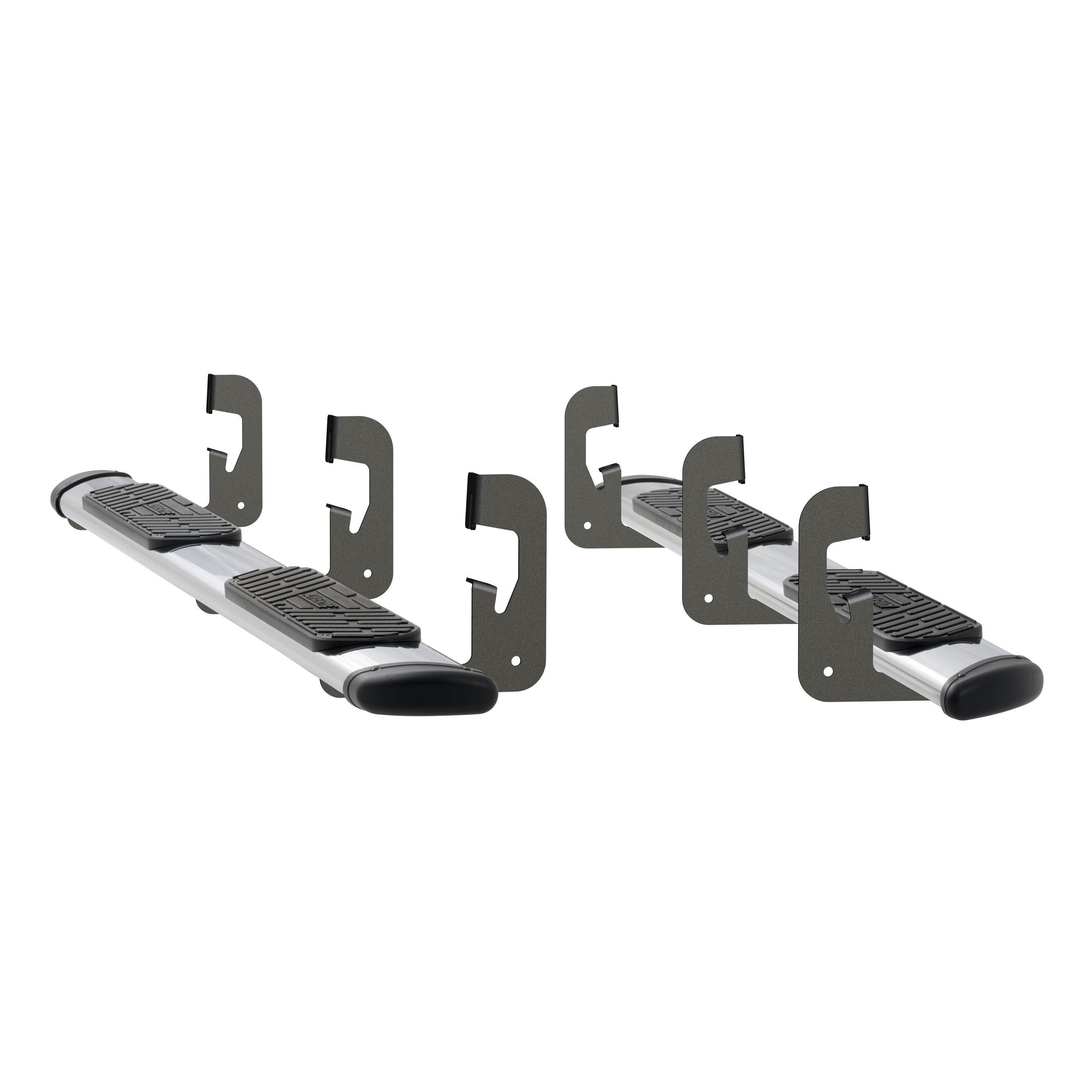

Regal 7 oval side steps are designed to be the largest oval nerf bars on the market, featuring a patented design, non-skid step pads and a sleek nerf bar styling. They have full-width step pads for a non-skid surface for comfort and safety.
LUVERNE has manufactured truck accessories in the United States since 1963, specialising in grille guards, running boards, side steps and mud guards for pickups, commercial vans and SUVs. Products are built primarily from stainless steel, aluminium and mild steel, with model-specific mounting kits that use existing frame locations for a bolt-on installation.
LUVERNE has been manufacturing automotive accessories in the United States since 1963, and six decades of continuous production have made it a nationally recognised name in the truck accessory market. Now a Lippert brand, it concentrates on a defined set of products rather than spreading across the whole aftermarket: front-end protection, step access and spray protection for pickup trucks, commercial vans and sport utility vehicles.
Step products are the largest part of the catalog and the range is unusually deep, because the right step depends on the vehicle's ride height, the width of the rocker panel and how often people get in and out. The O-Mega II six-inch oval steps give a wide, flat standing surface in polished stainless or black powder coat, while the Regal 7 seven-inch oval steps go wider still for full-size crew cabs and lifted trucks. The broader running board and side bar range covers round tube, oval and boxed profiles across cab configurations, with treads positioned at the door openings where they are used.
Grille guards protect the front end against impacts, brush and road debris, built in tubular stainless or steel with model-specific brackets that tie into factory frame mounting points. Because the fit is engineered per vehicle, installation is a bolt-on job that does not require drilling or cutting on most applications.
Rounding out the line, LUVERNE mud guards and mud flaps shield rocker panels, paint and following vehicles from stones and road spray, in widths matched to the tyre and fender they sit behind. Material choice runs through everything the brand does: stainless steel where appearance and corrosion resistance matter most, aluminium where weight is the priority, and mild steel with protective coating where strength and value lead. Customers include contractors, fleet operators, van upfitters and truck owners.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (One-Year Parts)
4 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2015 - 2019 | Chevrolet Silverado 2500 HD | Crew Cab Pickup | — |
| 2015 - 2019 | Chevrolet Silverado 3500 HD | Crew Cab Pickup | — |
| 2015 - 2019 | GMC Sierra 2500 HD | Crew Cab Pickup | — |
| 2015 - 2019 | GMC Sierra 3500 HD | Crew Cab Pickup | — |
Yes, REGAL 7 OVAL STEPS are designed for 2015+ GM 2500/3500HD Double and Crew Cab Pickups with gas or diesel engines. The manual lists three models: 477078 (76"), 477088 (86"), and 477098 (96"). However, the manual does not specify which model corresponds to which bed length or cab configuration. Contact the manufacturer or your retailer to confirm the correct model for your specific truck configuration.
The step assembly includes: 16× 5/16-18 × 1.0" black stainless steel hex bolts (part 106997), 16× 5/16" flat washers (part 106998), and 16× 5/16-18 serrated flange nuts (part 102680). Additional hardware for end caps and step pads includes 8× 10-24 × 0.50" carriage bolts, 24× 10-24 × 1.0" carriage bolts, 24× 10-24 nylock nuts, and 4× step pads. All fasteners are stainless steel or black stainless steel.
Yes, the step is pre-assembled from the factory. The serial number label is located on the front inside driver's side step assembly. You do not need to assemble the step itself; you only need to attach it to the mounting brackets.
Yes. The manual states: "Follow the instructions included with the specific bracket package that you are using to mount the brackets to your vehicle." The bracket instructions are separate from the step installation instructions. Obtain and follow the bracket package instructions before attaching the steps.
1. Set the step on the mounting brackets. 2. Slide each support mounting plate (item #9) inside the oval step and above each bracket. 3. Using the supplied 5/16-18 × 1" black stainless steel hex bolt, washer, and serrated flange nut (items #10, 11, and 12), attach the step assembly, support mounting plate, and mounting bracket. 4. Set the step plate in the correct position and tighten all fasteners to 19 LB FT.
Torque all 5/16" fasteners to 19 LB FT.

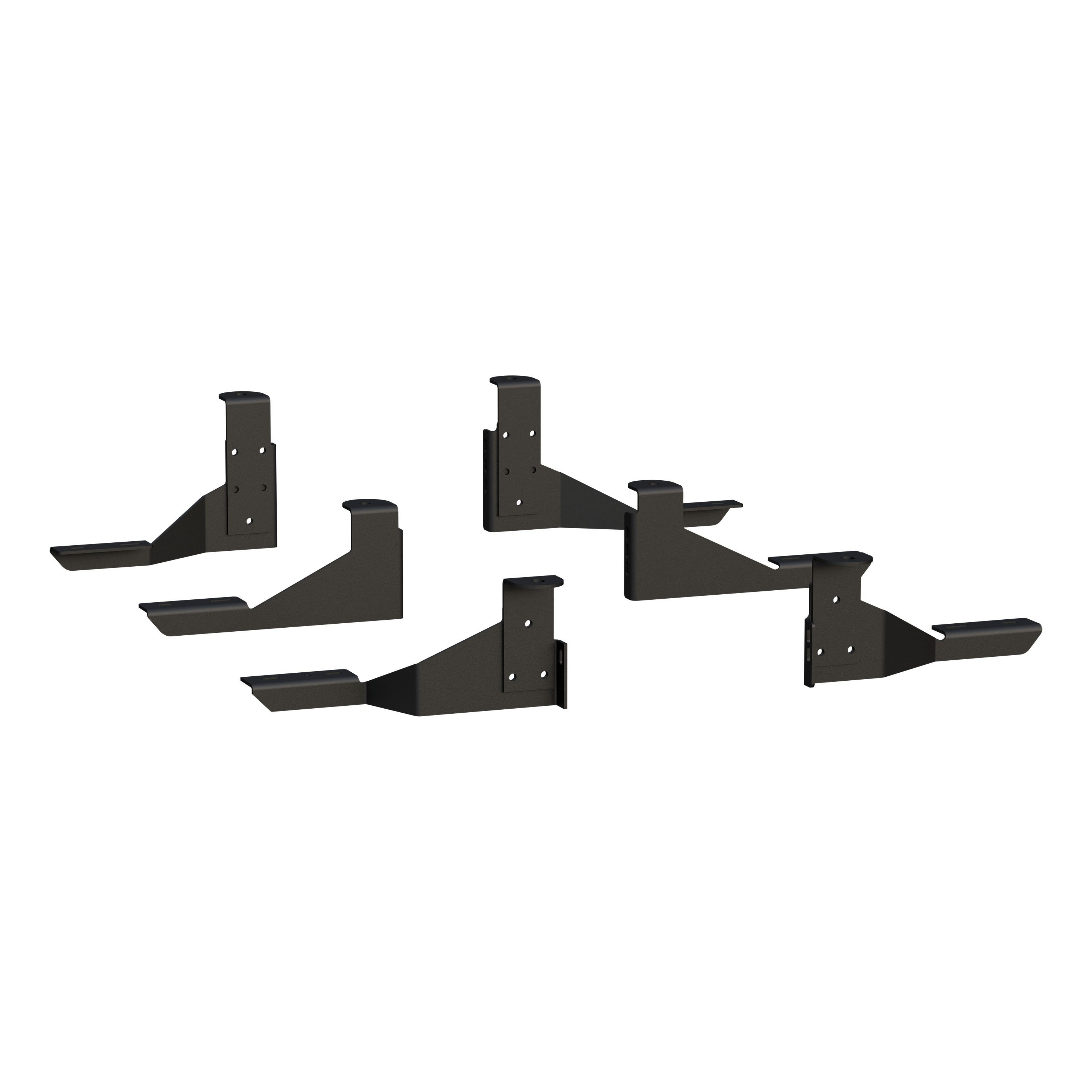

The 401743 is a no-drill bracket system for mounting REGAL 7 OVAL STEPS to 2015+ GM 2500/3500HD Double and Crew Cab Pickups (gas or diesel). It uses body mount attachment points and includes load reaction studs that attach to the vehicle frame. The system is designed for body mount application and requires removal and replacement of factory body mount bolts.
No. The 401743 is a no-drill application. It uses existing factory body mount bolt locations and does not require drilling into the vehicle frame or body.
Yes. Step 5 requires you to remove the factory front, center, and rear body mount bolts and install the mounting brackets in their place. The manual notes that 2010+ GM Silverada/Sierra vehicles have excessive thread locker in the body mount bolt area, so use caution when removing these bolts.
1. On the short threaded end of the load reaction stud (item #12), install a 3/8" serrated flange nut (item #11) backwards to the bottom of the thread. 2. Install a 3/8" flat washer (item #10) and rubber cushion washer (item #9) tight against the serrated flange nut. The end of the stud must be recessed in the rubber washer approximately 3/16". 3. On the long threaded end of the stud, install a 3/8" serrated flange nut (item #12) backwards near the bottom of the threads.
Insert the stud from the inboard (frame) side through the lowest hole in the bent flange of the bracket that will allow the rubber washer to seat firmly against the side wall of the frame. Install a 3/8" serrated flange nut (item #11) on the outboard end of the stud finger tight only at this stage. The stud will be fully tightened in Step 7.
Pre-assemble the front bracket (items #1, 3, 14) using three 3/8"-16 × 1.0" screws, 3/8" flat washer, and 3/8" flange nuts (items #10, 11, 13), torqued to 19 LB FT. Then install the front mounting bracket (items #1, 3) to the front body mount, leaving fasteners finger tight until all brackets are positioned.
Install the center mounting bracket (item #4) to the center body mount as shown in the bracket instructions, leaving fasteners finger tight until all brackets are positioned.
1. Install the rear inboard mounting bracket (item #8) and washer (item #15) to the rear body mount, leaving fasteners finger tight. 2. Attach the rear outboard mounting bracket (item #6) to the rear inboard mounting bracket (item #8) using three 3/8"-16 × 1.0" screws, 3/8" flat washers, and 3/8" flange nuts (items #13, 10, 11), torqued to 19 LB FT. The rear outboard bracket must be mounted to the back side (towards the rear of the vehicle) of the rear inboard bracket. Use the correct holes as shown in the bracket instructions; there is a difference between double cab and crew cab applications.
The rear outboard mounting bracket (item #6) must be mounted to the back side of the rear inboard mounting bracket (item #8), towards the rear of the vehicle. The correct holes differ between double cab and crew cab applications; refer to the bracket instructions (FIG. 2 and 3) for your specific cab type.
Torque all 3/8" fasteners to 19 LB FT. This applies to the front bracket pre-assembly (Step 2), rear bracket assembly (Step 5.4), and load reaction stud fasteners (Step 7).
Install the load reaction stud fasteners finger tight initially (Step 4). After all brackets are positioned and the step boards are installed, position the load reaction bolt assembly so the rubber cushion is snug against the side of the frame, then tighten the 3/8" flange nuts on either side of the bracket to 19 LB FT (Step 7).
Yes. Steps 5.1, 5.2, and 5.3 specify to leave the front, center, and rear body mount fasteners finger tight while you position all brackets and install the step boards. After the steps are installed and the load reaction studs are positioned, tighten the body mount fasteners to the manufacturer's specifications (not specified in this manual).
The rubber cushion washer (item #9) provides a cushioned interface between the load reaction stud and the vehicle frame. It must be installed tight against the serrated flange nut, with the end of the stud recessed approximately 3/16" into the washer. During final positioning (Step 7), the rubber cushion must be snug against the side of the frame to properly distribute load and protect the frame.
Yes. Step 6 explicitly states: "Insure that the mounting brackets do not touch the inside wall of the body mount housing." Ensure proper clearance during installation.
Use caution when removing the body mount bolts. The manual notes that 2010+ GM Silverado/Sierra vehicles have excessive thread locker in the body mount bolt area, which may make removal difficult.
Yes. Step 8 states: "Repeat Steps 1-8 for the right side of the vehicle." The 401743 bracket system is installed on both the left and right sides.
The 401743 bracket system includes: 12× 3/8"-16 UNC hex head screws (part 100040), 30× 3/8-16 serrated flange nuts (part 100181), 20× 3/8" flat washers (part 100062), 6× rubber washers 0.354 ID × 1.00 OD × 0.75" thick (part 102592), 6× double-ended studs 3/8-16 × 4.00" (part 104686), 2× 90-degree 3-hole brackets (part 551571), and 2× flat washers 0.59 ID × 1.06 OD × 0.19" thick (part 108882). All fasteners are zinc-plated steel.
Yes, REGAL 7 OVAL STEPS are designed for 2015+ GM 2500/3500HD Double and Crew Cab Pickups (gas or diesel). Three lengths are available: 76", 86", and 96". Confirm the correct model for your bed length with the retailer.
Yes. The 401743 system requires removal of the factory front, center, and rear body mount bolts. Use caution on 2010+ GM Silverado/Sierra vehicles due to excessive thread locker.
Torque all 5/16" fasteners to 19 LB FT when attaching the step to the mounting brackets.
Torque all 3/8" fasteners to 19 LB FT. This includes front bracket pre-assembly, rear bracket assembly, and load reaction stud fasteners.
Yes, the step is pre-assembled from the factory. You only need to attach it to the mounting brackets using the supplied fasteners.
Yes. Follow the instructions included with your specific bracket package to mount the brackets to the vehicle before attaching the steps.
Yes. Ensure the mounting brackets do not touch the inside wall of the body mount housing during installation.
The manual notes that 2010+ GM Silverado/Sierra vehicles have excessive thread locker in the body mount bolt area. Use caution and apply penetrating oil or heat if necessary to loosen the bolts before removal. Do not force the bolts, as this may damage the threads or body mount.
The brackets are positioned incorrectly or the body mount fasteners are over-tightened. Step 6 requires that the mounting brackets do not touch the inside wall of the body mount housing. Loosen the body mount fasteners, reposition the brackets to ensure clearance, and re-tighten to the manufacturer's specifications.
The load reaction stud may not be positioned correctly. Step 7 requires that the rubber cushion be snug against the side of the frame before tightening the flange nuts. Loosen the flange nuts, reposition the stud so the rubber cushion contacts the frame firmly, then tighten the 3/8" flange nuts on either side to 19 LB FT.
