Not everyone understands the status that comes with owning a full-size truck or SUV, but for those who do, LUVERNE Regal 7 oval side steps are the side accessory of choice. They are the largest oval nerf bars on the market, featuring a patented design, non-skid step pads and a sleek nerf bar styling. Built on the idea that a deluxe ride needs a deluxe entrance, these 7" ovals have a width comparable to some of the largest running boards available. This, combined with the classic styling of popular nerf bars, allows Regal 7 oval side steps to easily live up to their name. Each is set with full-width step pads that offer a non-skid surface for ultimate comfort and safety. They are also capped on each end with contoured end caps, giving them a professional look and added protection against small rocks and road debris. Both the step pads and end caps are factory-installed and securely bolted in place. To make sure these deluxe side steps maintain their classy appearance, we construct them from stainless steel. This gives them the durability to outlast rust through every season of the year, and the strength to be offer reliable footing with every climb. They are available in a high-polish stainless steel finish for a bright, eye-catching shine or a durable black powder coat for a tough, no-nonsense accent. When it comes to our Regal 7 oval side steps, we don't trust anyone else to build them with uncompromising quality. We design each one for a vehicle-specific fit. This particular set of side steps is designed to fit specific years of the Chevy Silverado 2500 HD or 3500 HD and GMC Sierra 2500 HD or 3500 HD (see application information to verify vehicle fitment). They install using a 3" wide channel on the bottom side and high-strength steel brackets with a durable black powder coat finish (NOTE: The mounting brackets for these steps are included but shipped separately).
Regal 7 oval side steps are designed to be the largest oval nerf bars on the market, featuring a patented design, non-skid step pads and a sleek nerf bar styling. They have full-width step pads for a non-skid surface for comfort and safety.
LUVERNE has manufactured truck accessories in the United States since 1963, specialising in grille guards, running boards, side steps and mud guards for pickups, commercial vans and SUVs. Products are built primarily from stainless steel, aluminium and mild steel, with model-specific mounting kits that use existing frame locations for a bolt-on installation.
LUVERNE has been manufacturing automotive accessories in the United States since 1963, and six decades of continuous production have made it a nationally recognised name in the truck accessory market. Now a Lippert brand, it concentrates on a defined set of products rather than spreading across the whole aftermarket: front-end protection, step access and spray protection for pickup trucks, commercial vans and sport utility vehicles.
Step products are the largest part of the catalog and the range is unusually deep, because the right step depends on the vehicle's ride height, the width of the rocker panel and how often people get in and out. The O-Mega II six-inch oval steps give a wide, flat standing surface in polished stainless or black powder coat, while the Regal 7 seven-inch oval steps go wider still for full-size crew cabs and lifted trucks. The broader running board and side bar range covers round tube, oval and boxed profiles across cab configurations, with treads positioned at the door openings where they are used.
Grille guards protect the front end against impacts, brush and road debris, built in tubular stainless or steel with model-specific brackets that tie into factory frame mounting points. Because the fit is engineered per vehicle, installation is a bolt-on job that does not require drilling or cutting on most applications.
Rounding out the line, LUVERNE mud guards and mud flaps shield rocker panels, paint and following vehicles from stones and road spray, in widths matched to the tyre and fender they sit behind. Material choice runs through everything the brand does: stainless steel where appearance and corrosion resistance matter most, aluminium where weight is the priority, and mild steel with protective coating where strength and value lead. Customers include contractors, fleet operators, van upfitters and truck owners.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (One-Year Parts)
4 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2015 - 2019 | Chevrolet Silverado 2500 HD | Extended Cab Pickup | — |
| 2015 - 2018 | Chevrolet Silverado 3500 HD | Extended Cab Pickup | — |
| 2015 - 2019 | GMC Sierra 2500 HD | Extended Cab Pickup | — |
| 2015 - 2018 | GMC Sierra 3500 HD | Extended Cab Pickup | — |
Yes, the REGAL 7 Oval Steps are designed for 2015+ GM 2500/3500HD Double and Crew Cab Pickups with gas or diesel engines. The steps are available in three lengths: 76" (model 477078), 86" (model 477088), and 96" (model 477098). You will also need the GRIP-STEP/REGAL 7 Brackets (model 401743) to mount the steps to your vehicle. Confirm your truck's cab style (double or crew cab) before ordering, as bracket configuration differs between them.
The REGAL 7 Oval Steps are pre-assembled from the factory. The serial number label is located on the front inside of the driver's side step assembly. You only need to attach the pre-assembled step to the mounting brackets using the supplied fasteners.
The REGAL 7 Oval Steps come with 5/16-18 x 1" black stainless steel hex bolts, flat washers, and serrated flange nuts (items #10, 11, and 12). These fasteners are used to attach the step assembly to the mounting brackets. The exact quantity depends on the number of steps ordered.
The manual does not specify required tools. Standard tools for fastener installation (socket set, wrench, or impact driver) would be needed to install the 5/16" and 3/8" fasteners and to remove and reinstall factory body mount bolts. A torque wrench is required to achieve the specified torque values of 19 LB FT.

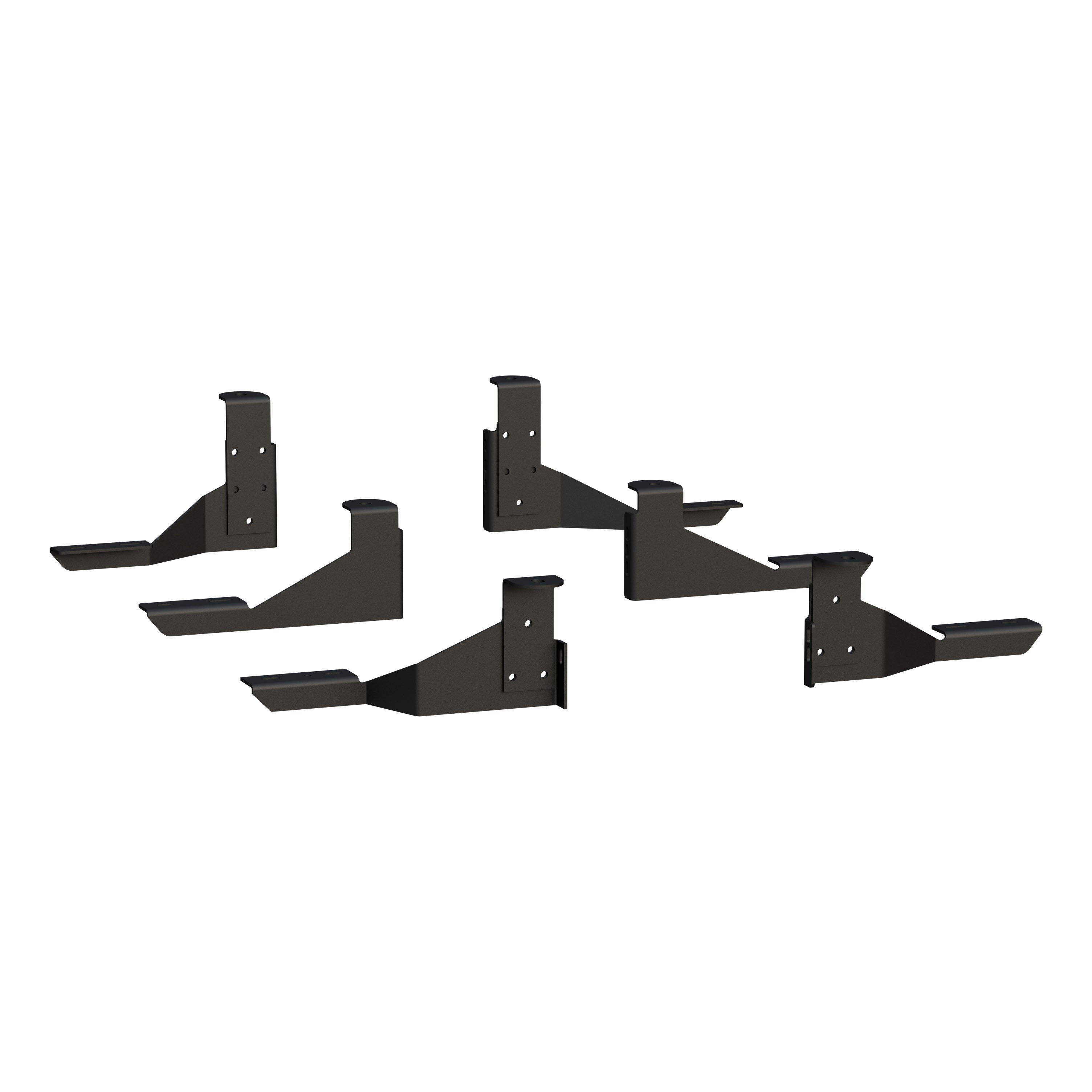

Yes. Step 5 of the 401743 bracket installation requires you to remove the factory front, center, and rear body mount bolts and install the mounting brackets in their place. The manual notes that 2010+ GM Silverado/Sierra vehicles have excessive thread locker in the body mount bolt area, so use caution when removing these bolts.
No. The 401743 brackets are a no-drill application. They mount directly to the existing factory body mount locations on 2015+ GM 2500/3500HD Double and Crew Cab Pickups without requiring any drilling or modification to the vehicle frame.
1. Pre-assemble the front bracket (items #1, 3, 14) on the left side using three 3/8"-16 x 1.0" screws, washers, and flange nuts; torque to 19 LB FT. 2. Assemble the load reaction studs and hardware (items #9–#12) as specified. 3. Attach the load reaction stud assemblies to the mounting brackets. 4. Remove factory body mount bolts and install the front, center, and rear mounting brackets (leave fasteners finger tight). 5. Attach the rear outboard bracket to the rear inboard bracket using three 3/8"-16 x 1.0" screws, washers, and flange nuts; torque to 19 LB FT. 6. Install the step boards per their instructions. 7. Position the load reaction bolt assembly so the rubber cushion is snug against the frame side, then tighten the 3/8" flange nuts to 19 LB FT. 8. Repeat for the right side.
1. Set the step on the mounting brackets. 2. Slide each support mounting plate (item #9) inside the oval step and above each bracket. 3. Using the supplied 5/16-18 x 1" black stainless steel hex bolt, washer, and serrated flange nut (items #10, 11, and 12), attach the step assembly, support mounting plate, and mounting bracket. 4. Set the step plate in the correct position and tighten all fasteners to 19 LB FT.
Finger tight means to tighten the fasteners by hand only, without using tools, until they are snug but not fully torqued. Steps 5.1, 5.2, and 5.3 of the 401743 bracket installation require the front, center, and rear mounting brackets to be installed finger tight initially. These fasteners are fully torqued later in the installation process after the load reaction studs are positioned and the step boards are installed.
The load reaction stud is inserted from the inboard (frame) side through the lowest hole in the bent flange of the bracket that allows the rubber washer to seat firmly against the side wall of the frame. The rubber cushion washer must be recessed approximately 3/16" into the end of the stud. The 3/8" serrated flange nut on the outboard end is installed finger tight initially and fully tightened to 19 LB FT after the step boards are installed and the rubber cushion is snug against the frame.
Yes. Step 5.4 of the 401743 bracket installation notes that there is a difference between Double Cab and Crew Cab applications when attaching the rear outboard mounting bracket to the rear inboard mounting bracket. You must use the correct holes as shown in the figures for your specific cab style. Refer to Figures 2 and 3 in the manual for your cab configuration.
All 5/16" fasteners on the REGAL 7 Oval Steps must be torqued to 19 LB FT. This applies to the hex bolts, washers, and serrated flange nuts (items #10, 11, and 12) that attach the step assembly to the mounting brackets.
All 3/8" fasteners on the 401743 brackets must be torqued to 19 LB FT. This includes the 3/8"-16 x 1.0" screws, flat washers, and flange nuts used to pre-assemble the front bracket (step 2), attach the rear outboard bracket to the rear inboard bracket (step 5.4), and tighten the load reaction stud assembly flange nuts (step 7).
The manual states to torque the body mount fasteners to the manufacturer's specifications but does not provide the specific torque value. You must consult your vehicle's service manual or contact the manufacturer for the correct torque specification for 2015+ GM 2500/3500HD body mount bolts.
The manual notes that 2010+ GM Silverado/Sierra vehicles have excessive thread locker in the body mount bolt area. Use caution when removing these bolts to avoid stripping the threads or damaging the fasteners. You may need to apply penetrating oil or heat to loosen stubborn bolts. Ensure the vehicle is safely supported on jack stands before working underneath it.
No. Step 6 explicitly states that the mounting brackets must not touch the inside wall of the body mount housing. Ensure proper clearance during installation to avoid interference with the body mount structure.
After installation, verify that: 1) all fasteners are torqued to the specified values (5/16" fasteners to 19 LB FT, 3/8" fasteners to 19 LB FT, and factory body mount bolts to manufacturer specs); 2) the mounting brackets do not touch the inside wall of the body mount housing; 3) the rubber cushion washer on the load reaction stud is snug against the side of the frame; 4) the step boards are positioned correctly and securely attached; and 5) all fasteners remain tight after initial use.
Yes, REGAL 7 Oval Steps fit 2015+ GM 2500/3500HD Double and Crew Cab Pickups (gas or diesel). Available in three lengths: 76" (477078), 86" (477088), and 96" (477098). You also need the 401743 bracket package.
No. The 401743 is a no-drill application that mounts directly to factory body mount locations.
Torque all 5/16" fasteners (step attachment) to 19 LB FT and all 3/8" fasteners (bracket assembly) to 19 LB FT. Torque factory body mount bolts to manufacturer specifications.
Yes. The 401743 brackets replace the factory front, center, and rear body mount bolts. Use caution when removing them, as 2010+ GM vehicles have excessive thread locker in this area.
The steps include 5/16-18 x 1" black stainless steel hex bolts, flat washers, and serrated flange nuts for attachment to the mounting brackets.
No. The brackets must not contact the inside wall of the body mount housing. Ensure proper clearance during installation.
