Draw-tite
1988 - 1999 Chevrolet C1500
Confirmed to Fit
1995 - 1996 Chevrolet C2500
Confirmed to Fit
1988 - 1994, 1997 - 2000 Chevrolet C2500
Confirmed to Fit
1988 - 2000 Chevrolet C3500
Confirmed to Fit
1988 - 1999 Chevrolet K1500
Confirmed to Fit
1995 - 1996 Chevrolet K2500
Confirmed to Fit
1988 - 1994, 1997 - 2000 Chevrolet K2500
Confirmed to Fit
1988 - 2000 Chevrolet K3500
Confirmed to Fit
1988 - 1999 GMC C1500
Confirmed to Fit
1995 - 1996 GMC C2500
Confirmed to Fit
1988 - 1994, 1997 - 2000 GMC C2500
Confirmed to Fit
1988 - 2000 GMC C3500
Confirmed to Fit
1988 - 1999 GMC K1500
Confirmed to Fit
1995 - 1996 GMC K2500
Confirmed to Fit
1988 - 1994, 1997 - 2000 GMC K2500
Confirmed to Fit
1988 - 2000 GMC K3500
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Verify Fitment
Select your vehicle to confirm this part fits.
DRAW-TITE Class 4 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 4 receiver hitch is rated for up to 10,000 lbs. gross trailer weight (GTW) and up to 1,000 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 13,000 lbs. weight distribution (WD) and 1,300 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 4 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 41901 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 72.8 LBS |
| GROSS TOWING WEIGHT: | 10,000 LBS. |
| GROSS TONGUE WEIGHT: | 1,000 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | V |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 13,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 1,300 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
16 compatible vehicles
| Year | Make & Model | Bed | Notes |
|---|---|---|---|
| 1988 - 1999 | Chevrolet C1500 | — | Class 4 Trailer Hitch: 10000 lbs 1,000/10,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,300/13,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 30 minutes |
| 1995 - 1996 | Chevrolet C2500 | 8' Bed | Class 4 Trailer Hitch: 10000 lbs 1,000/10,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,300/13,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 30 minutes |
| 1988 - 1994, 1997 - 2000 | Chevrolet C2500 | 8'2" Bed | Class 4 Trailer Hitch: 10000 lbs 1,000/10,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,300/13,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 30 minutes |
| 1988 - 2000 | Chevrolet C3500 | 8'2" Bed | Class 4 Trailer Hitch: 10000 lbs 1,000/10,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,300/13,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 30 minutes |
| 1988 - 1999 | Chevrolet K1500 | — | Class 4 Trailer Hitch: 10000 lbs 1,000/10,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,300/13,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 30 minutes |
| 1995 - 1996 | Chevrolet K2500 | 8' Bed | Class 4 Trailer Hitch: 10000 lbs 1,000/10,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,300/13,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 30 minutes |
| 1988 - 1994, 1997 - 2000 | Chevrolet K2500 | 8'2" Bed | Class 4 Trailer Hitch: 10000 lbs 1,000/10,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,300/13,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 30 minutes |
| 1988 - 2000 | Chevrolet K3500 | 8'2" Bed | Class 4 Trailer Hitch: 10000 lbs 1,000/10,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,300/13,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 30 minutes |
| 1988 - 1999 | GMC C1500 | — | Class 4 Trailer Hitch: 10000 lbs 1,000/10,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,300/13,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 30 minutes |
| 1995 - 1996 | GMC C2500 | 8' Bed | Class 4 Trailer Hitch: 10000 lbs 1,000/10,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,300/13,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 30 minutes |
| 1988 - 1994, 1997 - 2000 | GMC C2500 | 8'2" Bed | Class 4 Trailer Hitch: 10000 lbs 1,000/10,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,300/13,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 30 minutes |
| 1988 - 2000 | GMC C3500 | 8'2" Bed | Class 4 Trailer Hitch: 10000 lbs 1,000/10,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,300/13,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 30 minutes |
| 1988 - 1999 | GMC K1500 | — | Class 4 Trailer Hitch: 10000 lbs 1,000/10,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,300/13,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 30 minutes |
| 1995 - 1996 | GMC K2500 | 8' Bed | Class 4 Trailer Hitch: 10000 lbs 1,000/10,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,300/13,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 30 minutes |
| 1988 - 1994, 1997 - 2000 | GMC K2500 | 8'2" Bed | Class 4 Trailer Hitch: 10000 lbs 1,000/10,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,300/13,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 30 minutes |
| 1988 - 2000 | GMC K3500 | 8'2" Bed | Class 4 Trailer Hitch: 10000 lbs 1,000/10,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,300/13,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 30 minutes |

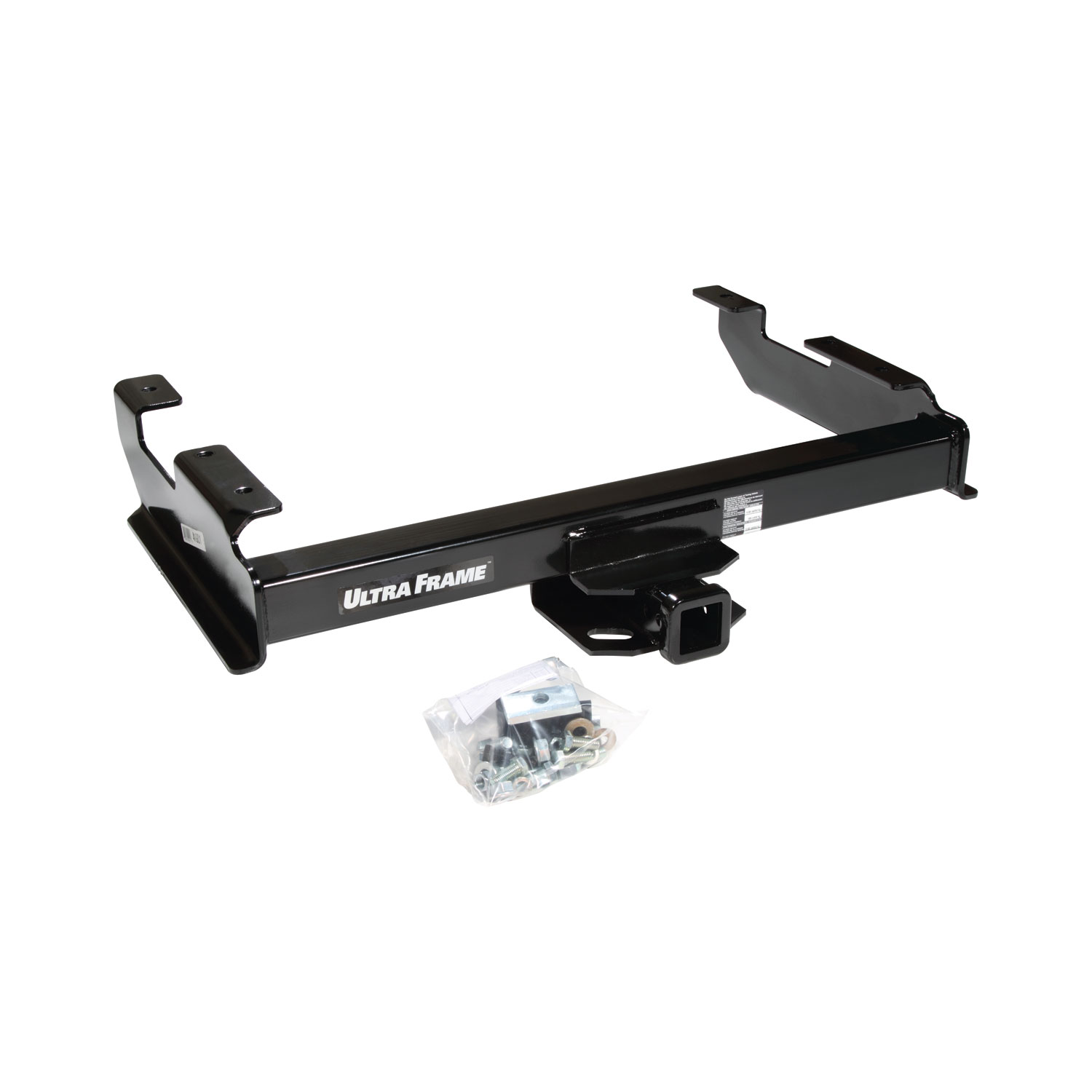

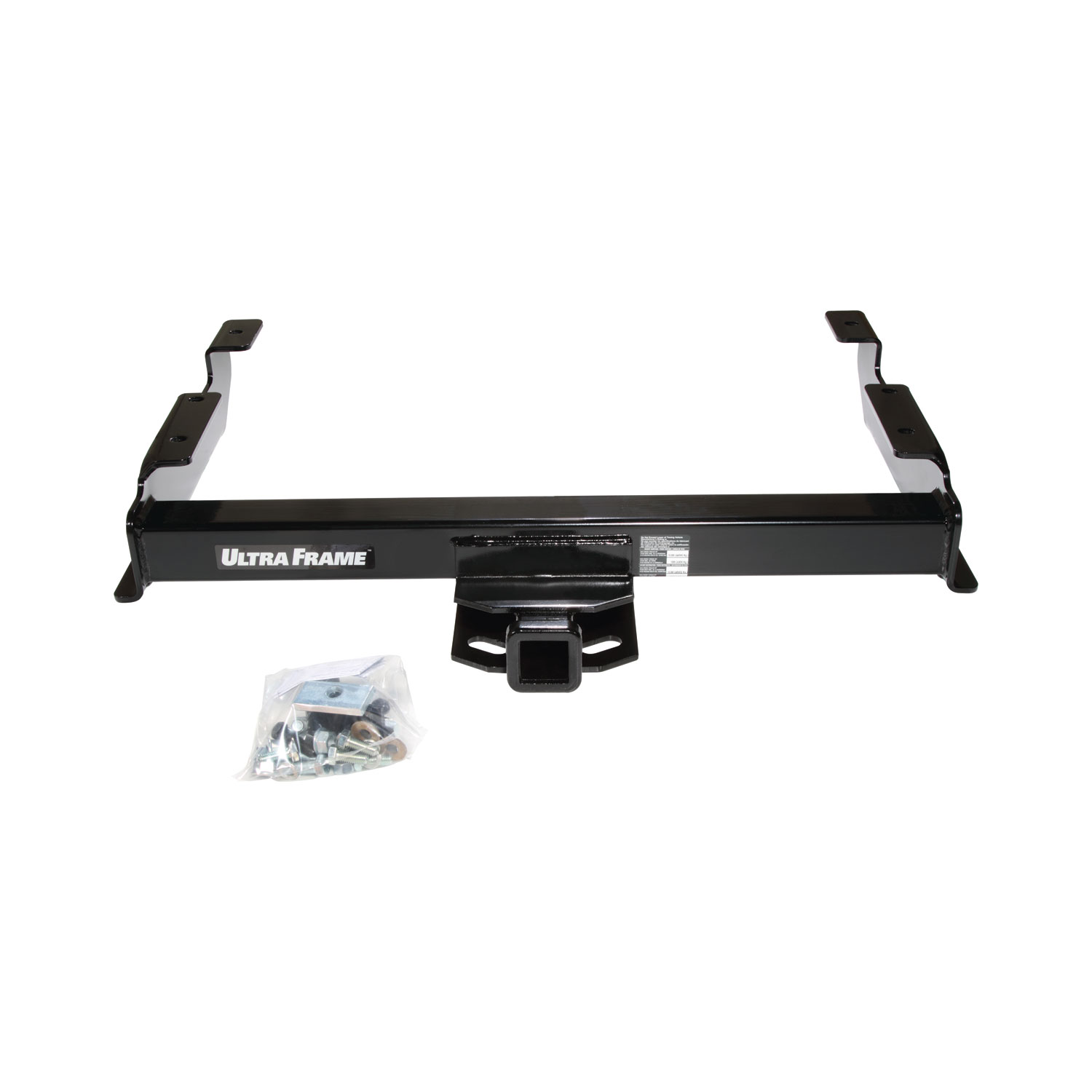

The Draw-tite Ultra Frame® Class 4 Trailer Hitch, 2" Square Receiver, Black 41901 (Part #DT41901) fits 1988-1999 Chevrolet C1500 models. The 2000 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Ultra Frame® Class 4 Trailer Hitch, 2" Square Receiver, Black 41901 (Part #DT41901) fits both short bed and long bed configurations. Check the fitment chart for your specific Chevrolet C1500 configuration.
The Draw-tite Ultra Frame® Class 4 Trailer Hitch, 2" Square Receiver, Black 41901 (Part #DT41901) fits the following vehicles: 1988-1999 Chevrolet C1500; 1988-2000 Chevrolet C2500; 1988-2000 Chevrolet C3500; 1988-1999 Chevrolet K1500; 1988-2000 Chevrolet K2500; 1988-2000 Chevrolet K3500; 1988-1999 GMC C1500; 1988-2000 GMC C2500; 1988-2000 GMC C3500; 1988-1999 GMC K1500; 1988-2000 GMC K2500; 1988-2000 GMC K3500. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Ultra Frame® Class 4 Trailer Hitch, 2" Square Receiver, Black 41901 (Part #DT41901) is designed to fit the 1988-1999 Chevrolet C1500.
The Draw-tite Ultra Frame® Class 4 Trailer Hitch, 2" Square Receiver, Black 41901 (Part #DT41901) Drilling is required for installation. Basic hand tools are typically all you need.
Part 41901 is designed for Chevrolet and GMC full-size pickups with an 8-foot box. It will not fit vehicles with a 6-foot box (short wheelbase). Confirm your truck has an 8-foot bed before purchasing.
No. Under no circumstances should this hitch be installed on vehicles with a 6-foot box (short wheelbase). This is a critical safety restriction.
Yes. The hitch is compatible with vehicles equipped with a factory step bumper. The installation procedure differs slightly: you will remove the 12mm hex bolts from each end of the frame and thread the M12 bolts into the existing weld nuts instead of using reinforcement brackets.
No. Relocation or removal of the under-vehicle spare tire is not required.
You will need wrenches in the following sizes: 18mm, 19mm, 13/16 inch, and 7/8 inch. You will also need a 9/16 inch drill bit and a torque wrench. A torque wrench is essential because fasteners must be tightened to specific values.

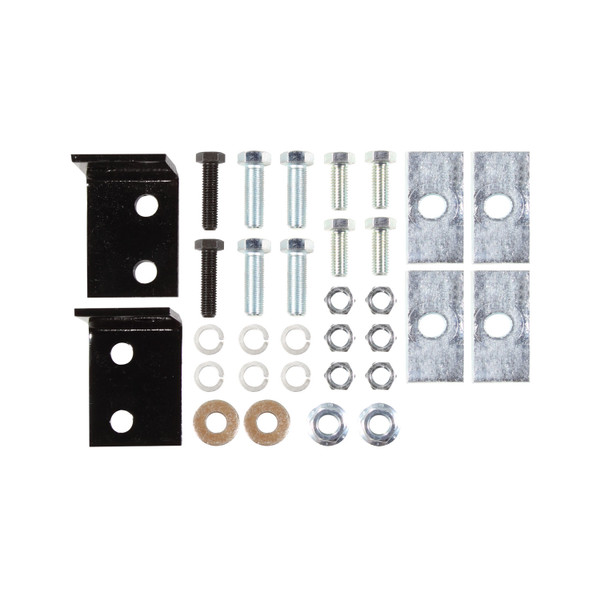

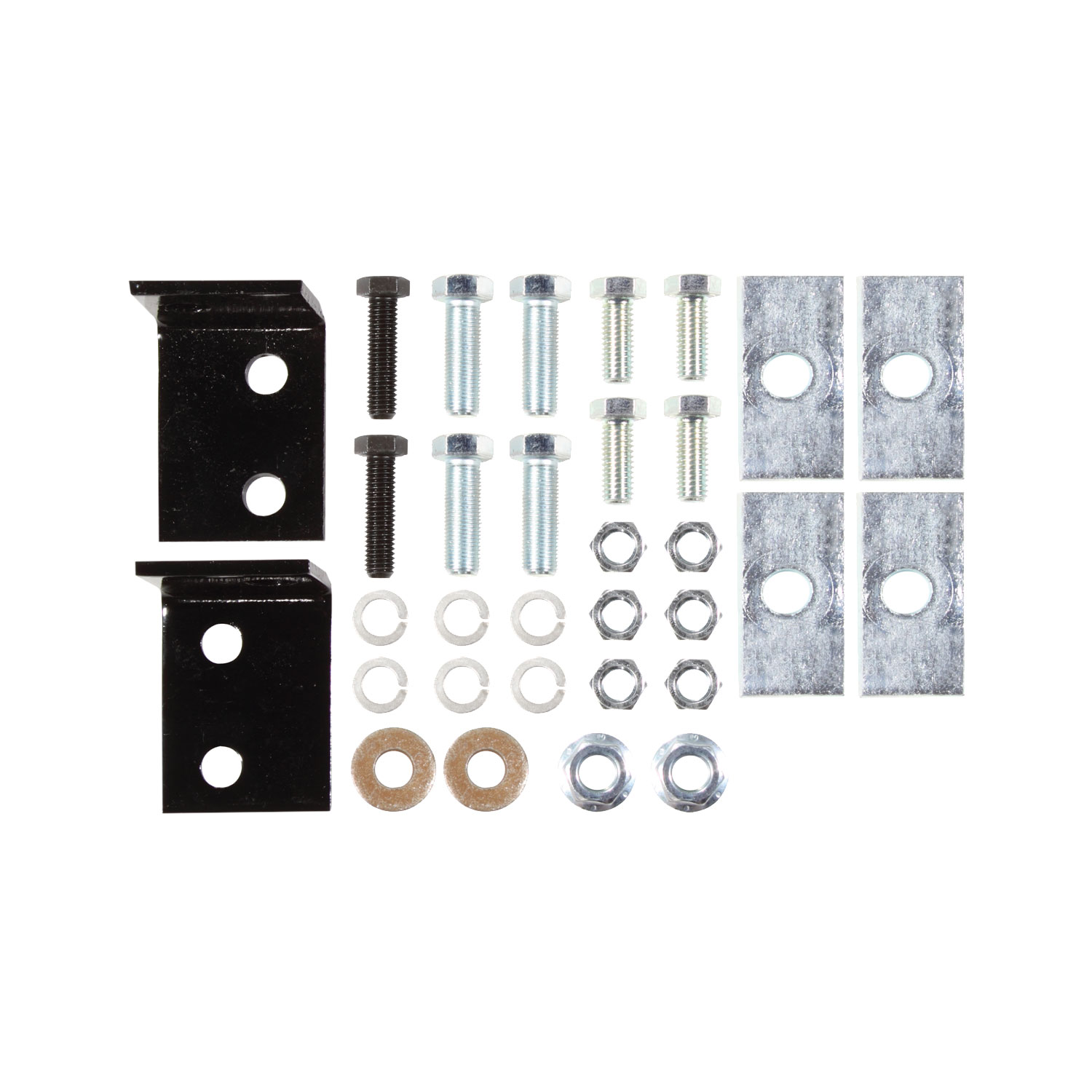

Fastener Kit 01130-707 is required and includes: (4) 9/16 X 1.75 GR5 hex bolts, (4) 1/2 X 1-1/4 GR5 hex bolts, (4) 3/8 X 1-1/2 X 3 blocks, (6) lock washers, (4) flanged locknuts, (4) 1/2-13 hex nuts, (2) M12 X 1.75 X 45mm CL10.9 bolts, (2) conical toothed washers, and (2) M12 X 1.75 nuts.
Reinforcement brackets are included in the installation kit for vehicles without a factory step bumper. If your vehicle has a factory step bumper, the reinforcement brackets are not used and may be discarded.
Vehicles without a factory step bumper: Install reinforcement brackets into the frame rails using 1/2" X 1.25" hex bolts, then install M12 X 1.75 X 45mm bolts through the receiver, frame rail, and reinforcement bracket, securing with a 1/2" lockwasher and M12 nut. Vehicles with a factory step bumper: Remove the 12mm hex bolts from each end of the frame, then install M12 X 1.75 X 45mm bolts through the receiver and into the existing weld nuts. Discard the reinforcement brackets, M12 nuts, and related fasteners.
1. If equipped with a factory step bumper, remove and discard the 12mm hex bolts from each end of the frame. 2. For vehicles without a factory step bumper, bolt the reinforcement brackets into the inside end of each frame rail using 1/2" X 1.25" hex bolts, 1/2" hex nuts, and lockwashers; the brackets should rest against the frame rail lower flanges. 3. Lift the receiver into position, centering it over the existing holes in the frame. 4. Install the M12 X 1.75 X 45mm hex bolts and 1/2" conical toothed washers (procedure differs by step bumper type). 5. Enlarge the center attachment hole to 9/16". 6. Install the remaining fasteners as shown, placing the blocks inside the frame rails.
Yes. You must enlarge the center attachment hole to 9/16 inch. Use a 9/16 inch drill bit. Do not use a torch to cut this hole.
All 1/2 GR5 fasteners must be tightened to 75 Lb.-Ft. (102 N·M) using a torque wrench.
All M12 CL8.8 fasteners must be tightened to 85 Lb.-Ft. (116 N·M) using a torque wrench.
All 9/16 GR5 fasteners must be tightened to 120 Lb.-Ft. (163 N·M) using a torque wrench.
The hitch requires a 5/8 inch pin and matching clip.
The hitch supports two configurations: Weight Distributing with a maximum gross trailer weight of 13,000 lbs (5902 kg) and maximum tongue weight of 1,300 lbs (590 kg); Weight Carrying Ball Mount with a maximum gross trailer weight of 10,000 lbs (4540 kg) and maximum tongue weight of 1,000 lbs (454 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If the hitch is damaged, it must be removed and replaced.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
The wiring access location is PU4.
Yes, if you have a Chevrolet or GMC full-size pickup with an 8-foot box. It will not fit 6-foot boxes.
Wrenches (18mm, 19mm, 13/16", 7/8"), a 9/16" drill bit, and a torque wrench. Fastener Kit 01130-707 is required.
Yes, you must enlarge the center attachment hole to 9/16 inch using a 9/16" drill bit. Do not use a torch.
1/2 GR5 fasteners: 75 Lb.-Ft. (102 N·M); M12 CL8.8 fasteners: 85 Lb.-Ft. (116 N·M); 9/16 GR5 fasteners: 120 Lb.-Ft. (163 N·M). Use a torque wrench for all fasteners.
Yes, the installation procedure is compatible with factory step bumpers. The fastening method differs slightly but no removal is required.
No, relocation or removal of the under-vehicle spare tire is not required.
Weight Distributing: 13,000 lbs gross / 1,300 lbs tongue. Weight Carrying: 10,000 lbs gross / 1,000 lbs tongue. Do not exceed your vehicle manufacturer's rating.
Wear eye protection. Do not use a torch to cut holes. Work safely beneath the vehicle. Plug holes if the hitch is removed. Check fasteners and ball frequently.
