Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

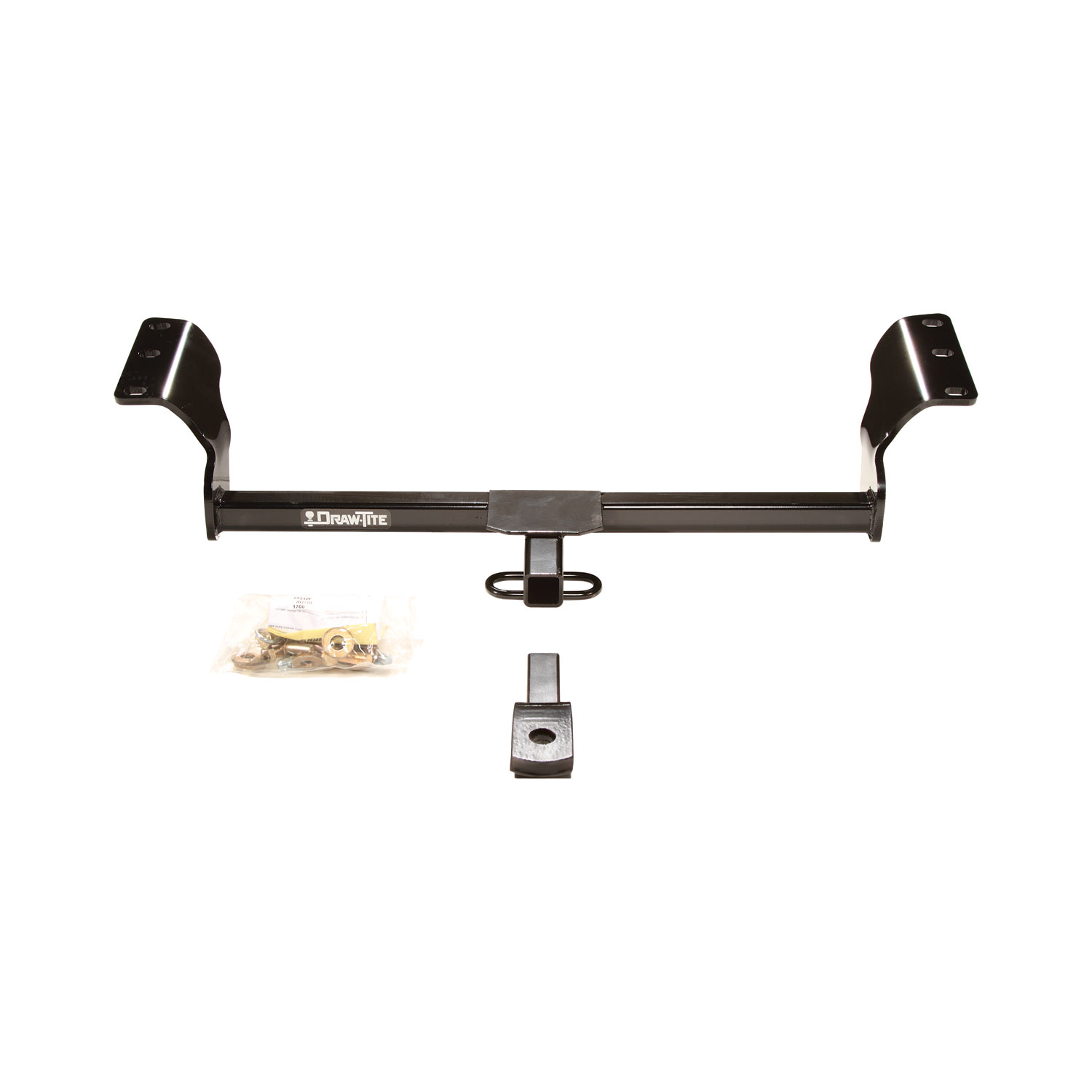

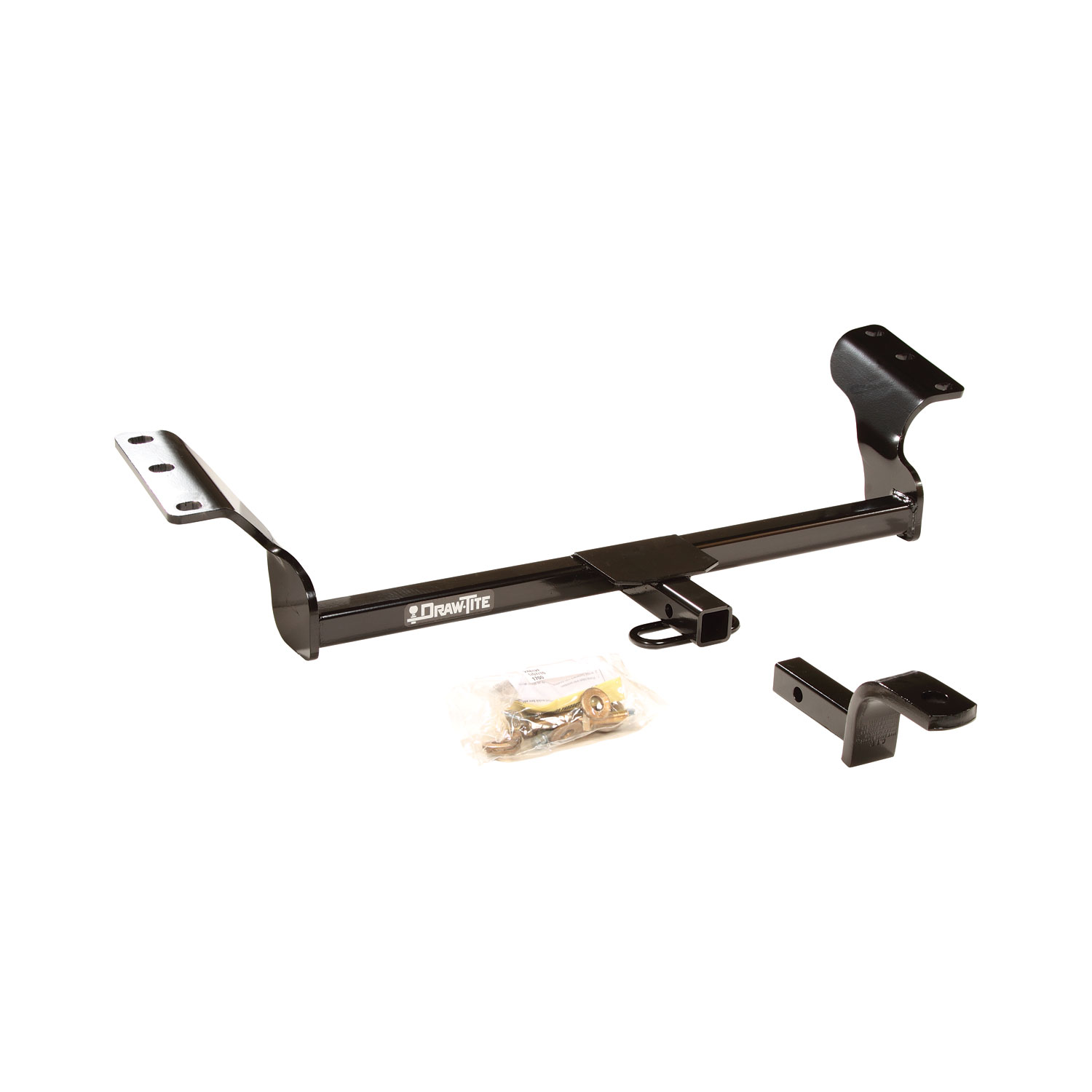

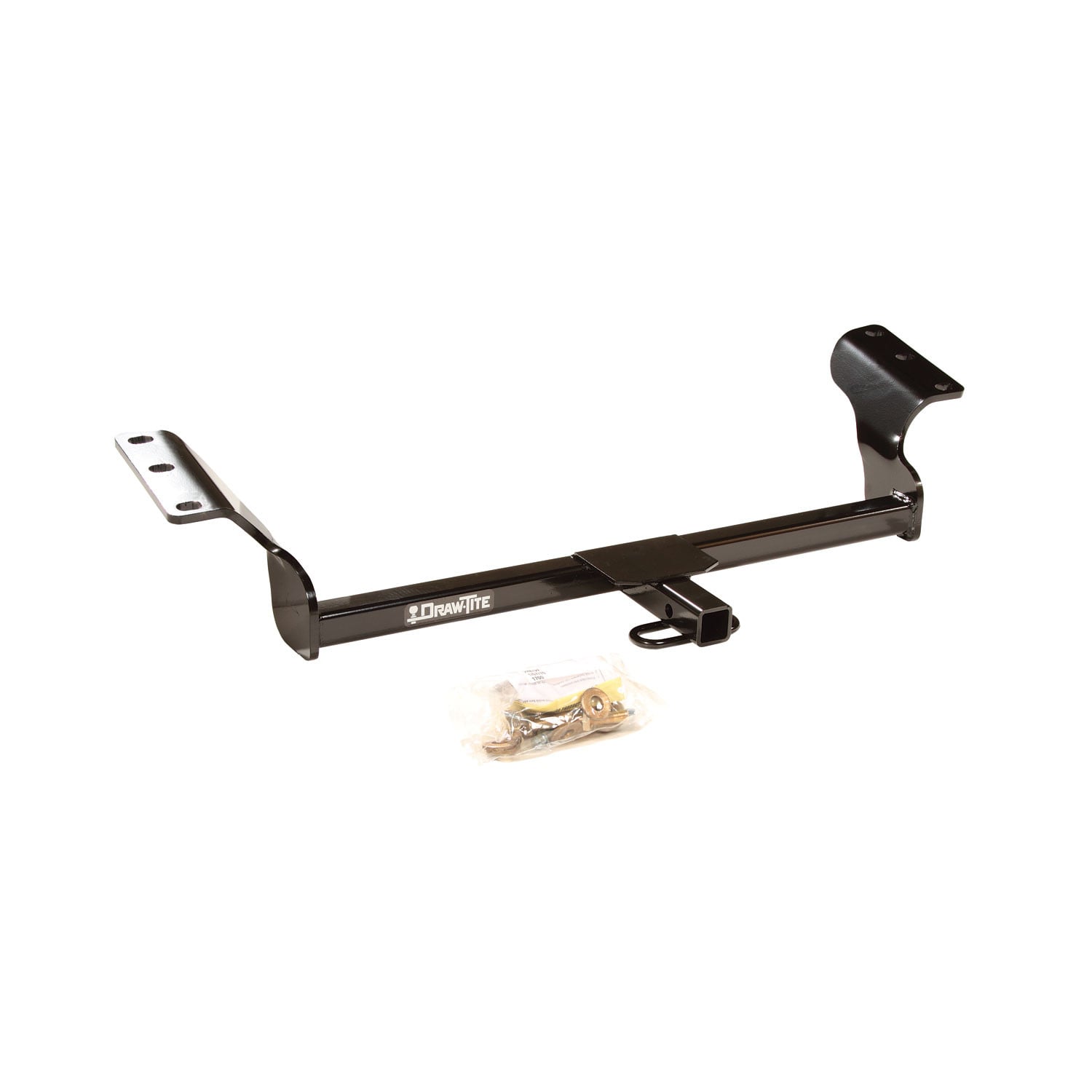

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24812 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 21.1 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2003 - 2010 | Pontiac Vibe | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes |
| 2003 - 2014 | Toyota Matrix | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes |
Yes, part number 24812 is designed for Toyota Matrix and Pontiac Vibe vehicles. However, if you own a Toyota Matrix XRS or XR Sport model, the center fascia must be removed before installation. The center fascia is sold separately.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (91 kg). However, you must not exceed the lower of the towing vehicle manufacturer's rating or these specifications.
You need a 19mm wrench. No drilling is required. The hitch uses existing factory weld nuts on the frame rails, so no additional holes need to be created.

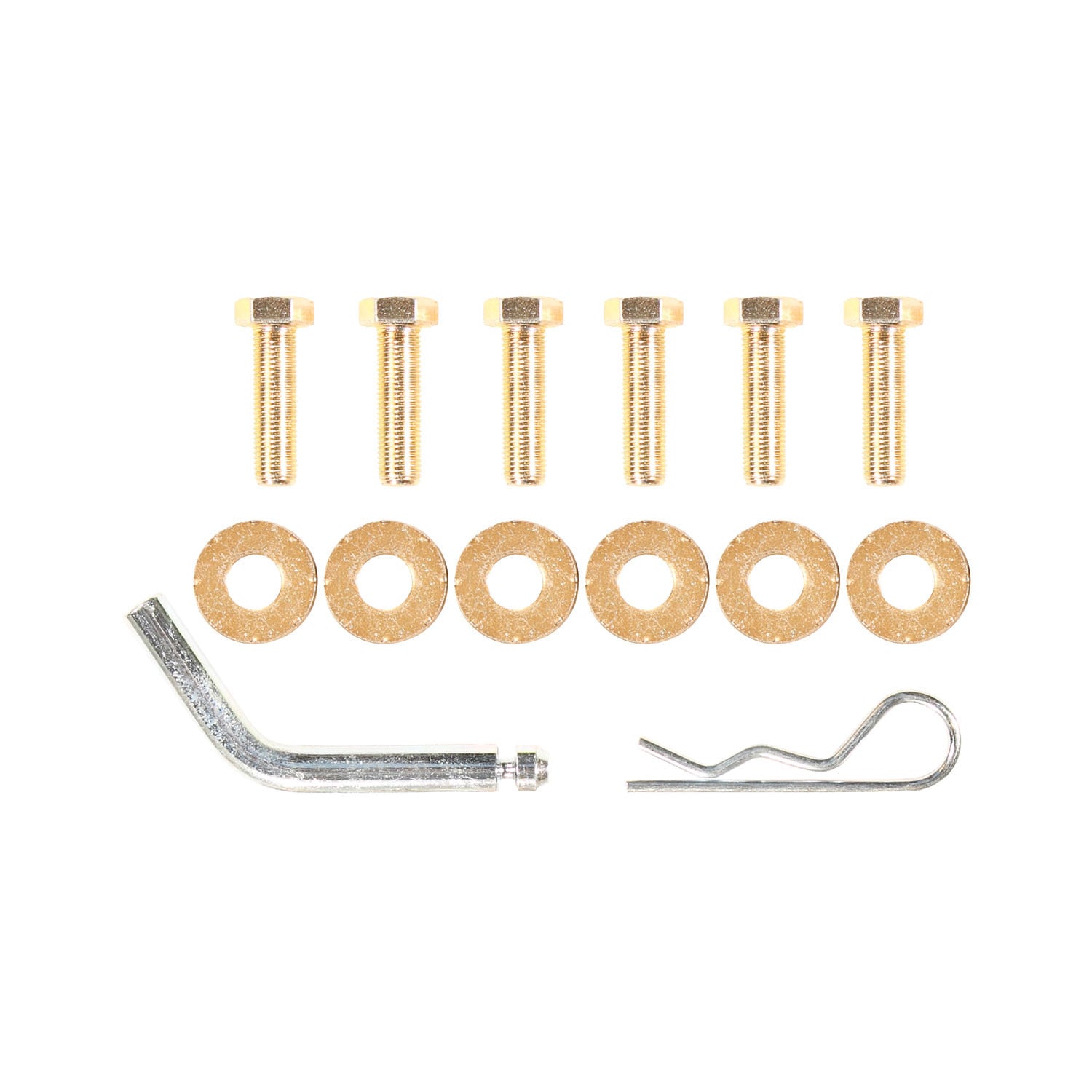

The hitch assembly includes 6 M12 x 1.25 x 40mm CL10.9 bolts and 6 conical 1/2" washers. A separate fastener kit 24812F is available if additional fasteners are needed.
1. Raise the hitch into position. 2. Install the 6 M12 x 1.25 x 40mm bolts with conical washers into the existing factory weld nuts on both frame rails, as shown in the diagram. The fasteners are installed on both sides of the vehicle.
All M12 CL10.9 fasteners must be tightened to 92 Lb.-Ft. (125 N·M) using a torque wrench.
Center fascia removal is required only for Toyota Matrix XRS and XR Sport models. The center fascia must be removed for hitch installation on these models and is sold separately. Other Matrix and Vibe models do not require fascia removal.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. A damaged hitch or ball must be removed and replaced immediately.
The drawbar kit is part number 3593 and is sold separately. It is not included with the hitch assembly. The drawbar must be used in the raised position only.
The wiring access location is SUV3 or SUV4, depending on your vehicle configuration.
Yes, it fits both vehicles. If you have a Matrix XRS or XR Sport, the center fascia (sold separately) must be removed.
No, drilling is not required. The hitch fastens to existing factory weld nuts on the frame rails.
All M12 CL10.9 fasteners must be tightened to 92 Lb.-Ft. (125 N·M).
Maximum gross trailer weight is 2000 LB (908 kg); maximum tongue weight is 200 LB (91 kg). Do not exceed your vehicle manufacturer's towing rating.
The drawbar must be used in the raised position only. Do not operate with the drawbar in any other position.
