Draw-Tite Hardware Kit For Class 1 Trailer Hitch, 1-1/4 Inch 24797 For 2007-2010 KIA Rondo Draw-tite$39.49Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2007 - 2012 Kia Rondo
Confirmed to Fit
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
Always the correct part
We know our products
Always the correct part
We know our products
Quality Products
Free Shipping!
Quality Products
Free Shipping!
On Sale Today
Original price was $307.50. Current price is $190.70.You save $116.80 (38%)
Free Shipping
Ships free on all orders
Authorized Dealer
FREE ShippingFREE SHIPPING
Estimated delivery Wed, Sep 16 - Sat, Sep 19
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout

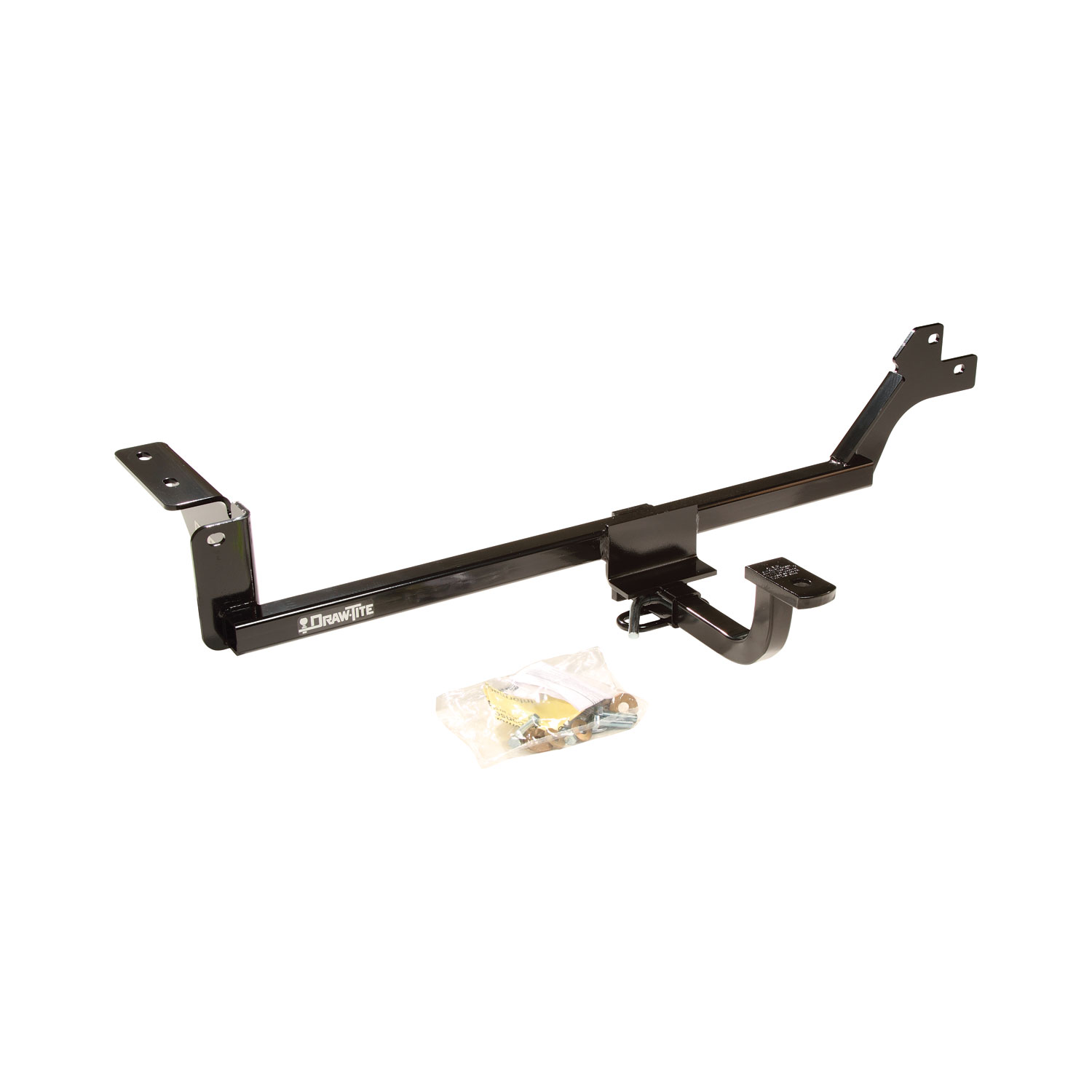

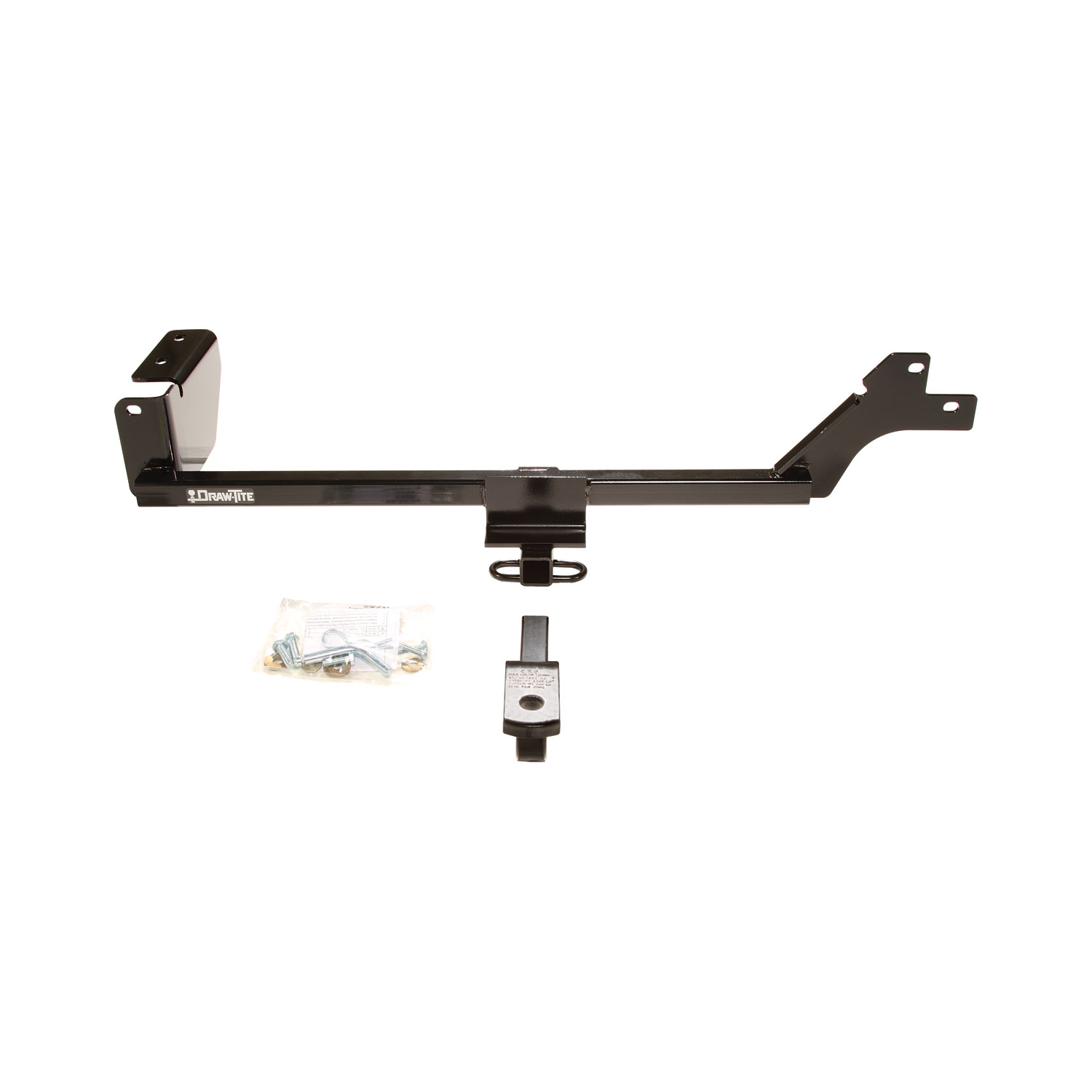

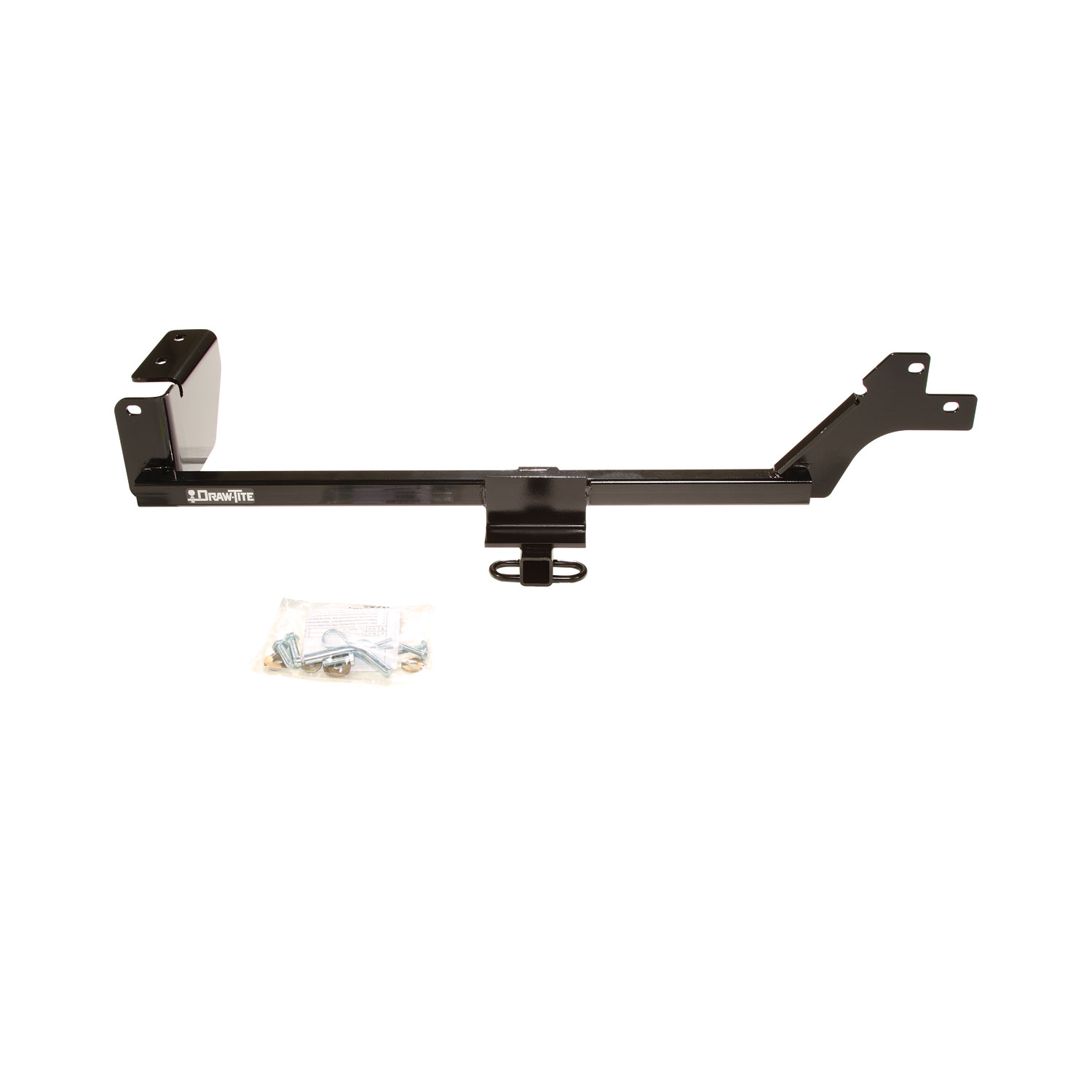

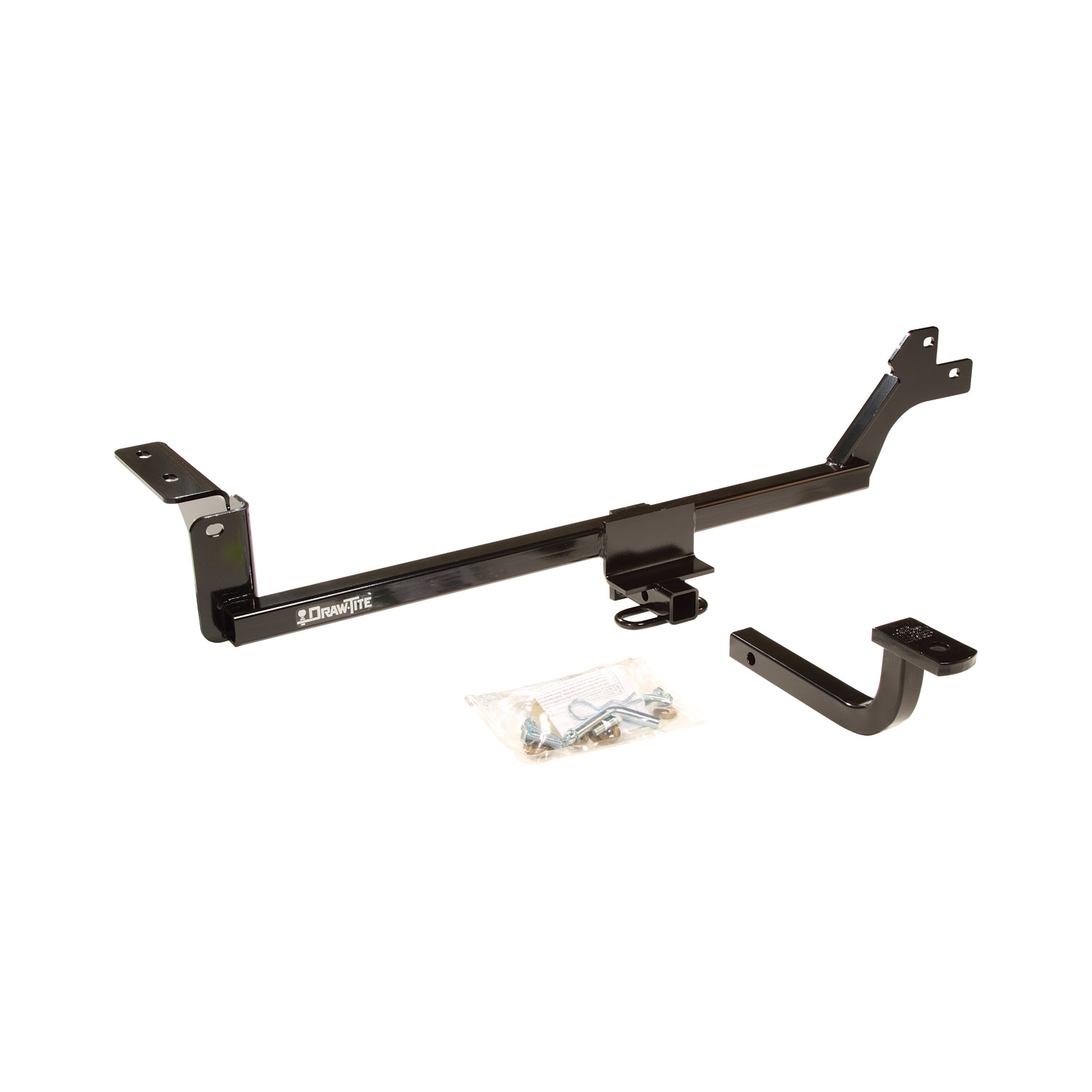

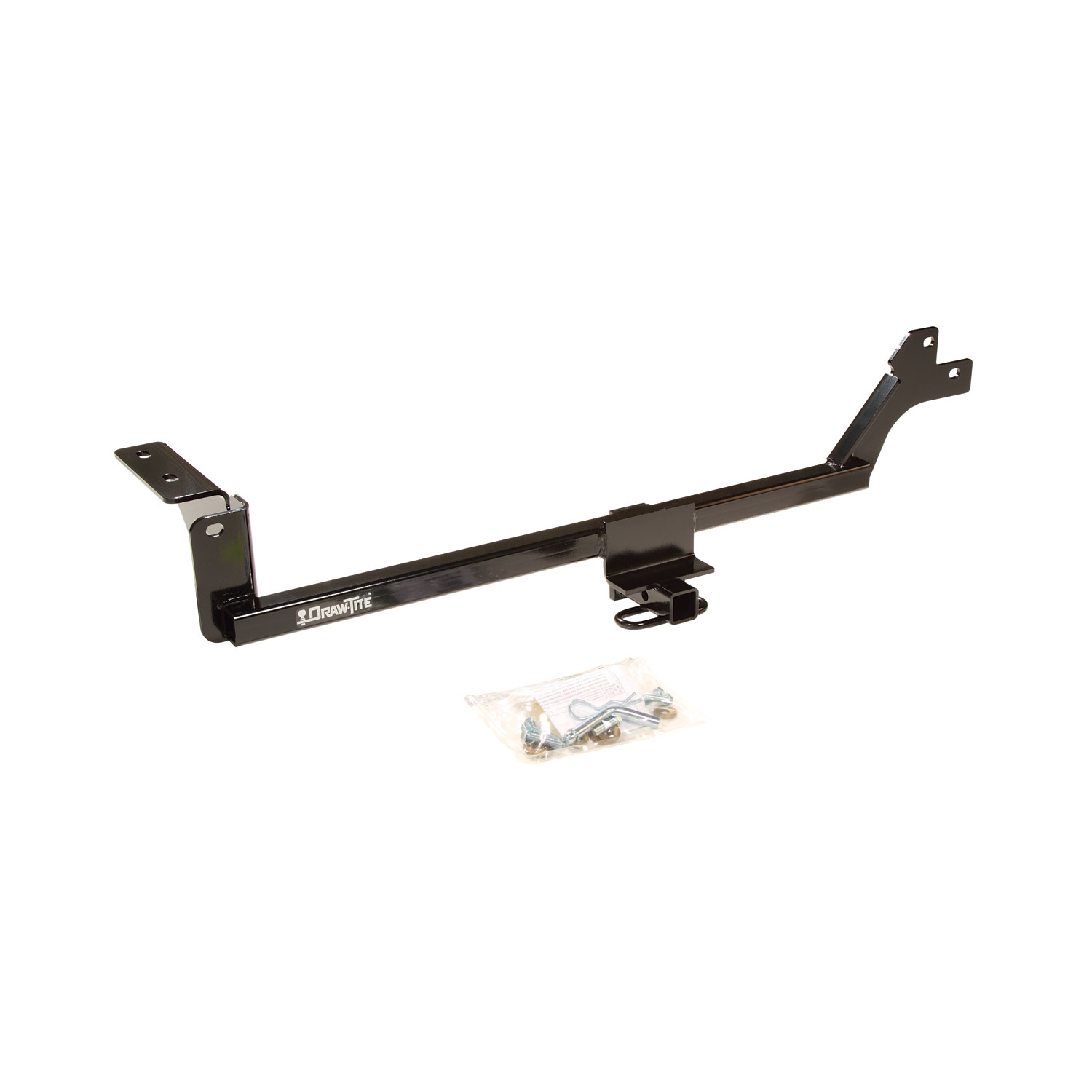

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24797 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 17.6 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® Receiver Hitches Commercial
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2012 | Kia Rondo | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
Total for 4 items:
$150.58
Part number 24797 is designed for Kia Rondo vehicles. The manual lists 2007, 2013, and 2015 model years. If your Rondo is one of these years, this hitch should fit. For model years outside this range, contact the manufacturer or a fitment database to confirm compatibility.
The maximum gross trailer weight is 2000 lb (908 kg) and the maximum tongue weight is 200 lb (90.8 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need wrenches in the following sizes: 10mm, 12mm, 13mm, 14mm, and 17mm. No drill bits are required, as no drilling is necessary for this installation.

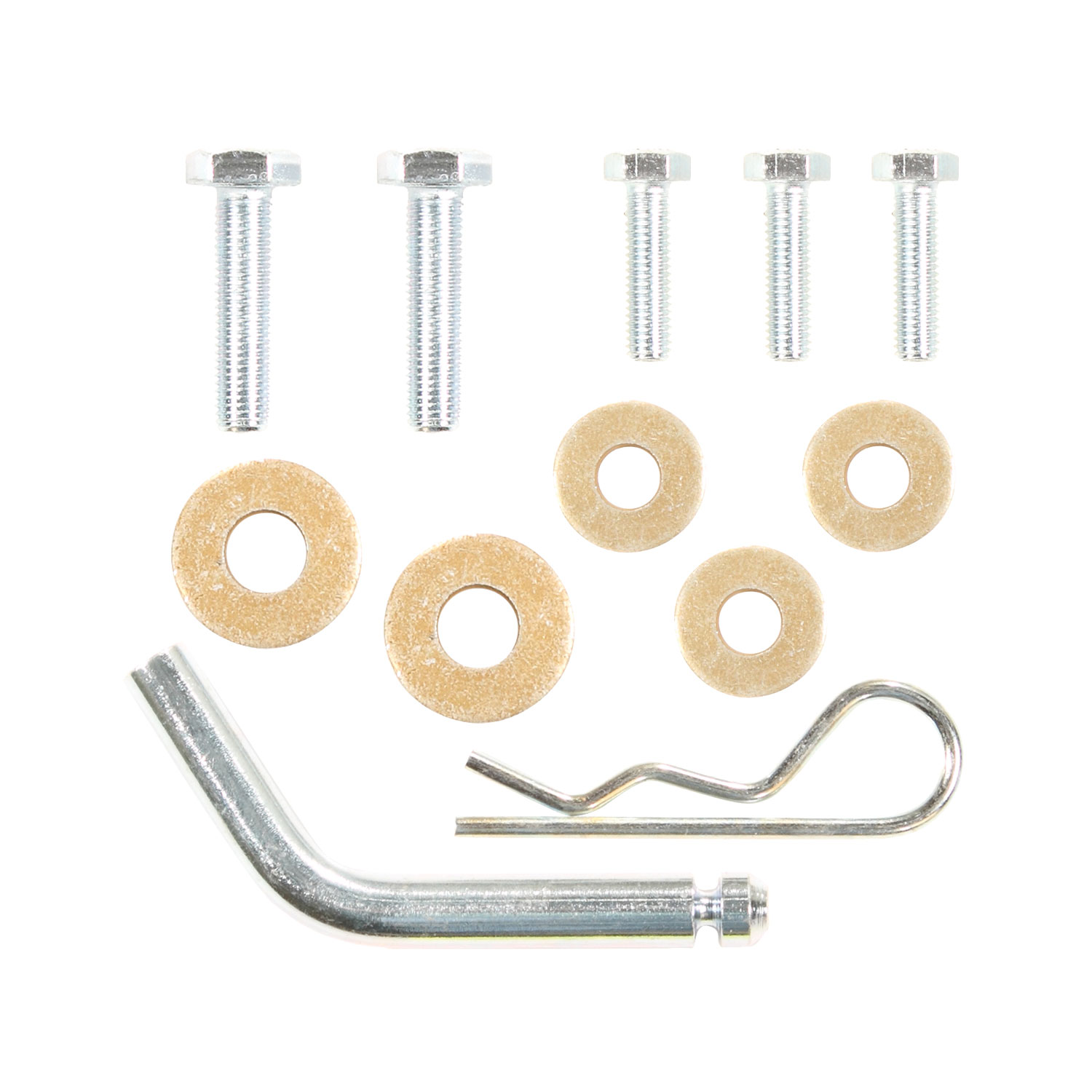

The hitch includes: (2) Hex Bolt M10 x 1.25 x 40mm CL8.8, (3) Hex Bolt M8 x 1.25 x 30mm CL8.8, (2) Conical Washer 7/16", and (3) Conical Washer 3/8". A separate Fastener Kit 24797F is also available.
You do not need to fully remove the exhaust system, but you must lower it. Disconnect the muffler from the rubber exhaust hangers at 3 places and temporarily remove the exhaust heat shield. Both must be reinstalled after the hitch is installed.
The driver-side tie-down hook must be removed during installation. You must return the tie-down hook and its fasteners to the vehicle owner.
No. The existing fasteners at the end of the frame rail are removed and discarded. New fasteners are installed into the existing weldnuts in the vehicle frame.
All M8 CL8.8 fasteners must be tightened to 20 lb.-ft. (27 N·m).
All M10 CL8.8 fasteners must be tightened to 38 lb.-ft. (52 N·m).
No drilling is required. The hitch uses existing weldnuts in the vehicle frame for attachment.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes regular inspection as part of ongoing maintenance.
No. The drawbar kit (part number 3594) is sold separately and must be purchased if needed. The drawbar must be used in the rise position only.
The wiring access location is listed as SUV1 or SUV2. Refer to the vehicle-specific wiring diagram or contact the manufacturer for detailed wiring access instructions for your specific model.
A damaged hitch or ball must be removed and replaced. Do not continue to use a damaged component.
This hitch is designed for Kia Rondo (2007, 2013, 2015 model years). Confirm your model year matches before purchasing.
You need wrenches: 10mm, 12mm, 13mm, 14mm, and 17mm. No drilling is required.
No, but you must lower it by disconnecting the muffler from rubber hangers at 3 places and temporarily removing the heat shield. Both are reinstalled after installation.
M8 CL8.8 fasteners: 20 lb.-ft. (27 N·m). M10 CL8.8 fasteners: 38 lb.-ft. (52 N·m).
Maximum gross trailer weight: 2000 lb (908 kg). Maximum tongue weight: 200 lb (90.8 kg). Do not exceed the lower of these limits or the vehicle manufacturer's rating.
