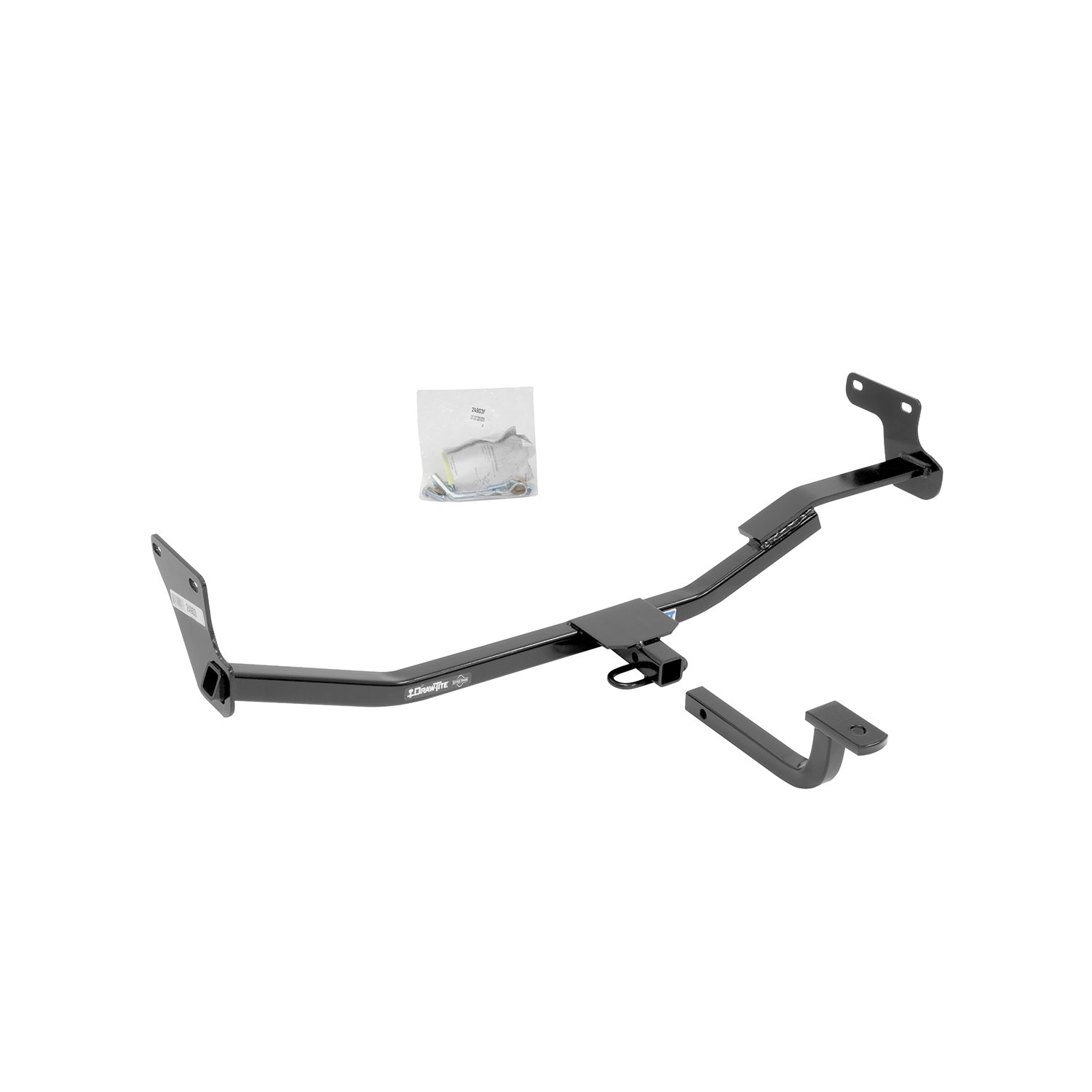

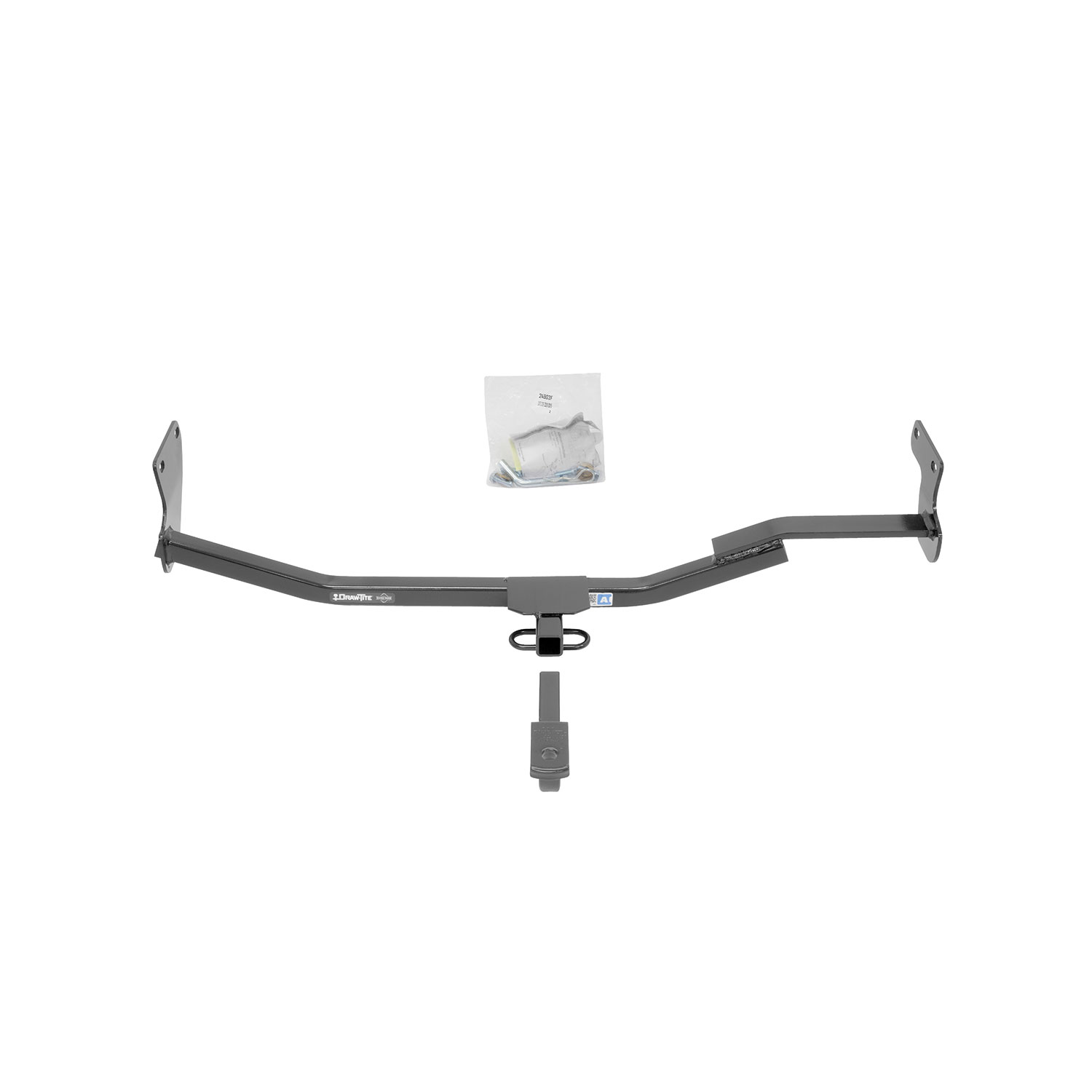

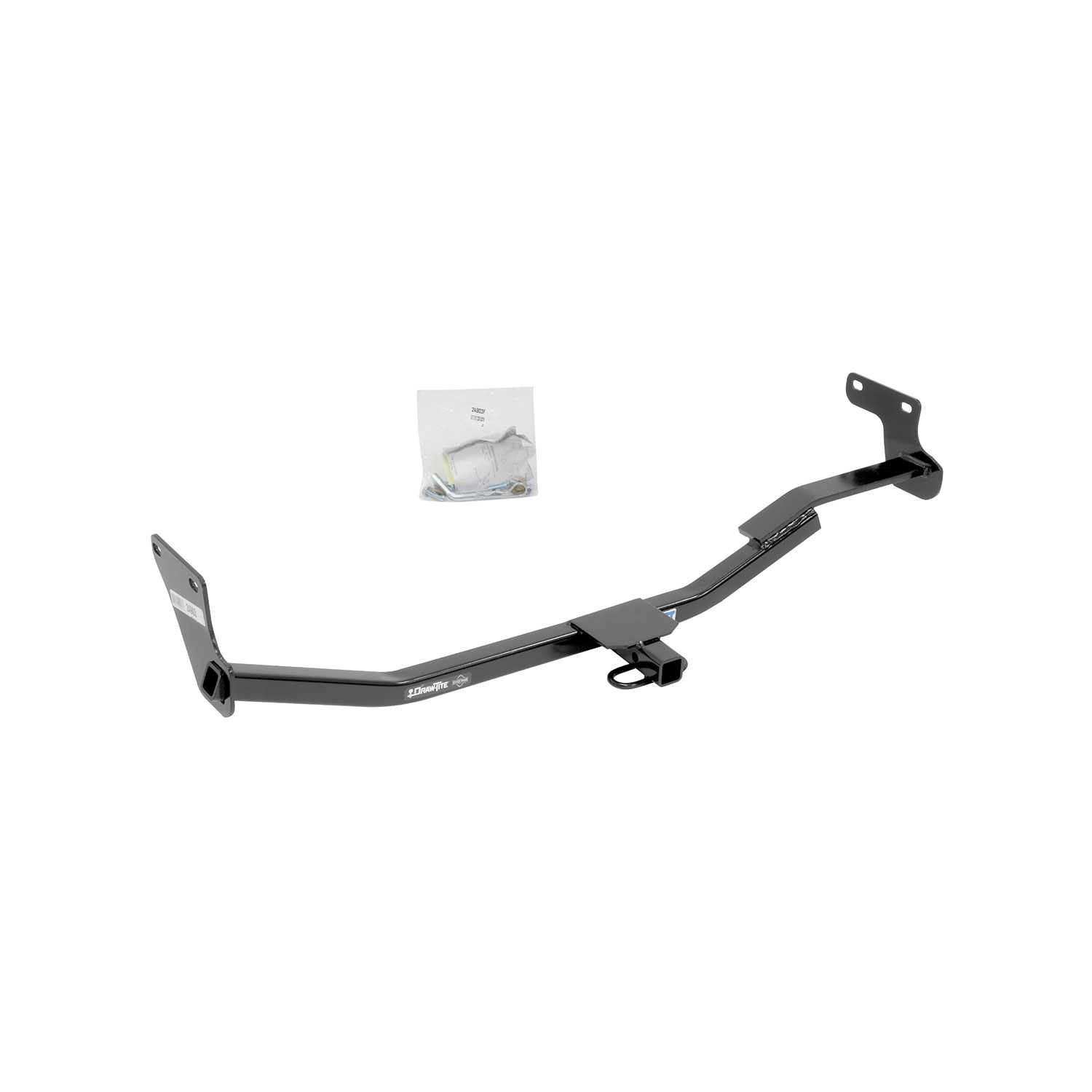

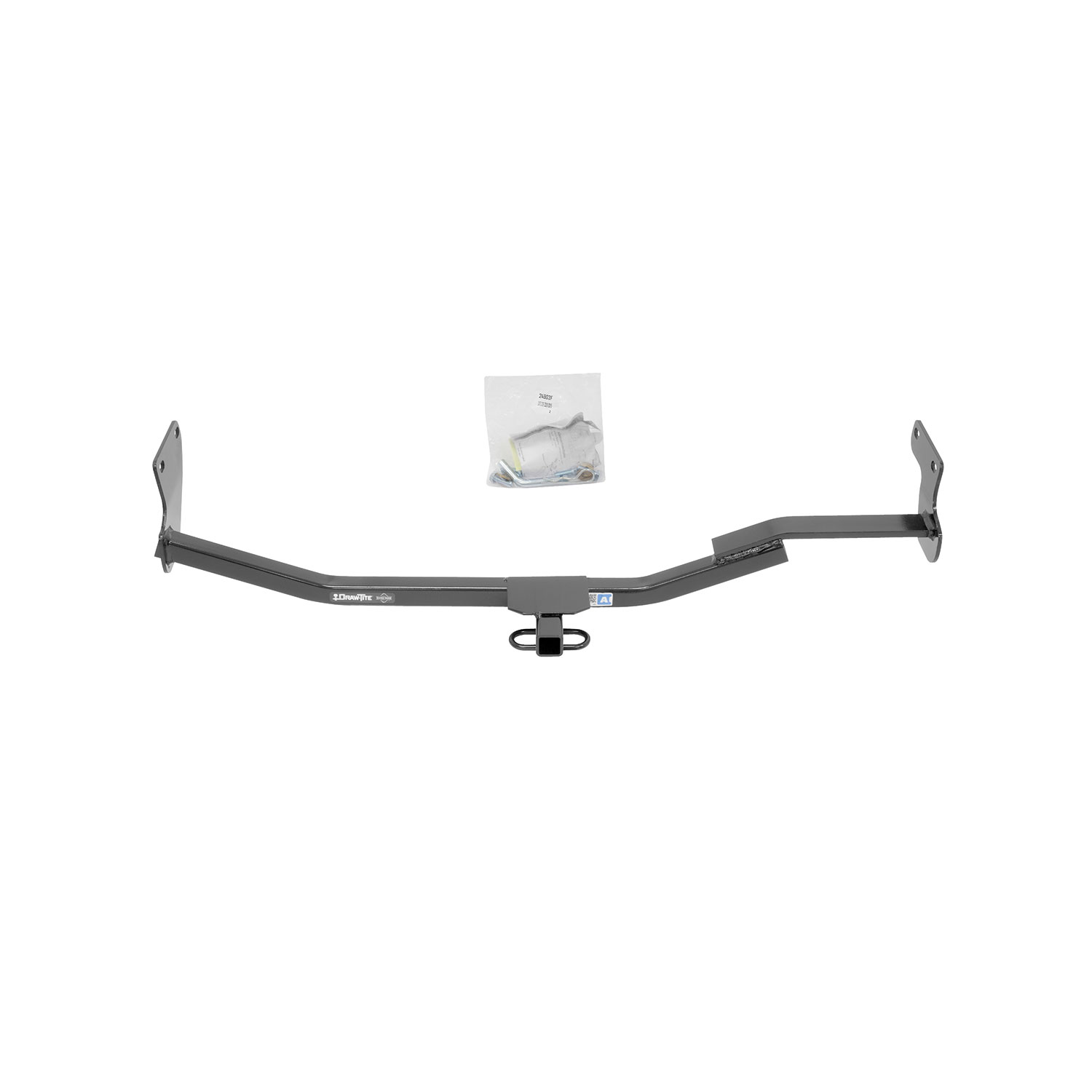

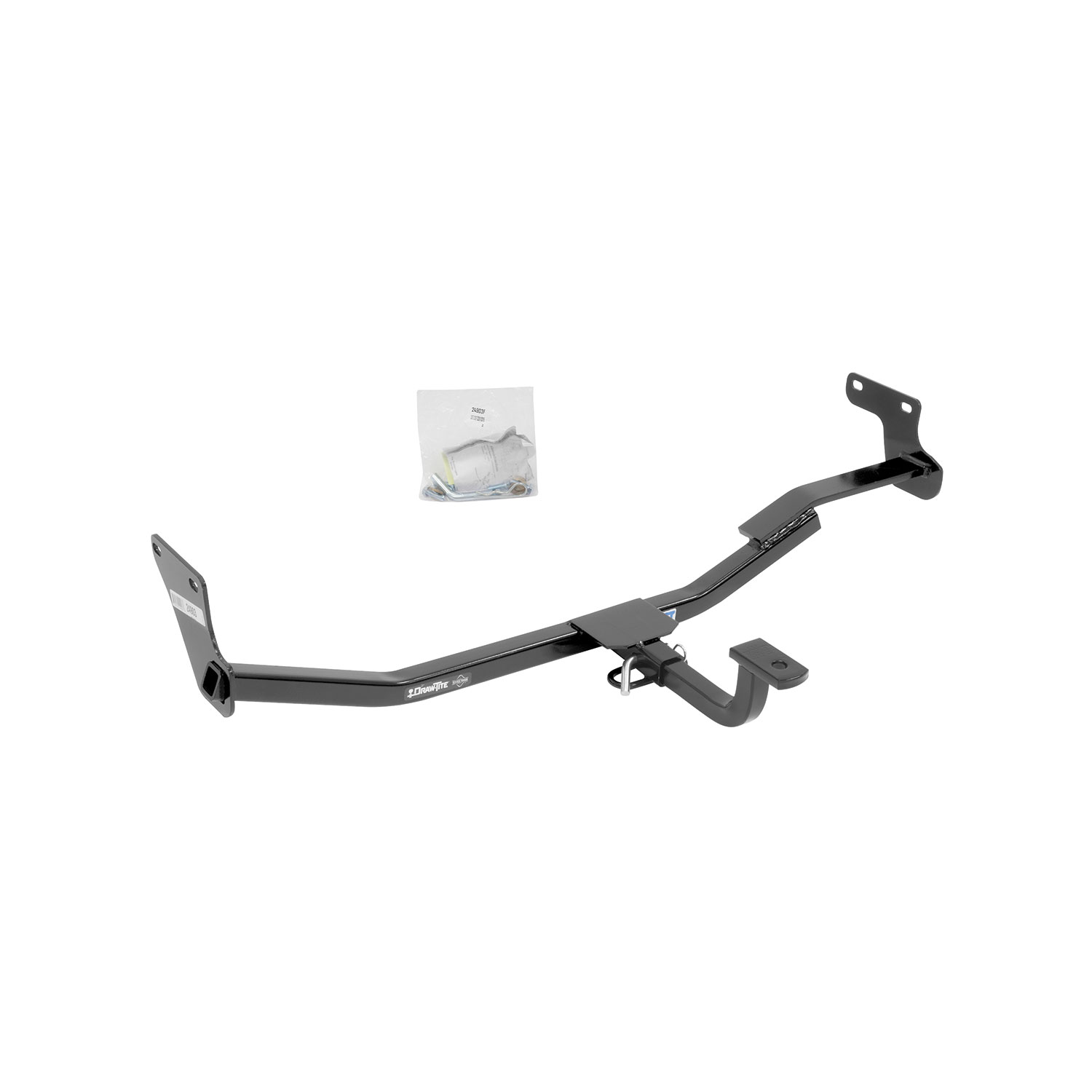

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24903 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 13.6 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2014 - 2018 | Kia Forte | Sedan · 4-Door | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select KIA Forte 24903 (Part #DT24903) fits the following vehicles: 2014-2018 Kia Forte. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select KIA Forte 24903 (Part #DT24903) fits 2014-2018 Kia Forte models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select KIA Forte 24903 (Part #DT24903) is designed to fit the 2014-2018 Kia Forte.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select KIA Forte 24903 (Part #DT24903) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, this hitch is designed for the Kia Forte. Part numbers 24903, 60335, and 77290 are the applicable components for this vehicle.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
A 17mm wrench is required. Lubricant or soapy water is also recommended to help with removal of the exhaust system rubber isolator.

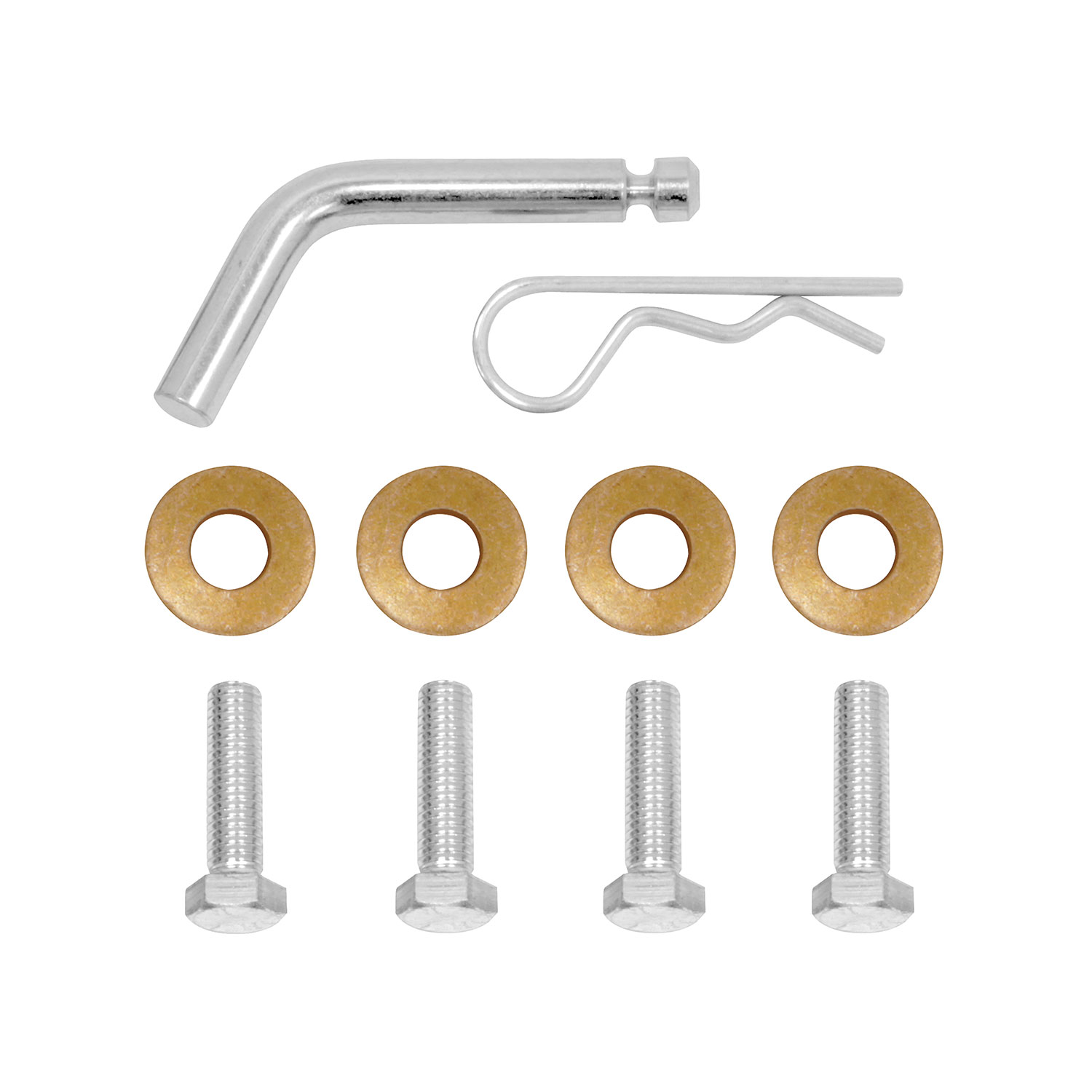

The hitch comes with 4 hex bolts M10 × 1.25 × 30mm CL8.8 and 4 conical washers 3/8". These fasteners are supplied in the Fastener Kit 24903F. Existing weld nuts on both sides of the frame rails are used for attachment.
No, you do not need to remove the exhaust system completely. Lower the exhaust system at the rear rubber isolator, leaving the rubber isolator in place on the vehicle. Spraying lubricant on the metal hanger rod and rubber isolator helps with this step.
1. Lower the exhaust system at the rear rubber isolator, leaving the isolator in place. 2. Lift the hitch into position, passenger side first, placing the crosstube over the tail pipe and rotating it to the outside of the frame rail. 3. Raise the driver's side of the hitch so it is on the outside of the frame rails and in front of the bulkhead. 4. Attach remaining fasteners as shown. 5. Push the hitch toward the rear of the vehicle. 6. Tighten all fasteners to the required torque specification. 7. Reattach the rubber muffler hanger.
Yes, it may be necessary to gently pull the fascia out of the way during both the passenger side and driver's side positioning steps to allow the hitch to rotate into position on the outside of the frame rails.
All M10 CL8.8 fasteners must be tightened to 42 Lb.-Ft. (57 N·M) using a torque wrench.
The drawbar must be used in the rise position only. The drawbar kit (part number 3594) is sold separately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Perform this check regularly during the first period of use and periodically thereafter.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch or ball.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
Yes, this hitch (part numbers 24903, 60335, 77290) is designed for the Kia Forte.
Maximum gross trailer weight is 2000 LB (908 kg) and maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
You need a 17mm wrench and a torque wrench. Lubricant or soapy water is recommended for the exhaust system work.
No. Lower the exhaust system at the rear rubber isolator only, leaving the isolator in place on the vehicle.
Tighten all M10 CL8.8 fasteners to 42 Lb.-Ft. (57 N·M) using a torque wrench.
The drawbar must be used in the rise position only. The drawbar kit (part 3594) is sold separately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry.
