Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

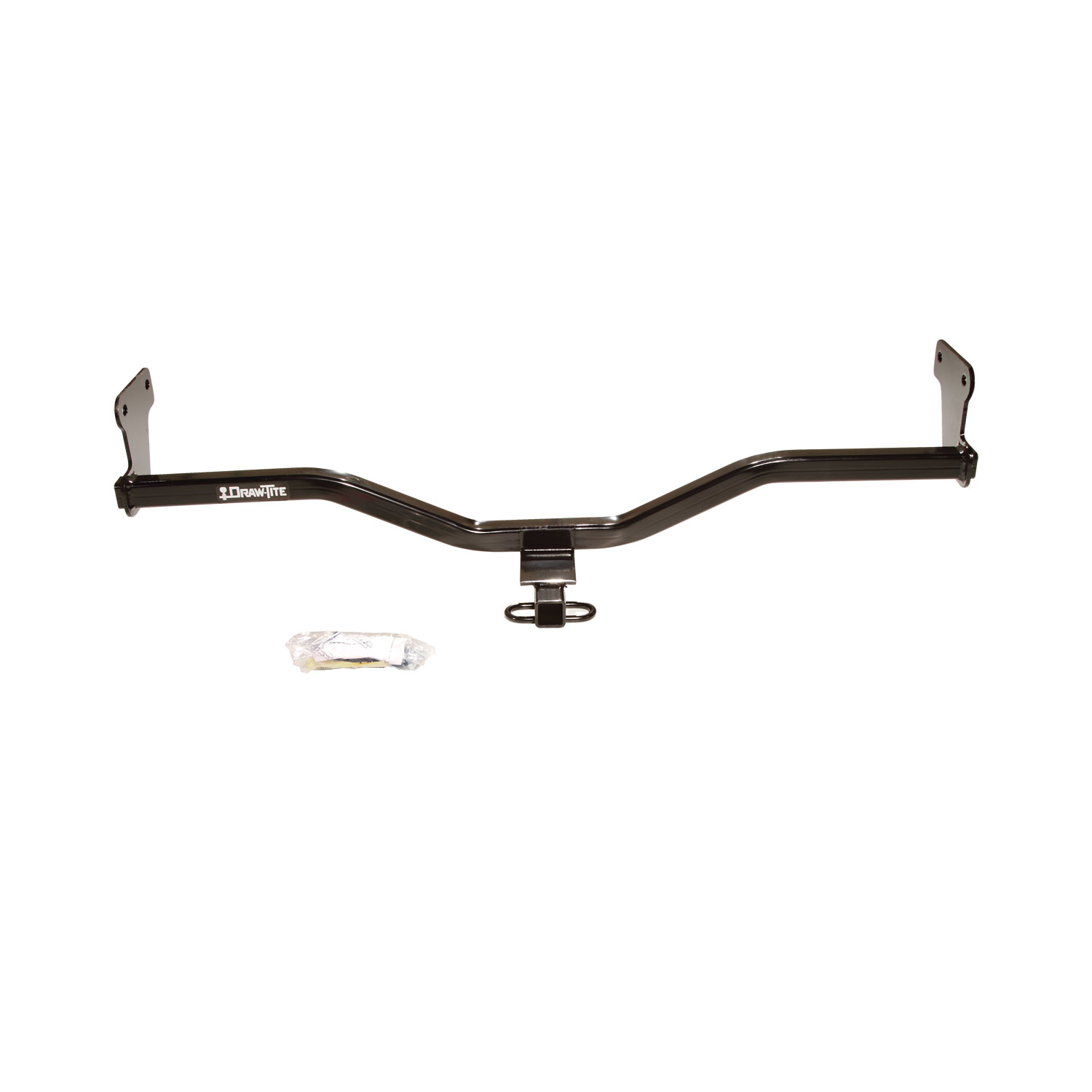

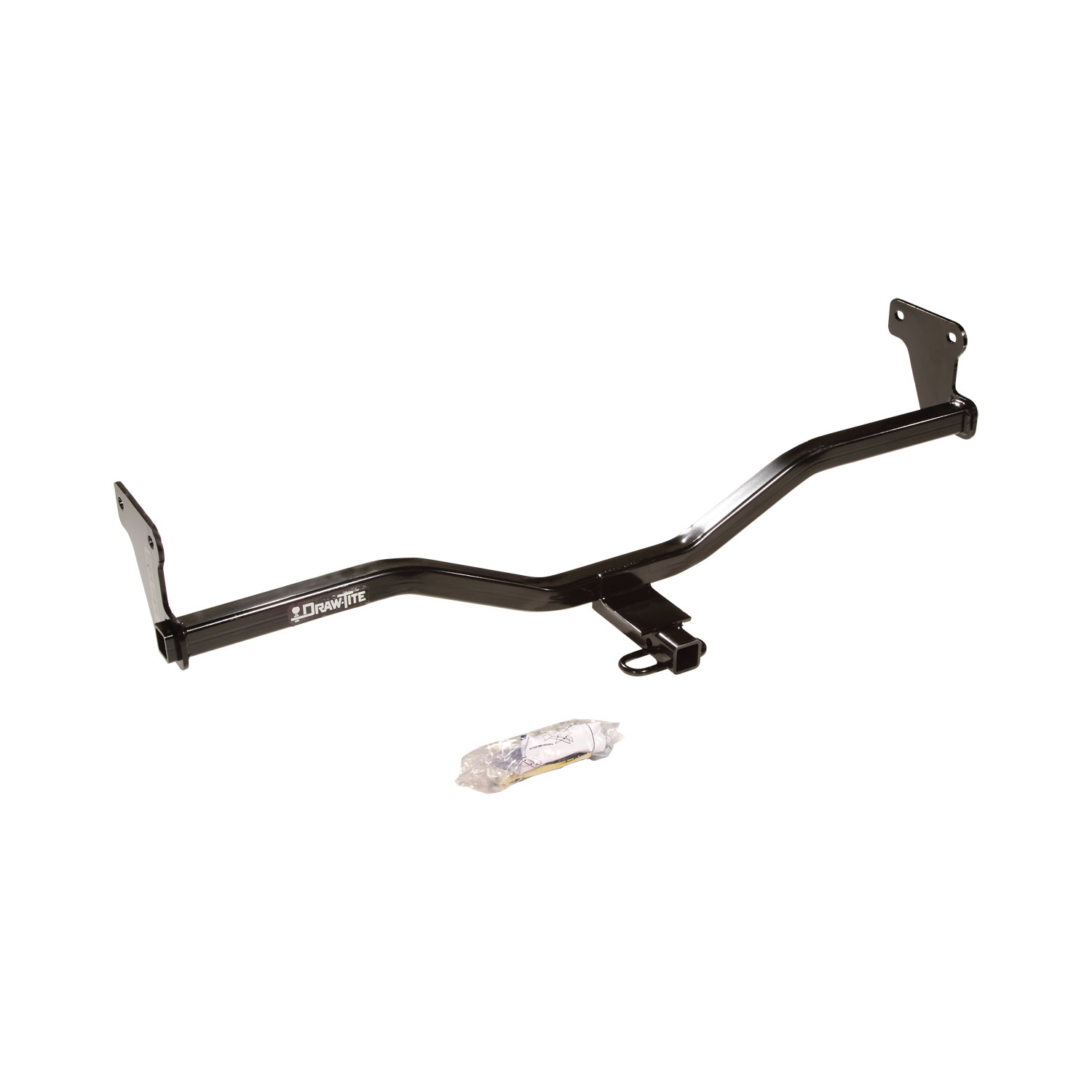

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24839 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 20.1 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2013 | Kia Soul | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes Except with LED Taillights |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select KIA Soul 24839 (Part #DT24839) fits the following vehicles: 2010-2013 Kia Soul. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select KIA Soul 24839 (Part #DT24839) is designed to fit the 2010-2013 Kia Soul.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select KIA Soul 24839 (Part #DT24839) fits 2010-2013 Kia Soul models. The 2013 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select KIA Soul 24839 (Part #DT24839) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24839 fits Kia Soul model years 2009, 2012, 2013, and 2015. Confirm your vehicle year matches one of these before purchasing.
You will need a torque wrench, 17mm socket and ratchet wrench, and a Phillips screwdriver. No drill bits are required. The fastener kit 24839F is included.
No, drilling is not required. The manual lists 'Drill Bits: None'.
All M10 CL8.8 fasteners must be tightened to 42 Lb.-Ft. (57 N·M) using a torque wrench.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of these limits or your vehicle manufacturer's rating.
Yes, the drawbar kit 3593 is sold separately and must be used in the RISE position only.
The fastener kit 24839F includes 4 hex bolts (M10 x 1.25 x 30mm CL8.8) and 4 conical toothed washers (3/8").
The manual specifies compatibility with 2009, 2012, 2013, and 2015 Kia Soul only. Compatibility with 2010 and 2011 model years is not confirmed in the manual. Contact the manufacturer or a fitment database to verify.
The manual does not specify whether the battery must be disconnected. Consult the vehicle manufacturer's service manual or a qualified installer for guidance on electrical safety during this installation.
1. Lower the exhaust by removing the rubber exhaust hanger. 2. Remove the inner wheel well and splash guards from both sides of the vehicle. 3. Remove the tow hook from the passenger's side frame rail and return it to the vehicle owner. 4. Raise the hitch into position and loosely install the M10 bolts and conical toothed washers. 5. Pull the hitch rearward and tighten all fasteners using a torque wrench to 42 Lb.-Ft. (57 N·M). 6. Reinstall the muffler hanger. 7. Reinstall the inner wheel well and splash guards.
Pulling the hitch rearward ensures proper alignment and seating of the hitch on the frame before final torque is applied. This step must be completed before tightening all fasteners with the torque wrench.
Return the tow hook to the vehicle owner. The manual specifies that it should be removed from the passenger's side frame rail and returned.
No, you only need to lower the exhaust by removing the rubber exhaust hanger. The exhaust does not need to be fully removed.
The manual requires removal of the inner wheel well and splash guards from both sides to provide access to the frame rail attachment points. They must be reinstalled after the hitch is secured.
A 17mm socket is required, used with a ratchet wrench.
The bolts are M10 x 1.25 x 30mm, grade CL8.8. There are 4 bolts included in the fastener kit 24839F.
The conical toothed washers are 3/8" in size. There are 4 washers included in the fastener kit 24839F.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes regular inspection to maintain safety and proper function.
The manual states to check the hitch frequently, making sure all fasteners and the ball are properly tightened. A specific interval is not provided; consult the vehicle or hitch manufacturer for recommended maintenance intervals.
A damaged hitch or ball must be removed and replaced. Do not continue to use a damaged component.
The hitch complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
The manual does not specify whether professional installation is required or recommended. The tools and steps are provided for DIY installation, but consult a qualified installer if you are uncertain about any step.
The manual does not provide an estimated installation time. Installation duration will depend on your experience level and familiarity with the vehicle.
The manual does not specify whether a lift, jack, or other lifting equipment is required. Consult a qualified installer or the vehicle manufacturer's service manual for guidance on safely accessing the frame rail attachment points.
The manual does not specify whether a second person is required. Some steps, such as raising the hitch into position, may be easier with assistance.
The manual does not address spare tire location or potential interference. Consult the vehicle manufacturer or a fitment database to confirm clearance.
The manual does not specify compatibility with factory tow packages or other factory equipment. Consult the manufacturer or a fitment database to confirm compatibility with your specific vehicle configuration.
The manual does not specify whether different body styles or trim levels require different hitch models. Contact the manufacturer or a fitment database to confirm compatibility with your specific vehicle.
If the hitch is removed, all holes in the trunk pan or other body panels must be plugged to prevent entry of water and exhaust fumes. If water or fumes are entering after installation, inspect all attachment holes and ensure they are properly sealed.
