Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

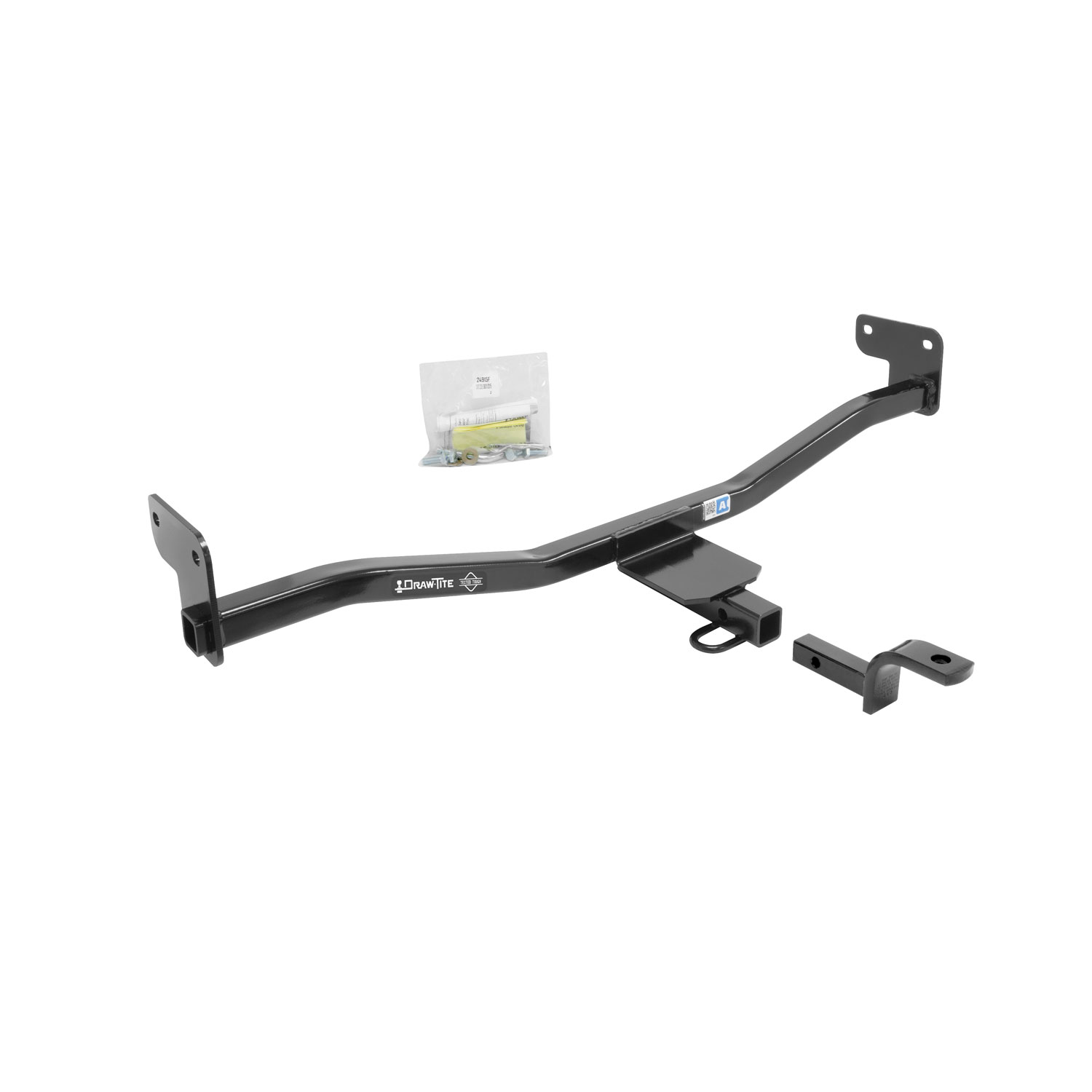

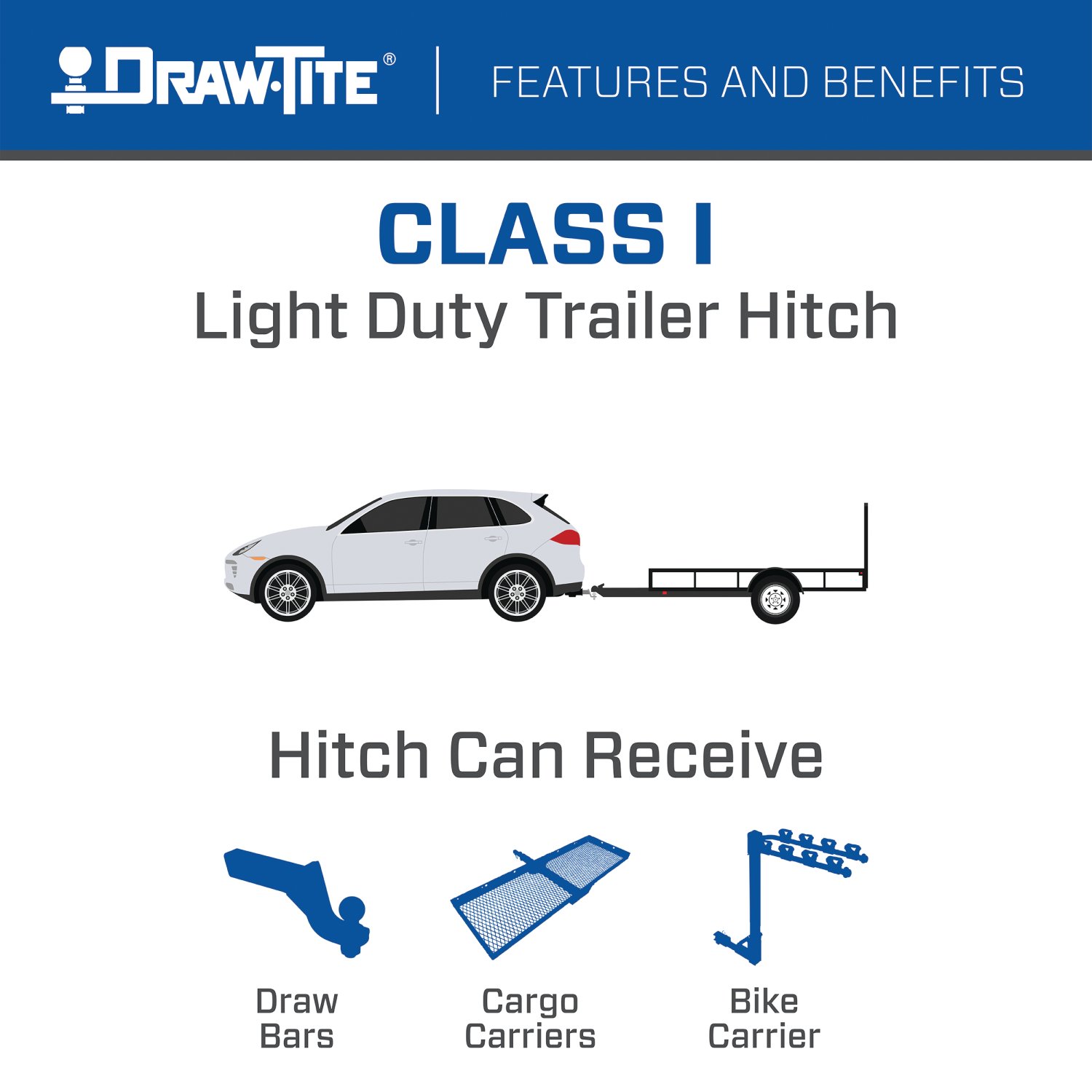

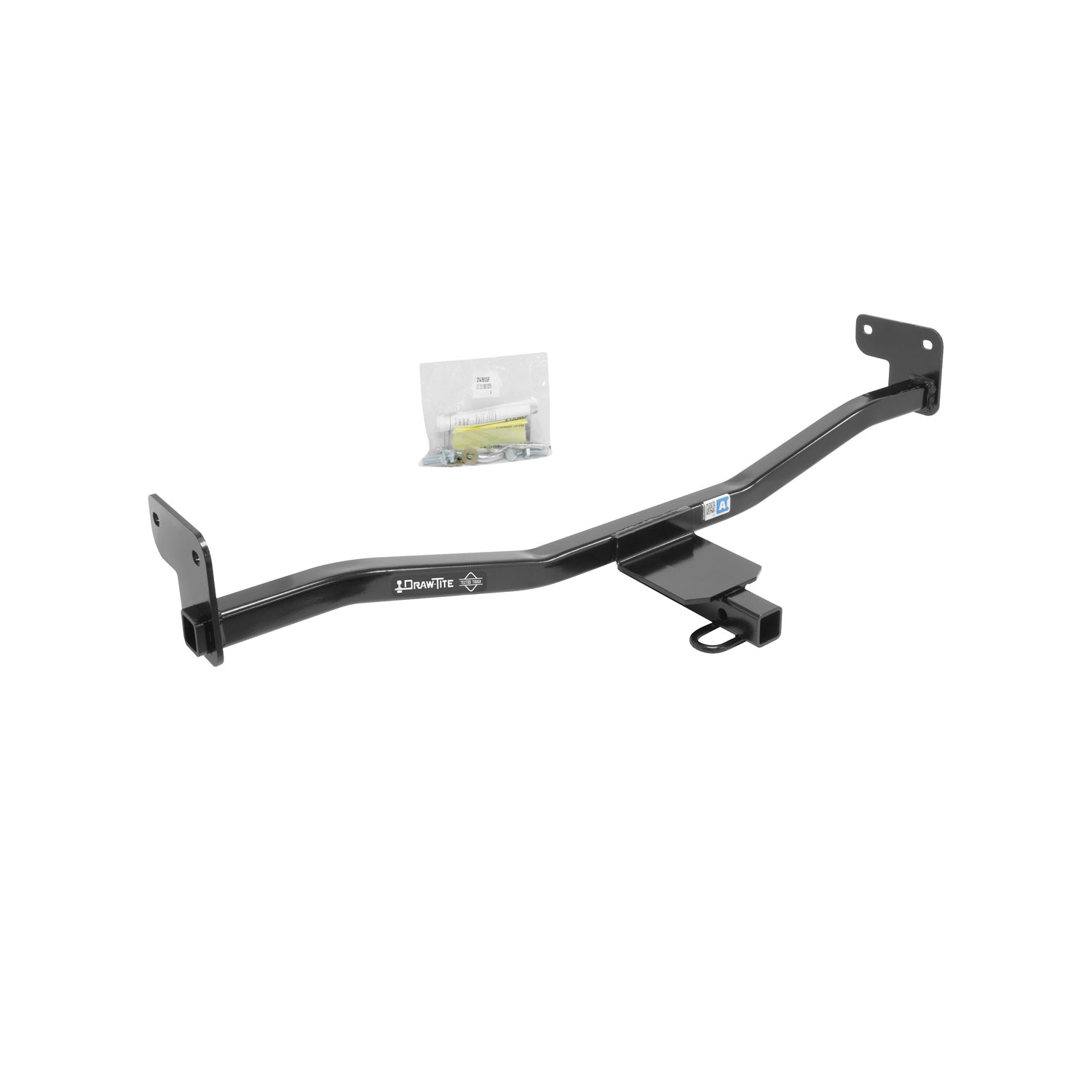

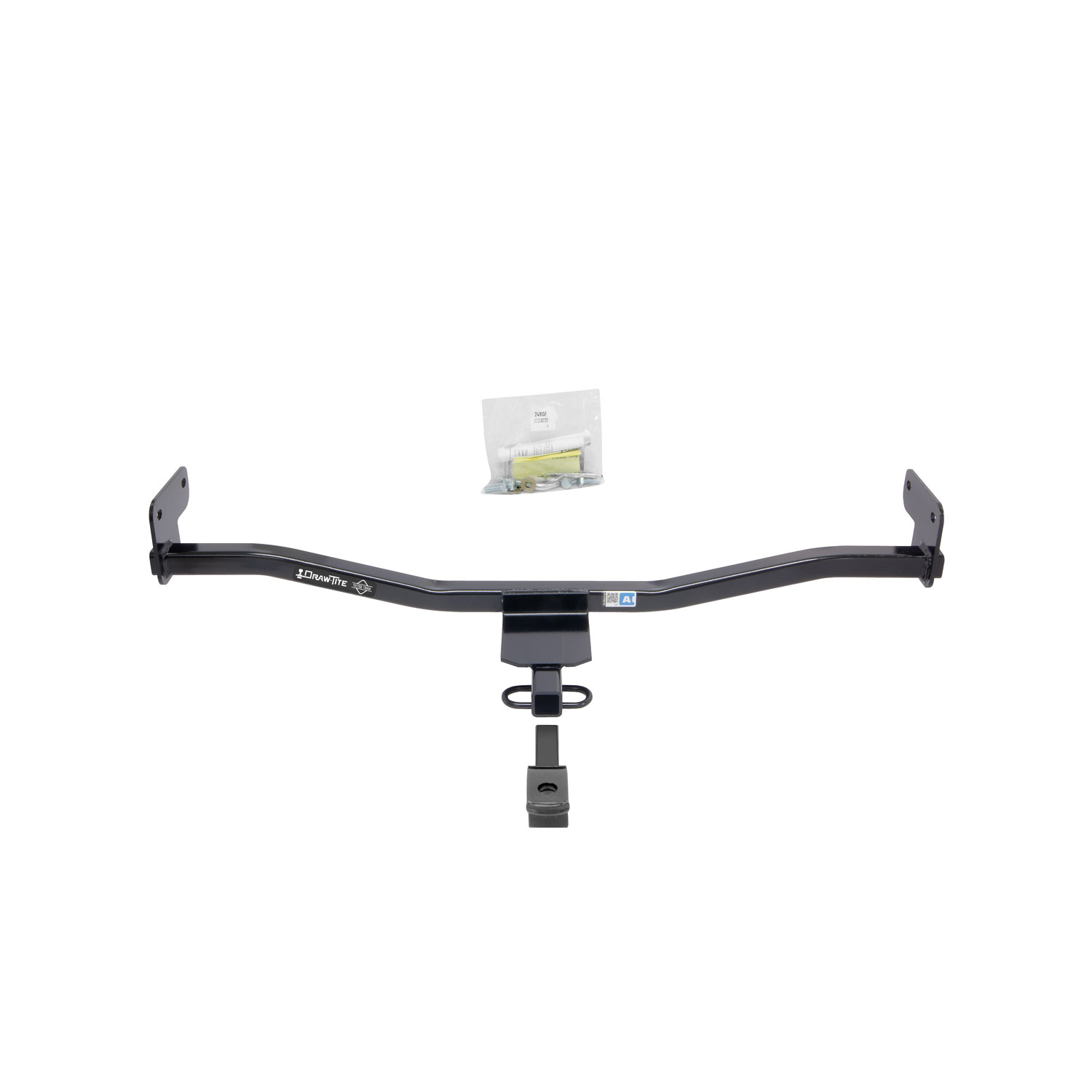

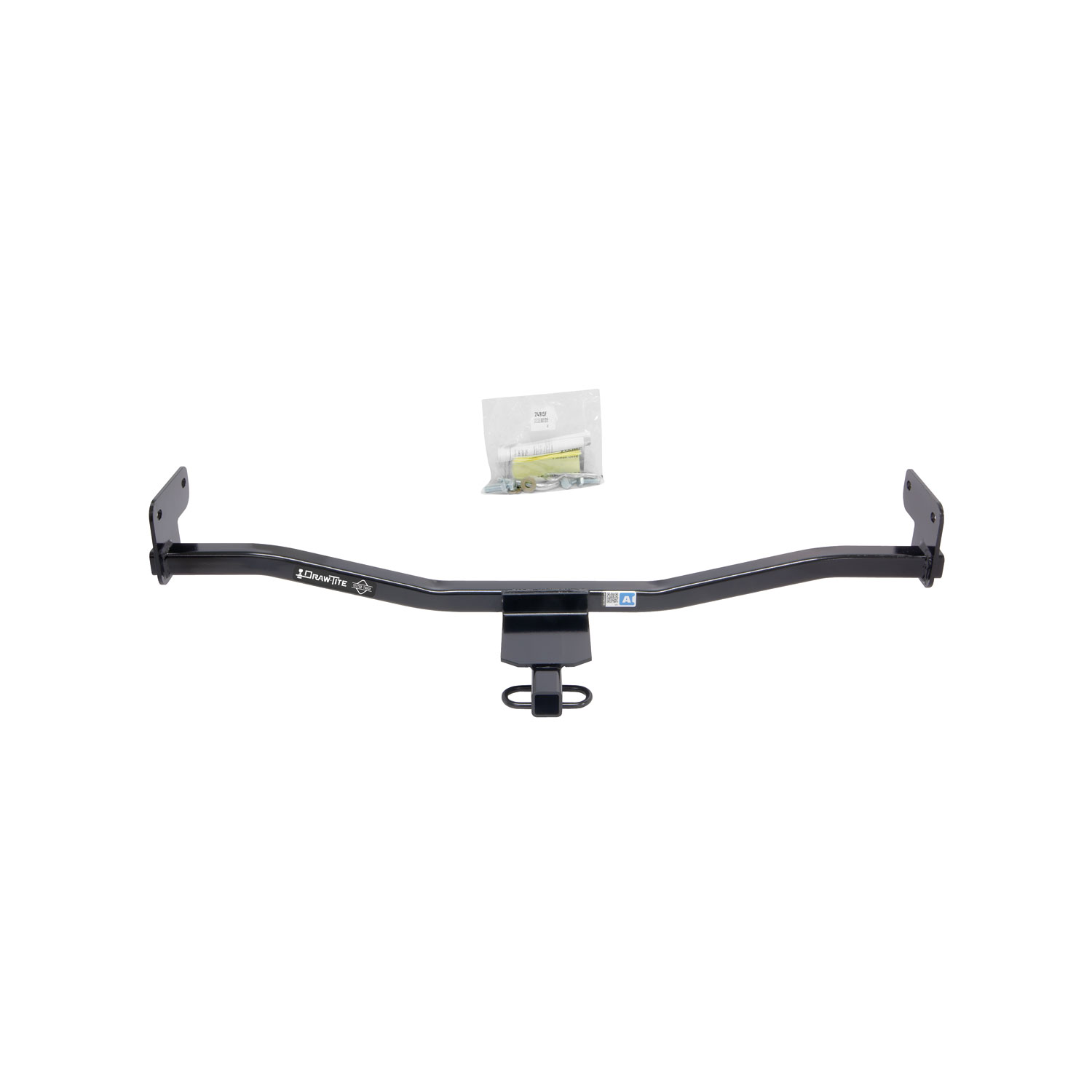

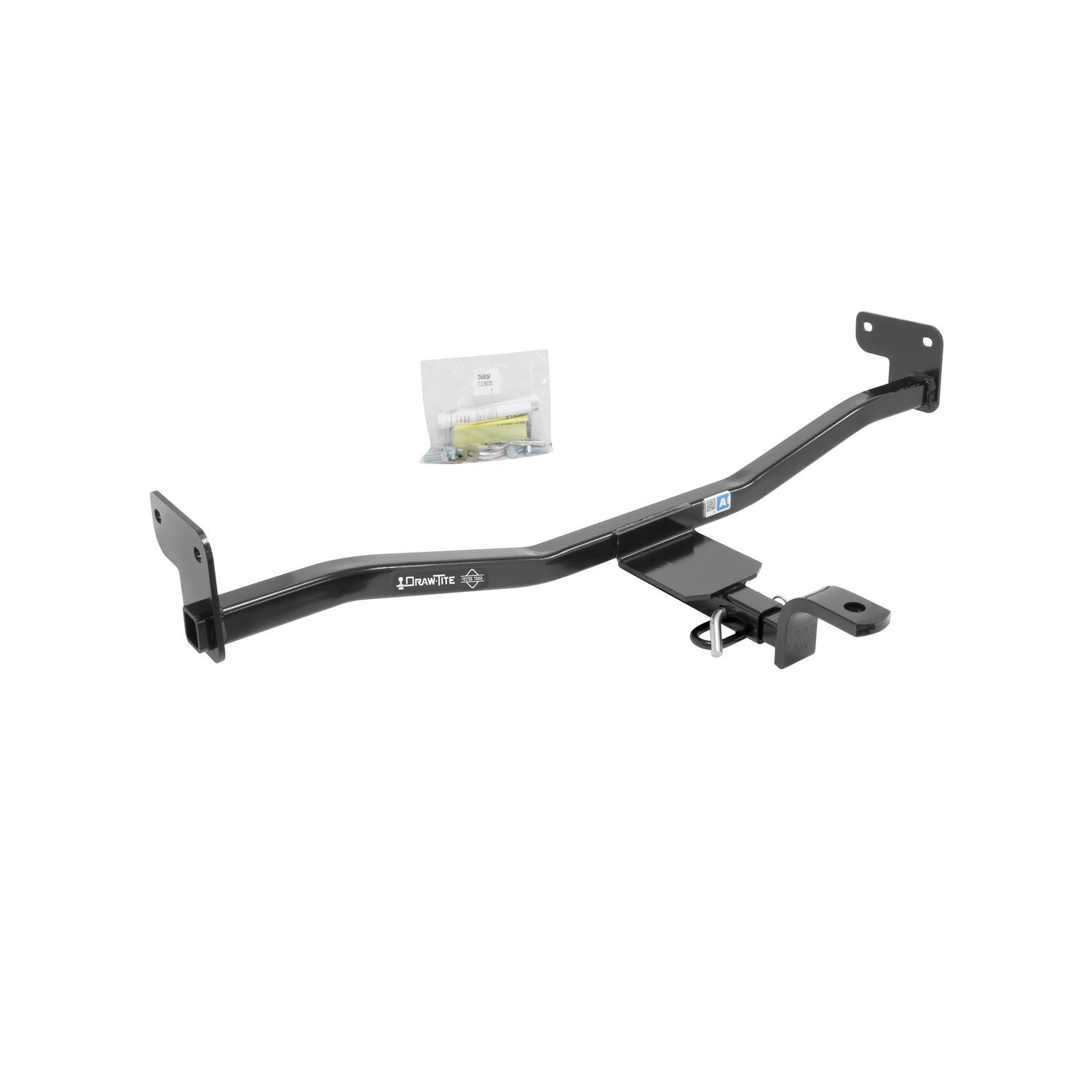

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24915 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 21.1 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |

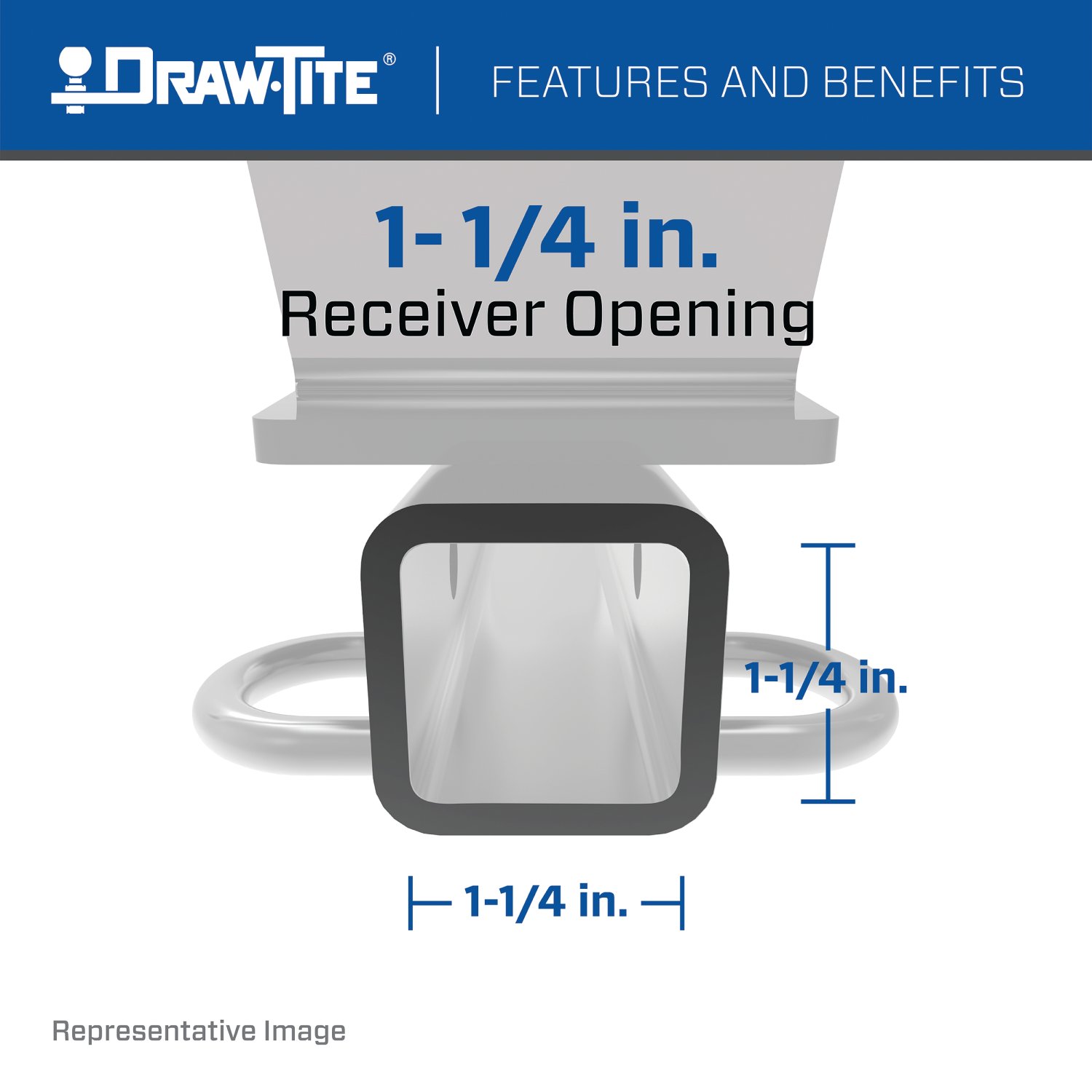

| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.

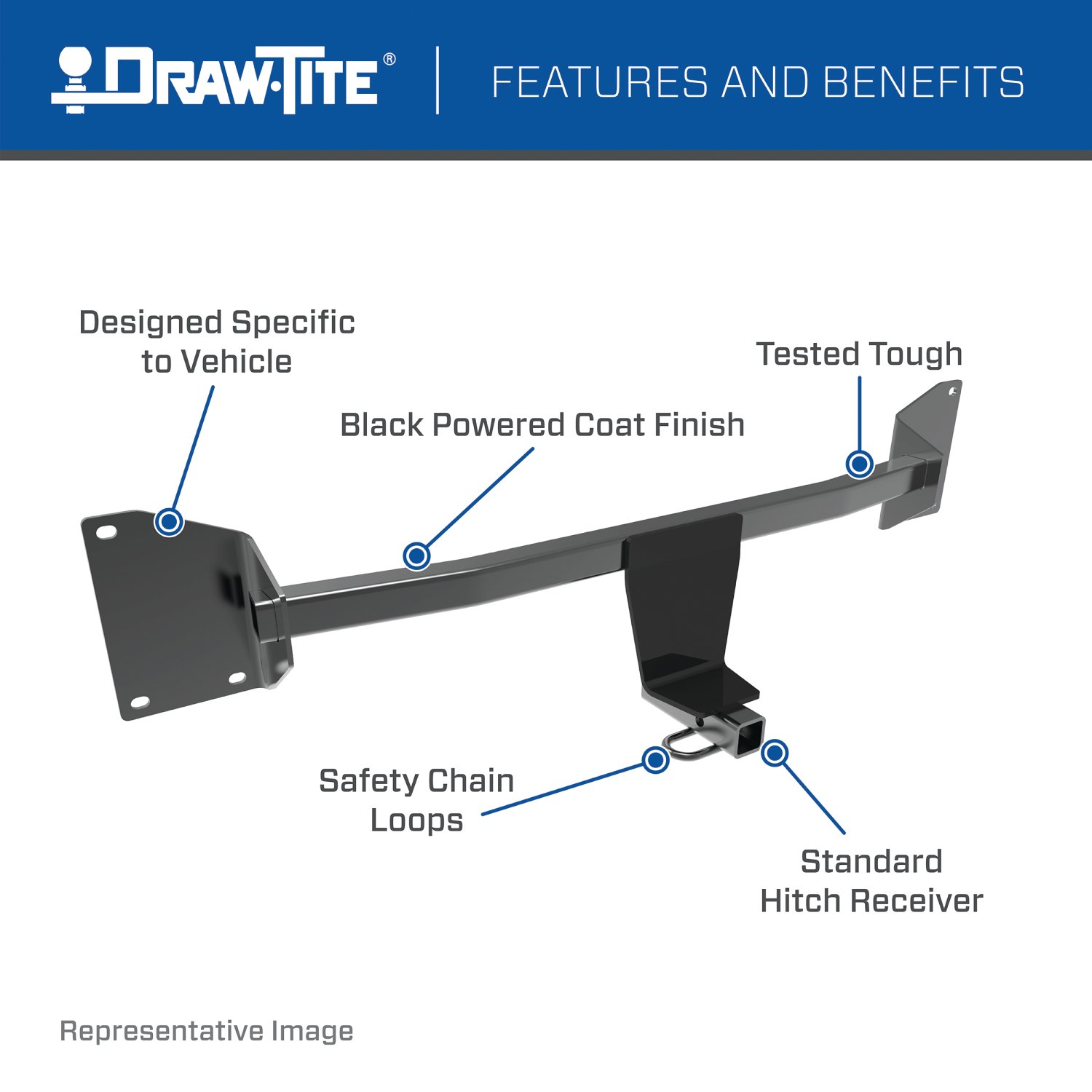

Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2019 | Kia Soul | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes Except with LED Taillights |
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select KIA Soul 24915 (Part #DT24915) is designed to fit the 2014-2019 Kia Soul.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select KIA Soul 24915 (Part #DT24915) fits 2014-2019 Kia Soul models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select KIA Soul 24915 (Part #DT24915) fits the following vehicles: 2014-2019 Kia Soul. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select KIA Soul 24915 (Part #DT24915) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24915 is designed for Kia Soul models 2014 and 2015. The hitch has a maximum gross trailer weight rating of 2000 LB (908 kg) and maximum tongue weight of 200 LB (90.8 kg). Do not exceed your vehicle manufacturer's towing rating or these limits, whichever is lower.
The hitch has a maximum gross trailer weight of 2000 LB (908 kg) and maximum tongue weight of 200 LB (90.8 kg). You must not exceed the lower of your vehicle manufacturer's towing rating or these limits.
You will need a torque wrench, a 17mm socket and ratchet wrench, and a Phillips screwdriver. No drilling is required. The fastener kit 24915F is included with the hitch.
No. The drawbar kit 3593 is sold separately and must be purchased if you need a drawbar. The hitch body and fastener kit 24915F are included.

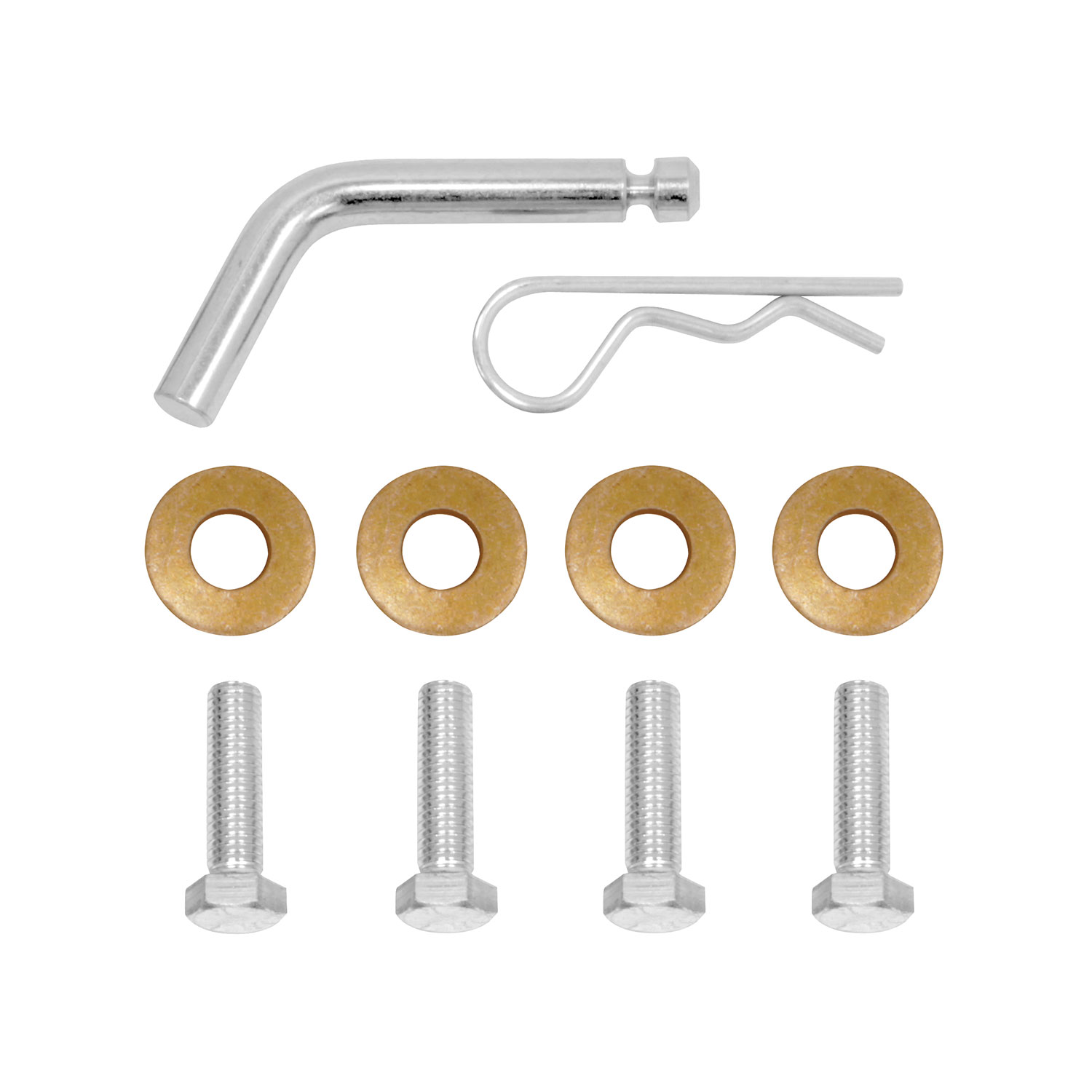

The fastener kit 24915F includes 4 hex bolts (M10 x 1.25 x 30mm CL8.8) and 4 conical toothed washers (3/8"). These are the only fasteners needed for installation. The hitch uses existing weldnuts on the vehicle frame.
Yes. You must remove the rubber exhaust hanger to lower the exhaust, remove the inner wheel well and splash guards from both sides of the vehicle, and remove the tow hook from the passenger's side frame rail (which should be returned to the vehicle owner). These parts are reinstalled after the hitch is secured.
1. Lower the exhaust by removing the rubber exhaust hanger. 2. Remove the inner wheel well and splash guards from both sides. 3. Remove the tow hook from the passenger's side frame rail. 4. Raise the hitch into position and loosely install the M10 bolts and conical toothed washers. 5. Pull the hitch rearward and tighten all fasteners with a torque wrench. 6. Reinstall the muffler hanger. 7. Reinstall the inner wheel well and splash guards.
All M10 CL8.8 fasteners must be tightened to 42 Lb.-Ft. (57 N·M) using a torque wrench. The fasteners should be installed loosely first, then the hitch pulled rearward before final tightening.
The hitch must be pulled rearward after the M10 bolts and conical toothed washers are loosely installed. This positions the hitch correctly before the fasteners are tightened to the specified torque of 42 Lb.-Ft. (57 N·M).
The drawbar must be used in the RISE position only. Do not use it in any other position.
If the hitch is removed, you must plug all holes in the trunk pan or other body panels to prevent the entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced immediately. Do not continue to use a damaged hitch or ball.
You should check the hitch frequently to ensure all fasteners and the ball are properly tightened. Regular inspection helps maintain safe towing operation.
No. The manual specifies that no drill bits are required. The hitch uses existing weldnuts on the vehicle frame for attachment.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Ensure the vehicle is properly supported and stable before beginning work.
Yes, for 2014–2015 Kia Soul. Max towing: 2000 LB gross, 200 LB tongue weight. Do not exceed your vehicle manufacturer's rating.
Torque wrench, 17mm socket and ratchet, Phillips screwdriver. Fastener kit 24915F is included. Drawbar kit 3593 is sold separately. No drilling required.
42 Lb.-Ft. (57 N·M) for all M10 CL8.8 fasteners using a torque wrench.
Yes. Remove the rubber exhaust hanger, inner wheel well and splash guards (both sides), and the tow hook from the passenger's side frame rail. Reinstall them after the hitch is secured.
The drawbar must be used in the RISE position only.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If the hitch is removed, plug all holes to prevent water and exhaust fume entry.
