Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

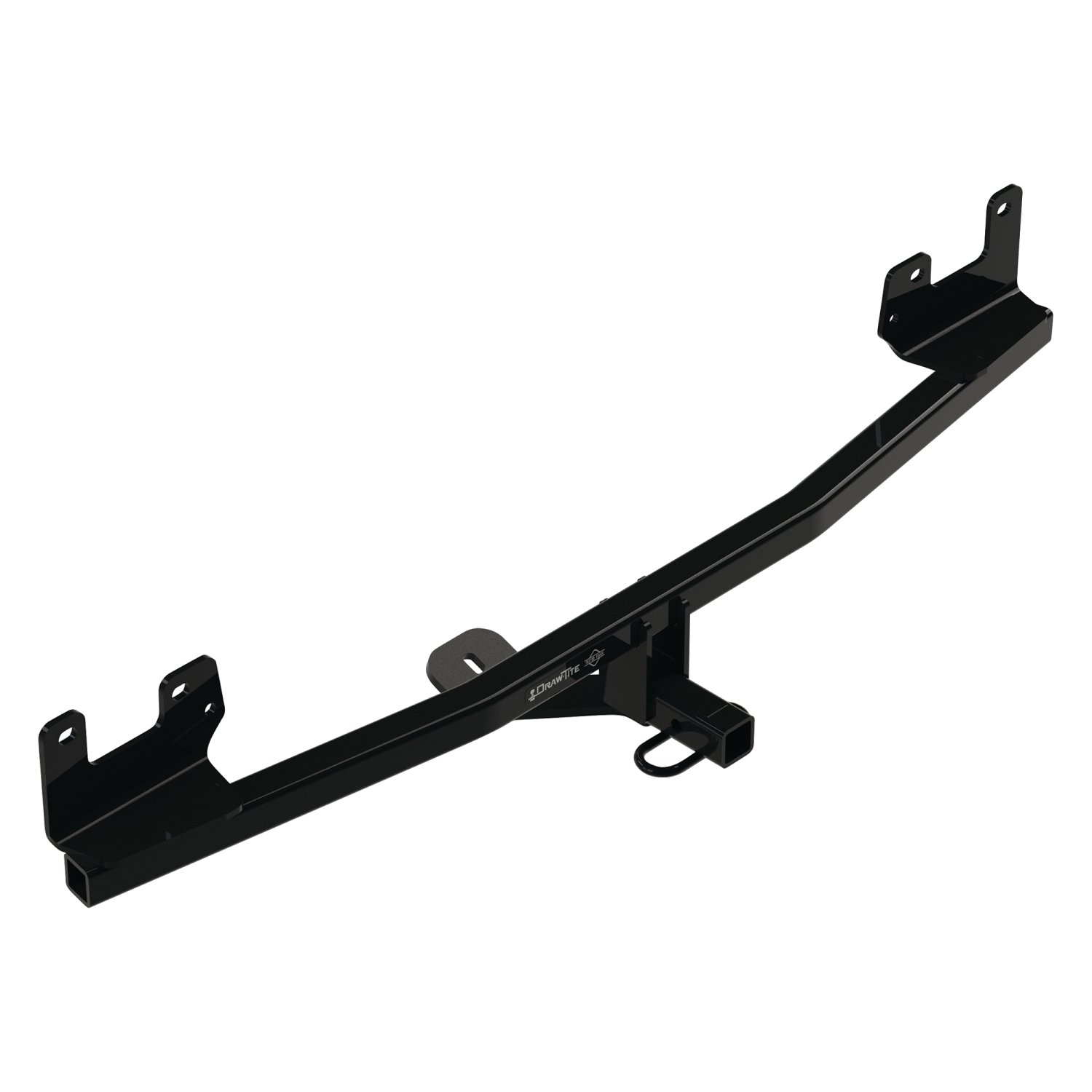

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 25004 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 25.79 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select KIA Rio 25004 (Part #DT25004) fits 2020-2023 Kia Rio models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select KIA Rio 25004 (Part #DT25004) is designed to fit the 2020-2023 Kia Rio.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select KIA Rio 25004 (Part #DT25004) fits the following vehicles: 2020-2023 Kia Rio. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select KIA Rio 25004 (Part #DT25004) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the 25004 hitch is designed for 2021-Current Kia Rio 5 models. For the most up-to-date information regarding specific application years and trim levels, visit www.horizonglobal.com.
The 25004 is a weight-carrying hitch with a maximum gross trailer weight of 2000 lb (907 kg) and maximum tongue weight of 200 lb (91 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools include: ratchet, torque wrench, safety glasses, 13mm socket, 11/16" socket, 3/4" socket, 6" socket extension, plastic trim tools, marker, die grinder, tape measure, tape, flathead screwdriver, and Phillips screwdriver.
Yes. Installation requires removal of the rear fascia, taillights, wheel well liners, and plastic trim pieces. The fascia must be reinstalled after the hitch is mounted and a 1.50" x 3" notch is cut in the bottom to clear the hitch.
Yes. A 1.50" x 3" notch must be cut in the bottom center of the rear fascia using a die grinder. Before cutting, verify the area is clear of all electrical wiring. Do not use a torch to cut the notch.
Tighten all 8mm fasteners to 20 Lb.-Ft. (27 N·M). Tighten all 7/16-14 Gr5 fasteners to 50 Lb.-Ft. (68 N·M). Tighten all 1/2-13 Gr5 fasteners to 75 Lb.-Ft. (102 N·M). A torque wrench is required for proper installation.
The fastener kit 25004F includes: (2) carriage bolts 7/16"-13x1¾" GR5, (6) conical washers 7/16", (2) hex nuts 7/16" GR2, (4) bolts M8 1.25 x 40mm CL 10.9, (4) washers 7/16" heavy, (2) spacers 3/16" x 1" x 2", (12) washers 7/16", (1) carriage bolt 1/2-13x1¾" GR5, (1) conical washer 1/2", (1) hex nut 1/2"-13 GR5, and (1) spacer 1/4" x 1" x 3".
No. During step 7, fasten the 8mm and 7/16 hardware to brackets and the 1/2 hardware to the tow hook loosely. Tighten all fasteners to their specified torque values only in step 8, after the hitch is raised into position.
The teeth side of the conical washer must be oriented against the hitch. This is shown in Figure 1 of the installation manual.
No. The factory fasteners removed from the impact bar/end panel in step 6 must be returned to the vehicle owner. The hitch installation uses the fasteners provided in kit 25004F.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Do not cut access or attachment holes with a torch. Before trimming the fascia, ensure the area is clear of all electrical wiring. If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Periodically verify that all fasteners remain tight and the hitch is securely mounted to the vehicle.
A hitch or ball that has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
The maximum tongue weight is 200 lb (91 kg) for the weight-carrying model. Do not exceed the lower of your towing vehicle manufacturer's rating or this limit.
No. The 25004 is a weight-carrying hitch. Weight-distributing models are not available for this application (listed as N/A in the specifications).
The average installation time for professional installers is 75 minutes. If you do not feel comfortable performing this installation on your own or need assistance, contact a professional installer.
Yes. Authorized drawbar kit 3593 is available and sold separately. The drawbar must be used in the RISE position only.
Yes. When removing the fascia in step 5, disconnect any sensors if present. Reconnect them when reinstalling the fascia in step 10.
Three (3) push rivets must be removed from the plastic trim piece located under the fascia on the driver's side. Additionally, one (1) Christmas tree screw must be loosened from the same trim piece.
Two (2) screws must be removed from each taillight (driver side and passenger side). Use a Phillips screwdriver to remove the screws and plastic trim tools to gently disconnect the taillight from the vehicle.
Two (2) push rivets connect the fascia to the impact bar. These must be removed using a flathead screwdriver in step 3a.
Four (4) screws must be removed from the wheel well liner on the driver side, and four (4) screws from the passenger side. Use a Phillips screwdriver.
Four (4) 8mm screws must be removed from the impact bar/end panel using a 13mm socket. These factory fasteners must be returned to the vehicle owner.
Taping washers to the bracket makes installation easier by keeping them in place during the initial fastening process. This is noted in step 7 as an optional convenience measure.
The notch should be cut in the bottom center of the fascia. Locate the center of the fascia and use a tape measure, marker, and die grinder to cut the notch. Ensure the area is clear of all electrical wiring before cutting.
Yes, the 25004 is designed for 2021-Current Kia Rio 5 models. Check www.horizonglobal.com for the most current trim level compatibility.
Maximum gross trailer weight is 2000 lb (907 kg) and maximum tongue weight is 200 lb (91 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Yes. A 1.50" x 3" notch must be cut in the bottom center of the rear fascia using a die grinder. Verify electrical wiring is clear before cutting.
Required tools: ratchet, torque wrench, safety glasses, 13mm/11/16"/3/4" sockets, 6" socket extension, plastic trim tools, marker, die grinder, tape measure, tape, flathead and Phillips screwdrivers.
8mm fasteners: 20 Lb.-Ft. (27 N·M). 7/16-14 Gr5 fasteners: 50 Lb.-Ft. (68 N·M). 1/2-13 Gr5 fasteners: 75 Lb.-Ft. (102 N·M). A torque wrench is required.
Always wear safety glasses. Verify electrical wiring is clear before trimming fascia. Do not use a torch to cut holes. Observe safety precautions when working beneath the vehicle. Plug all holes if hitch is removed to prevent water and exhaust fume entry.
Check all fasteners periodically to ensure they remain tight and the hitch is securely mounted to the vehicle. If fasteners are found to be loose, retighten them to the specified torque values: 8mm fasteners to 20 Lb.-Ft. (27 N·M), 7/16-14 Gr5 fasteners to 50 Lb.-Ft. (68 N·M), and 1/2-13 Gr5 fasteners to 75 Lb.-Ft. (102 N·M).
A damaged hitch or ball must be removed and replaced. Do not continue to use the hitch if it or the ball has been damaged.
2 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2021 - 2023 | Kia Rio | — | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 75 minutes |
| 2020 | Kia Rio | Hatchback | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 75 minutes |
