Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

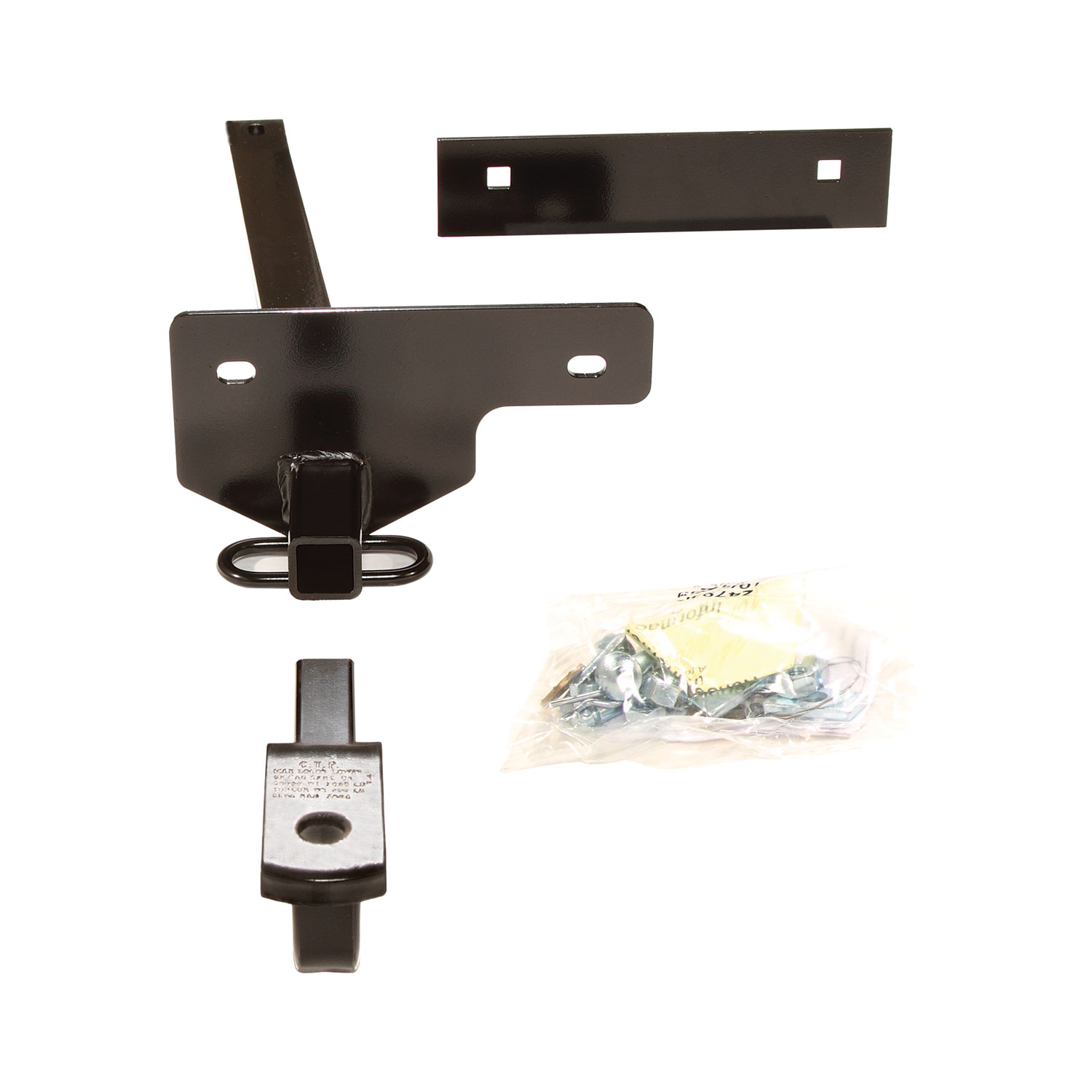

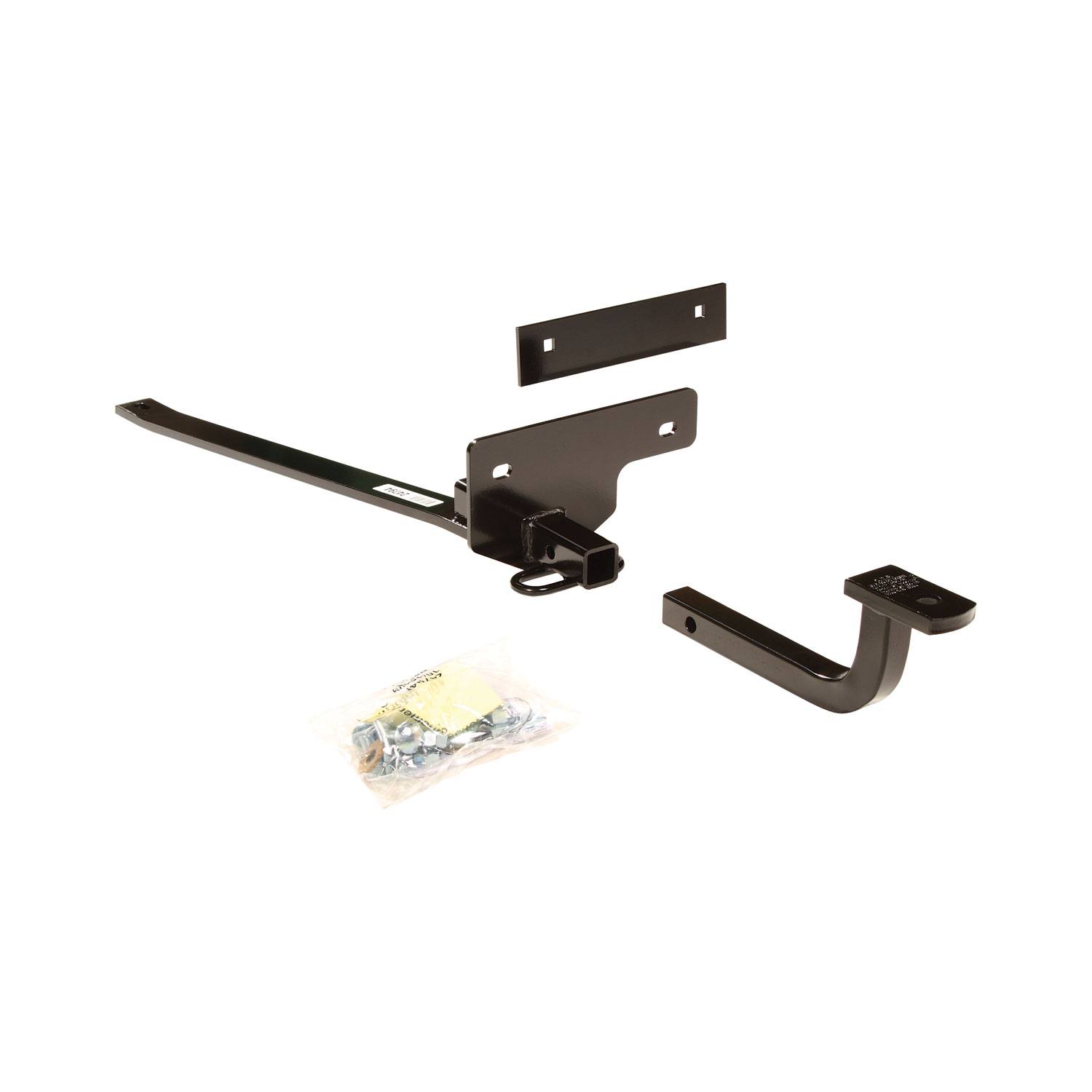

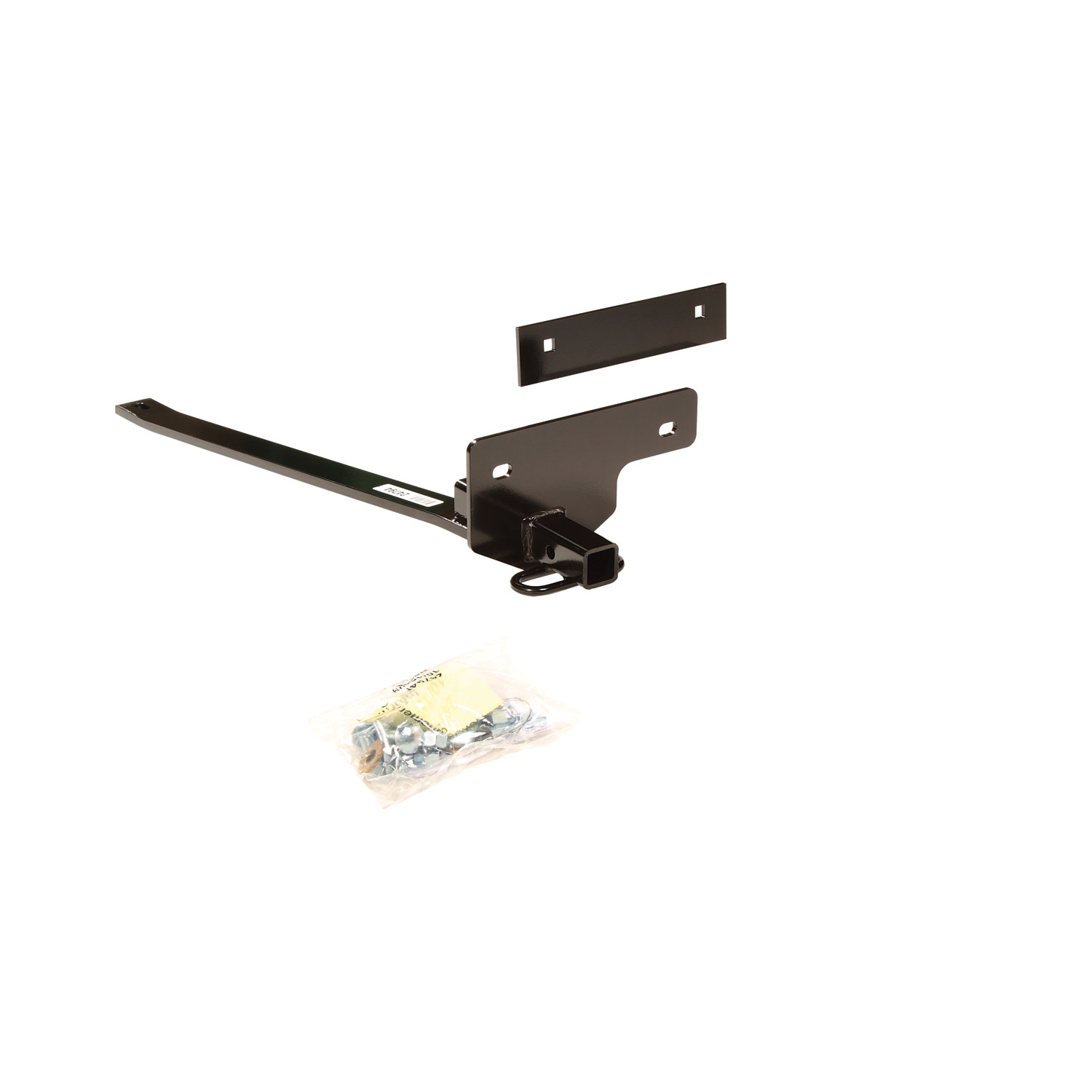

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24794 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 17.1 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® Receiver Hitches Commercial
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2012 | Nissan Sentra | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 30 minutes |
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Nissan Sentra 24794 (Part #DT24794) is designed to fit the 2007-2012 Nissan Sentra.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Nissan Sentra 24794 (Part #DT24794) fits 2007-2012 Nissan Sentra models. The 2012 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Nissan Sentra 24794 (Part #DT24794) fits the following vehicles: 2007-2012 Nissan Sentra. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Nissan Sentra 24794 (Part #DT24794) Drilling is required for installation. Basic hand tools are typically all you need.
The manual confirms that part number 24794 is designed for the Nissan Sentra. However, the manual does not specify which model years or generations are compatible. Contact the manufacturer or an authorized dealer to confirm fitment for your specific Sentra year and generation.
The maximum gross trailer weight is 2000 LB (908 Kg) and the maximum tongue weight is 200 LB (90.8 Kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
No. The drawbar kit (part number 3594) is sold separately. The hitch assembly itself includes the receiver and attachment hardware, but the drawbar must be purchased as an additional item.
You will need a 3/4" wrench and a 1/2" drill bit. A torque wrench is also required to tighten fasteners to the specified 75 Lb.-Ft. (102 N*M). A screwdriver is needed to remove the plastic rivets from the fascia.

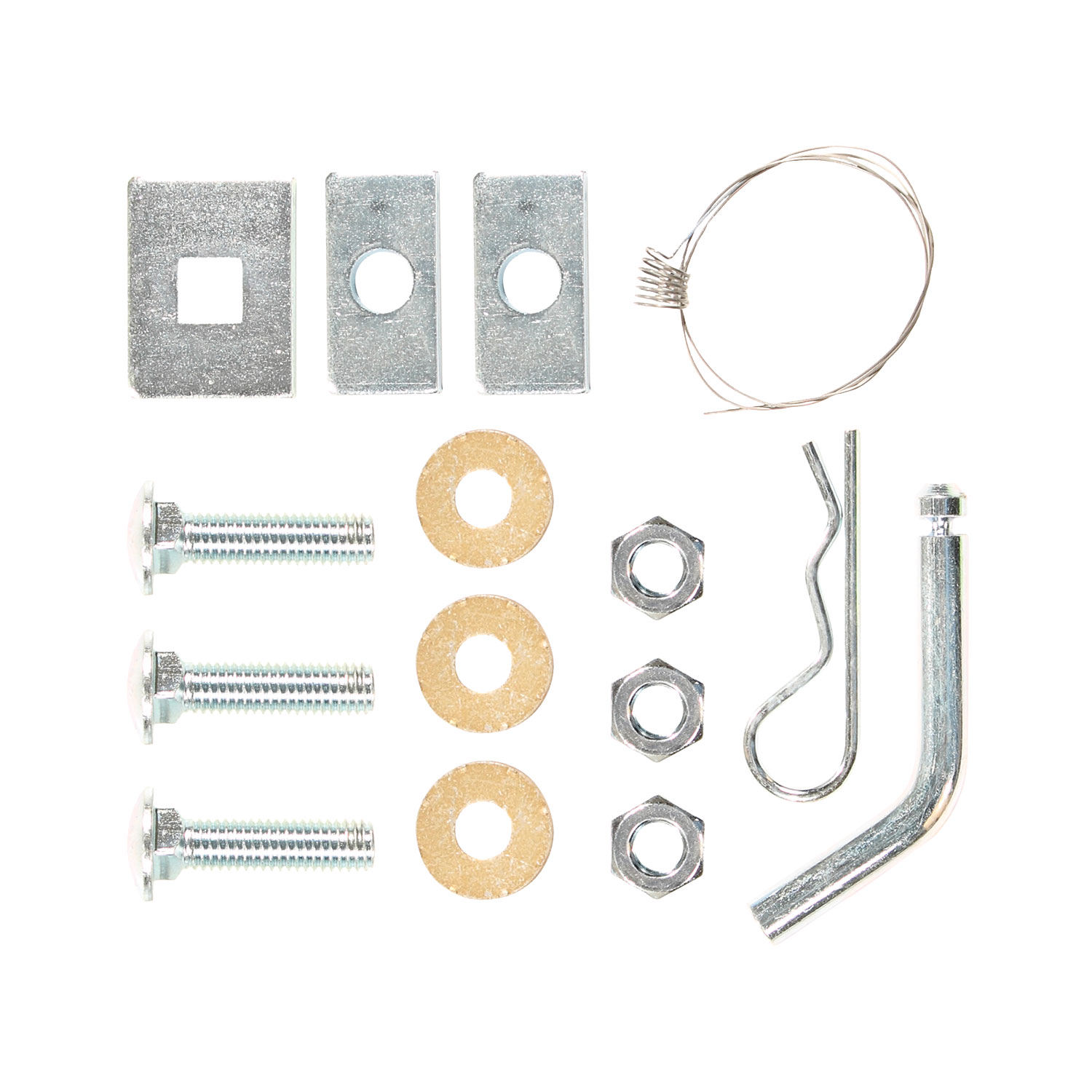

The kit includes: 3 carriage bolts (1/2-13 X 2.00 GR5), 3 conical washers, 3 hex nuts (1/2-13), 1 spacer (.250 X 1.50 X 2.00 with square hole), 2 spacers (.250 X 1.00 X 2.00 with round holes), a reinforcement plate, and a pull wire. Sealant must be supplied separately.
Yes. Step 1 requires you to remove the spare tire from the trunk and remove the jack from its tie-down bracket. The spare tire well is used to mount the reinforcement plate, so the tire must be removed before drilling.
Scrape the undercoating off the bottom surface of the trunk reinforcement (step 3). This prepares the surface for the reinforcement plate and helps ensure proper sealing.
Yes. Two holes must be drilled in the spare tire well using a 1/2" drill bit (step 5). The holes are drilled through the reinforcement plate into the trunk floor. The spare tire must be removed before drilling.
Place the reinforcement plate inside the spare tire well at the bottom of the trunk. Position the 1-1/2" (38.1 mm) length against the bottom of the trunk and place the plate between the ribs as shown in Figure 2. The two drill holes go through this plate.
The pull wire (provided) is attached to a carriage bolt and threaded through a spacer using a slot located behind the trunk reinforcement (step 4). It helps position and hold the carriage bolt and spacer in place during assembly so they sit flat at the bottom before the hitch is lifted into position.
Lift the hitch into position onto the two carriage bolts so that the spacer is sandwiched between the bulkhead and the hitch (step 7, Figure 3). The hitch should be centered on the vehicle before final tightening (step 9).
Fasteners should be left loose during assembly. Step 7 specifies to loosely attach the conical washers and hex nuts. Only after the hitch is centered on the vehicle (step 9) should all 1/2-13 GR5 fasteners be tightened to the specified torque of 75 Lb.-Ft. (102 N*M).
All 1/2-13 GR5 fasteners must be tightened to 75 Lb.-Ft. (102 N*M) using a torque wrench. This applies to the carriage bolts and hex nuts that attach the hitch to the trunk reinforcement and bulkhead.
The conical washers (3 included) are used with the hex nuts to secure the carriage bolts. They are installed on the carriage bolts before the hex nuts are tightened (steps 7 and 8).
Yes. After tightening all fasteners, apply sealant at the carriage bolt attachments inside the spare tire well (step 10). This prevents water and exhaust fumes from entering the vehicle interior.
The two plastic rivets that fasten the fascia tabs to the vehicle are removed by extracting the center of the rivet with a screwdriver (step 2). The rivets are then reinstalled after the hitch installation is complete (step 11).
The drawbar must be used in the RISE position only. Do not use it in any other position.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual recommends regular inspection to maintain safe operation.
A damaged hitch or ball must be removed and replaced. Do not continue to use a damaged hitch.
The hitch is designed for the Nissan Sentra, but the manual does not specify which model years. Confirm compatibility with the manufacturer before purchasing.
Maximum 2000 LB (908 Kg) gross trailer weight and 200 LB (90.8 Kg) tongue weight. Do not exceed the lower of your vehicle manufacturer's rating or these limits.
3/4" wrench, 1/2" drill bit, torque wrench, and screwdriver. Sealant must be supplied separately.
Yes, two 1/2" holes must be drilled in the spare tire well. The spare tire must be removed before drilling.
Yes, the spare tire and jack must be removed from the trunk before beginning installation.
Tighten all 1/2-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M) using a torque wrench.
Do not exceed 2000 LB (908 Kg) gross trailer weight or 200 LB (90.8 Kg) tongue weight, and do not exceed your vehicle manufacturer's rating.
