Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

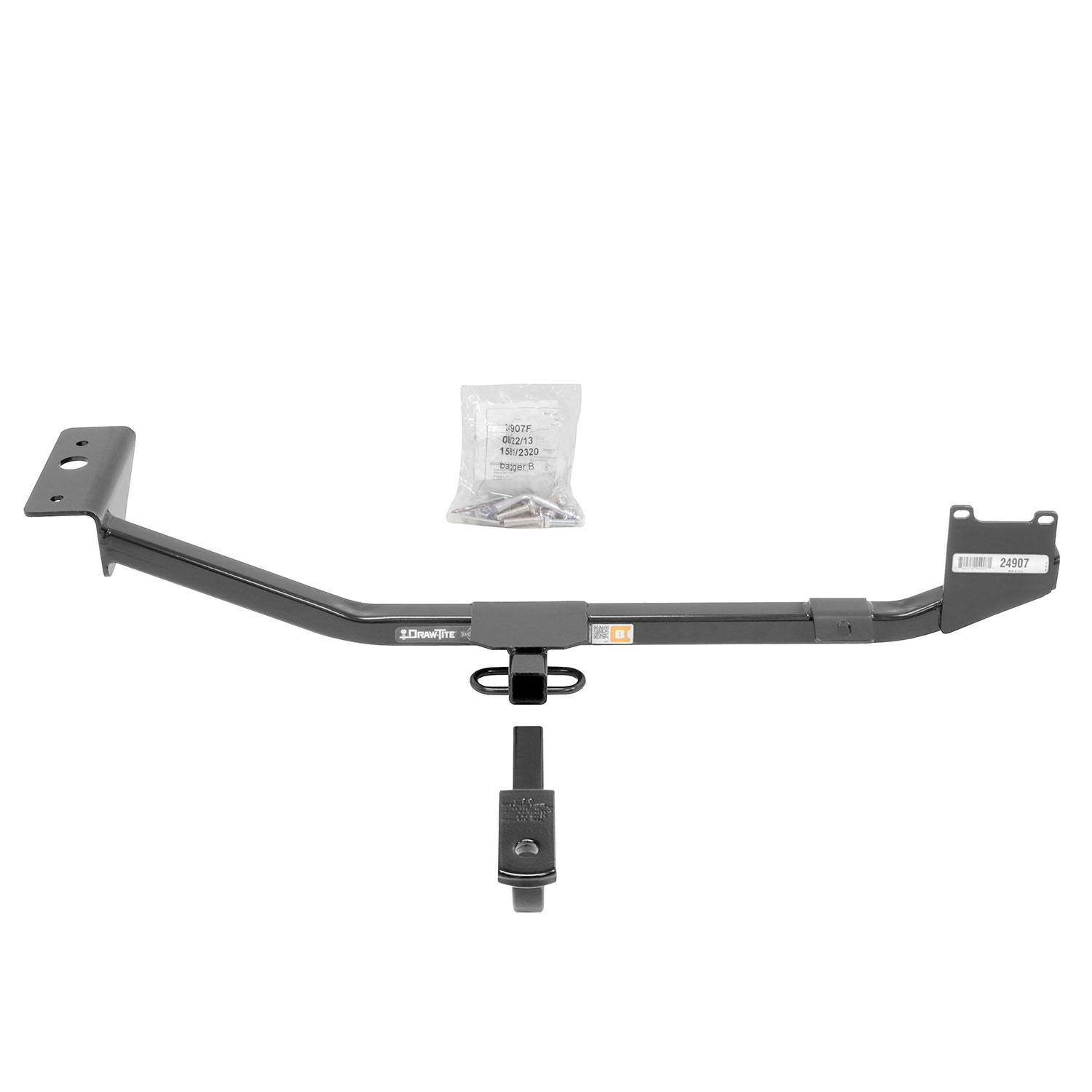

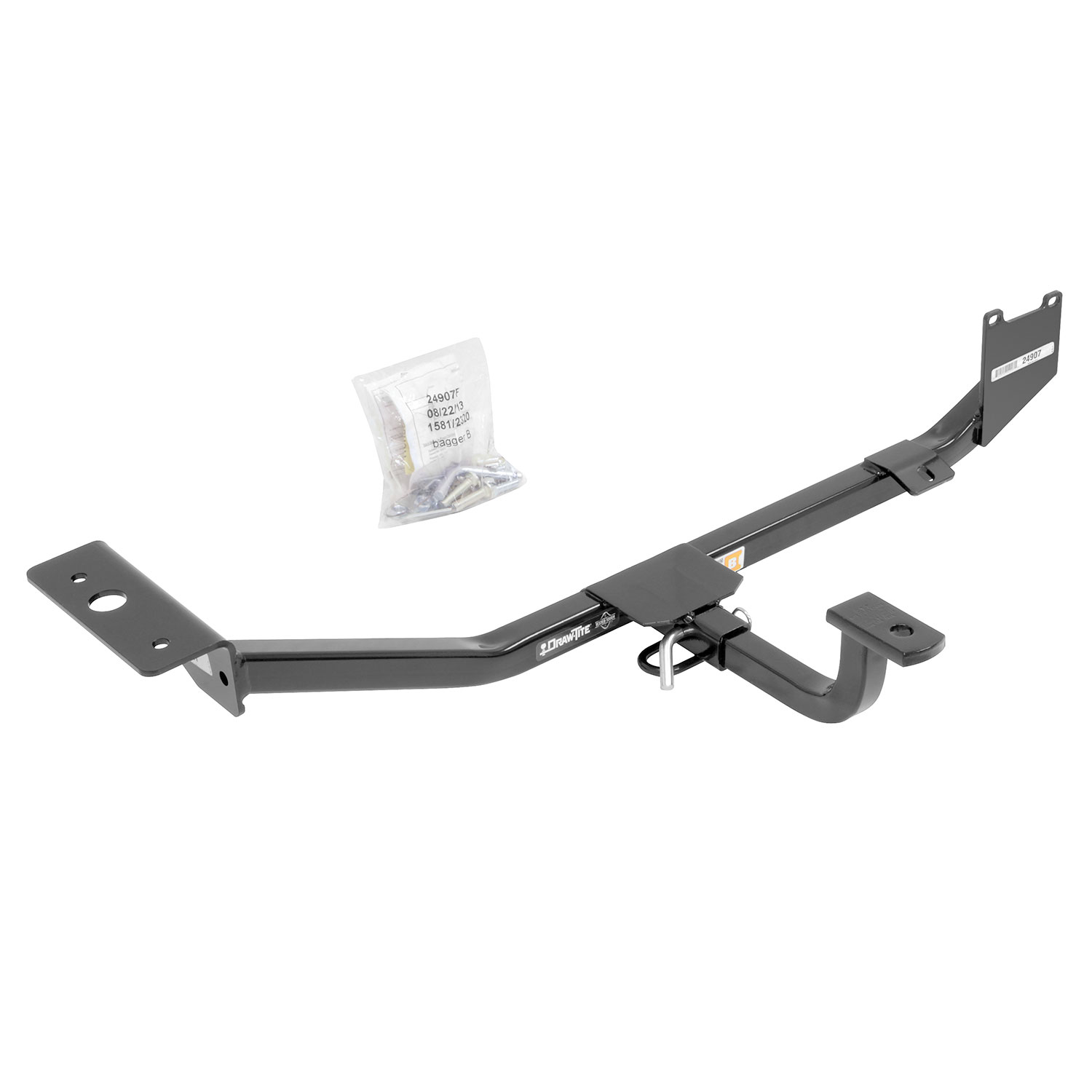

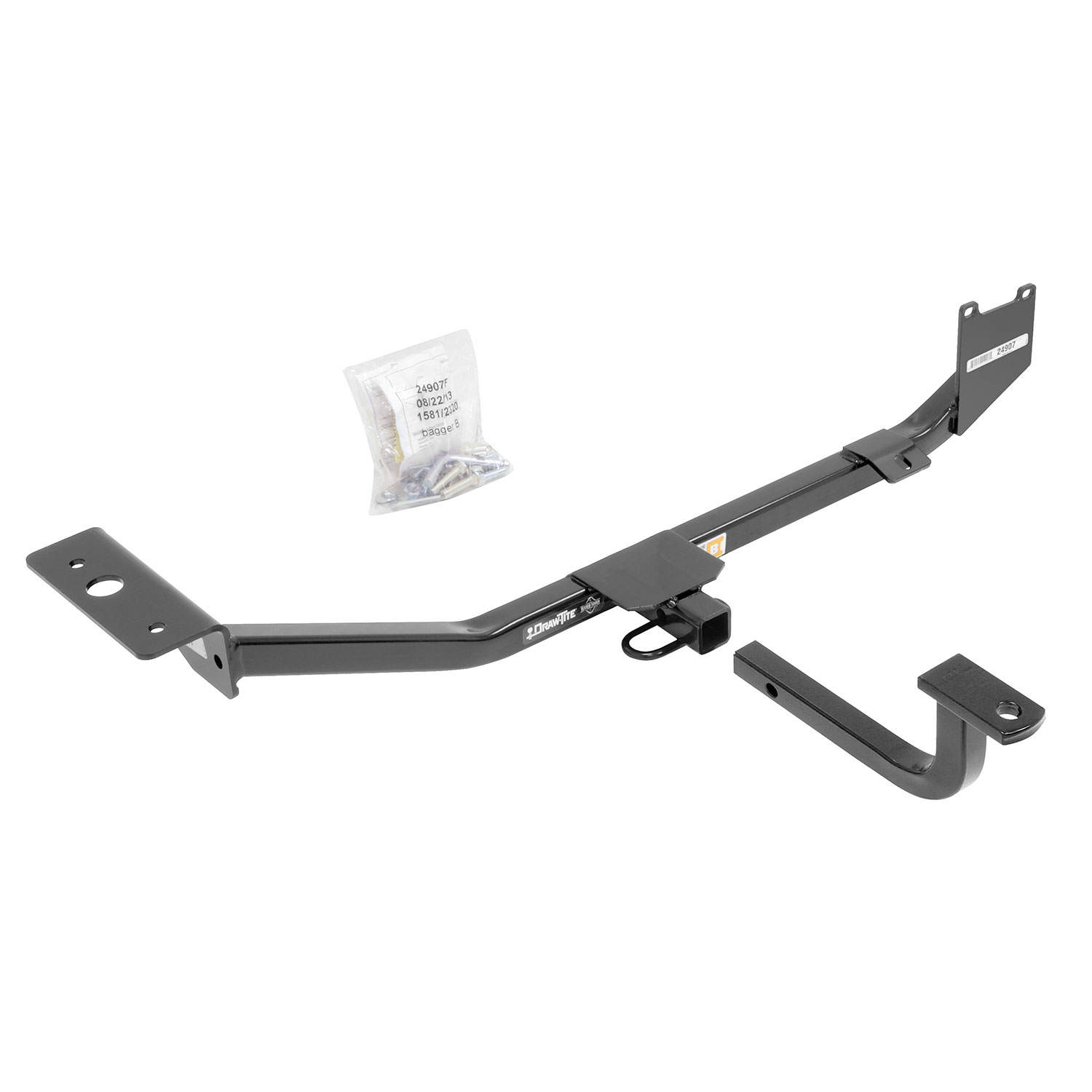

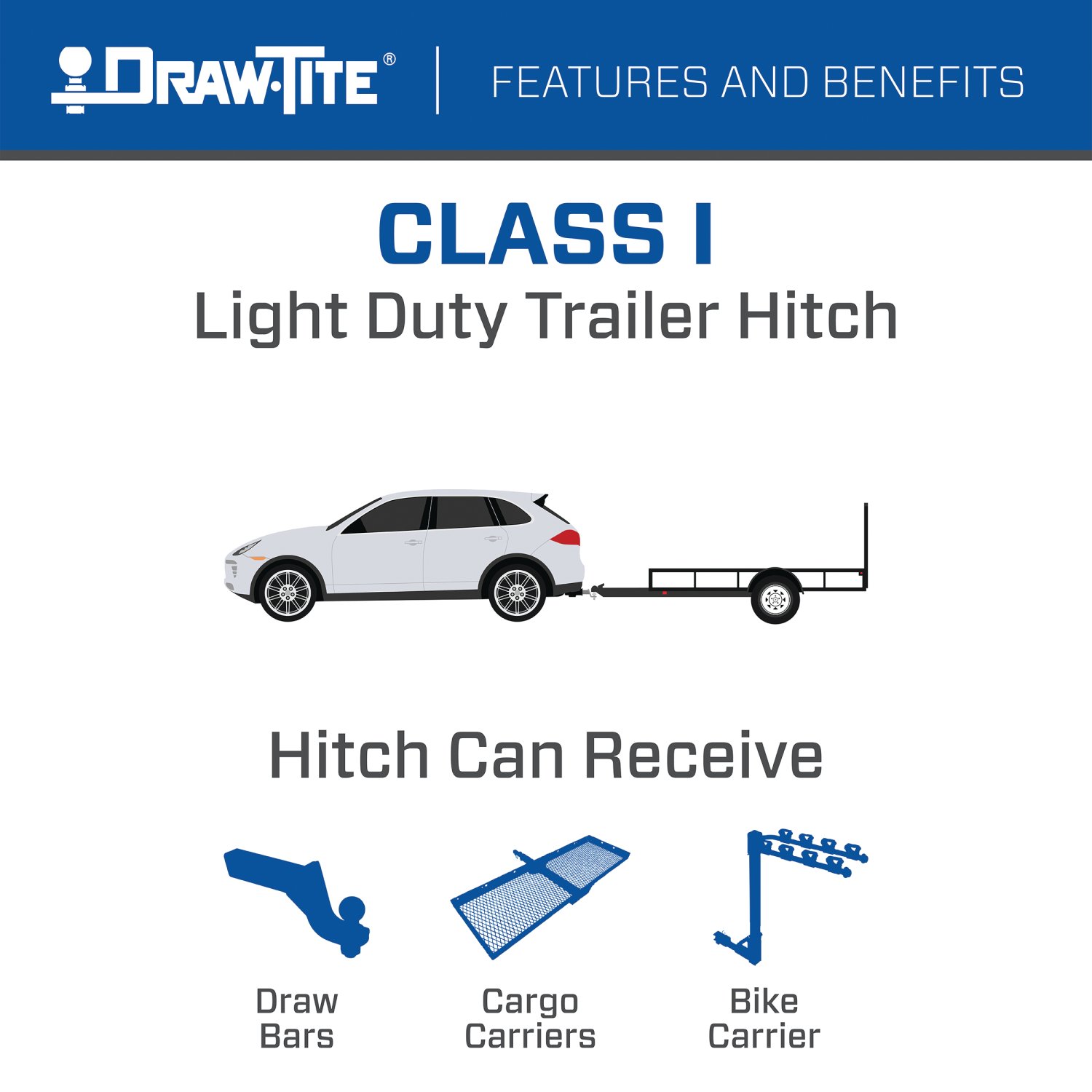

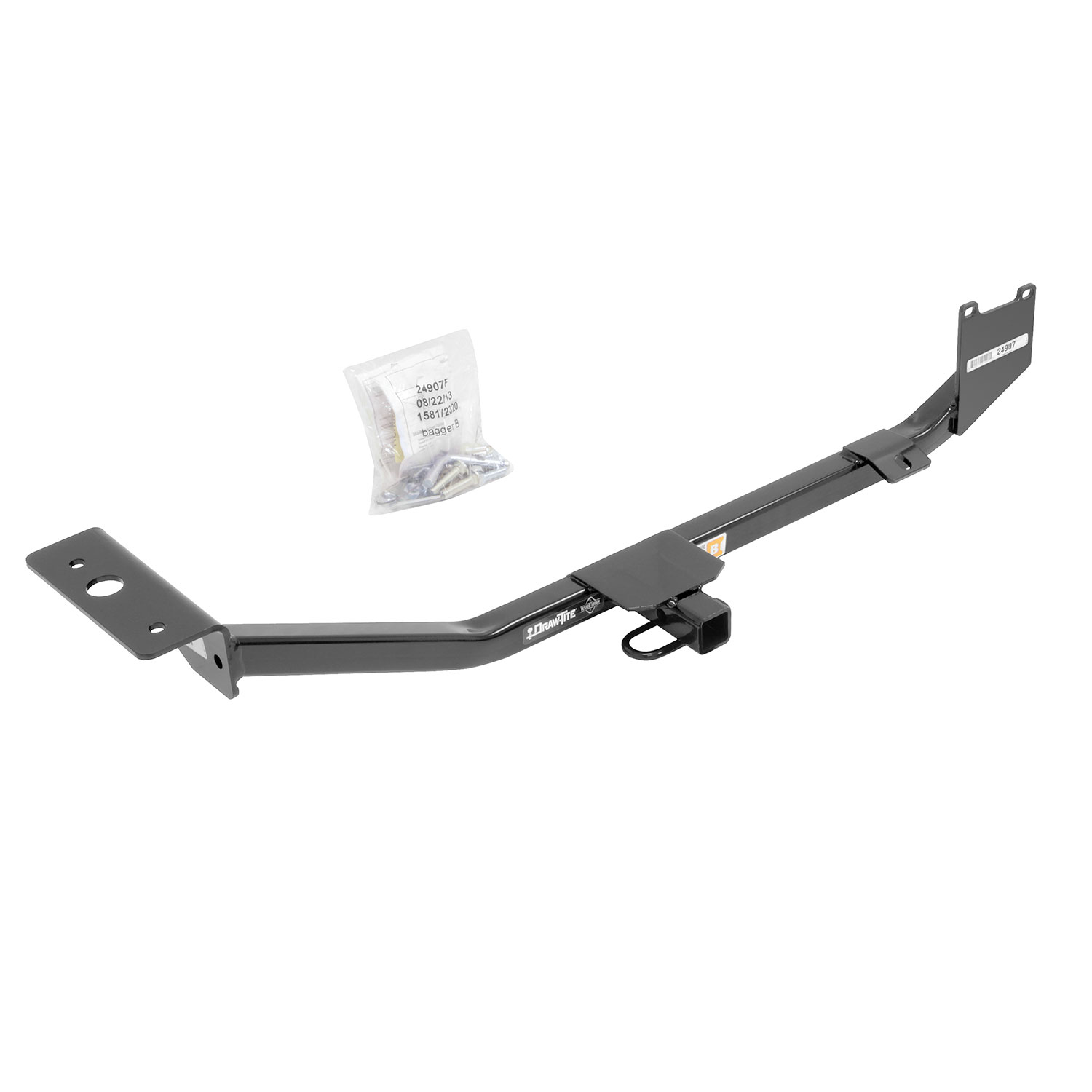

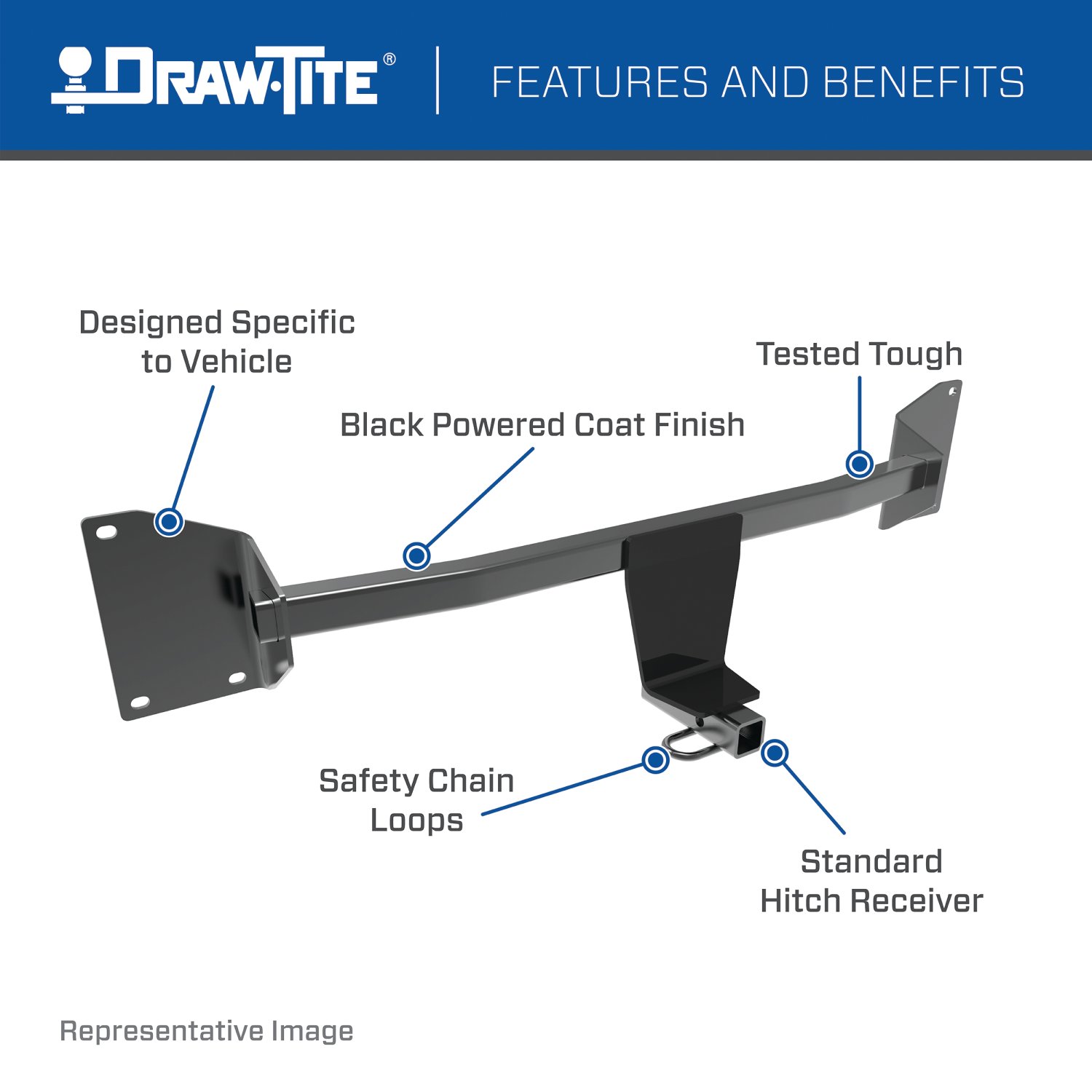

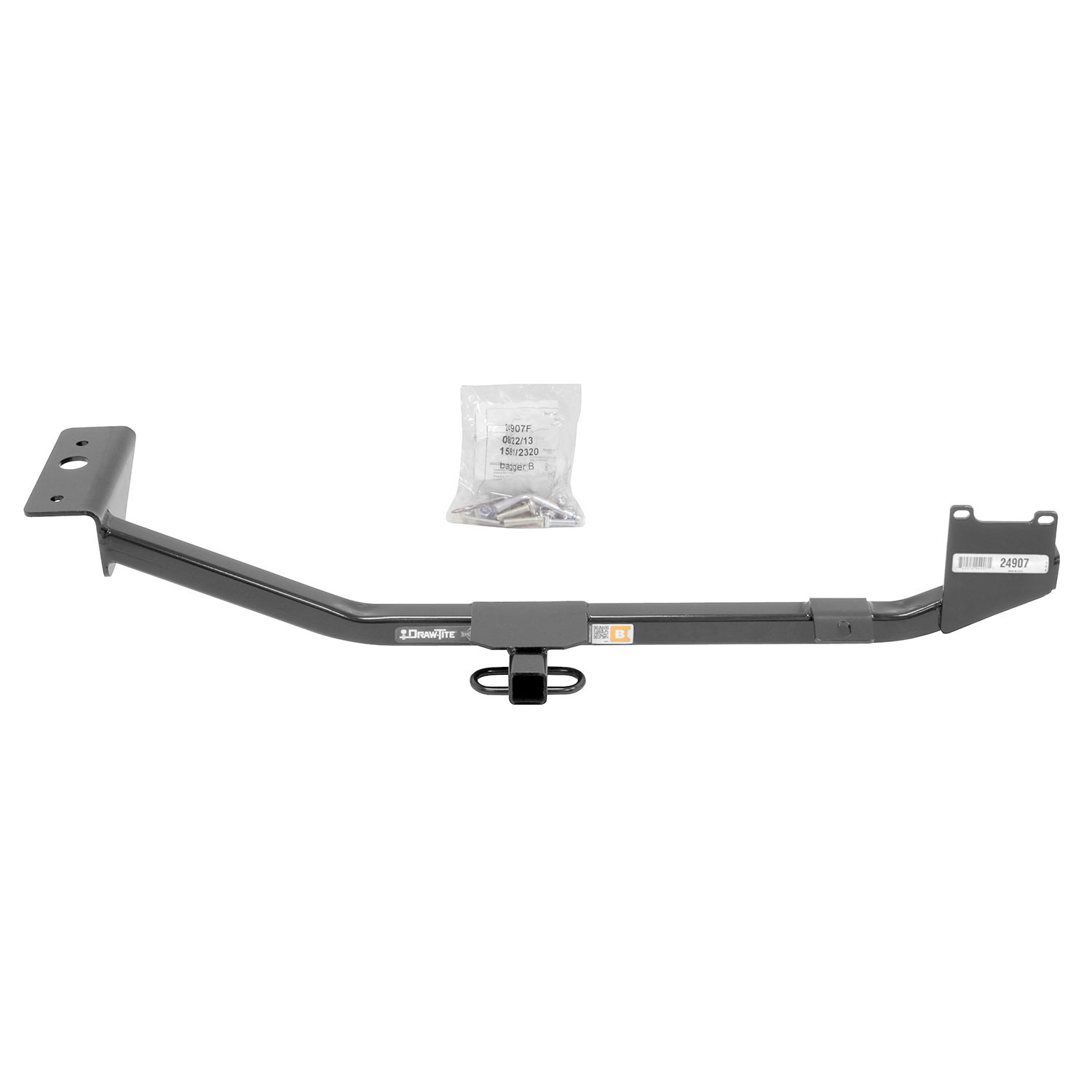

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24907 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 21.1 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |

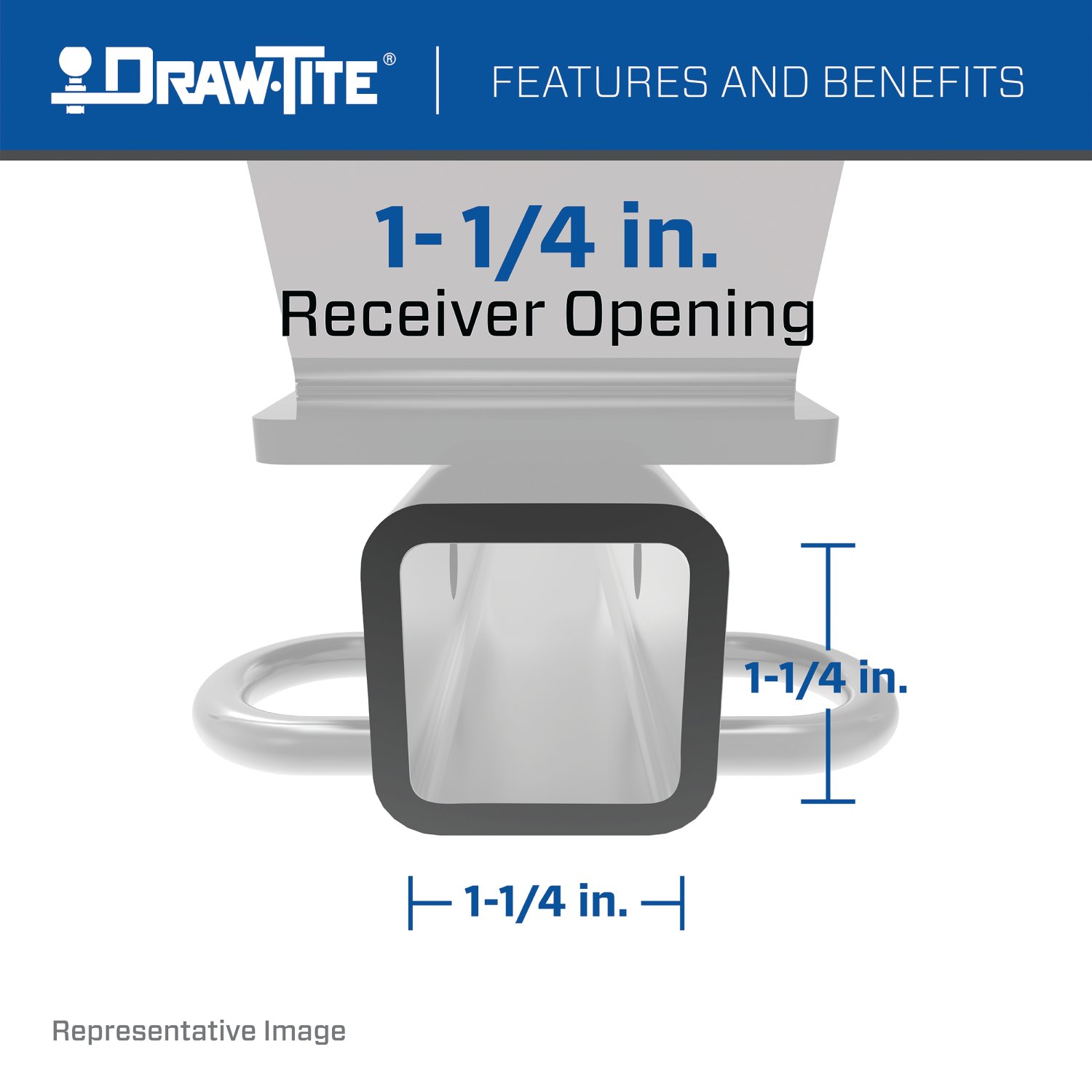

| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2013 - 2025 | Nissan Sentra | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Nissan Sentra 24907 (Part #DT24907) fits the following vehicles: 2013-2025 Nissan Sentra. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Nissan Sentra 24907 (Part #DT24907) is designed to fit the 2013-2025 Nissan Sentra.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Nissan Sentra 24907 (Part #DT24907) fits 2013-2025 Nissan Sentra models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Nissan Sentra 24907 (Part #DT24907) Drilling is required for installation. Basic hand tools are typically all you need.
No. This hitch is designed for the Nissan Sentra but will not fit the SR model. Verify your vehicle model before purchasing.
The maximum gross trailer weight is 2000 lb (907 kg) and the maximum tongue weight is 200 lb (91 kg). However, you must not exceed the lower of this hitch's rating or your vehicle manufacturer's towing rating.
You will need a power drill, wrenches in 9/16" and 11/16" sizes, drill bits in 1" and 7/16" sizes, and a torque wrench. The torque wrench is essential because fasteners must be tightened to specific values: 35 Lb.-Ft. for all 3/8" fasteners and 50 Lb.-Ft. for all 7/16" fasteners.
Yes. You must drill holes in the driver side frame rail using the hitch as a template. You will need a 1" drill bit for the access hole in the bottom of the frame and a 7/16" drill bit for the attachment holes. Do not use a torch to cut these holes.
After drilling the holes, insert the 7/16" pull wires (fishwires) and square hole washers up through the middle access hole in the frame and out through the two attachment holes. Kink the fishwire to keep the block independent of the bolt. This allows you to position the bolts before raising the hitch into place.
1. Hold the hitch in place using the tow hook mount and 3/8" bolts as temporary support, and mark the drill holes in the driver side frame rail. 2. Remove the hitch and drill the marked holes. 3. Fish the 7/16" bolts and square hole washers through the middle access hole and out the two attachment holes. 4. Raise the hitch over the bolts and install the 7/16" conical washers and hex nuts. 5. Push the 3/8" bolts through the passenger side end panel holes and install 3/8" conical washers and locknuts. 6. Install the 7/16" carriage bolt and block through the vehicle tow hook and hitch bracket. 7. Tighten all fasteners to the specified torque values.
All 3/8" fasteners must be tightened to 35 Lb.-Ft. using a torque wrench.
All 7/16" fasteners must be tightened to 50 Lb.-Ft. using a torque wrench.

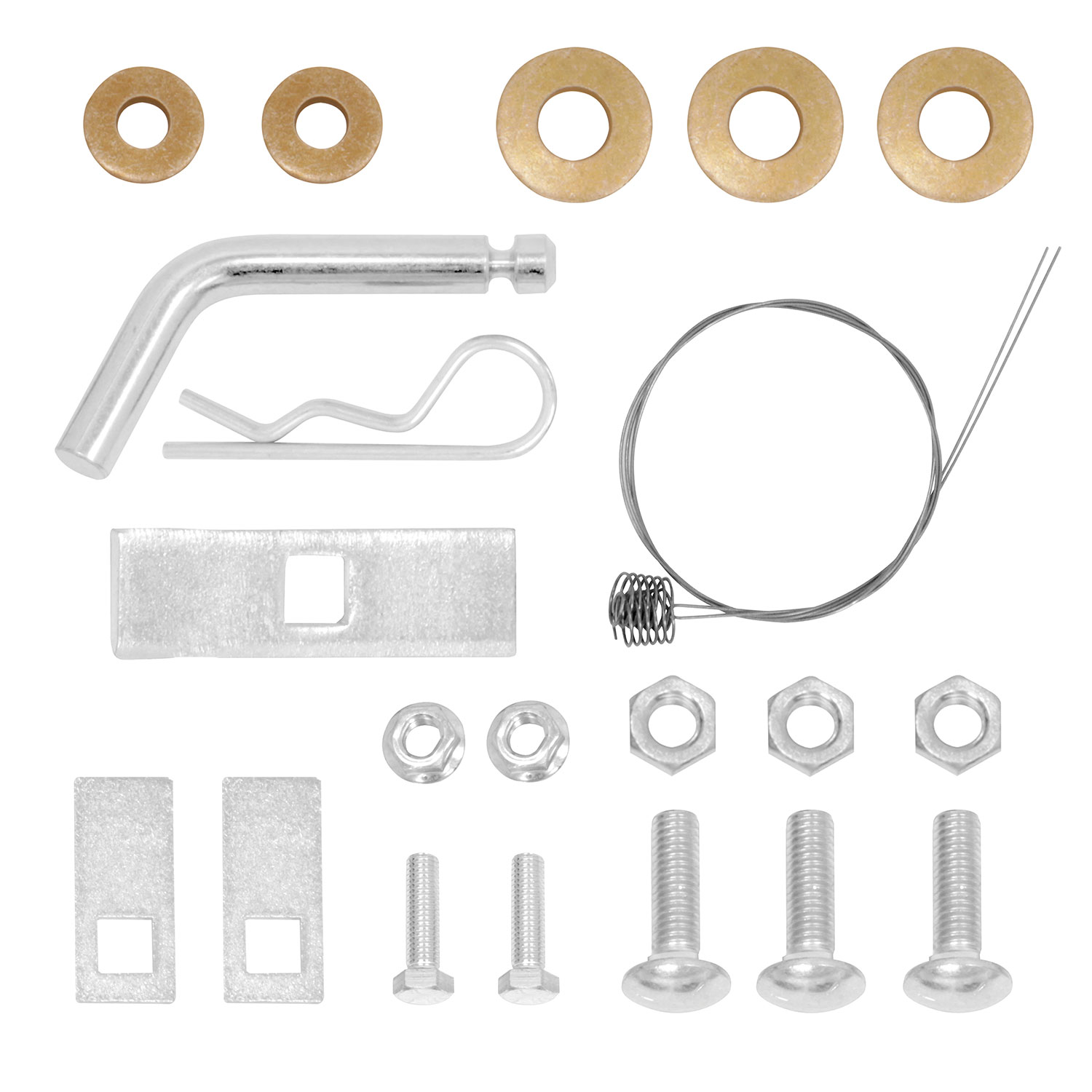

The hitch includes: three 7/16-14 x 1.75 GR5 carriage bolts, one block (.250 x 1.00 x 3.00), three 7/16" conical washers, two 3/8-16 locknuts with flange, three 7/16-14 hex nuts, two 3/8" conical washers, two 7/16" square hole washers, two 7/16" pull wires (fishwires), and two 3/8-16 x 1.25 bolts. A separate fastener kit (24907F) is available.
The 3/8" bolts push through the passenger side end panel holes that line up with the hitch at the frame rail. They are secured using 3/8" conical washers and locknuts, tightened with a 9/16" socket or box end wrench on the end panel side.
Install the 7/16" carriage bolt and block through the vehicle tow hook and the bracket on the hitch. Secure the bolt using an 11/16" socket or box end wrench, and tighten to 50 Lb.-Ft.
The drawbar must be used in the RISE position only. The drawbar kit (part number 3593) is sold separately.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. The manual does not specify an exact interval, but regular inspection is essential for safe towing.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Ensure the vehicle is properly supported and stable before beginning work.
No. This hitch will not fit the SR model. It is designed for the standard Nissan Sentra only.
You need a power drill, 9/16" and 11/16" wrenches, 1" and 7/16" drill bits, and a torque wrench. Drilling is required.
Tighten all 3/8" fasteners to 35 Lb.-Ft. and all 7/16" fasteners to 50 Lb.-Ft. using a torque wrench.
Maximum gross trailer weight is 2000 lb (907 kg) and maximum tongue weight is 200 lb (91 kg), but do not exceed your vehicle manufacturer's rating.
Yes. You must drill holes in the driver side frame rail using 1" and 7/16" drill bits. Do not use a torch to cut the holes.
The drawbar must be used in the RISE position only. The drawbar kit (3593) is sold separately.
