Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

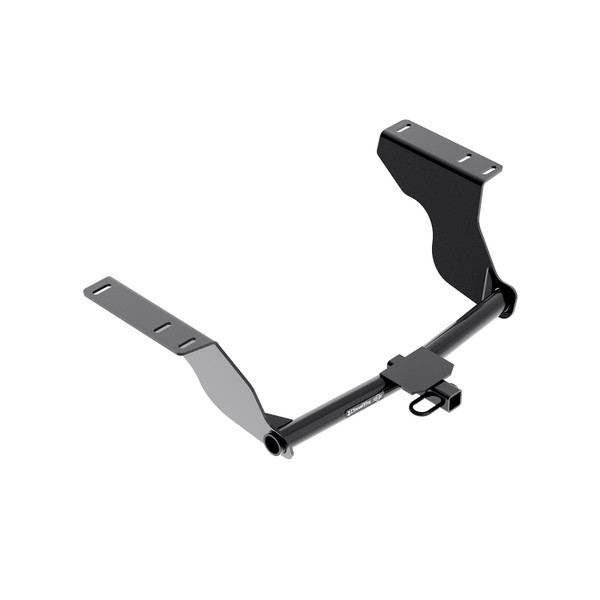

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24960 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 30.6 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
How to Install a Receiver (Trailer) Hitch - Draw•Tite®
2 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2012 - 2024 | Subaru Impreza | — | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes |
| 2012 - 2016 | Subaru Impreza | Sedan | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Subaru Impreza 24960 (Part #DT24960) fits the following vehicles: 2012-2024 Subaru Impreza. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Subaru Impreza 24960 (Part #DT24960) fits 2012-2024 Subaru Impreza models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Subaru Impreza 24960 (Part #DT24960) is designed to fit the 2012-2024 Subaru Impreza.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Subaru Impreza 24960 (Part #DT24960) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the 24960 hitch fits 2012–Current Subaru Impreza Sedan models. It does not fit WRX or STi variants. For the most up-to-date information on specific trim levels and model years, visit the Cequent website.
The 24960 is a weight-carrying hitch with a maximum gross trailer weight of 2000 lb (908 kg) and maximum tongue weight of 200 lb (90.8 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools: ratchet, torque wrench, safety glasses, 11/16" and 10 mm sockets, socket extension, exhaust hanger removal tool or pry bar, metal shears (tin snips), tape measure, marker, tape, flat-head screwdriver, ratchet strap or bungee cord, and lubricant or soapy water. Professional installation is recommended if you are not comfortable performing the work yourself.
Yes. The muffler must be lowered by removing 3 to 5 rubber hangers (varies by model year) and supported with a ratchet strap or bungee cord before installation. The muffler is raised back into position and hangers reattached after the hitch is installed.
Yes. The heat shield must be removed, trimmed using metal shears as shown in Figure 2, and then reinstalled using 3 of the original 4 screws. The heat shield is trimmed and replaced before the hitch is installed.
All 7/16-14 Grade 5 carriage bolts must be torqued to 50 lb-ft (68 N·m) using a torque wrench. Proper torque is essential to keep the hitch securely mounted to the vehicle when towing.
Always wear safety glasses during installation. Observe safety precautions when working beneath the vehicle. Do not cut access or attachment holes with a torch. Support the exhaust with a ratchet strap or bungee cord before removing rubber hangers. Spray lubricant or soapy water on rubber hangers to ease removal.
Check that all fasteners are tight and the hitch is securely mounted to the vehicle. Check the hitch frequently during use to ensure all fasteners and ball remain properly tightened. If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry.
No. The 24960 hitch is designed for 2012–Current Subaru Impreza Sedan models only and explicitly excludes WRX and STi variants. Do not attempt to install on these models.
The 24960 is a weight-carrying hitch. Weight-distributing capability is not available for this model, as indicated by the 'X' in the weight-distributing row of the hitch specifications table.
The fastener kit (part number 24960F) includes: 6 carriage bolts 7/16-14 x 1.50 Grade 5; 6 spacer blocks 1/4" x 7/8" x 3.00 (part HE-2370-000); 2 spacer blocks 1/8" x 7/8" x 3.00 (part 122209); 6 conical washers 7/16" (part 01292007); 6 hex nuts 7/16-14 Grade 2; and 6 pull wires 7/16" (part 5481).
No. The authorized drawbar kit (part number 3594) is sold separately and must be purchased if needed. The drawbar must be used in the RISE position only.
The average installation time for professional installers is 40 minutes. If you do not feel comfortable performing the installation yourself or need assistance, contact a professional installer.
The reverse fish wire method is used to install the forward-most fasteners. Attach the 7/16" carriage bolts and 1/4" thick spacer blocks to the pull wire and pull the fasteners into position on both sides. Figure 4 in the manual illustrates the three steps: (A) insert bolt and block into frame, (B) align block on access hole, (C) pull bolt through block.
Two types of spacer blocks are used: (1) 1/4" thick spacer blocks (item 2, part HE-2370-000) are fed through the frame using pull wire for the second, middle, and forward-most attachment holes, and must sit flat inside the frame without overlapping; (2) 1/8" thick spacer blocks (item 3, part 122209) are taped to the top of hitch brackets at the forward-most attachment (one per side) and must sit flush against the bottom of the frame, not on the raised area.
The conical washer (part 01292007, 7/16" size) is installed on each carriage bolt with the toothed side facing against the hitch. Six conical washers are used, one for each of the six attachment points. They are installed loosely before final torquing.
Using a flat-head screwdriver, remove the 3 rubber plugs from the 3 forward holes in the bottom of the frame. Do not remove the rearmost rubber plug. These plugs provide access to the frame for feeding the pull wire and fasteners.
If necessary, adjust the hitch toward the driver's side to provide more clearance between the hitch and muffler. This adjustment is made during step 9 after the hitch is raised into position and before final torquing, to ensure the muffler can be raised back into position without interference.
No drilling is required. The hitch uses existing frame holes and access points. The heat shield must be trimmed using metal shears, and rubber plugs must be removed from existing holes, but no new holes are drilled in the vehicle frame.
No. The manual explicitly states: 'Do not cut access or attachment holes with a torch.' Use metal shears (tin snips) to trim the heat shield and other metal components as required.
An 11/16" socket is required to install the 7/16-14 hex nuts onto the carriage bolts. A 10 mm socket is also required to remove and reinstall the heat shield screws.
The carriage bolts are 7/16-14 x 1.50 inches, Grade 5 (6 bolts total). They must be torqued to 50 lb-ft (68 N·m) using a torque wrench.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Reduce speed and ensure the trailer is loaded heavier in front and within the hitch's weight limits (2000 lb GVWR, 200 lb tongue weight).
Never exceed any posted speed limit when towing. Slow down when towing and follow all applicable traffic laws and speed restrictions for your area.
Load the trailer heavier in front. This helps maintain stability and control while towing. Ensure the tongue weight does not exceed 200 lb and the total trailer weight does not exceed 2000 lb.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. Periodic inspection is essential to ensure the hitch remains securely mounted to the vehicle during towing.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch, as it may fail during towing and cause loss of control or injury.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This protects the vehicle's interior and prevents corrosion.
The manual does not specify a retorque interval. However, it recommends checking the hitch frequently to ensure all fasteners remain properly tightened. Standard practice is to check fasteners after the first towing trip and periodically thereafter.
Spray a lubricant or soapy water on the rubber hangers. This makes them slide off the metal pins more easily. Allow the lubricant to soak for a few minutes before attempting removal.
Spacer blocks must sit flat inside the frame and must not overlap. If they are overlapping, reposition them so each block lies flat and parallel to the others. Ensure the 1/4" thick spacer blocks (item 2) are properly aligned on the access holes before pulling them fully into position.
The 1/8" spacer blocks (item 3) must sit flush against the bottom of the frame, not on the raised area. If they are positioned incorrectly, adjust the hitch position slightly. If necessary, adjust the hitch toward the driver's side to provide more clearance and allow the spacer blocks to sit properly flush against the frame bottom.
If the hitch interferes with the muffler, adjust the hitch toward the driver's side to provide more clearance between the hitch and muffler. Make this adjustment during step 9, after the hitch is raised into position and before final torquing.
Check that all fasteners are torqued to the correct specification: 50 lb-ft (68 N·m) for all 7/16-14 Grade 5 carriage bolts. Use a torque wrench to retorque any loose fasteners to this specification. Check the hitch frequently during use to ensure all fasteners remain properly tightened.
