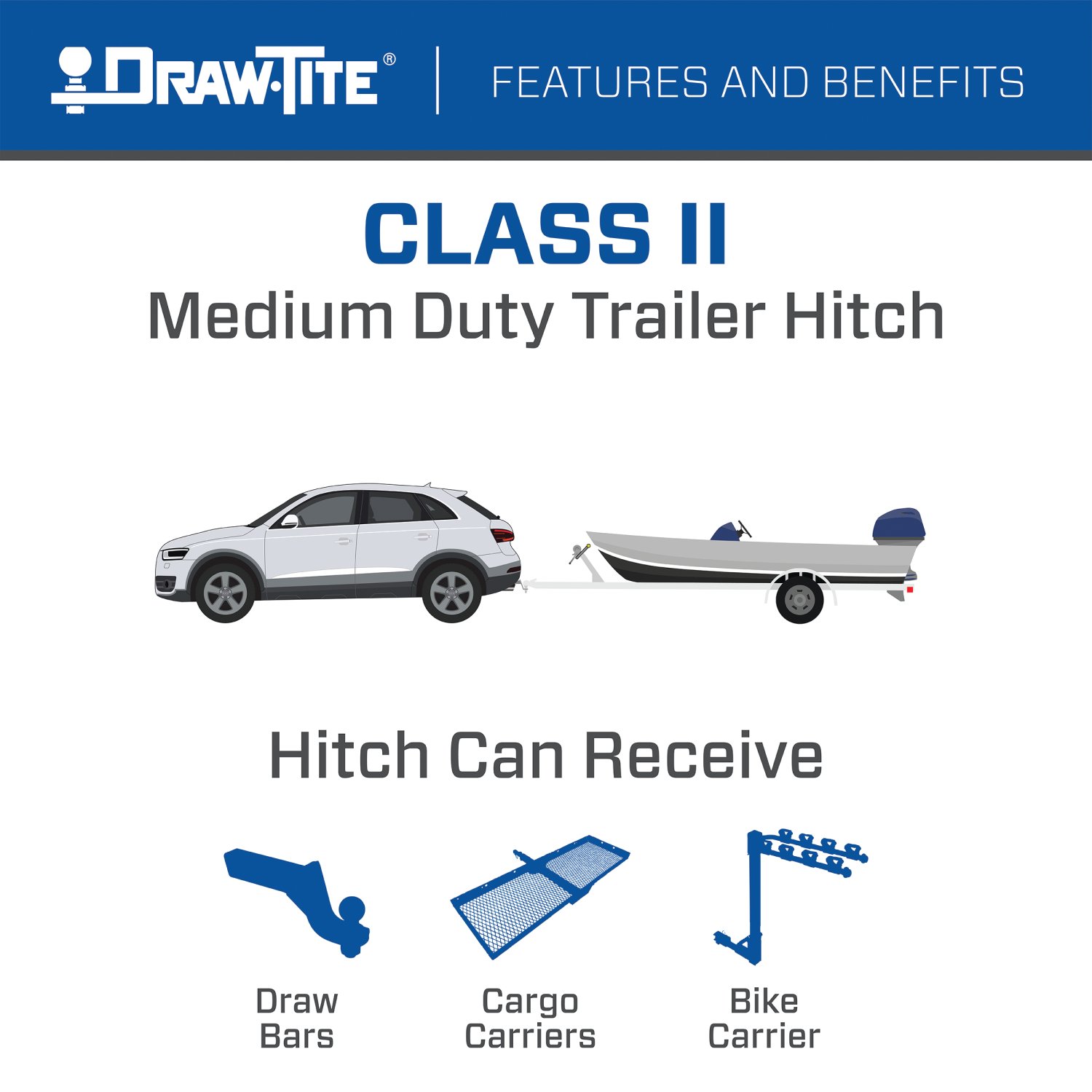

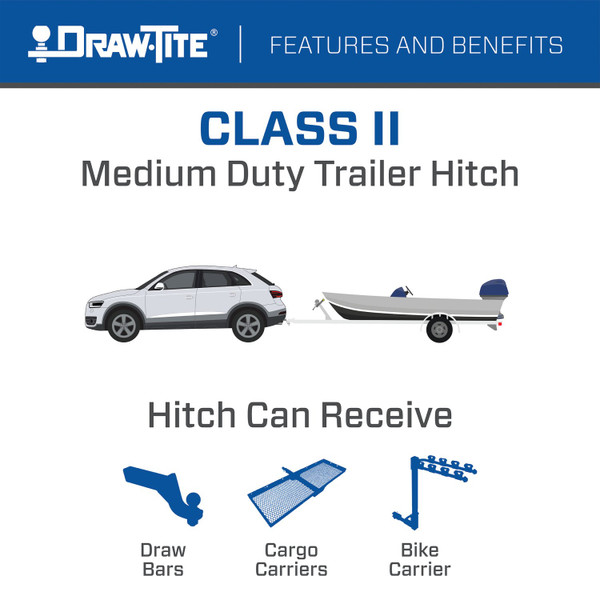

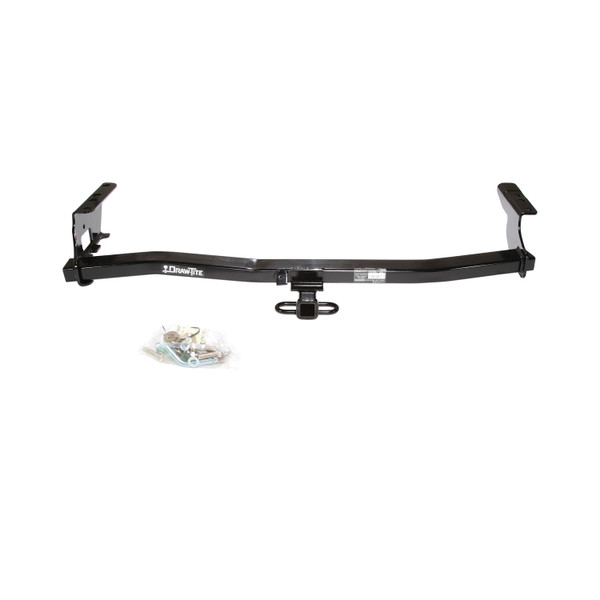

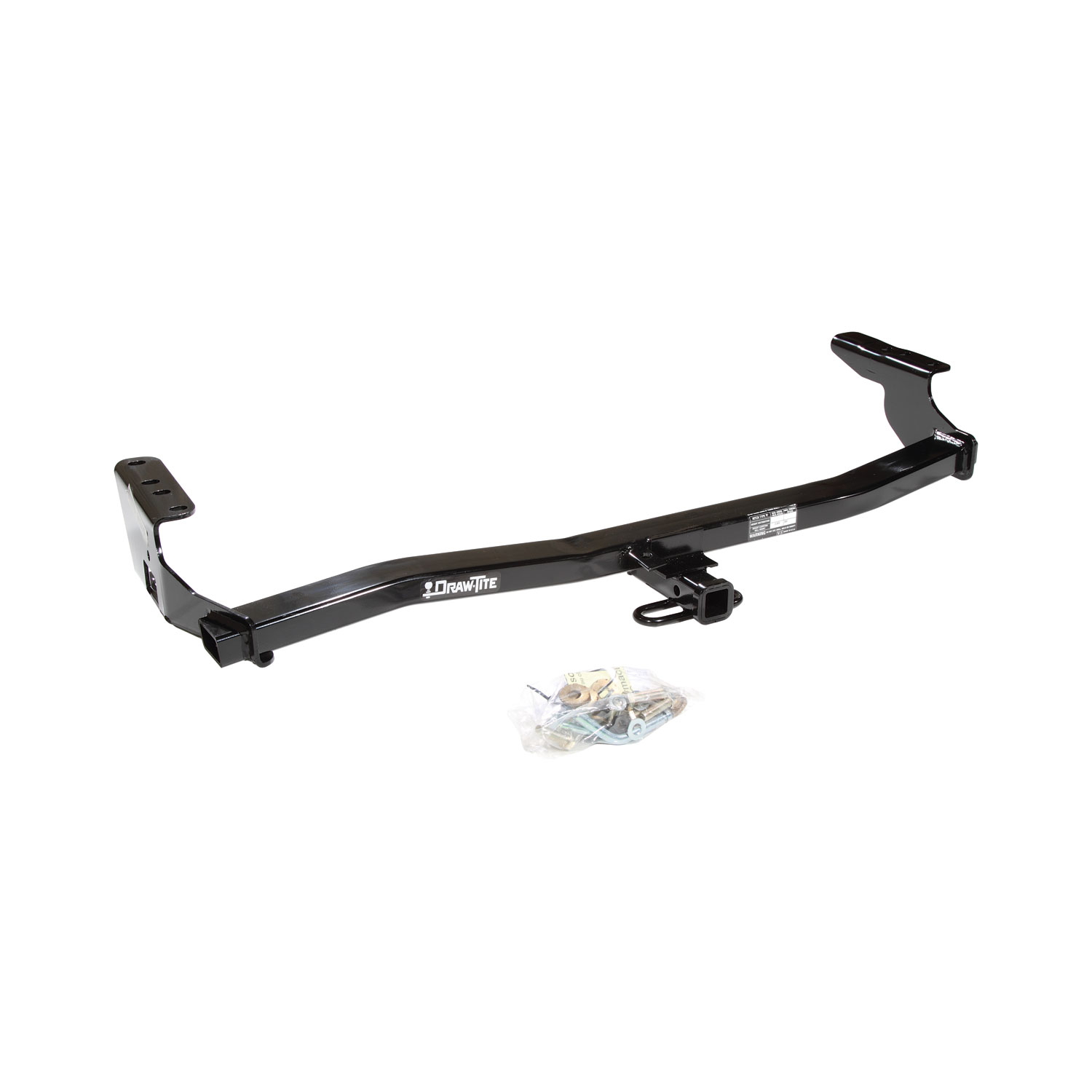

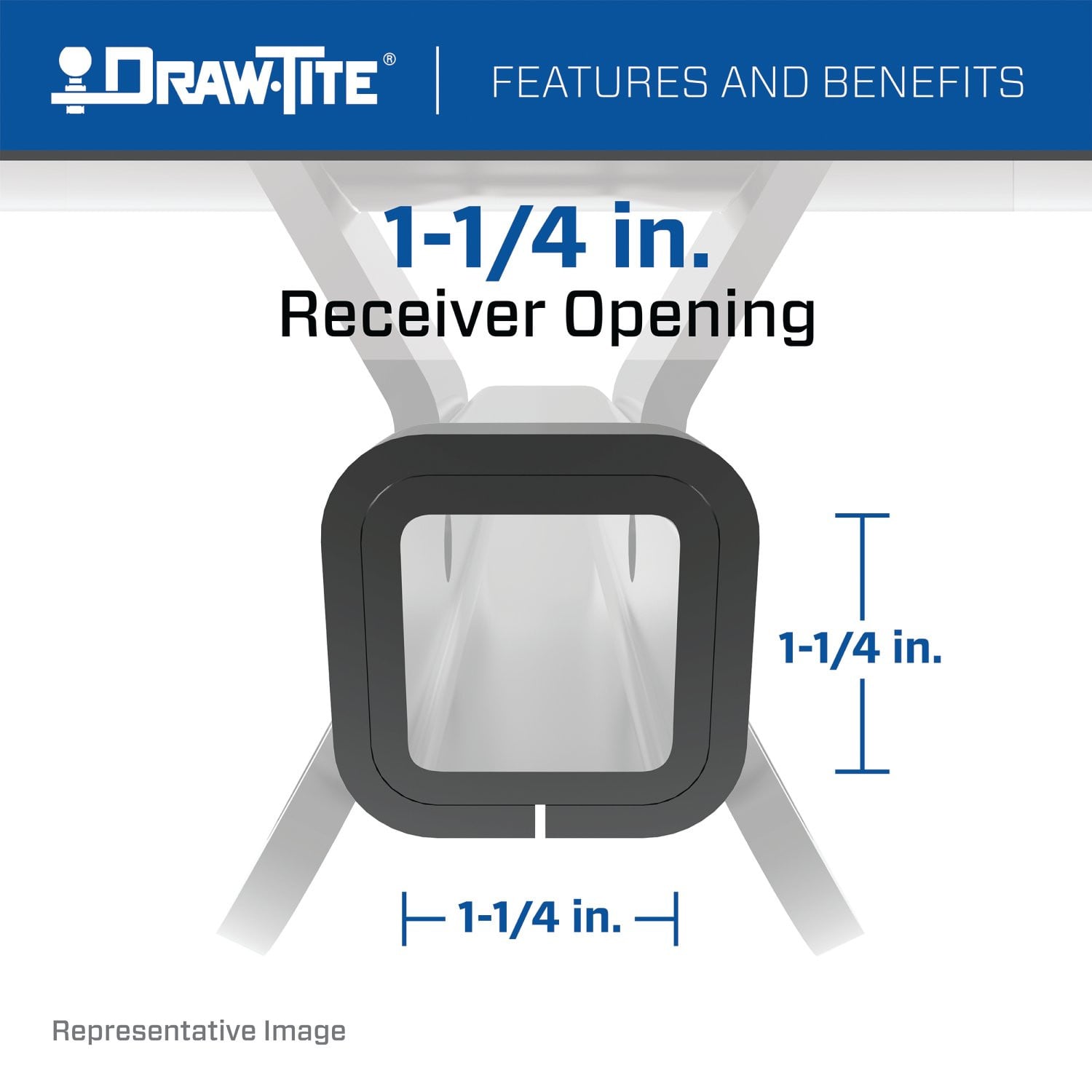

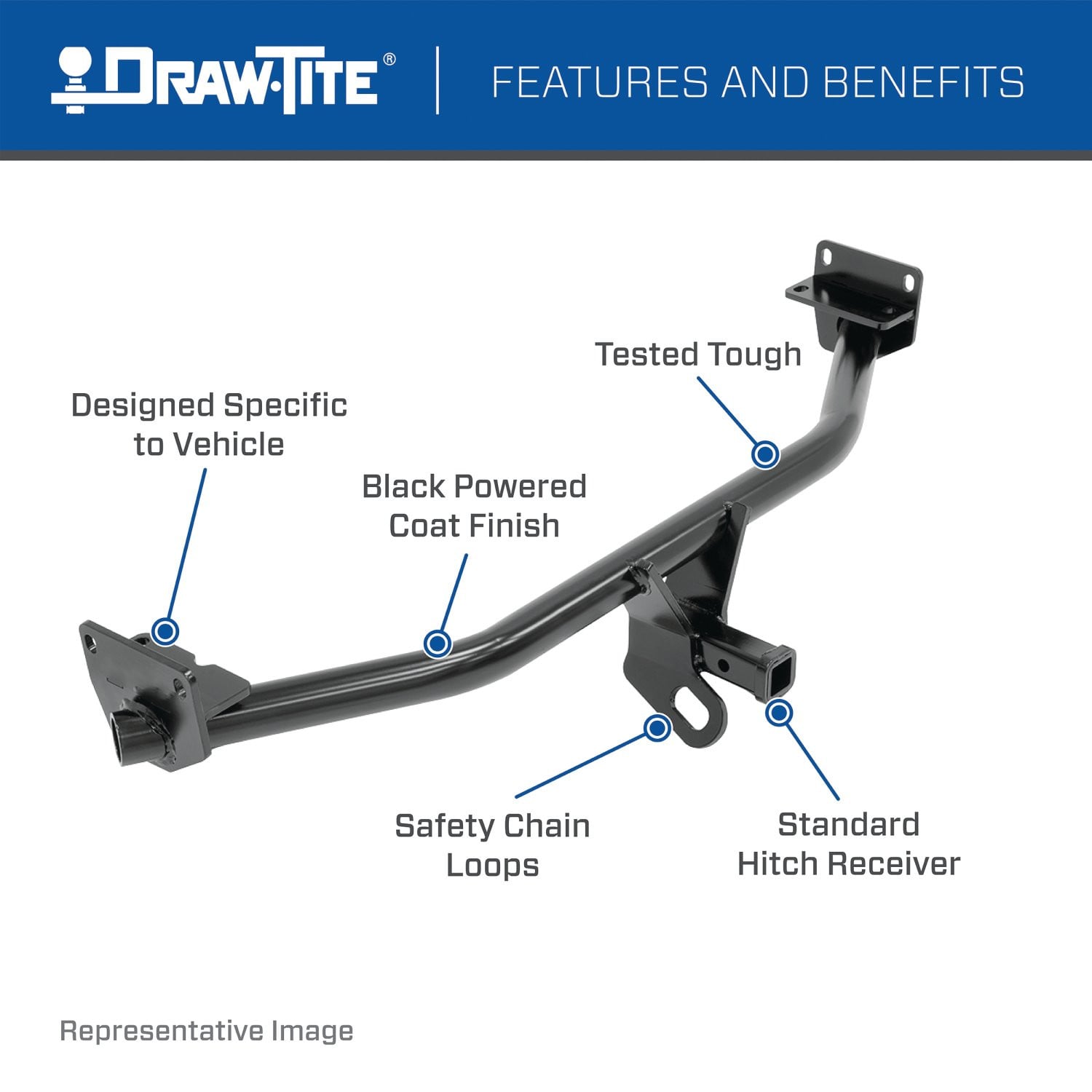

DRAW-TITE Class 2 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 2 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 300 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 2 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 36311 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 24.5 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 300 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | II |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1998 - 2008 | Subaru Forester | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Subaru Forester 36311 (Part #DT36311) fits the following vehicles: 1998-2008 Subaru Forester. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Subaru Forester 36311 (Part #DT36311) is designed to fit the 1998-2008 Subaru Forester.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Subaru Forester 36311 (Part #DT36311) fits 1998-2008 Subaru Forester models. The 2008 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Subaru Forester 36311 (Part #DT36311) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The 36311 hitch is designed for Subaru Forester. The manual references 2002, 2005, and 2015 model years. For confirmation that your specific model year is compatible, contact the manufacturer or your installer, as the manual does not provide a complete year range.
The 36311 hitch has a maximum gross trailer weight of 3500 lb and a maximum tongue weight of 300 lb. Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need wrenches in 12mm, 14mm, and 17mm sizes, and a torque wrench. No drill bits are required. The manual does not specify whether a lift or additional people are needed.
You must remove the following from the vehicle frame: the carbon canister and bracket (from the passenger side), the tie-down bracket, the exhaust mounting bracket, and the center fascia mounting bracket if present. These components should be returned to the vehicle owner for reinstallation if the hitch is later removed.
The carbon canister bracket is sandwiched between the hitch and the vehicle frame when the hitch is bolted to the vehicle. After the hitch is secured, the carbon canister is reattached to the bracket.
The kit includes: 7 M12 × 1.25 × 40mm hex bolts, 7 1/2" conical washers, 1 M10 × 1.50 hex bolt, 2 7/16" flat washers, 1 7/16" lock washer, 1 M10 × 1.25 hex nut, and 1 cable tie.
All M12 CL10.9 fasteners must be tightened with a torque wrench to 92 Lb.-Ft.
All M10 fasteners must be tightened with a torque wrench to 20–30 Lb.-Ft.
The rubber exhaust hanger is bolted to the hitch side bracket using the fasteners provided in the kit, as shown in the installation diagram.
If the center fascia tab is present, reattach it to the hitch using either the existing fastener or the cable tie provided in the kit.
The drawbar must be used in the RISE position only.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. Store the removed factory components (tie-down brackets, exhaust mounting bracket, center fascia bracket, and fasteners) for potential reinstallation.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch or ball becomes damaged, it must be removed and replaced immediately.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened.
The 36311 hitch is compatible with drawbar kit 36051 or 90001.
Fastener kits F36311 or 90757F are available for the 36311 hitch.
No. The equipment required section lists no drill bits, and the manual does not mention any drilling steps.
The 36311 is designed for Subaru Forester (2002, 2005, 2015 model years referenced). Confirm your specific model year with the manufacturer.
Maximum gross trailer weight is 3500 lb; maximum tongue weight is 300 lb. Do not exceed your vehicle manufacturer's rating.
You need 12mm, 14mm, and 17mm wrenches, and a torque wrench. No drilling is required.
Remove the carbon canister and bracket, tie-down bracket, exhaust mounting bracket, and center fascia bracket (if present) from the vehicle frame.
M12 CL10.9 fasteners: 92 Lb.-Ft. M10 fasteners: 20–30 Lb.-Ft. Use a torque wrench.
Plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry. Keep removed factory components for reinstallation.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Replace any damaged hitch or ball immediately.
