Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2009 - 2013 Subaru Forester
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

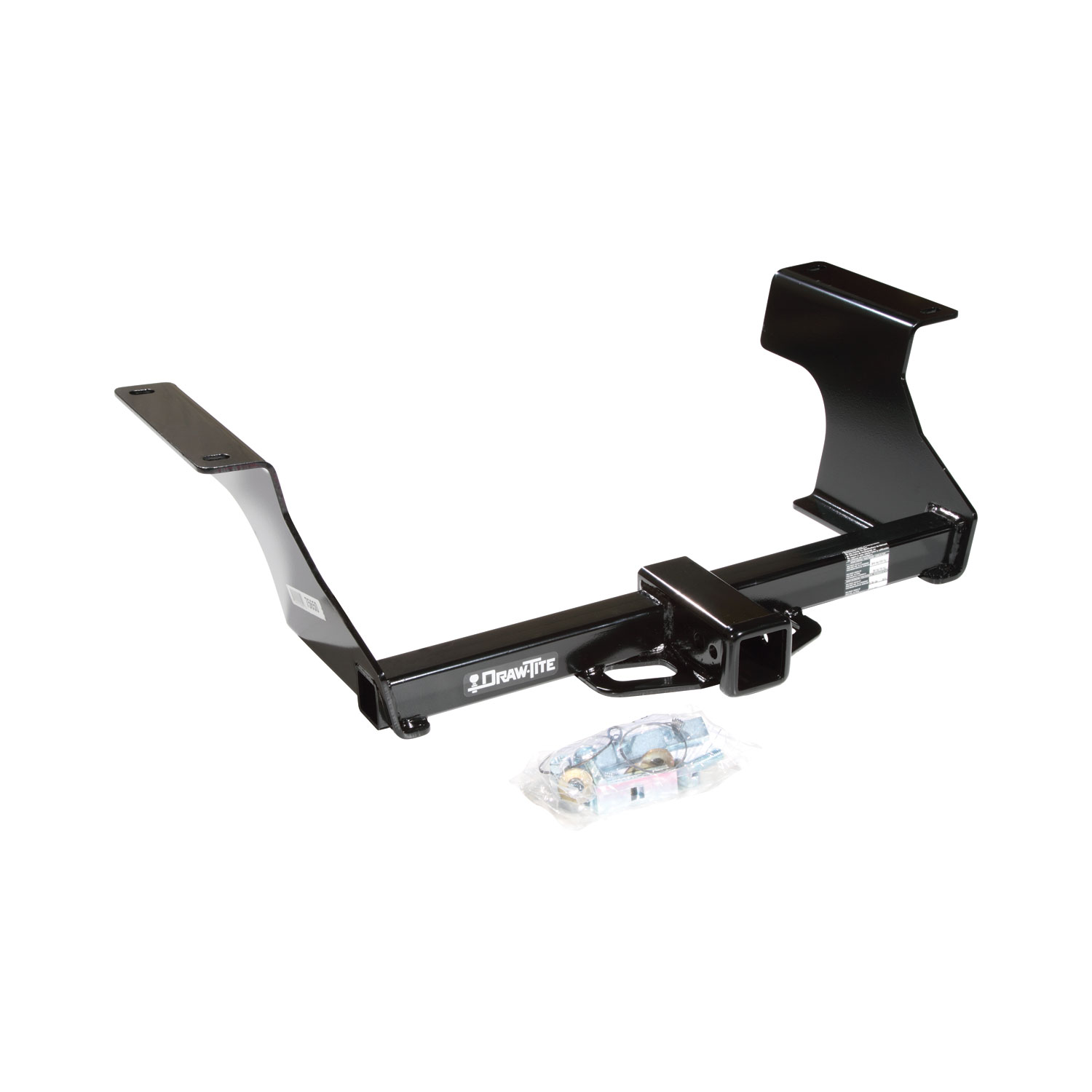

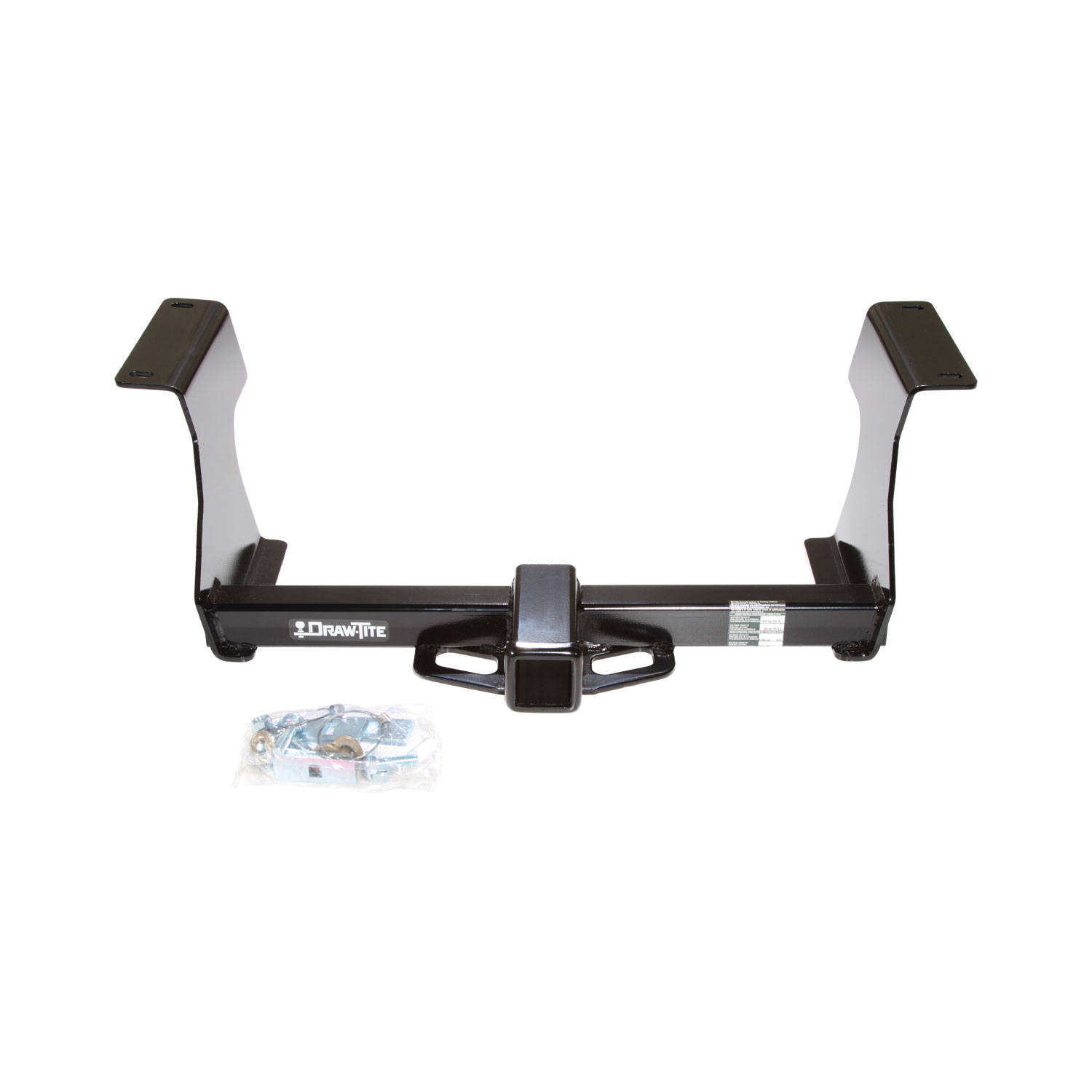

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 4,000 lbs. gross trailer weight (GTW) and up to 600 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75650 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 36 LBS |
| GROSS TOWING WEIGHT: | 4,000 LBS. |
| GROSS TONGUE WEIGHT: | 600 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2013 | Subaru Forester | Class 3 Trailer Hitch: 4000 lbs 600/4,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes |
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Subaru Forester 75650 (Part #DT75650) is designed to fit the 2009-2013 Subaru Forester.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Subaru Forester 75650 (Part #DT75650) fits the following vehicles: 2009-2013 Subaru Forester. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Subaru Forester 75650 (Part #DT75650) fits 2009-2013 Subaru Forester models. The 2013 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Subaru Forester 75650 (Part #DT75650) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, part number 75650 is designed for the Subaru Forester. The installation instructions are specific to this vehicle. However, the manual does not specify which model years are covered, so contact the manufacturer or your installer to confirm your specific year and trim are compatible.
The maximum gross trailer weight is 4000 lb (1815 kg) and the maximum tongue weight is 600 lb (272 kg). However, you must not exceed the lower of this rating or your vehicle manufacturer's towing rating. The hitch is a weight-carrying ball mount and is not for use with spring bars.
You will need a metal file, wrenches in ¾" and 10mm sizes, and drill bits in ½" and 3/8" sizes. The ½" and 3/8" drill bits are used to modify the frame rail holes as part of the installation procedure.
Yes. You must use a 3/8" drill bit to modify the forwardmost hole in each frame rail to allow fishwiring of spacers and carriage bolts. You will also use a metal file to enlarge these holes as shown in Figure 2. These modifications are part of the standard installation procedure.
Yes. The first step is to lower the exhaust by disconnecting five rubber exhaust hangers from their hanger brackets. After the hitch is secured in position, you raise the exhaust back and reattach the hangers. This is a required part of the installation procedure.
Fishwiring is used to route spacers and carriage bolts through the frame rails. You insert a 7/16" carriage bolt and spacer through the modified access hole (Step 4) and down through the center hole in each frame rail. Then insert the remaining ½" carriage bolts and spacer blocks into the access holes and drop them down through the holes, ensuring the blocks span both sides of each hole. Figure 4 shows the three-step procedure: insert bolt and block into frame, align block on access hole, and pull bolt through block. Kink the pull wire to keep the spacer independent of the bolt.
Tighten all ½-13 GR5 fasteners to 75 lb.-ft. (102 N·M).
Tighten all 7/16-14 GR5 fasteners to 50 lb.-ft. (68 N·M).

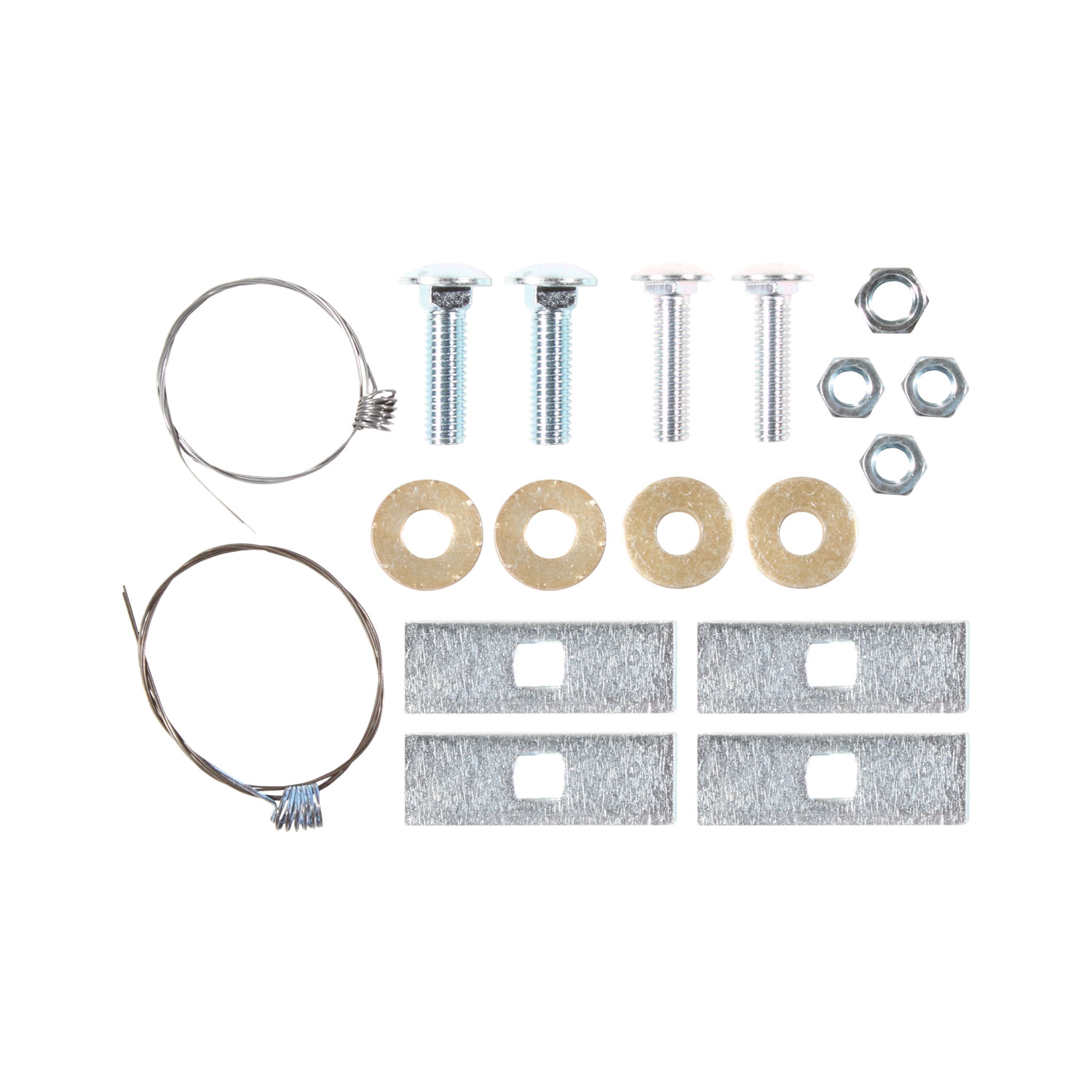

The kit includes: (2) ½-13 x 1.75 GR5 carriage bolts, (2) ½-13 hex nuts, (2) spacers ¼ x 1 x 3 with square holes for ½" carriage bolts, (2) ½" conical washers, (2) 7/16-14 x 1.75 GR5 carriage bolts, (2) 7/16-14 hex nuts, (2) spacers ¼ x 1 x 3 with square holes for 7/16" carriage bolts, (2) 7/16" conical washers, (2) ½" pull wires, and (2) 7/16" pull wires.
The forwardmost heat shield screw is removed from each frame rail and discarded. When the hitch is installed, the heat shield will be sandwiched between the frame rail and the hitch. The heat shield is not removed; it remains in place under the hitch.
Two plastic plugs must be removed from existing holes in each frame rail (four plugs total). These are shown in Figure 1 and should be discarded. These plugs are removed before the frame rail holes are modified.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify a retorque interval, so contact the manufacturer or your installer for post-installation maintenance recommendations.
Conical washers (7/16" and ½" sizes) are used to secure the hitch to the frame rails. They are installed with the hex nuts and fasteners in Step 6 when raising the hitch into position.
The pull wires (½" and 7/16" sizes) are used during the fishwiring procedure to route the spacers and carriage bolts through the frame rails. According to Figure 3, you kink the pull wire to keep the spacer independent of the bolt during installation.
The installation sequence is: (1) Lower the exhaust by disconnecting rubber hangers, (2) Remove the forwardmost heat shield screw from each frame rail, (3) Remove plastic plugs from existing holes in each frame rail, (4) Modify the forwardmost hole in each frame rail using a 3/8" drill and file, (5) Fishwire spacers and carriage bolts through the modified holes and frame rails, (6) Raise the hitch into position and secure with conical washers and nuts, tightening to the specified torque values, (7) Raise the exhaust back into position and reattach the hangers.
Yes, the 75650 is designed for the Subaru Forester. Confirm your specific model year with the manufacturer.
Maximum gross trailer weight is 4000 lb (1815 kg) and maximum tongue weight is 600 lb (272 kg). Do not exceed your vehicle manufacturer's towing rating.
Metal file, ¾" and 10mm wrenches, and ½" and 3/8" drill bits.
Yes, you must lower the exhaust by disconnecting five rubber exhaust hangers before installation and reattach them after the hitch is secured.
Tighten ½-13 GR5 fasteners to 75 lb.-ft. (102 N·M) and 7/16-14 GR5 fasteners to 50 lb.-ft. (68 N·M).
Wear eye protection, observe safety precautions when working beneath the vehicle, and do not cut holes with a torch. Plug all holes if the hitch is removed to prevent water and exhaust fume entry.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
