Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

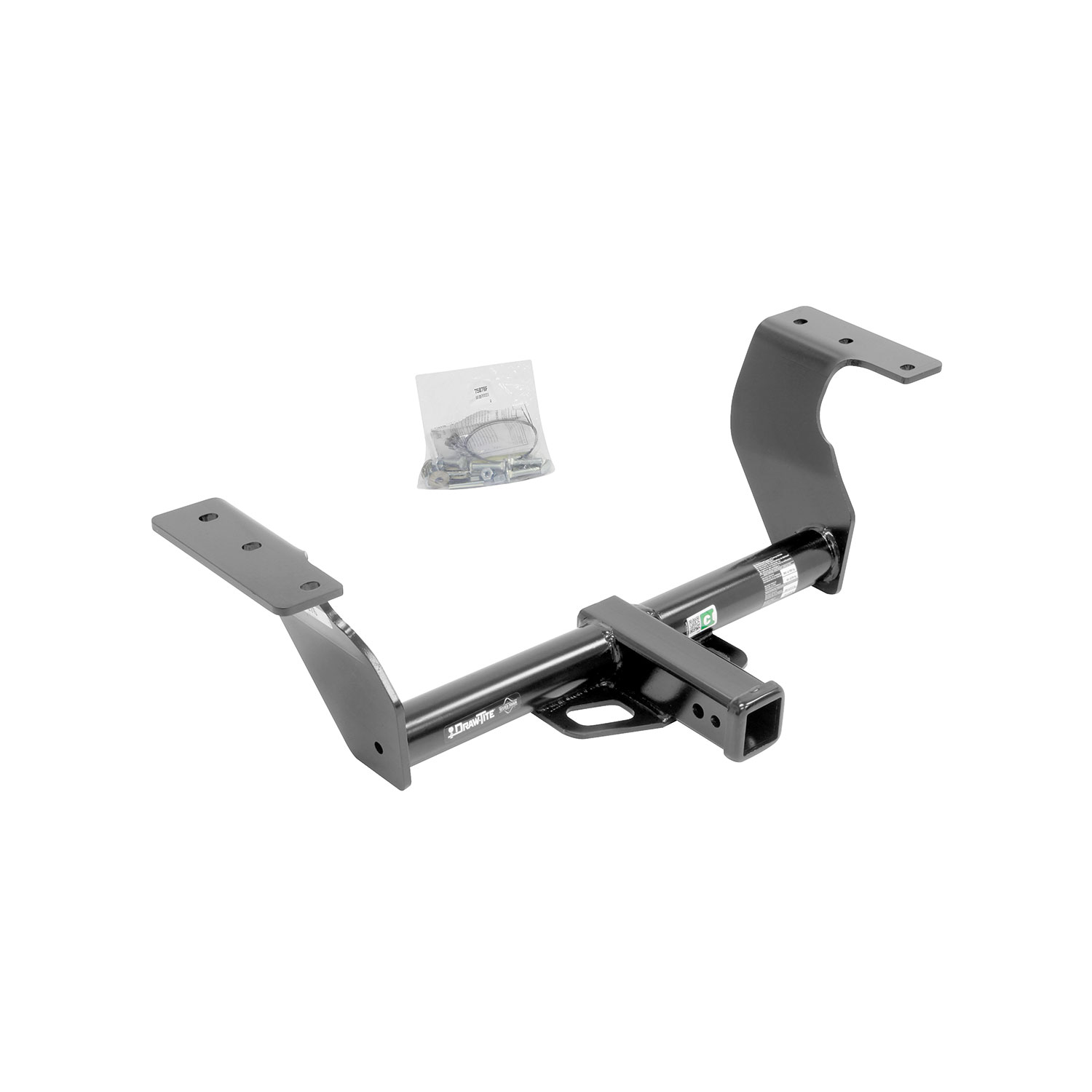

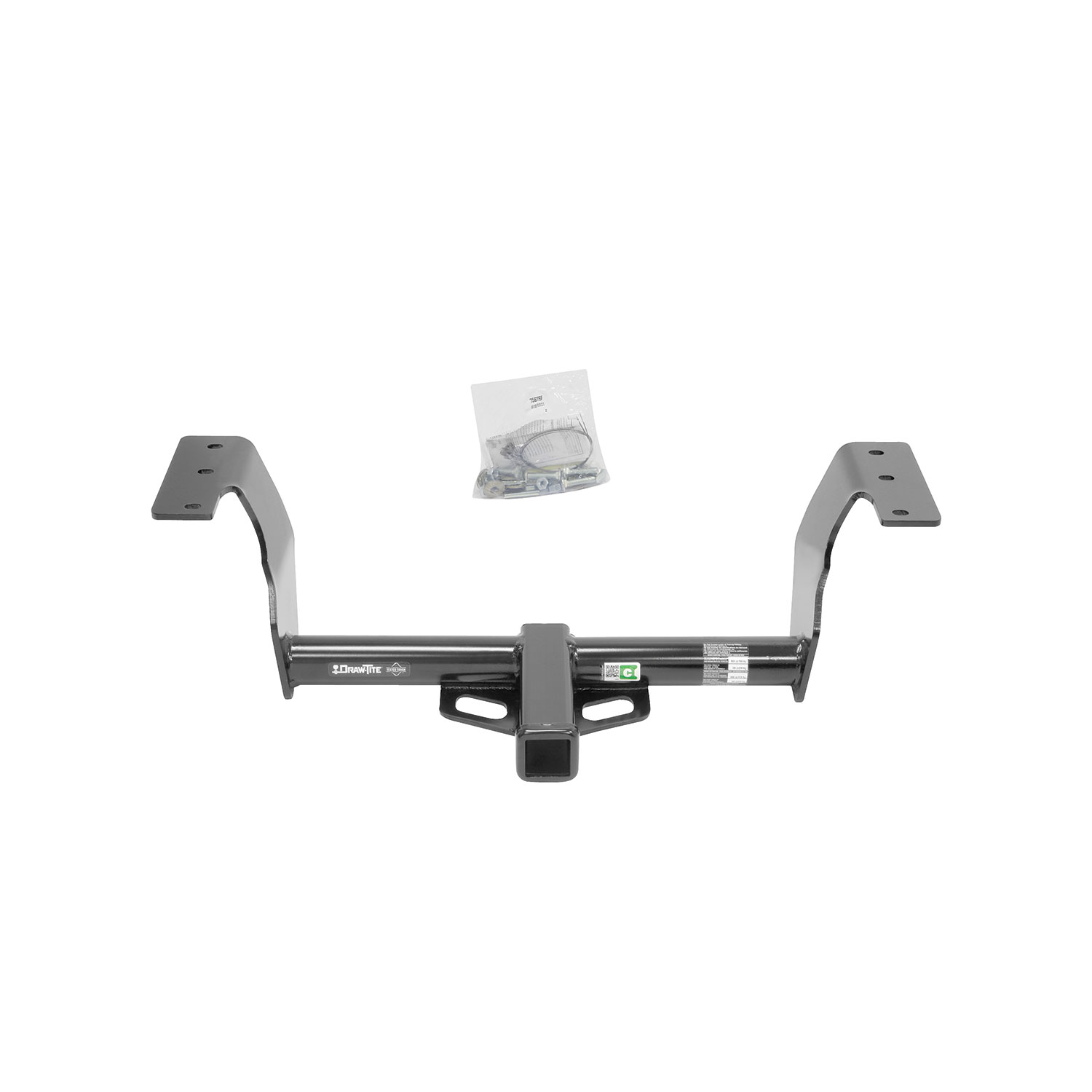

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 525 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 4,000 lbs. weight distribution (WD) and 525 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75876 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 35 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 525 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | ROUND TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 4,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 525 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2018 | Subaru Forester | Class 3 Trailer Hitch: 3500 lbs 525/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 525/4,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 25 minutes |
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Subaru Forester 75876 (Part #DT75876) is designed to fit the 2014-2018 Subaru Forester.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Subaru Forester 75876 (Part #DT75876) fits 2014-2018 Subaru Forester models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Subaru Forester 75876 (Part #DT75876) fits the following vehicles: 2014-2018 Subaru Forester. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Subaru Forester 75876 (Part #DT75876) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, this hitch (part numbers 87654, 75876, 44705) is designed for the Subaru Forester. The wiring access location is SUV8.
You will need a metal file, and wrenches in 11/16" and 10mm sizes.
The manual does not specify whether battery disconnection is required. Contact the manufacturer or your installer for clarification.
No drilling is required. The hitch uses existing holes in the frame rails. However, the heat shield must be trimmed for bolt clearance (see Figure 2).
Tighten all 7/16-14 GR5 fasteners to 50 lb.-ft. (68 N·m).
Maximum towing capacity depends on hitch type: Weight Distributing hitch supports 4000 lb (1816 kg) gross trailer weight with 525 lb (238 kg) tongue weight; Weight Carrying Ball Mount supports 3500 lb (1589 kg) gross trailer weight with 525 lb (238 kg) tongue weight. Do not exceed the lower of the towing vehicle manufacturer's rating or the accessory rating.

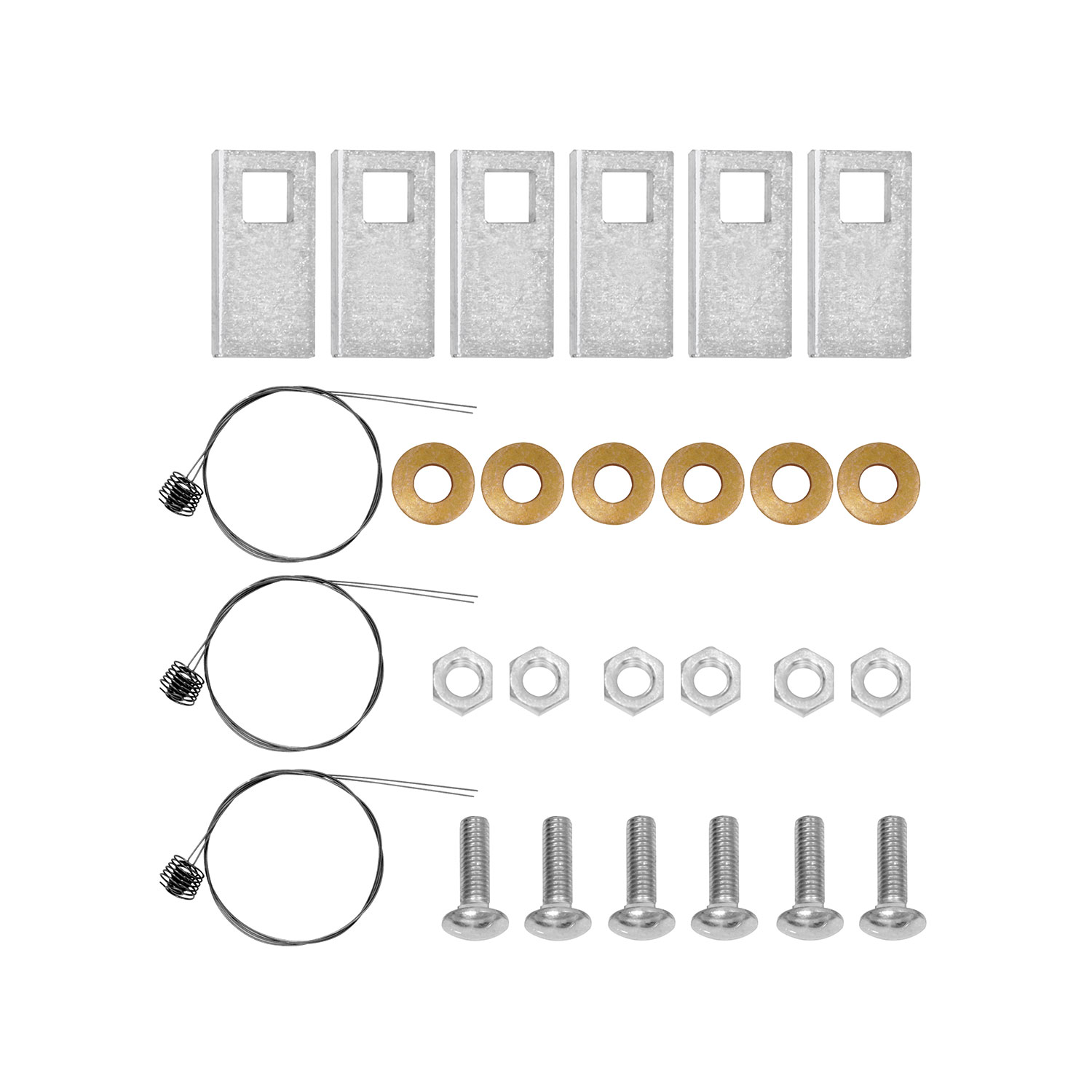

The hitch includes: (6) carriage bolts 7/16-14 x 1.75 GR5, (6) hex nuts 7/16-14, (6) spacers with square holes for 7/16" carriage bolts, (6) conical washers 7/16", and (6) pull wires 7/16". The fastener kit is part number 75876F.
The installation procedure requires you to lower the exhaust by disconnecting rubber exhaust hangers from their brackets in Step 1, and then raise it back into position in Step 7 after the hitch is secured. The exhaust hangers are reconnected after installation, so there should be no permanent interference.
Fishwire is used to route the 7/16" carriage bolts through the access hole and down through the holes in both frame rails. According to Figure 3, the fishwire should be kinked to keep the spacer independent of the bolt during installation.
Remove all (4) heat shield screws from each frame rail in Step 2. After trimming the heat shield for bolt clearance, reinstall 3 of the 4 fasteners in Step 5, leaving out the rearmost fastener on the frame rail.
Remove all (4) plastic plugs from existing holes in each frame rail, but keep only the rear access hole plug for reinstallation after the bolts are in place. The other 3 plugs are not reinstalled.
The spacers must span both sides of the hole and must not overlap one another. Use the fishwire to route the bolts and spacers through the access hole and down through the holes in both frame rails, ensuring proper positioning before tightening.
The manual specifies that the heat shield must be trimmed for bolt clearance to fit in position (see Figure 2), but does not provide specific dimensions or trimming tolerances. Refer to Figure 2 in the manual for the trimming pattern, or contact the manufacturer for detailed trimming specifications.
1. Lower the exhaust by disconnecting rubber hangers. 2. Remove heat shield screws and plastic plugs from frame rails (keep rear access plug). 3. Use fishwire to route carriage bolts and spacers through access hole and frame rail holes. 4. Reinstall trimmed heat shield with 3 of 4 fasteners (omit rearmost). 5. Raise hitch into position and secure with conical washers and nuts. 6. Raise exhaust back into position and reinstall hangers.
The hitch is secured using (6) carriage bolts 7/16-14 x 1.75 GR5, (6) conical washers 7/16", and (6) hex nuts 7/16-14. These fasteners are tightened to 50 lb.-ft. (68 N·m).
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair or continue using a damaged hitch or ball.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Use a metal file for any trimming required.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. Verify that the hitch is secure and all bolts remain at the specified torque of 50 lb.-ft. (68 N·m).
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is recommended to ensure safe operation.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
