Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2019 - 2026 Subaru Forester
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

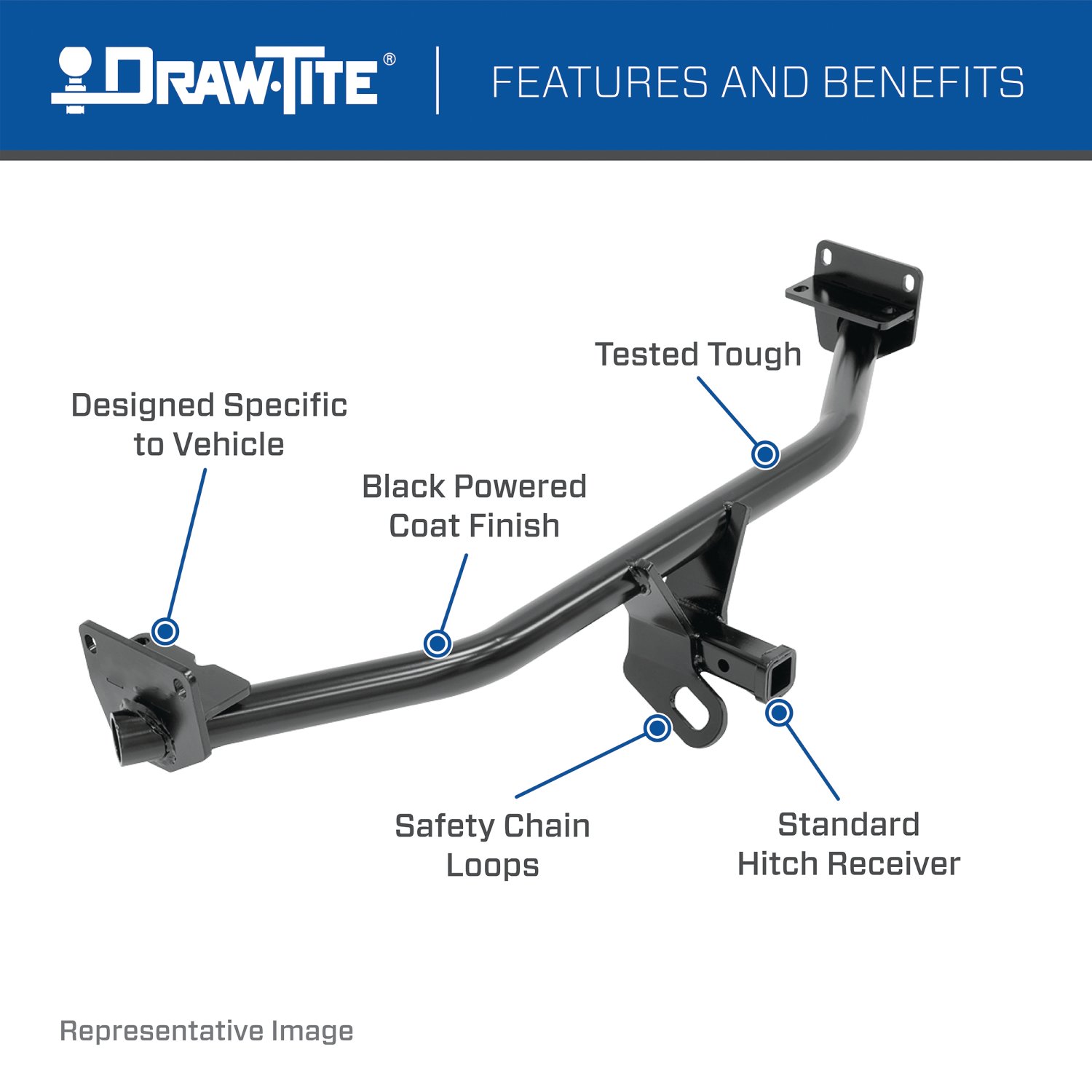

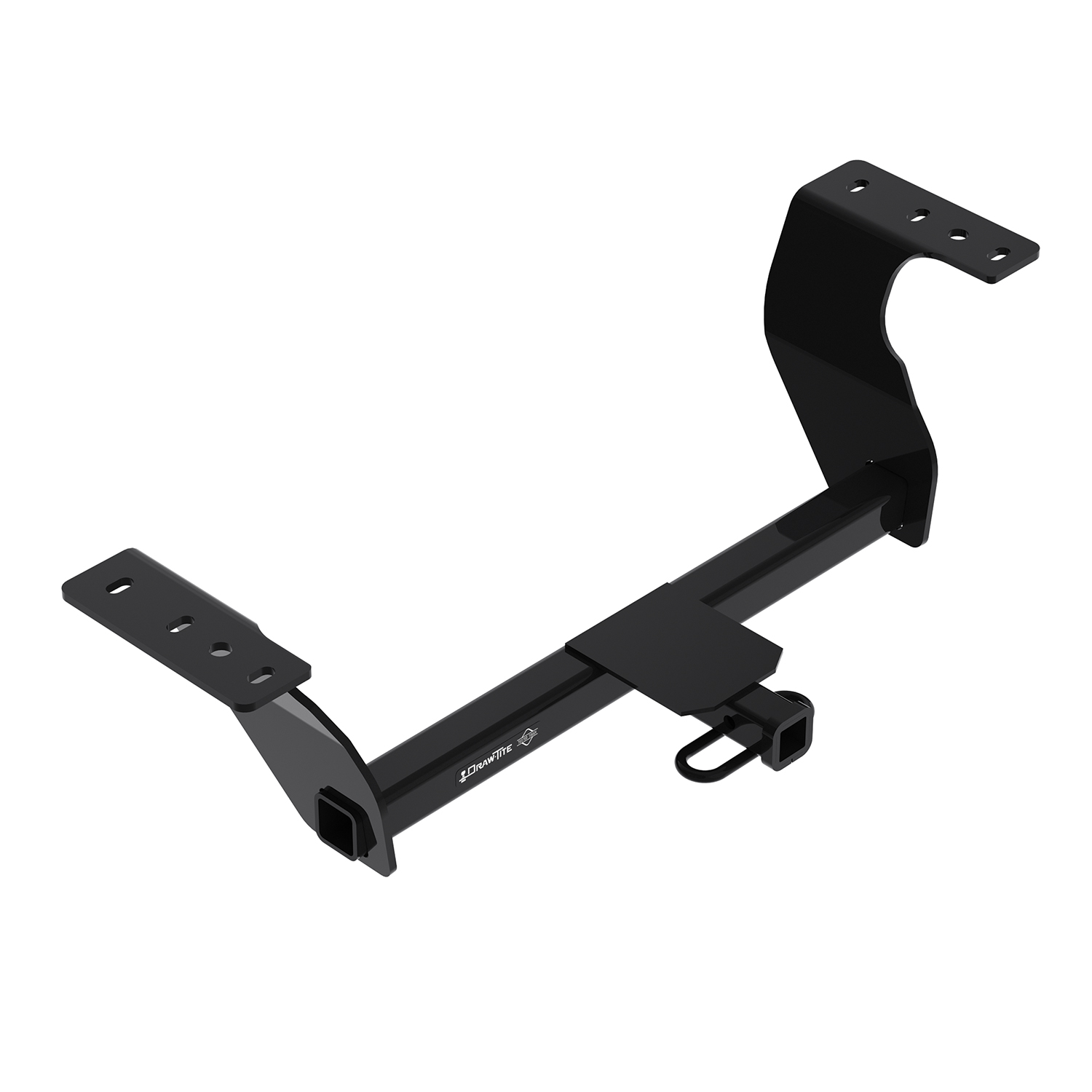

DRAW-TITE Class 2 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 2 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 350 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 2 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 36671 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 27.5 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 350 LBS. |

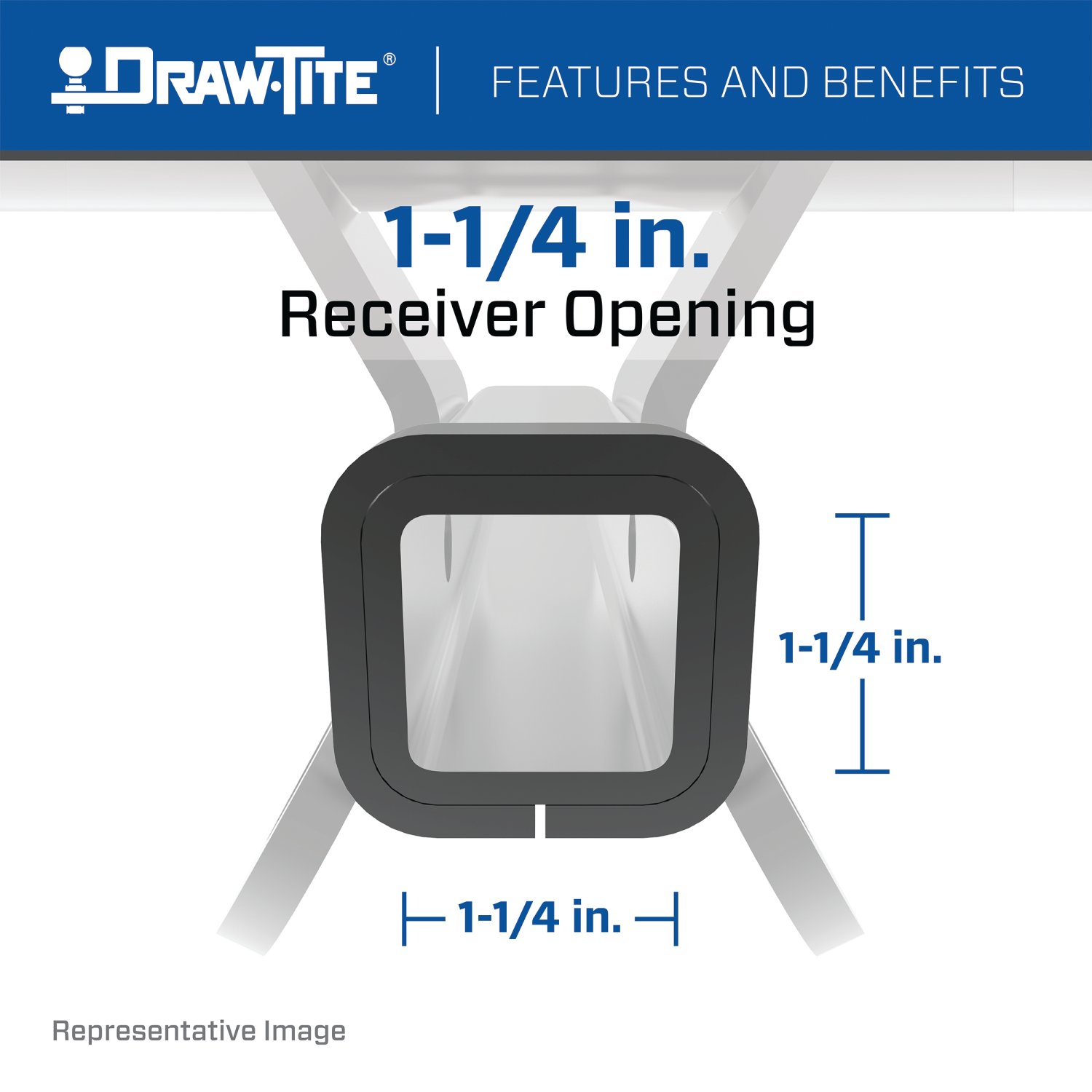

| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | II |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw-Tite® Trailer Hitches | Receiver Hitches
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2026 | Subaru Forester | Class 2 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
Yes, the Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Subaru Forester 36671 (Part #DT36671) is designed to fit the 2019-2026 Subaru Forester.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Subaru Forester 36671 (Part #DT36671) fits 2019-2026 Subaru Forester models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Subaru Forester 36671 (Part #DT36671) fits the following vehicles: 2019-2026 Subaru Forester. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Subaru Forester 36671 (Part #DT36671) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part numbers 36671, 06191, and CQT36671 are designed for 2019-Current Subaru Forester models. Visit the manufacturer's website for the most up-to-date information regarding specific trim levels and model years.
This is a weight-carrying hitch with a maximum gross trailer weight of 3500 lb (1589 kg) and maximum tongue weight of 350 lb (159 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools: ratchet, 10 mm socket, 13/16" socket, 6" socket extension, torque wrench, safety glasses, prybar, exhaust removal pliers, flat-head screwdriver, and tin snips.
Yes. You must lower the exhaust by removing the rubber hangers from in front of the muffler, behind the muffler, and near the rear axle. Support the exhaust to prevent damage. The exhaust is reinstalled after the hitch is mounted.
Yes. Using a 10 mm socket, remove the 4 screws holding the heat shield to the vehicle. Using tin snips, trim the heat shield as shown in the manual figure. Reinstall after trimming, leaving out the rearmost M6 bolt on the frame rail for the heat shield.
Tighten all 7/16" fasteners with a torque wrench to 50 Lb.-Ft. (68 N·M).
The average installation time for professional installers is 30 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, contact a professional installer.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. DO NOT apply your brakes and DO NOT speed up.
The fastener kit (36671F) includes: 6 carriage bolts (7/16-14 X 1.50 Gr5), 6 conical washers (7/16", Part No. 01292007), 6 spacers (Part No. 01204), 6 hex nuts (7/16-14 Gr5), 2 flange hex bolts (M6 x 1.0 x 35mm), and 6 wireform fasteners (7/16", Part No. 5481).
No. This is a weight-carrying hitch only. Weight-distributing capability is listed as N/A for this model.
Remove the 4 hole plugs from each frame rail. Use a wireform fastener (fishwire) to thread the spacers and 7/16" carriage bolts through the access hole and down through the holes in both frame rails. This allows you to position the fasteners before raising the hitch into place.
The conical washers must be installed with the teeth side facing toward the hitch. This orientation is critical for proper fastening.
Remove 2 M6 bolts from the driver side frame rail. The lower underbody panel will be reinstalled over the hitch after installation.
After the hitch is mounted and torqued, reinstall the underbody panel by installing the supplied M6 bolts into the weldnuts for the underbody panel on the frame rail.
After the hitch is mounted and torqued, raise the exhaust back into position and reinstall all rubber hangers that were removed in step 2 (from in front of the muffler, behind the muffler, and near the rear axle).
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Do not cut access or attachment holes with a torch. Support the exhaust to prevent damage when lowering it.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. Proper torque is needed to keep the hitch secure to the vehicle when towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue using a damaged hitch.
Load the trailer heavier in front. This helps maintain proper weight distribution and towing stability.
Slow down when towing. Never exceed any posted speed limit.
No. Do not cut, weld, or modify this receiver. Any modifications will compromise the hitch integrity and safety.
This product includes a Limited Lifetime Warranty covering material defects in material and workmanship, ordinary wear and tear excepted. The warranty is valid only if products are installed, maintained, and used in accordance with the manufacturer's instructions. Product replacement is the sole remedy. Contact Horizon Global Americas Inc. at 1-800-632-3290 or 47912 Halyard Drive, Suite 100, Plymouth, MI 48170 to make a warranty claim.
The authorized drawbar kit is part number 36071 (sold separately). The drawbar must be used in the RISE position only.
Remove 4 hole plugs from each frame rail (8 total). These provide access for fishwiring the spacers and carriage bolts through to the frame rail holes.
The carriage bolts are 7/16-14 X 1.50 Gr5. Six bolts are supplied in the fastener kit. They are torqued to 50 Lb.-Ft. (68 N·M).
The M6 bolts are flange hex bolts, M6 x 1.0 x 35mm. Two bolts are supplied in the fastener kit. They are installed into the weldnuts on the frame rail to secure the underbody panel.
Use a 10 mm socket to remove the 4 screws holding the heat shield to the vehicle.
Raise the hitch into position over the muffler and over the plastic underbody panel, aligning the attachment holes in the hitch to the holes in the frame rail on both sides.
Always wear your seatbelt when towing.
Check all fasteners periodically to ensure they are tight and the hitch is securely mounted to the vehicle. If fasteners are found to be loose, retighten them with a torque wrench to 50 Lb.-Ft. (68 N·M) for the 7/16" fasteners. Proper torque is needed to keep the hitch secure to the vehicle when towing.
A hitch which has been damaged should be removed and replaced. Do not continue towing with a damaged hitch.
A ball which has been damaged should be removed and replaced. Do not continue towing with a damaged ball.
