Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

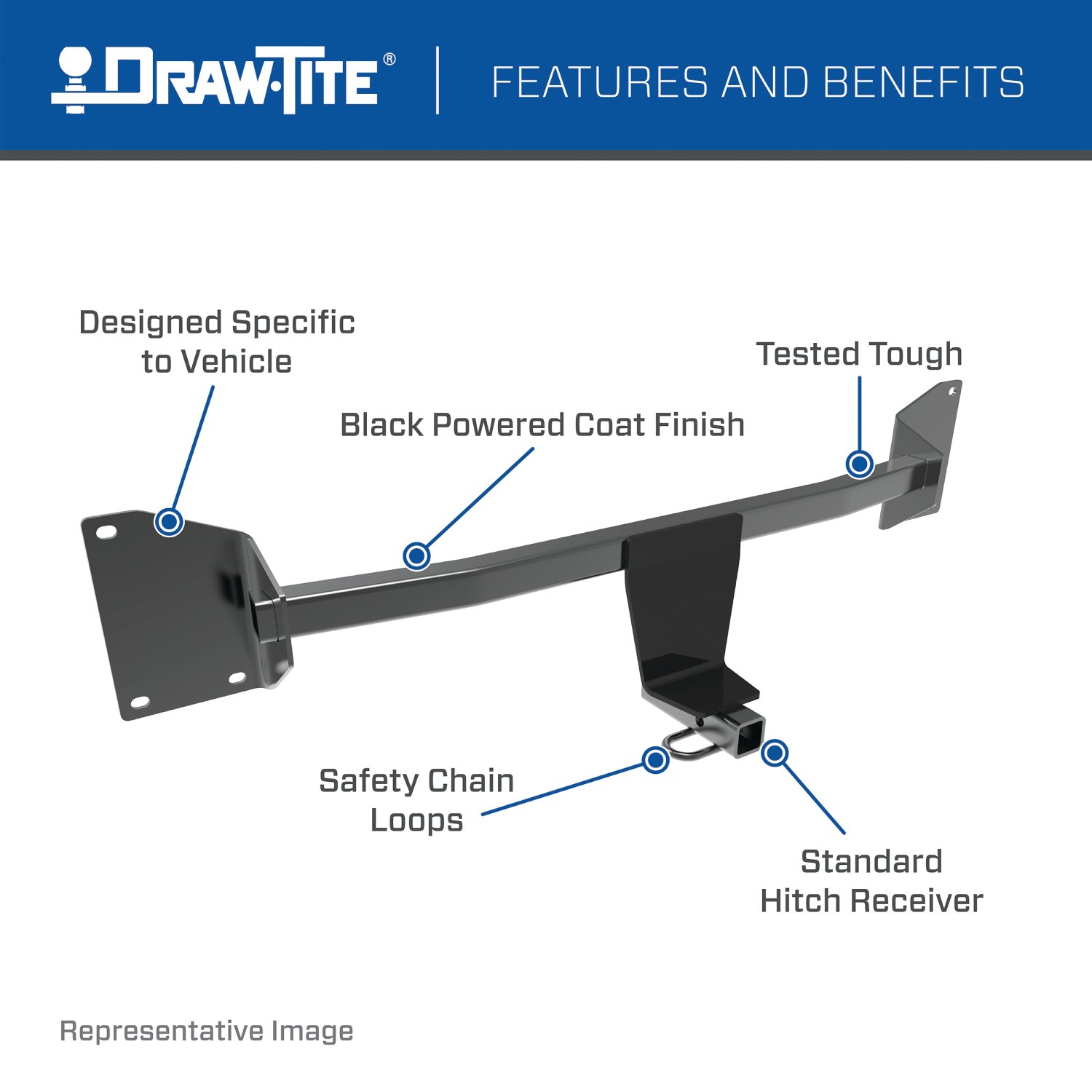

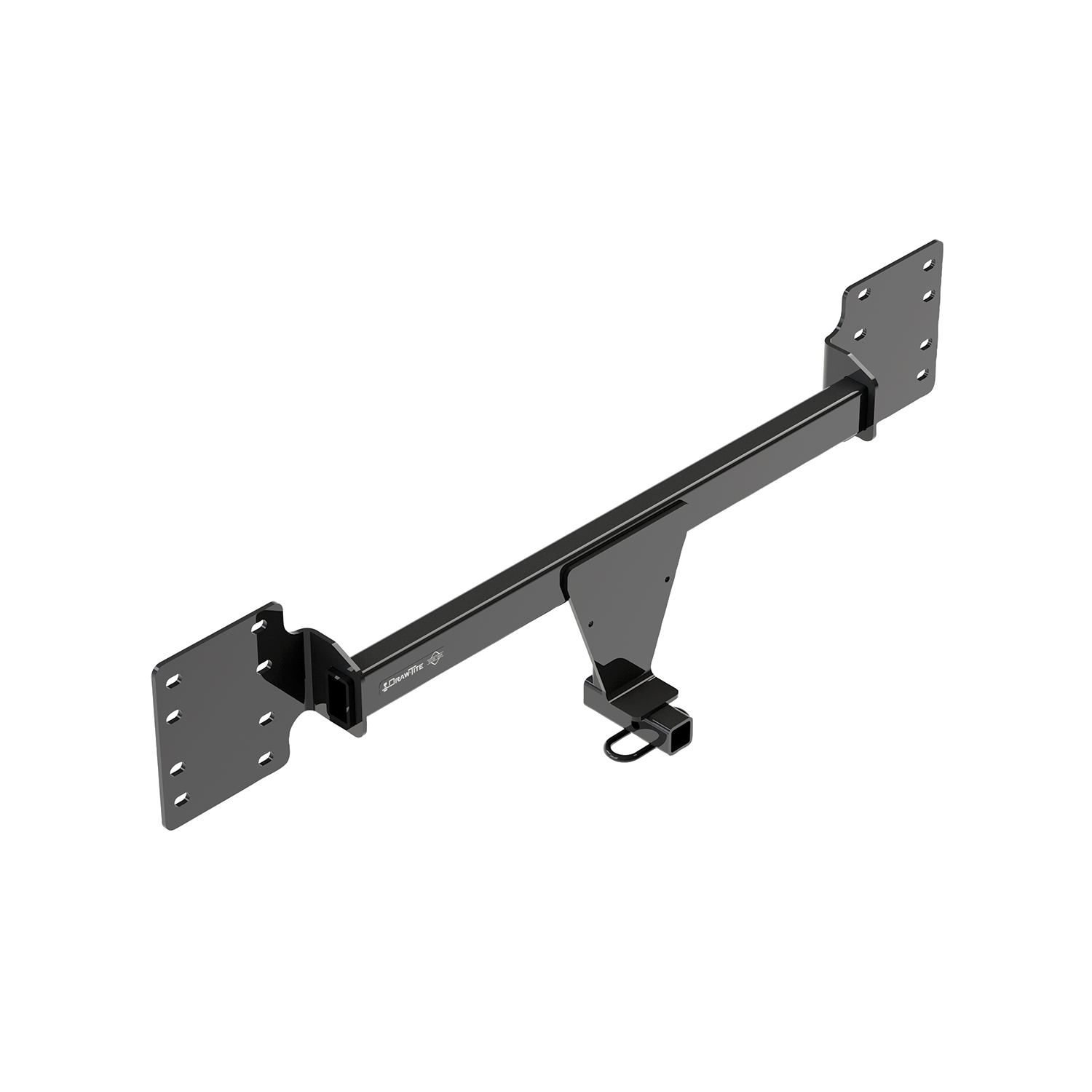

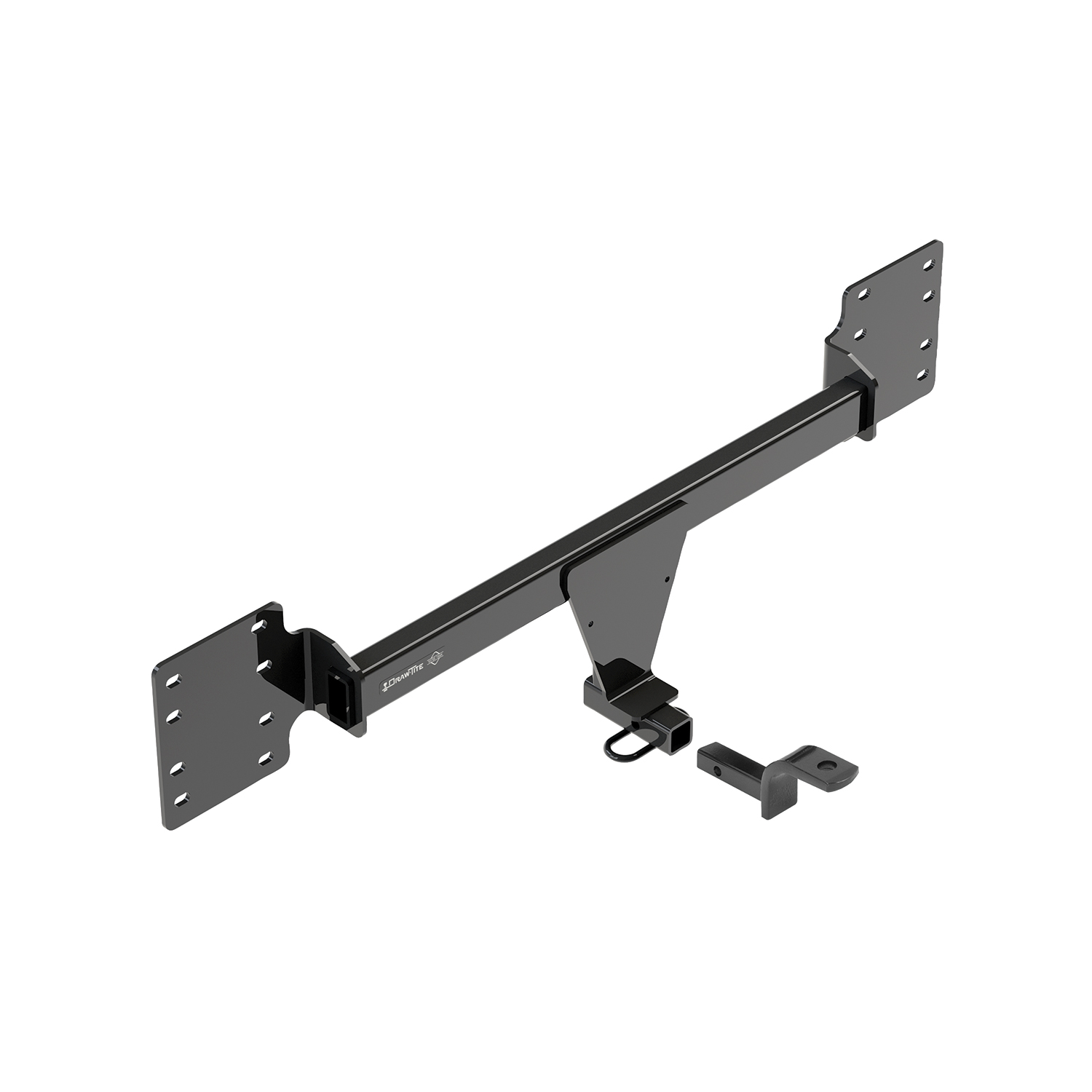

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24958 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 21.65 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |

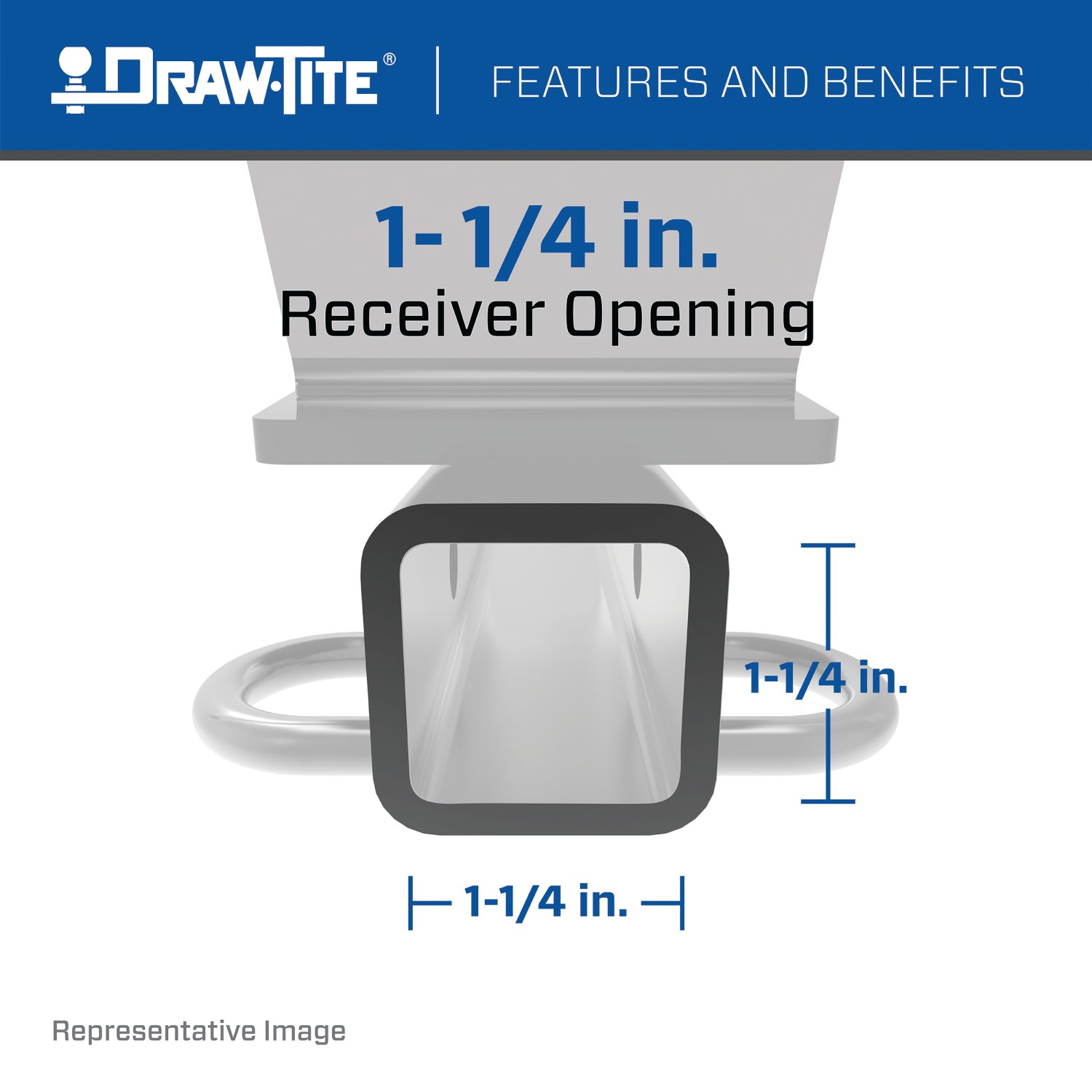

| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.

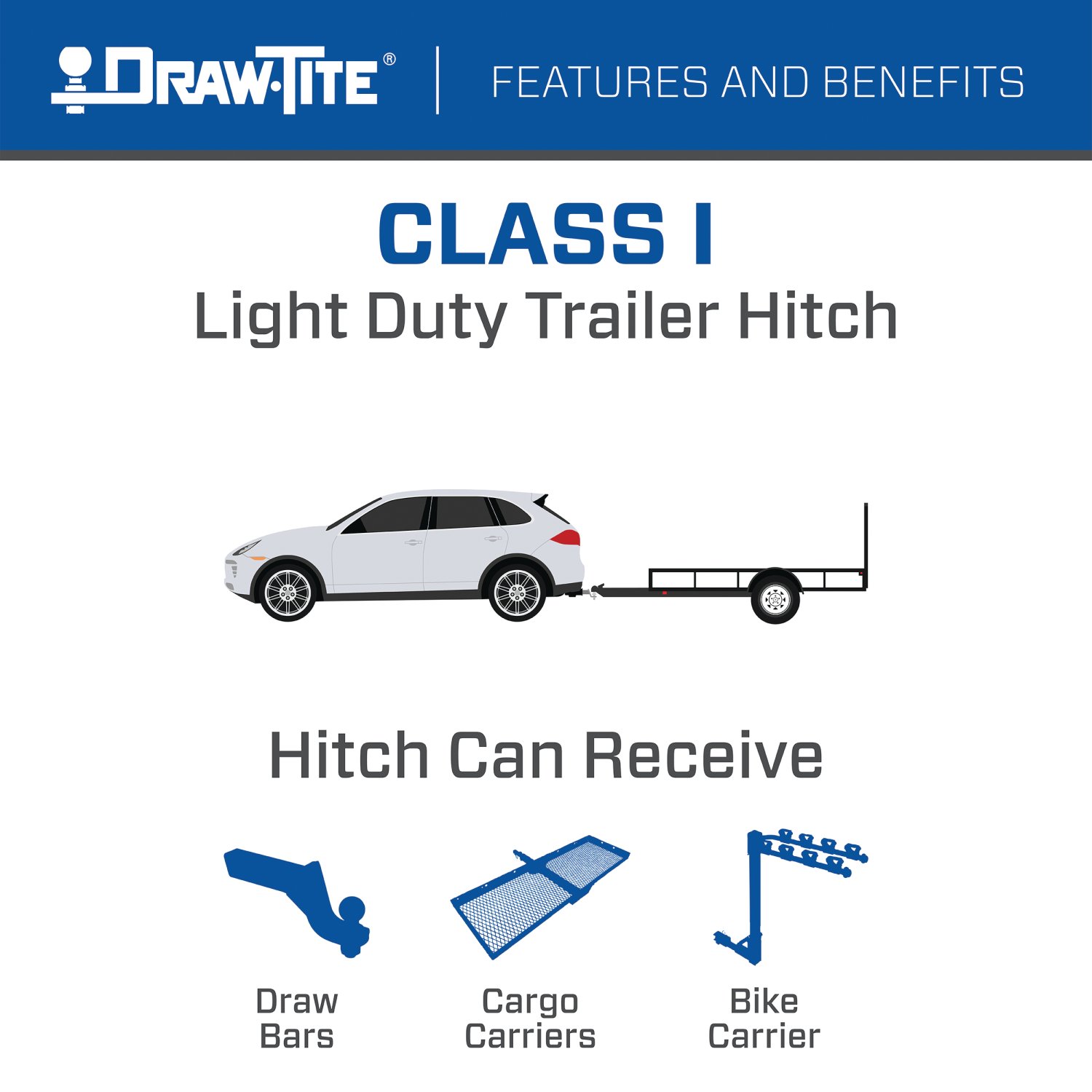

The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
How to Install a Receiver (Trailer) Hitch - Draw•Tite®
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2023 | Tesla S | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 150 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Tesla S 24958 (Part #DT24958) fits the following vehicles: 2012-2023 Tesla S. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Tesla S 24958 (Part #DT24958) is designed to fit the 2012-2023 Tesla S.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Tesla S 24958 (Part #DT24958) fits 2012-2023 Tesla S models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Tesla S 24958 (Part #DT24958) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The maximum gross trailer weight is 2000 lb (908 kg) and the maximum tongue weight is 200 lb (90.8 kg). Do not exceed the lower of your Tesla's manufacturer towing rating or these limits.
Yes, the 24958 hitch is designed for 2012-current Tesla Model S. Visit the Cequent website for the most up-to-date information regarding specific application years and trim levels.
Required tools include: ratchet, torque wrench, safety glasses, sockets (8 mm, 10 mm, 15 mm), 6-inch socket extension, panel removal tool, marker, T25 Torx bit socket, T30 Torx bit socket, plastic trim tools, drill, and jigsaw.
The fastener kit 24958F includes 2 cable ties. The hitch uses 16 existing M10 factory flange nuts from the vehicle. The manual recommends detailed documentation of fastener type, quantity, and location as these may differ by model year.
The average installation time for professional installers is 2.5 hours. If you do not feel comfortable performing this installation yourself or need assistance, contact a professional installer.
Installation requires removal of: bottom fins (long and short), front and rear bottom appearance panels, wheel well liners, trunk panels (center and curved), fascia, bumper beam, and bumper end panel. All components are reinstalled after hitch installation.
Yes. Step 8 requires drilling and jigsaw cutting of the fascia chrome piece and plastic piece using a template. Do not use a torch to cut access or attachment holes.
All CL 10 fasteners must be tightened with a torque wrench to 42 Lb.-Ft. (57 N·M). This applies to the 4 factory flange nuts on the middle studs each side and the remaining factory flange nuts on the bumper beam.
After removing the sensor from the center of the bumper end panel (using an 8 mm socket), reattach it to the hitch center section using the 2 cable ties included in fastener kit 24958F.
First, torque 4 factory flange nuts to the middle studs each side to 42 Lb.-Ft. (57 N·M). Then reinstall the bumper beam and loosely secure the remaining factory flange nuts to it. Finally, tighten all remaining CL 10 fasteners to 42 Lb.-Ft. (57 N·M).
Always wear safety glasses during installation. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and ball are properly tightened. Proper torque is needed to keep the hitch secure to the vehicle when towing. Periodically verify that all fasteners remain tight and the hitch is securely mounted.
Check all fasteners periodically to ensure they are tight and the hitch is securely mounted to the vehicle. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced.
No. Do not cut, weld, or modify this receiver. Any modifications will void the warranty and compromise safety.
The hitch includes a Limited Lifetime Warranty covering material defects in materials and workmanship, excluding ordinary wear and tear. The warranty is valid only if products are installed, maintained, and used according to instructions. Product replacement is the sole remedy. Contact Cequent at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, 1-800-632-3290 to make a claim.
Yes, the 24958 is designed for 2012-current Tesla Model S. Check the Cequent website for your specific model year and trim level.
Maximum 2000 lb gross trailer weight and 200 lb tongue weight. Do not exceed your vehicle manufacturer's rating.
Ratchet, torque wrench, safety glasses, sockets (8, 10, 15 mm), 6-inch extension, panel removal tool, marker, T25 and T30 Torx bits, plastic trim tools, drill, and jigsaw.
Yes. The fascia requires drilling and jigsaw cutting using a template. Do not use a torch.
All CL 10 fasteners must be torqued to 42 Lb.-Ft. (57 N·M) using a torque wrench.
Average 2.5 hours for professional installers. Professional installation is recommended if you are not comfortable performing it yourself.
Always wear safety glasses. Observe safety precautions when working beneath the vehicle. Do not use a torch to cut holes.
