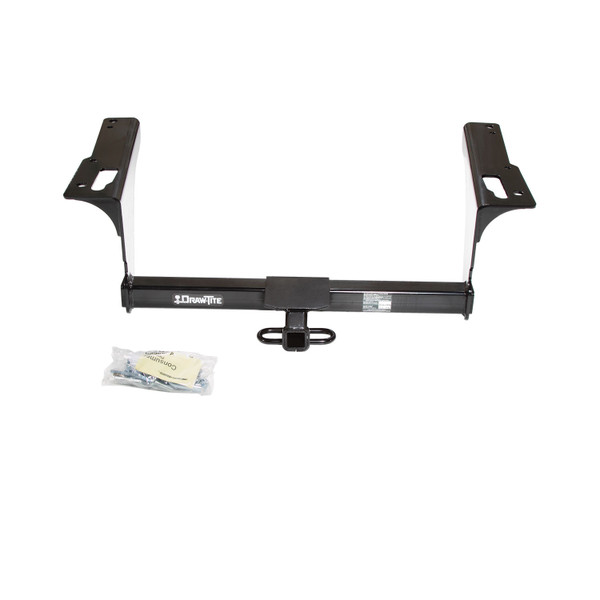

These dependable custom hitches are manufactured for 2010-2019 Subaru Legacy, 2010-2019 Subaru Outback and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 2 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1994 - 1996 | Subaru Outback | Wagon, Except Sport |

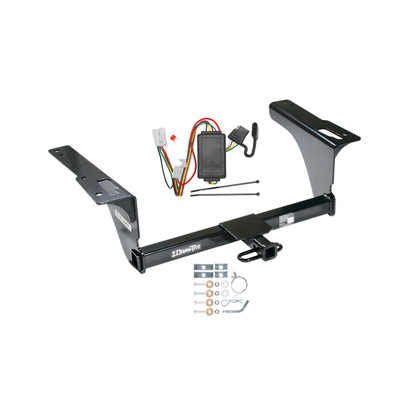

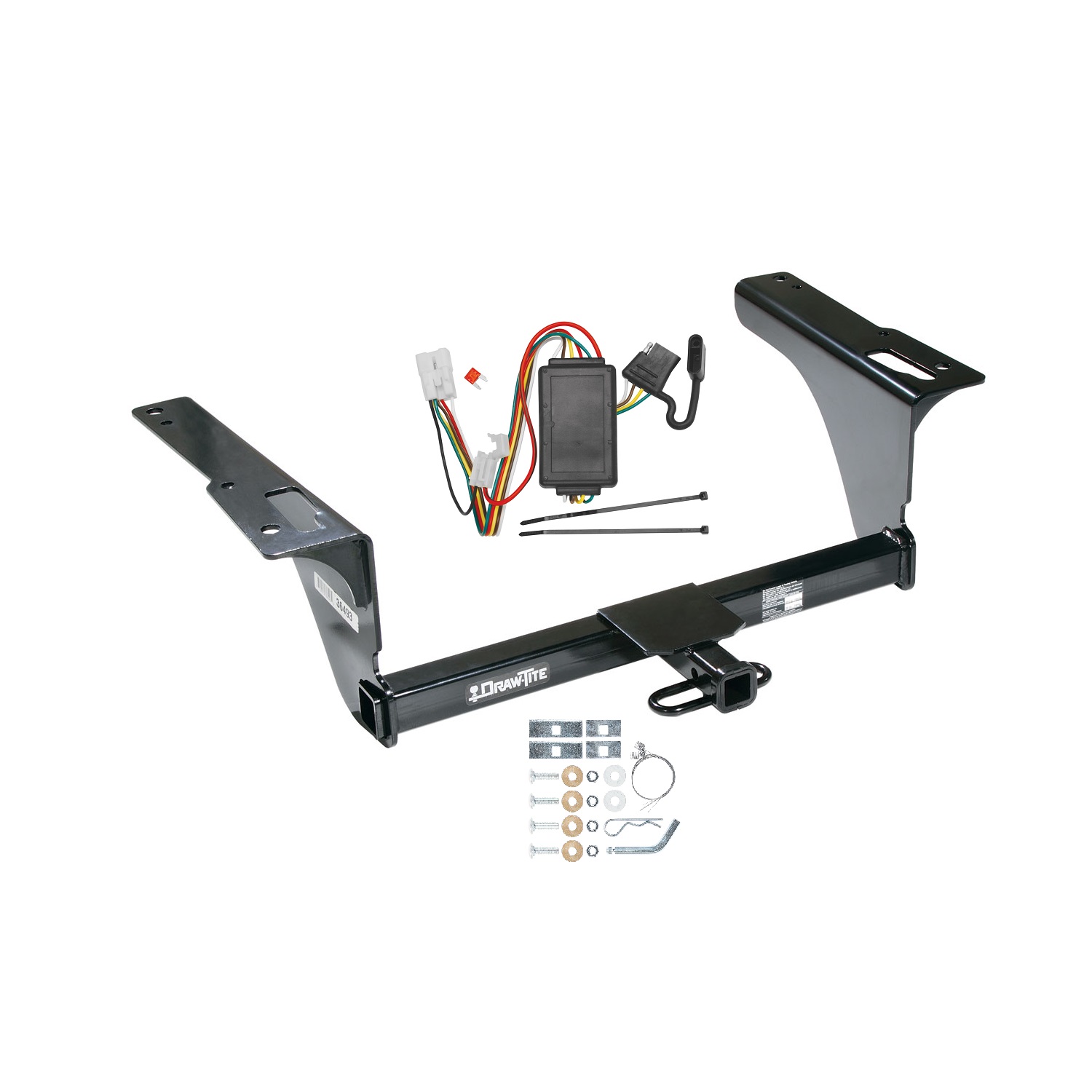

The 2010-2019 Subaru Outback Wagon, Except Sport Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36493-118467) fits the following vehicles: 1994-1996 Subaru Outback. Always verify your specific year, make, and model before ordering.
Yes, the 2010-2019 Subaru Outback Wagon, Except Sport Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36493-118467) is designed to fit the 1994-1996 Subaru Outback.
The 2010-2019 Subaru Outback Wagon, Except Sport Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36493-118467) fits 1994-1996 Subaru Outback models. The 1996 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2010-2019 Subaru Outback Wagon, Except Sport Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36493-118467) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 36493N fits all Subaru Legacy and OutBack models. However, the drawbar kit supplied or required depends on body style: wagon models come with Drawbar Kit 36051 (must be used in Rise position only), while sedan models require separately purchased Drawbar Kit 36071.
Required tools: tin snips, spray lubricant, 10mm wrench, 11/16" wrench, torque wrench, and 1-1/8" hole saw drill bit. A torque wrench is essential because all 7/16 GR5 fasteners must be tightened to exactly 50 Lb.-Ft. (68 N·M).
Yes. You must drill a 1-1/8" access hole in the bottom of the frame approximately 2" from the forward heat shield attachment point. This hole is used to route the carriage bolts and spacer blocks through the frame.
The exhaust system must be temporarily lowered, not fully removed. Remove the two rubber isolators from the muffler hangers and one below the rear axle (spray hangers first for ease of removal). The system is raised back into position in the final step after the hitch is secured.
All 7/16 GR5 fasteners must be tightened to 50 Lb.-Ft. (68 N·M) using a torque wrench. This applies to all four carriage bolts and their hex nuts.
Maximum gross trailer weight is 3500 lb (1589 kg) and maximum tongue weight is 300 lb (136 kg). However, do not exceed the lower of the hitch rating or your vehicle manufacturer's towing rating.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes this as an ongoing maintenance requirement, not just a one-time post-installation check.

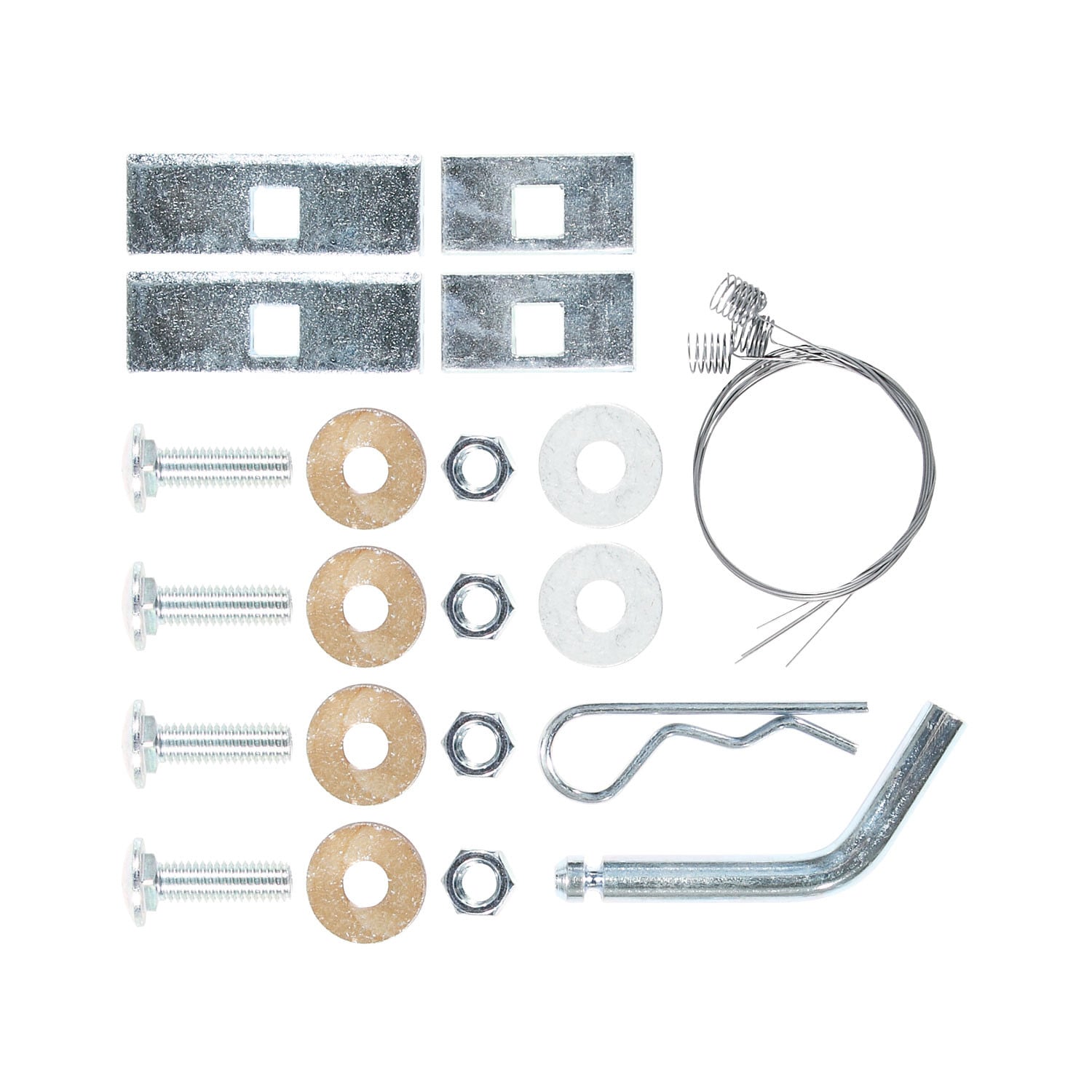

Fastener kit 36493F includes: 4 carriage bolts (7/16-14 x 1.50 GR5), 4 conical toothed washers (7/16"), 4 hex nuts (7/16-14), 2 flat washers (7/16"), 2 spacers (3/16" x 1 x 2), 2 spacers (1/4" x 1 x 3), and 4 fish wires (7/16"). The kit does not include the 1 x 2 and 1 x 3 blocks used to route the bolts through the frame.

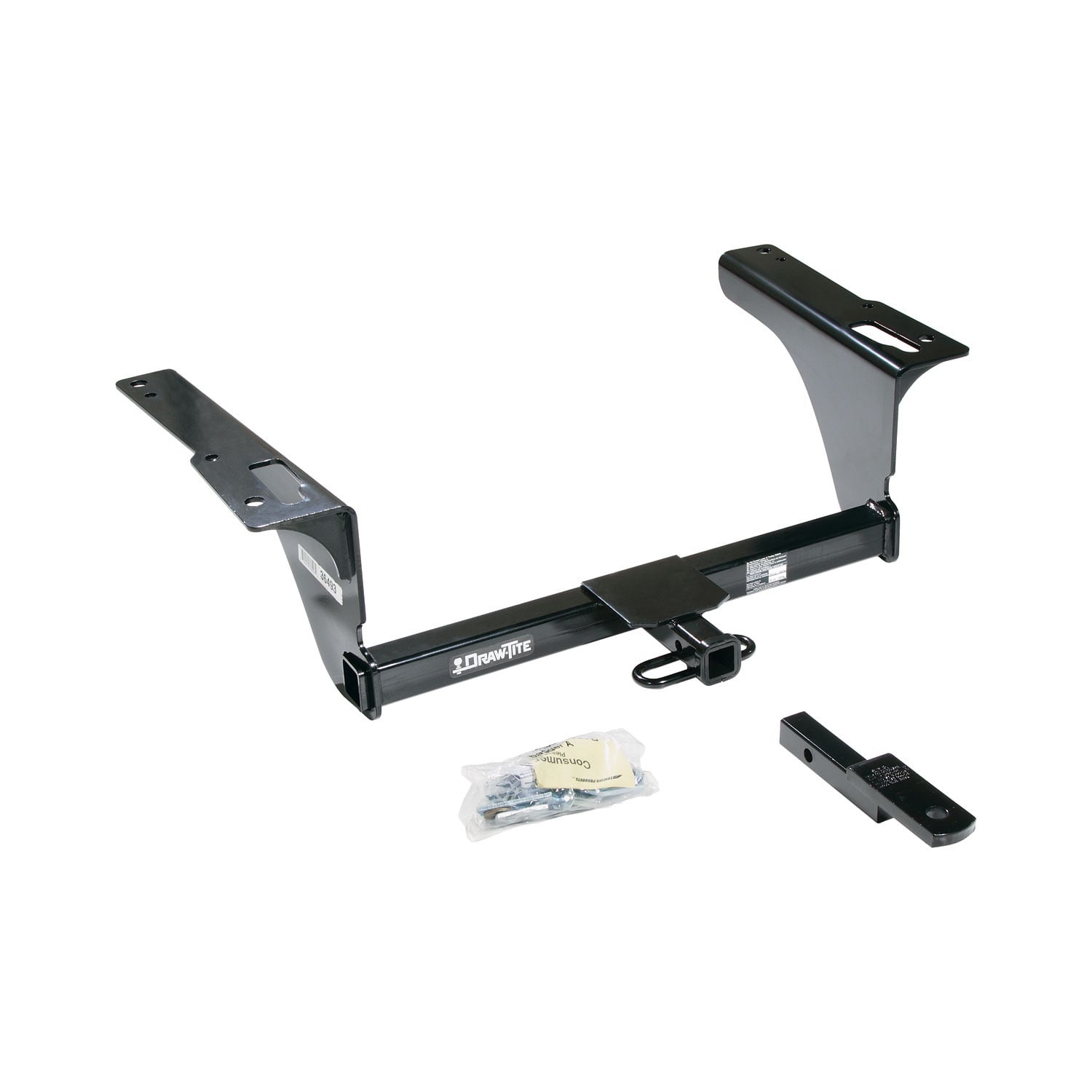

No. Wagon models are supplied with Drawbar Kit 36051 and must use it in the Rise position only. Sedan models require separately purchased Drawbar Kit 36071. The kits are not interchangeable.
Yes, the heat shields must be temporarily lowered by removing four M6 bolts. Save these bolts for reinstallation. After the hitch is positioned, trim the heat shields around the forward attachment bolt area so they sit flat against the hitch bracket, then reinstall them using the same four M6 bolts.
Fish-wire is used to route the carriage bolts and spacer blocks through the frame. After drilling the 1-1/8" access hole, you thread a fish-wire through the access hole and down through the rearmost hole in the frame bottom, attach a carriage bolt and 1 x 2 spacer block to the wire, then pull the wire back through to draw the bolt and block into position. Repeat for the forward hole using a 1 x 3 spacer block. Leave the fish-wires attached to the bolts and feed their ends through the hitch holes.
First, loosely install the conical toothed washers and hex nuts onto the rearmost carriage bolts. Then place a flat washer on the forward carriage bolt between the frame and hitch bracket. Finally, install the conical toothed washers and hex nuts onto the forward carriage bolts and tighten all fasteners to 50 Lb.-Ft. (68 N·M).
Drill a 1-1/8" access hole in the bottom of the frame approximately 2" from the forward heat shield attachment point. See Figure 1 in the manual for the exact location relative to the frame rail.
A 1-1/8" hole saw drill bit is required to create the access hole in the frame bottom.
No. The manual explicitly states: "Do not cut access or attachment holes with a torch." Use a 1-1/8" hole saw drill bit instead.
Yes. After positioning the hitch, trim the heat shields around the area near the forward attachment bolt so that the heat shield sits flat against the hitch bracket. Use tin snips for this task.
The carriage bolts are 7/16-14 x 1.50 GR5 grade. Four bolts are included in the fastener kit. They must be tightened to 50 Lb.-Ft. (68 N·M) using a torque wrench.
The hex nuts are 7/16-14 size. Four nuts are included in the fastener kit and must be tightened to 50 Lb.-Ft. (68 N·M).
Two types of spacer blocks are used: 2 spacers measuring 3/16" x 1 x 2 (used with the rearmost carriage bolt), and 2 spacers measuring 1/4" x 1 x 3 (used with the forward carriage bolt).
The wiring access location is PC3, as indicated in the manual specifications table.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A damaged hitch or ball must be removed and replaced. Do not attempt to repair or continue using a damaged component.
For wagon models using Drawbar Kit 36051, the drawbar must be used in the Rise position only. Do not use it in any other position.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval but emphasizes regular inspection as an ongoing maintenance requirement.
The manual warns: "Be careful not to push bolts back up into frame" during Step 7. If this occurs, you must re-fish the bolts using the fish-wire technique. This is why the fish-wires should remain attached to the bolts and fed through the hitch holes to maintain control during positioning.
Trim the heat shield around the area near the forward attachment bolt using tin snips so that it sits flat against the hitch bracket. This is a normal part of the installation process and is shown in Figure 2.
The T-Connector (part 118467-037) is designed for 2009-2013 Forester, 2010-2019 Outback, 2014-Current Forester, XV Crosstrek, and 2020-Current Outback models. Locate your vehicle model and year in the installation instructions to confirm fitment and identify the location of your vehicle's tow plug housing.

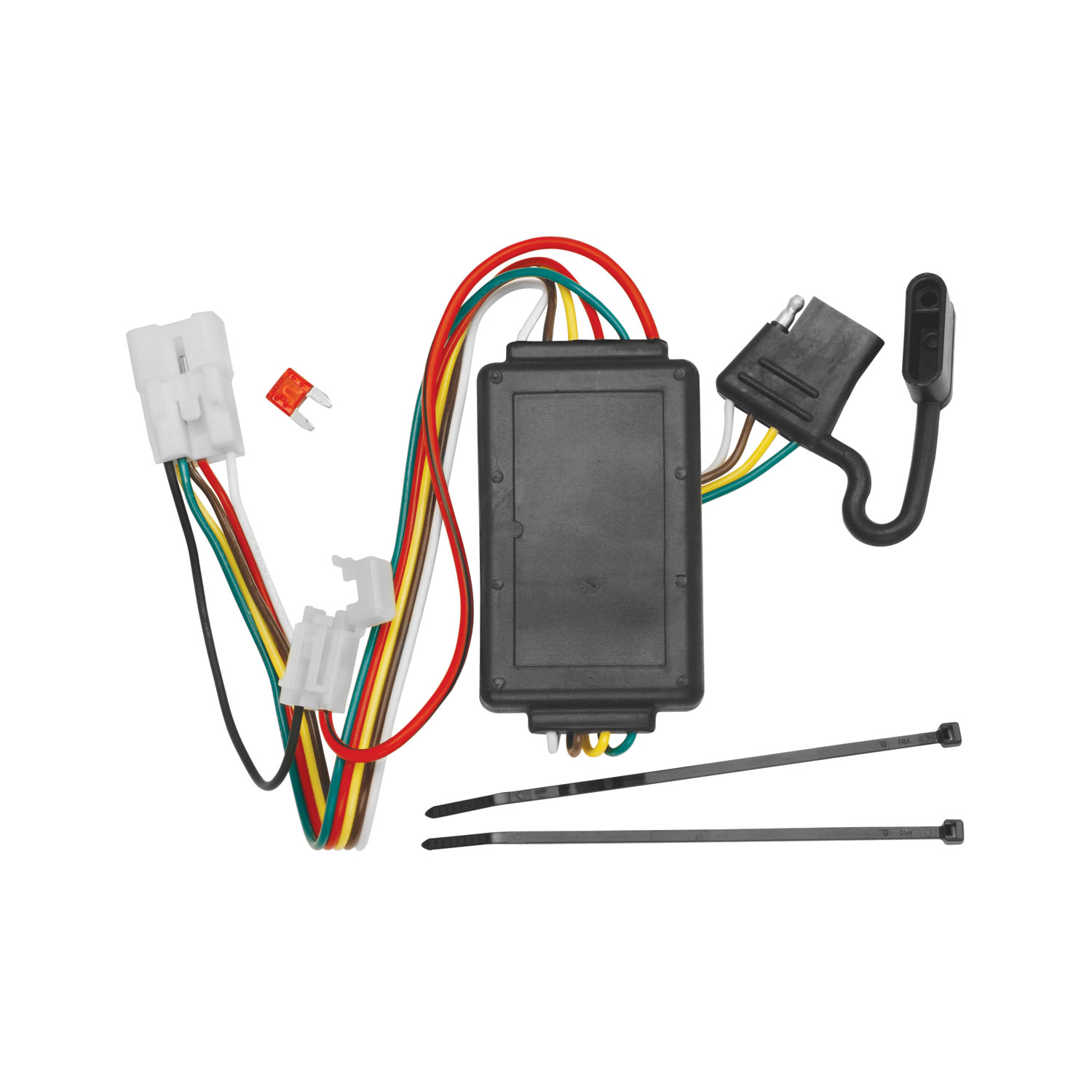

The T-Connector is a harness that connects to your vehicle's factory tow plug to provide trailer lighting connections. It includes a black box mounted on the driver's side and a 4-Flat connector that can be stored in the spare tire compartment when not in use.
You will need a Trim Panel Remover and a Test-probe. The Trim Panel Remover is used to access the tow plug housing behind trim panels on certain models, and the Test-probe is used to verify the installation after completion.
Open the vehicle's rear tailgate and remove cargo nets and cargo floor hatch to access the spare tire area. Remove the driver's side and center foam cargo trays to locate the tow plug housing under the driver's side foam tray.
Open the vehicle's rear tailgate and remove cargo nets and cargo floor hatch. Locate the vehicle's tow plug housing behind the driver's side trim panel. It will be taped to the wire harness with blue tape. Use a Trim Panel Remover to access it.
Open the vehicle's rear tailgate and remove cargo nets and cargo floor hatch. Locate the vehicle's tow plug housing behind the driver's side trim panel. It will be taped to the wire harness with tape. Use a Trim Panel Remover to access it.
Open the vehicle's rear tailgate and remove cargo nets and cargo floor hatch. Temporarily remove the rear threshold plate. Locate the vehicle's tow plug on the passenger side under the rear threshold plate. It will be taped to the harness with tape.
Insert the T-Connector harness into the vehicle's Tow-Plug harness and lock into place. Ensure that the connectors are fully inserted with locking tabs in place. All connections must be complete for the T-Connector to function properly.
On the driver's side, mount the T-Connector black box using the double-sided tape provided. Secure the remainder of the T-Connector harness with the cable ties provided to prevent damage or rattling, being careful to avoid any areas that would cut or pinch the wire.
Store the 4-Flat connector in the spare tire compartment when not in use.
Do not exceed the lower of your vehicle manufacturer's rating or these limits: maximum stop/turn light is 1 per side (2.1 amps), and maximum tail lights are 5.6 amps. Overloading the circuit can cause fires. Read your vehicle's owner's manual and instruction sheet for additional information.
Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition and reinserting it. All connections must be complete for the T-Connector to function properly.
The T-Connector (118467-037) fits 2009-2013 Forester, 2010-2019 Outback, 2014-Current Forester, XV Crosstrek, and 2020-Current Outback.
You need a Trim Panel Remover and a Test-probe.
Do not exceed 2.1 amps per stop/turn light (1 per side) or 5.6 amps for tail lights, whichever is lower than your vehicle manufacturer's rating. Overloading can cause fires.
No drilling or permanent modifications are required. The T-Connector connects to your vehicle's factory tow plug and is mounted using provided double-sided tape and cable ties.
