These durable custom hitches are manufactured for 2010-2019 Subaru Outback and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2019 | Subaru Outback | Wagon, Except Sport |

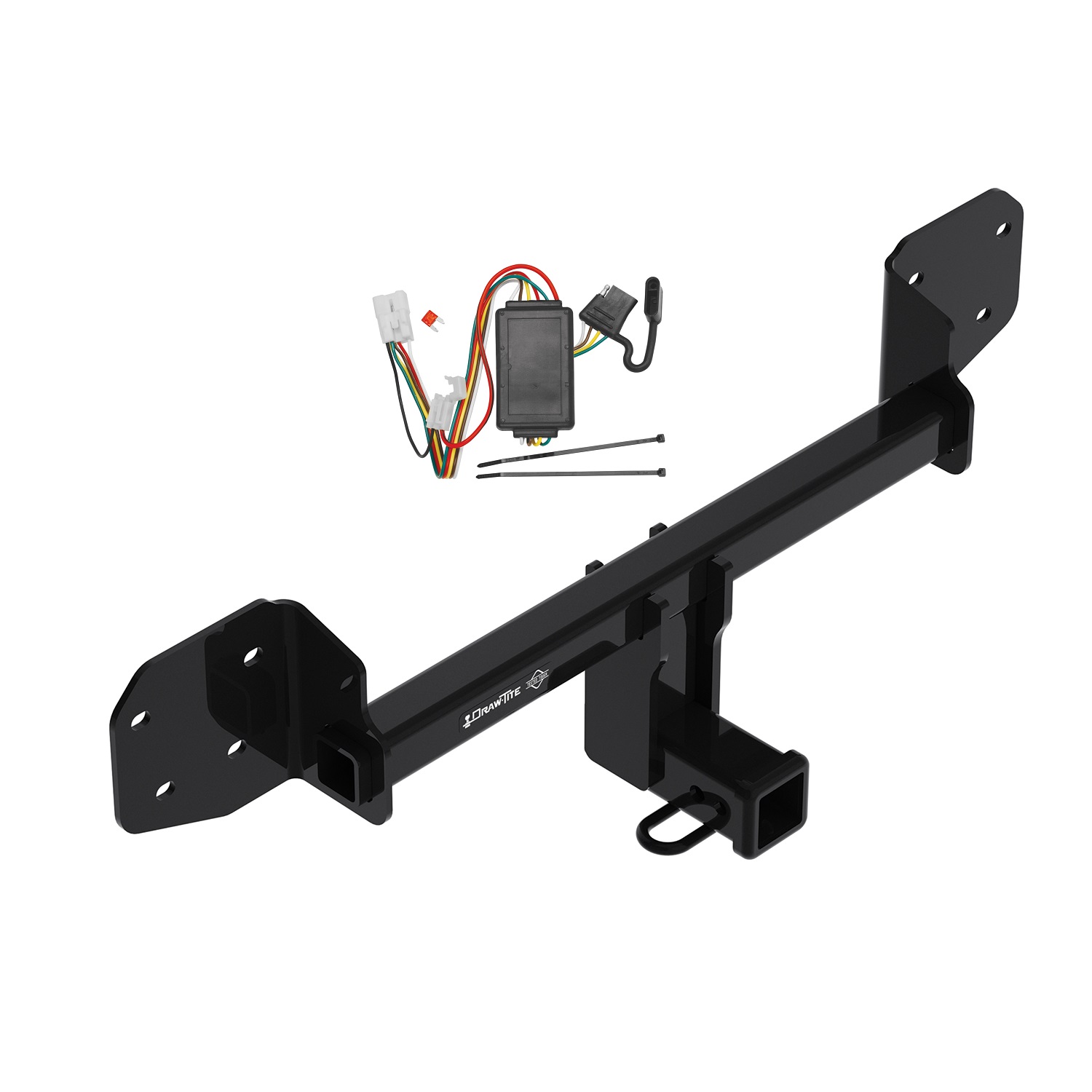

The 2010-2019 Subaru Outback Wagon, Except Sport Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness 76227 (Part #DTB76227-118467) fits the following vehicles: 2010-2019 Subaru Outback. Always verify your specific year, make, and model before ordering.
The 2010-2019 Subaru Outback Wagon, Except Sport Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness 76227 (Part #DTB76227-118467) fits 2010-2019 Subaru Outback models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2010-2019 Subaru Outback Wagon, Except Sport Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness 76227 (Part #DTB76227-118467) is designed to fit the 2010-2019 Subaru Outback.
The 2010-2019 Subaru Outback Wagon, Except Sport Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness 76227 (Part #DTB76227-118467) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the 76227 hitch is designed for 2010-Current Subaru Outback models, excluding the Sport variant. For the most up-to-date information on specific model years and trim levels, visit www.horizonglobal.com or contact technical support at 800-632-3290.
No. The 76227 hitch is not compatible with the Subaru Outback Sport model. It is designed for standard Outback models only.
The 76227 is a weight-carrying hitch with a maximum gross trailer weight of 4000 lb (1814 kg) and maximum tongue weight of 600 lb (272 kg). Do not exceed the lower of your vehicle manufacturer's towing rating or these limits.
No. The 76227 is a weight-carrying hitch only. Weight-distributing capability is not available for this model.
Required tools are: ratchet, torque wrench, safety glasses, 10 mm socket, 14 mm socket, 6-inch socket extension, utility knife, tape measure, marker, Phillips head screwdriver, and flat head screwdriver.
The average installation time for professional installers is 45 minutes. If you are not comfortable performing the installation yourself or need assistance, contact a professional installer.
Yes. Removing the tail lights is the first step of installation. Open the liftgate, remove the plastic tail light cover using flat head and Phillips head screwdrivers to remove 2 screw-type push pins on each side, use a 10 mm socket to remove 2 screws from each tail light, then pull the tail light rearward and remove 2 bulbs and 1 electrical connector from each side.
Yes. After removing the fascia, remove the foam fascia support from the bumper to expose access holes. Using a 14 mm socket, remove 4 nuts from each side (8 total) and save them for hitch installation. The bumper beam is then raised into position with the hitch onto the studs in the end panel.
Yes. The fascia must be removed to access the bumper beam mounting points. Save all fasteners for reinstallation. After hitch installation, the fascia is trimmed and reinstalled.
No drilling is required. The hitch uses existing mounting studs in the end panel. However, the fascia must be trimmed. Using a marker and tape measure, mark a 4½ by 4 inch box on the bottom center of the fascia. To find the center, measure 2 inches toward the driver side from the middle hole on the fascia and mark the centerline, then make marks 2 inches on each side of the centerline. Measure 4½ inches from the forward edge of the fascia.
All 10 mm × 1.25 flange nuts must be tightened with a torque wrench to 42 lb-ft (57 N·m). Proper torque is essential to keep the hitch secure to the vehicle when towing.
Loosely reinstall the 8 flange nuts (4 each side) when raising the hitch into position in Step 4. Tighten all 10 mm × 1.25 flange nuts to 42 lb-ft (57 N·m) using a torque wrench only in Step 5, after the hitch and bumper beam are positioned on the studs.
The center fascia tab must be bent flat against the end panel before raising the hitch into position. This allows the hitch and bumper beam to fit properly onto the studs in the end panel.
Yes. When removing the bumper beam in Step 3, use a 14 mm socket to remove 4 nuts from each side and save all 8 nuts for hitch installation. These same nuts are reinstalled in Step 4 to secure the hitch.
The fastener kit 76227F is referenced in the manual, but the manual does not specify which fasteners are included or whether the kit is sold separately from the hitch. Contact Horizon Global at 800-632-3290 or TechnicalSupport@horizonglobal.com for details on fastener kit contents.
If mud flaps are installed on your vehicle, they must be removed during fascia removal (Step 2) and reinstalled in Step 8 when reinstalling the fascia. The manual notes that if mud flaps are present at the bottom of the wheel well and fascia, you must remove 3 screws and 2 push pins from each side during removal.
After installation, verify that all fasteners and the ball are properly tightened. The manual recommends checking the hitch frequently to ensure all fasteners remain tight and the hitch is securely mounted to the vehicle. If the hitch is removed at any time, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but recommends periodic verification that all fasteners are tight and the hitch is securely mounted to the vehicle.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. The manual also emphasizes reading and understanding all warnings and instructions before installation and use.
Load the trailer heavier in front. Do not exceed the lower of your vehicle manufacturer's rating or 4000 lb GVWR / 600 lb tongue weight. Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
No. Do not cut, weld, or modify the receiver. Any damaged hitch should be removed and replaced.
Reverse the order of Step 1 (tail light removal). Reinstall the tail lights, fascia, and mud flaps if equipped. This means reinstalling the electrical connectors and bulbs, securing the tail lights with screws and push pins, and reattaching the fascia with all push pins and screws in their original locations.
Yes, for 2010-Current standard Outback models only (not Sport). Visit www.horizonglobal.com to confirm your specific year and trim.
Maximum 4000 lb gross trailer weight and 600 lb tongue weight. Do not exceed your vehicle manufacturer's rating.
Ratchet, torque wrench, 10 mm and 14 mm sockets, 6-inch socket extension, safety glasses, utility knife, tape measure, marker, Phillips and flat head screwdrivers.
Average 45 minutes for professional installers. If uncomfortable, contact a professional installer.
No drilling required. The hitch uses existing mounting studs. Fascia trimming is required: mark and trim a 4½ by 4 inch box on the bottom center.
All 10 mm × 1.25 flange nuts: 42 lb-ft (57 N·m) using a torque wrench.
Always wear safety glasses during installation. When towing, do not exceed 4000 lb GVWR or 600 lb tongue weight, load trailer heavier in front, wear seatbelt, and slow down. If excess sway occurs, ease off gas and hold steering wheel steady—do not brake or accelerate.
Ensure all 10 mm × 1.25 flange nuts are tightened to exactly 42 lb-ft (57 N·m) using a torque wrench. The manual emphasizes that proper torque is essential to keep the hitch secure. Check fasteners frequently and retighten if necessary. If fasteners continue to loosen, the hitch may be damaged and should be removed and replaced.
If the hitch has been removed, all holes in the trunk pan or other body panels must be plugged to prevent entry of water and exhaust fumes. If you did not remove the hitch and are experiencing this issue, inspect the installation to ensure the hitch is properly seated and all fasteners are tight. Contact technical support at 800-632-3290 if the problem persists.

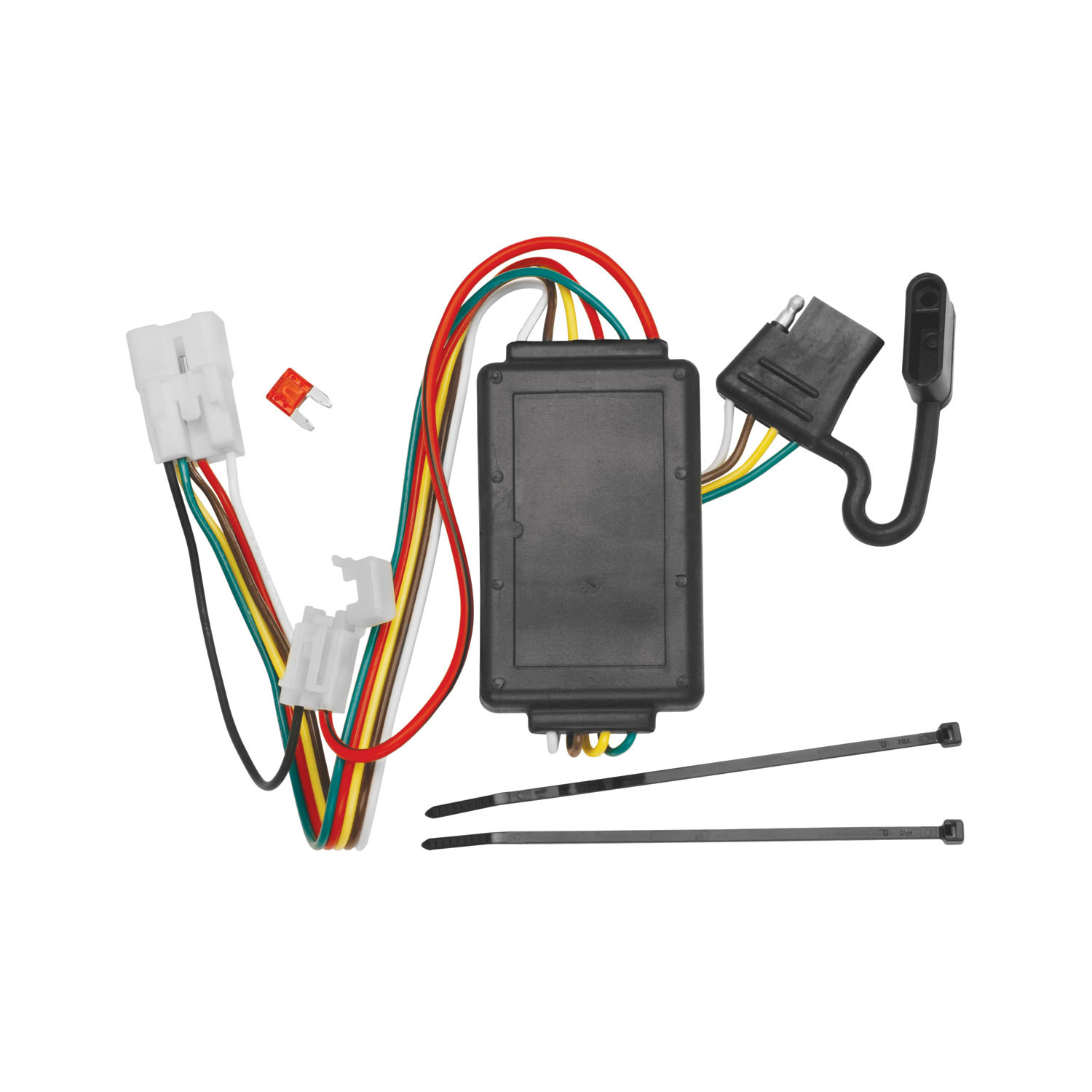

The T-Connector (part 118467-037) is designed for 2009-2013 Forester, 2010-2019 Outback, 2014-Current Forester, XV Crosstrek, and 2020-Current Outback models. Locate your vehicle model and year in the installation instructions to confirm fitment and identify the location of your vehicle's tow plug housing.
The T-Connector is a harness that connects to your vehicle's factory tow plug to provide trailer lighting connections. It includes a black box mounted on the driver's side and a 4-Flat connector that can be stored in the spare tire compartment when not in use.
You will need a Trim Panel Remover and a Test-probe. The Trim Panel Remover is used to access the tow plug housing behind trim panels on certain models, and the Test-probe is used to verify the installation after completion.
Open the vehicle's rear tailgate and remove cargo nets and cargo floor hatch to access the spare tire area. Remove the driver's side and center foam cargo trays to locate the tow plug housing under the driver's side foam tray.
Open the vehicle's rear tailgate and remove cargo nets and cargo floor hatch. Locate the vehicle's tow plug housing behind the driver's side trim panel. It will be taped to the wire harness with blue tape. Use a Trim Panel Remover to access it.
Open the vehicle's rear tailgate and remove cargo nets and cargo floor hatch. Locate the vehicle's tow plug housing behind the driver's side trim panel. It will be taped to the wire harness with tape. Use a Trim Panel Remover to access it.
Open the vehicle's rear tailgate and remove cargo nets and cargo floor hatch. Temporarily remove the rear threshold plate. Locate the vehicle's tow plug on the passenger side under the rear threshold plate. It will be taped to the harness with tape.
Insert the T-Connector harness into the vehicle's Tow-Plug harness and lock into place. Ensure that the connectors are fully inserted with locking tabs in place. All connections must be complete for the T-Connector to function properly.
On the driver's side, mount the T-Connector black box using the double-sided tape provided. Secure the remainder of the T-Connector harness with the cable ties provided to prevent damage or rattling, being careful to avoid any areas that would cut or pinch the wire.
Store the 4-Flat connector in the spare tire compartment when not in use.
Do not exceed the lower of your vehicle manufacturer's rating or these limits: maximum stop/turn light is 1 per side (2.1 amps), and maximum tail lights are 5.6 amps. Overloading the circuit can cause fires. Read your vehicle's owner's manual and instruction sheet for additional information.
Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition and reinserting it. All connections must be complete for the T-Connector to function properly.
The T-Connector (118467-037) fits 2009-2013 Forester, 2010-2019 Outback, 2014-Current Forester, XV Crosstrek, and 2020-Current Outback.
You need a Trim Panel Remover and a Test-probe.
Do not exceed 2.1 amps per stop/turn light (1 per side) or 5.6 amps for tail lights, whichever is lower than your vehicle manufacturer's rating. Overloading can cause fires.
No drilling or permanent modifications are required. The T-Connector connects to your vehicle's factory tow plug and is mounted using provided double-sided tape and cable ties.
