These durable custom hitches are manufactured for 2016-2023 Toyota Tacoma and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 4 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2023 | Toyota Tacoma | — |

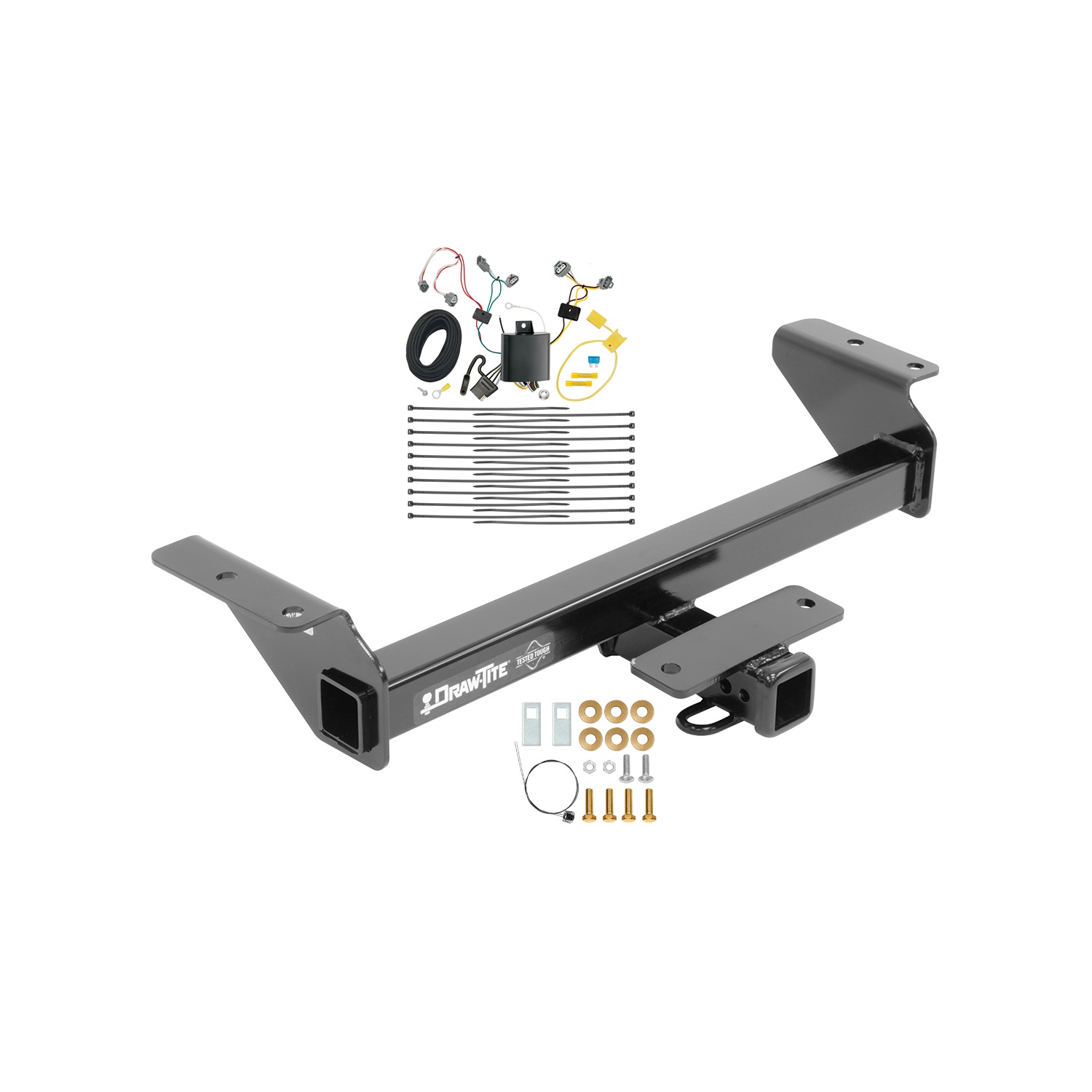

The 2016-2023 Toyota Tacoma Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75238-118685) fits 2016-2023 Toyota Tacoma models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2016-2023 Toyota Tacoma Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75238-118685) fits the following vehicles: 2016-2023 Toyota Tacoma. Always verify your specific year, make, and model before ordering.
Yes, the 2016-2023 Toyota Tacoma Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75238-118685) is designed to fit the 2016-2023 Toyota Tacoma.
The 2016-2023 Toyota Tacoma Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75238-118685) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the 75238 hitch is designed for 2016 Toyota Tacoma. Visit the Cequent website for the most up-to-date information regarding specific trim levels and current model year compatibility.
You will need: a ratchet, torque wrench, safety glasses, 19mm and 11/16" sockets, a 6" socket extension, and an M12x1.25 tap (to clean weldnuts if necessary).
Tighten all M12 fasteners to 105 Lb.-Ft. (142 N·M) and all 7/16" fasteners to 50 Lb.-Ft. (68 N·M) using a torque wrench.
The 75238 is a weight-carrying hitch with a maximum gross trailer weight of 7000 lb. (3178 kg) and maximum tongue weight of 1050 lb. (476 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
No drilling is required. The hitch uses existing frame weldnuts. You may need to use an M12x1.25 tap to clean the weldnuts if necessary.
The maximum tongue weight is 1050 lb. (476 kg) for the weight-carrying configuration. Do not exceed this limit or your vehicle manufacturer's rating, whichever is lower.
No bumper removal is mentioned in the installation instructions. The hitch is installed by feeding carriage bolts through the bumper beam side opening using pull wires.

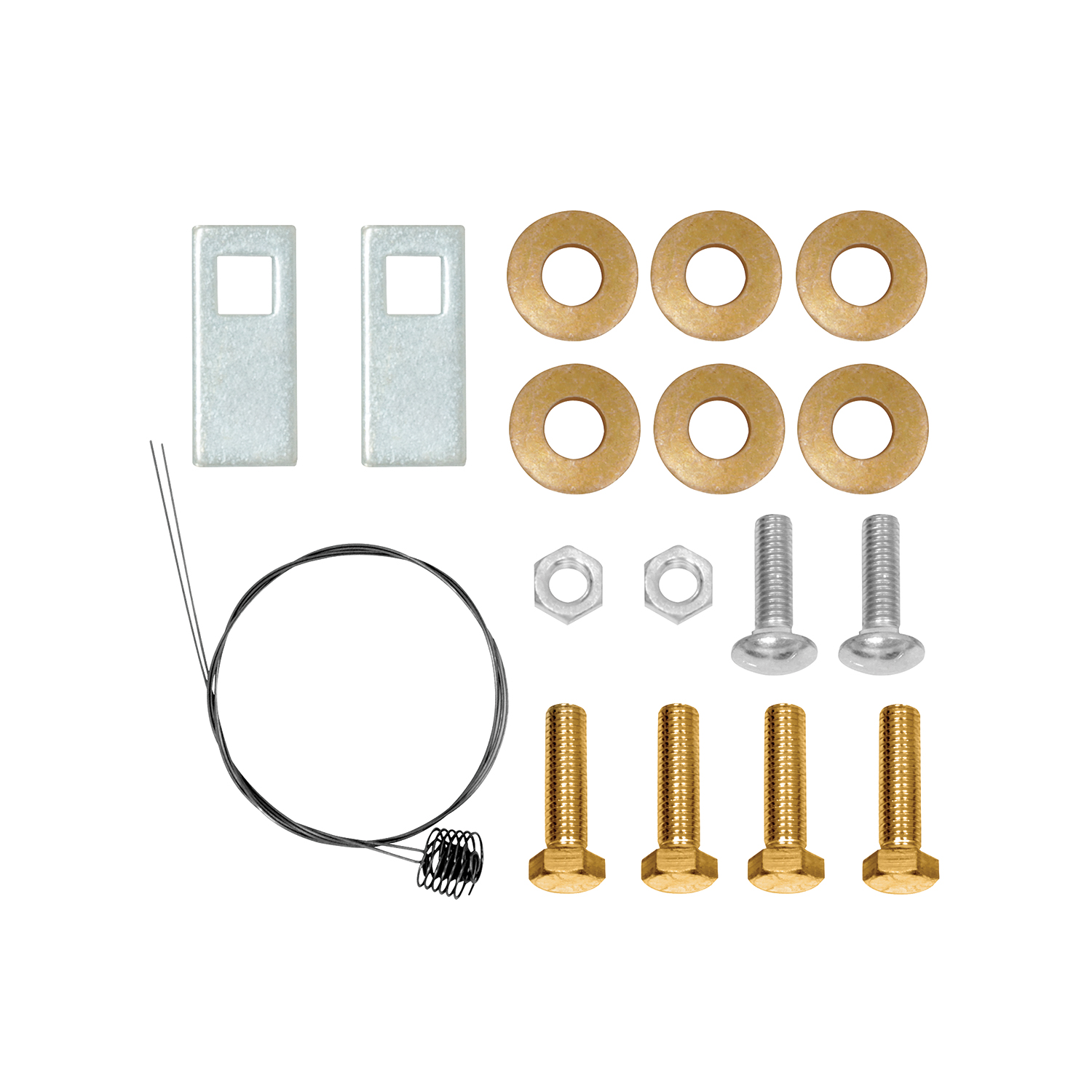

The fastener kit 75238F includes: (4) M12 1.25x40 bolts CL10.9, (4) 1/2" conical washers, (2) 7/16"-14x1.25 carriage bolts GR5, (2) 0.109" spacers with square hole, (2) 7/16" pull wires, (2) 7/16" conical washers, and (2) 7/16"-14 hex nuts GR2.
1. Clean the frame weldnuts using an M12x1.25 tap if necessary. 2. Insert pull wires into the bumper beam side opening and use them to feed carriage bolts and spacer into the bumper beam; leave pull wires attached. 3. Raise the hitch into position and feed carriage bolts through top plate holes. 4. Loosely install M12 bolts and conical washers through bracket holes into frame weldnuts. 5. Loosely install hex nuts and conical washers on carriage bolts. 6. Tighten all M12 fasteners to 105 Lb.-Ft. (142 N·M) and all 7/16" fasteners to 50 Lb.-Ft. (68 N·M).
Fasteners are left loose during initial installation to allow the hitch to be properly positioned and aligned before final tightening. This ensures correct fitment to the vehicle frame and bumper beam.
Pull wires (part ⑤) are inserted into the bumper beam through the side opening and used to feed the carriage bolts (③) and spacer (④) into the bumper beam. They are left attached during installation to assist with positioning.
All M12 fasteners must be tightened to 105 Lb.-Ft. (142 N·M) using a torque wrench.
All 7/16" fasteners must be tightened to 50 Lb.-Ft. (68 N·M) using a torque wrench.
An M12x1.25 tap is used to clean the two weldnuts at the end of the frame rail on each side if necessary. This ensures the threads are clear before installing the M12 bolts.
Always wear safety glasses during installation. Observe safety precautions when working beneath the vehicle. Do not cut access or attachment holes with a torch. Keep the installation instructions for future reference.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Proper torque is needed to keep the hitch secure to the vehicle when towing.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Slow down when towing and never exceed any posted speed limit. Always wear your seatbelt.
Load the trailer heavier in front to maintain proper weight distribution and stability.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
No. Do not cut, weld, or modify this receiver. Doing so will compromise the structural integrity and safety of the hitch.
The 75238 hitch is covered by a Limited Lifetime Warranty from Cequent Performance Products, Inc. The warranty covers material defects in both material and workmanship, excluding ordinary wear and tear. The warranty is valid only if the product is installed, maintained, and used according to the instructions. To make a warranty claim, contact Cequent at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, or call 1-800-632-3290. You must provide the product and purchase receipt.
The manual lists 2016 Toyota Tacoma as the application. For current model year compatibility and specific trim level information, visit the Cequent website at www.cequentgroup.com for the most up-to-date application information.
Insert the pull wires into the bumper beam through the bumper beam side opening. Use the pull wires to feed the carriage bolts and spacer into the bumper beam. Then raise the hitch into position and feed the carriage bolts through the top plate holes. The spacer should be positioned with the square hole aligned with the carriage bolt.
The conical washers should be positioned with the teeth side against the hitch when installed on the carriage bolts.
The M12 bolts are M12 1.25x40, Class 10.9 (CL10.9). There are 4 bolts in the fastener kit. They are tightened to 105 Lb.-Ft. (142 N·M).
The carriage bolts are 7/16"-14x1.25, Grade 5 (GR5). There are 2 carriage bolts in the fastener kit. They are tightened to 50 Lb.-Ft. (68 N·M).
The hex nuts are 7/16"-14, Grade 2 (GR2). There are 2 hex nuts in the fastener kit, installed on the carriage bolts and tightened to 50 Lb.-Ft. (68 N·M).
The spacers are 0.109" thick with a square hole. There are 2 spacers in the fastener kit, positioned on the carriage bolts inside the bumper beam.
Two types of conical washers are used: (4) 1/2" conical washers for the M12 bolts, and (2) 7/16" conical washers for the carriage bolts. The 7/16" washers should be positioned with the teeth side against the hitch.
The average installation time for professional installers is 20 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
The 75238 is a weight-carrying hitch with a maximum gross trailer weight of 7000 lb. (3178 kg) and maximum tongue weight of 1050 lb. (476 kg). A weight-distributing hitch has higher capacity limits: 8000 lb. (3632 kg) gross trailer weight and 1200 lb. (545 kg) tongue weight. Do not exceed the lower of your vehicle manufacturer's rating or the hitch capacity limits.
The 75238 hitch complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
The manual does not specify whether battery disconnection is required for this installation.
Use an M12x1.25 tap to clean the weldnuts at the end of the frame rail on each side. Debris or corrosion in the weldnut threads may prevent proper bolt installation. After cleaning, attempt to install the bolts again.
Check all fasteners and retighten them to the correct torque specifications: M12 fasteners to 105 Lb.-Ft. (142 N·M) and 7/16" fasteners to 50 Lb.-Ft. (68 N·M). Check the hitch frequently to ensure all fasteners remain properly tightened, as vibration during towing can cause fasteners to loosen.
If the hitch has been removed, holes in the trunk pan or other body panels must be plugged to prevent entry of water and exhaust fumes. Inspect all holes created during installation and seal them appropriately.
The T-Connector is a wiring adapter that integrates your vehicle's taillights with a trailer's electrical system. It connects the vehicle's taillight wiring to a 4-flat connector for trailer use. The product includes a black box module, fuse holder with 15 amp fuse, wire harnesses with red, green, yellow, and brown wires, a white ground wire with eyelet, ring terminal, nut, screw, butt connector, and cable ties.
The T-Connector is designed for the Tacoma. However, the manual does not specify which model years or trim levels are compatible. Contact the manufacturer or your installer to confirm fitment for your specific Tacoma generation and year.
You will need: trim panel remover, 10mm socket and ratchet (or 10mm wrench), wire crimpers, wire cutters, test-probe, and a drill with 3/32" drill bit. Safety glasses are also required during installation.
The kit includes: black box module, red and green wire harness, yellow and brown wire harness, 4-flat connector, 3-pin housing connectors, 12 gauge black wire, white ground wire with eyelet, ring terminal, nut, screw, yellow fuse holder with 15 amp fuse, yellow butt connector, and cable ties.
Yes. You must disconnect the vehicle's negative (-) battery cable before connecting the fuse holder to the positive battery cable in step 9. After all connections are complete, reconnect the negative battery cable and install the 15 amp fuse.
Yes. The first step is to open the tailgate and remove the vehicle's taillights by carefully prying the housings away from the vehicle. Be careful not to break the alignment tabs. The taillights are reinstalled at the end of the installation in step 12.
On the driver's side, separate the vehicle's taillight wiring connectors and locate the 3-pin housing that matches the T-one connector with the yellow and brown wire. Lock it into place. On the passenger side, connect the green wire with the 3-pin flat housing to the corresponding connectors, and connect the T-connector end with the red wire to the mating housings. All connector surfaces must be clean and free of dirt before connecting.
Route the harness containing the red and green wire and the 4-flat connector down the opening behind the taillight on the driver's side, then route the 4-flat harness to the center of the vehicle. Route the harness containing the red and green wire underneath the vehicle and up through the opening behind the passenger's side taillight. Route the black 12 gauge wire from the front of the vehicle rearward along the frame rail. Always route wires carefully to avoid hot pipes, heat shields, fuel tank, or any points that may pinch or break the wire.
Drilling is required only if you use the alternative grounding method. If a ground stud is not available in the driver's side taillight pocket, you must drill a 3/32" hole in a suitable grounding point near the adapter, such as the vehicle frame or crossmember. Do not drill into the vehicle floor or bed. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces.
The T-Connector uses a 15 amp fuse. This fuse is installed in the yellow fuse holder provided and must be installed after the negative battery cable is reconnected.
Use a 3/32" drill bit to create the hole for the ground wire installation when using the alternative grounding method.
The T-Connector uses the following wires: yellow and brown wires connect to the 3-pin housing on the driver's side taillight; red and green wires route through the vehicle and connect to the passenger side taillight; white wire is the ground wire that connects to either the ground stud in the driver's side taillight pocket or to a suitable grounding point via a 3/32" drilled hole; black 12 gauge wire routes from the front of the vehicle along the frame rail to the fuse holder and positive battery cable.
Disconnect the vehicle's negative (-) battery cable. Remove the fuse from the yellow fuse holder if not already removed. Cut the fuse holder wire and attach the ring terminal to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12 gauge wire using the yellow butt connector provided. Reconnect the negative battery cable and install the 15 amp fuse into the fuse holder.
The black 12 gauge wire routes from the front of the vehicle rearward along the frame rail and connects to the fuse holder and positive battery cable. It provides power to the T-Connector system.
Locate a flat surface in an out-of-the-way place and mount the T-Connector's black box module to prevent damage or rattling. The epoxy side of the module must point toward the ground to prevent water buildup.
Mount the 4-flat connector end in an accessible location with a bracket or electrical box. Note that the bracket or electrical box is not included with the T-Connector kit.
Secure the remainder of the T-Connector harness with the cable ties provided to prevent damage or rattling. Be careful to avoid any areas that would pinch, cut, or melt the wire.
Always wear safety glasses during installation. Read and follow all warnings and instructions included with the product before beginning. Route wires carefully to avoid hot pipes, heat shields, fuel tank, or any points that may pinch or break the wire. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury. Do not drill into the vehicle floor, bed, or any exposed surfaces. Read and follow all warnings and cautions printed on the tow vehicle's battery.
Do not exceed the lower of the towing manufacturing rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. Overloading circuits can cause fires.
Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-Connector to function properly.
Verify that all connections are complete and secure. Ensure the black box module is mounted with the epoxy side pointing toward the ground. Check that all wiring is properly routed and secured with cable ties, avoiding areas that could pinch, cut, or melt the wire. Confirm that the 4-flat connector end is mounted in an accessible location. Test the installation with a test light or trailer and reset the vehicle electrical system by temporarily removing the ignition key.
Trim panel remover, 10mm socket/ratchet or wrench, wire crimpers, wire cutters, test-probe, drill with 3/32" bit, and safety glasses.
Yes, disconnect the negative battery cable before connecting to the positive cable. Reconnect after all connections are complete and install the 15 amp fuse.
Drilling is required only if no ground stud is available in the driver's side taillight pocket. Drill a 3/32" hole in the vehicle frame or crossmember, never in the floor or bed.
15 amp fuse, installed in the yellow fuse holder provided.
Yellow and brown wires connect to driver's side taillight; red and green wires route to passenger side; white wire is ground; black 12 gauge wire routes from front along frame rail to battery.
Do not exceed the lower of the towing manufacturing rating in your vehicle owner's manual or the specific amperage ratings stated on the product.
Test with a test light or trailer once installed. Reset the vehicle electrical system by temporarily removing the ignition key. All connections must be complete for proper function.
Verify that all connections are complete and secure. Ensure the negative battery cable is reconnected and the 15 amp fuse is installed in the fuse holder. Reset the vehicle electrical system by temporarily removing the key from the ignition. Test the installation with a test light or trailer. The manual states that all connections must be complete for the T-Connector to function properly.
The module must be mounted so that the epoxy side points toward the ground to prevent water buildup. If water is accumulating, remount the module in the correct orientation with the epoxy side facing downward.
