These durable custom hitches are manufactured for 2021-2023 Toyota Venza and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2021 - 2023 | Toyota Venza | — |

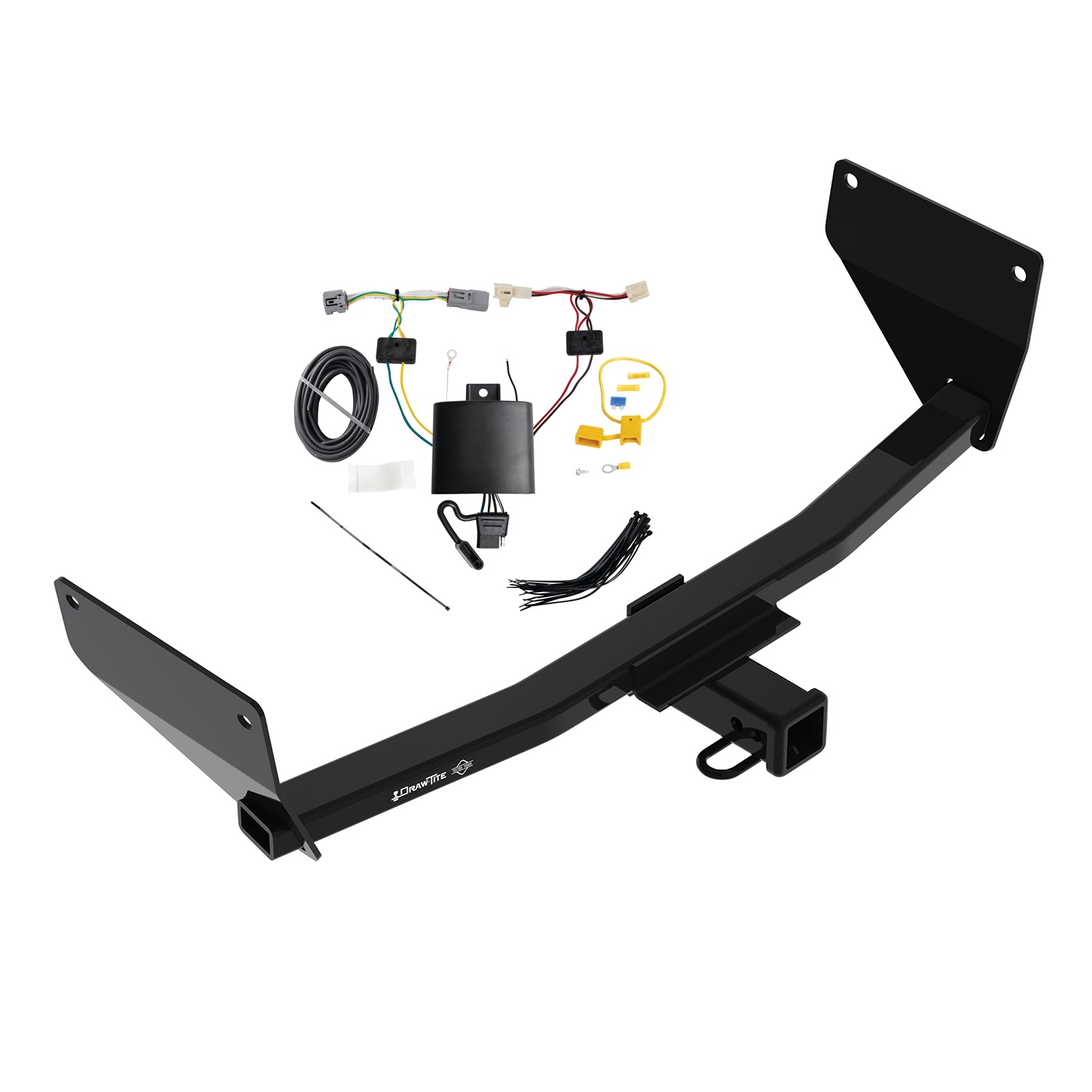

The 2021-2023 Toyota Venza Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76428-118830) fits the following vehicles: 2021-2023 Toyota Venza. Always verify your specific year, make, and model before ordering.
The 2021-2023 Toyota Venza Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76428-118830) fits 2021-2023 Toyota Venza models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2021-2023 Toyota Venza Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76428-118830) is designed to fit the 2021-2023 Toyota Venza.
The 2021-2023 Toyota Venza Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76428-118830) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. The 76428 is designed for 2020-current Toyota Venza models. Visit the manufacturer's website for the most up-to-date information regarding specific application years and trim levels.
The manual specifies the 76428 is for 2020-current Toyota Venza only. For other model years, contact the manufacturer at 800-632-3290 or visit www.horizonglobal.com for compatibility information.
The 76428 is a weight-carrying hitch with a maximum gross trailer weight of 3500 lb (1588 kg) and maximum tongue weight of 525 lb (238 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools: ratchet, torque wrench, safety glasses, 18 mm socket, 19 mm socket, 6-inch socket extension, M12x1.25 tap, M12x1.25 crowfoot socket, pliers, and exhaust removal pliers.
The fastener kit 76428F includes: (4) M12x1.25x30 bolts, Class 8.8, and (4) conical washers, 1/2 inch. The conical washer teeth side must face against the hitch.
Yes. You must lower the exhaust muffler by removing the rubber hangers at three locations using exhaust removal pliers. Be sure to support the exhaust before removing the rubber hangers. The hitch brackets slide above the exhaust pipe during installation.
No drilling is required. The hitch uses existing weldnuts on the frame rails. However, you must clean the weldnuts using an M12x1.25 tap and bend the heat shield upward at the center section using pliers.
Yes. Using pliers, slightly bend the heat shield upward at the center section. This is a minor, non-permanent modification.
All M12 fasteners must be tightened with a torque wrench to 76 Ft. Lb. (103 N·M). Proper torque is needed to keep the hitch secure to the vehicle when towing.
No. Due to the narrow space around the passenger side frame rails, you must use a 19 mm crowfoot wrench to secure the M12 bolts on the passenger side. A regular socket will not fit in this confined space.
The M12 bolts should be loosely installed first (step 5), then fully tightened to 76 Ft. Lb. (103 N·M) with a torque wrench (step 6), and only then should the rubber hangers and exhaust muffler be reinstalled (step 7).
The two M12 factory bolts and bracket removed from the rear passenger side in step 2 should be returned to the vehicle owner. They are not reused in the hitch installation.
After installation, check that all fasteners and the ball are properly tightened. The manual recommends checking the hitch frequently to ensure all fasteners and the ball remain properly tightened during use.
The maximum tongue weight is 525 lb (238 kg). Do not exceed this limit or the lower of your towing vehicle manufacturer's rating.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Slow down when towing and never exceed any posted speed limit.
No. Do not cut, weld, or modify the receiver. Doing so may compromise the structural integrity and safety of the hitch.
A hitch or ball that has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
The manual states that the average installation time for professional installers is 40 minutes. If you do not feel comfortable performing the installation on your own or are in need of assistance, contact a professional installer.
Yes, the 76428 is designed for 2020-current Toyota Venza. Check the manufacturer's website for specific trim levels.
Maximum gross trailer weight: 3500 lb (1588 kg). Maximum tongue weight: 525 lb (238 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Ratchet, torque wrench, safety glasses, 18 mm and 19 mm sockets, 6-inch socket extension, M12x1.25 tap, M12x1.25 crowfoot socket, pliers, and exhaust removal pliers.

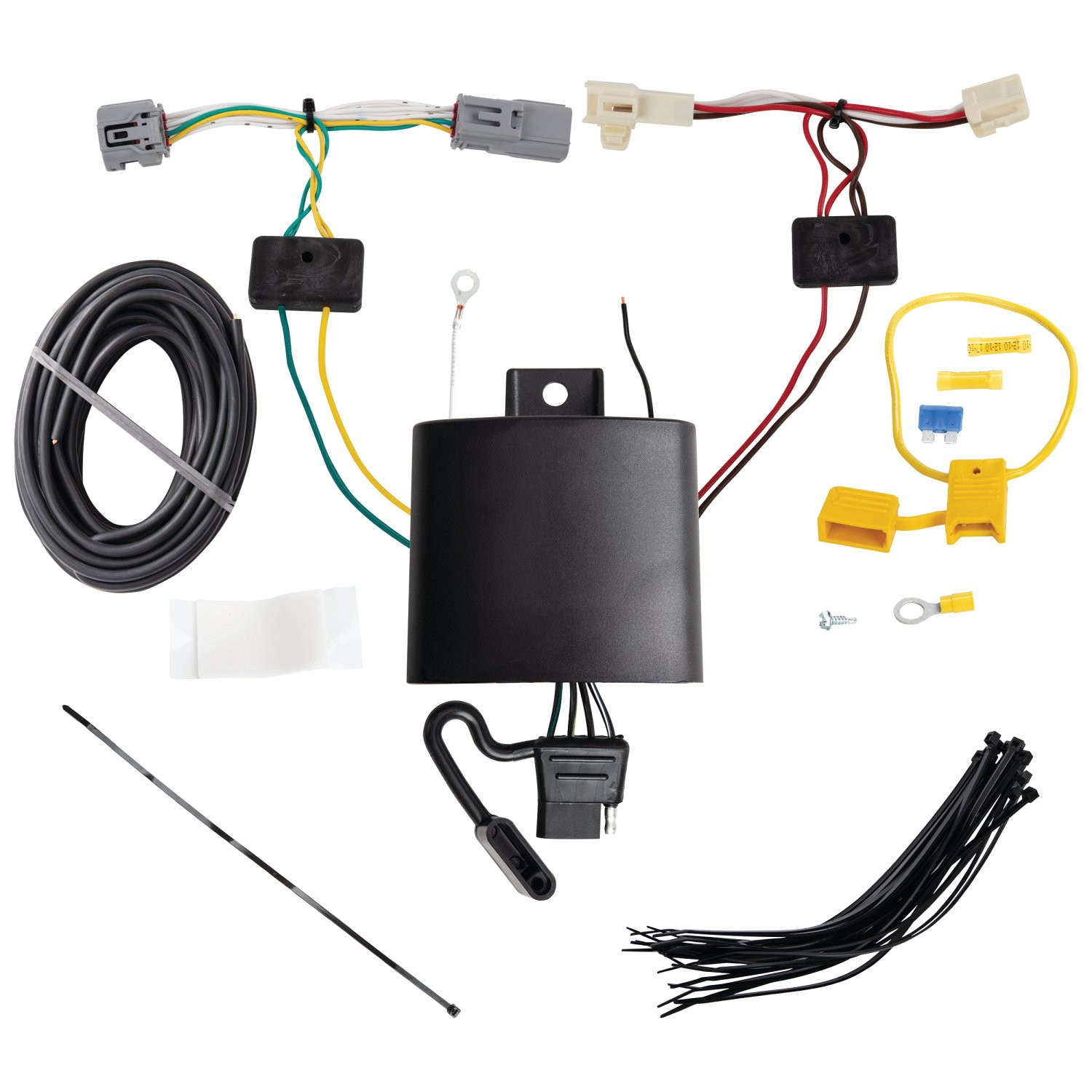

The T-One® Connector is a trailer tow harness that integrates with your vehicle's factory wiring to provide a connection point for a trailer. It uses a T-connector design that taps into the vehicle's existing rear lighting circuits without cutting or permanently modifying the factory wiring. The connector includes a black box module, wiring harness with brown, red, yellow, green, and black wires, and all necessary fasteners and connectors for installation.
You will need: 10 mm socket and ratchet or 10 mm wrench, drill with 3/32" drill bit, wire crimpers, wire cutters, Phillips head screwdriver, and a test probe. You will also need safety glasses, which are required personal protective equipment during installation.
The kit includes: a T-One® black box connector module, brown and red wires, yellow and green wires, black 12 gauge power wire, white ground wire, double-sided tape for mounting the black box, cable ties for securing the harness, an eyelet and screw for the ground wire, a yellow fuse holder with 15 amp fuse, a ring terminal, and yellow butt connectors for wire connections.
Yes. You must disconnect the vehicle's negative (-) battery cable before making any electrical connections. This is a required safety step performed in step 8 of the installation. The battery remains disconnected until all wiring is complete and the 15 amp fuse is installed in step 11.
You must partially remove the plastic threshold cover, side panels, and cargo trays to access the rear cargo area wiring. On the passenger side, you must remove the side trim panel cover to access the vehicle battery. You will also need to access the underside of the vehicle near the rear bumper cover on the driver's side. All removed panels and covers must be reinstalled at the end of installation.
The black box is mounted on the driver's side using the double-sided tape provided. It should be mounted near the connector in the rear cargo area. The harness must be secured with the cable ties provided to prevent damage, rattling, and to avoid areas that could cut or pinch the wire.
The connector uses a T-connector design with two insertion points. On the driver's side in the rear cargo area, insert the T-One® Connector end with the brown and red wires between the vehicle wiring connectors and lock into place (step 2). Underneath the vehicle near the rear bumper cover on the driver's side, insert the T-One® Connector end with the green and yellow wires between the vehicle wiring connectors and lock into place (step 4). Be careful not to damage the locking tabs and ensure connectors are fully inserted with locking tabs in place.
Yes, drilling is required for the ground wire connection. You must drill a 3/32" hole to secure the white ground wire using the eyelet and screw provided, unless you can locate an existing ground stud near the connector. Do not drill into the vehicle floor or bed. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces. Clean dirt and rustproofing from the area before securing the ground wire.
Yes. You must locate the grommet on the driver's side in the rear cargo area and carefully slit it. The yellow and green wires are then routed through the slit in the grommet to reach the underside connector point.
The black 12 gauge power wire begins at the vehicle's positive (+) battery cable on the passenger side, where it connects via a ring terminal and yellow fuse holder containing a 15 amp fuse. The wire is then routed across the threshold from the passenger side battery compartment to the driver's side cargo area, where it connects to the black power wire on the T-One® black box using a yellow butt connector.
A 15 amp fuse is used. The fuse is installed in the yellow fuse holder provided with the kit. The fuse holder is connected between the vehicle's positive (+) battery cable and the black 12 gauge power wire. The fuse must be installed in step 11 after all other connections are complete and before the negative battery cable is reconnected.
The T-One® Connector uses five wires: brown and red wires connect to the driver's side rear cargo area connector; yellow and green wires connect to the underside connector near the rear bumper; white wire is the ground wire secured to a ground stud or drilled hole; and black 12 gauge wire is the power wire connected to the vehicle's positive (+) battery cable through a 15 amp fuse. Yellow butt connectors are used to join the black power wire to the fuse holder and to the black box.
Always wear safety glasses during installation. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury. Do not drill into exposed surfaces or the vehicle floor or bed. Be careful not to damage the connector locking tabs. Avoid pinching or cutting wires when reinstalling panels. Read and follow all warnings printed on the vehicle battery. Do not exceed the product's amperage ratings or the towing manufacturer's rating, as overloading circuits can cause fires.
After installation is complete, test and verify the installation with a test light or by connecting a trailer. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-One® Connector to function properly. Ensure the 15 amp fuse is installed and the negative battery cable is reconnected before testing.
After installation, verify that all plastic trim panels, threshold, storage covers, and floor covering have been reinstalled carefully without pinching or cutting the wires. Ensure all loose wires are secured and the trailer tow harness is mounted in an accessible location with a bracket or electrical box. Confirm that the 15 amp fuse is installed in the fuse holder and the negative battery cable is reconnected. Test the installation with a test light or trailer before towing.
Yes, you must disconnect the negative (-) battery cable before making electrical connections. Reconnect it after all wiring is complete and the 15 amp fuse is installed.
A 15 amp fuse is installed in the yellow fuse holder provided. It protects the power circuit between the battery and the black box.
Do not exceed the lower of the towing manufacturer's rating (in your vehicle owner's manual) or the specific amperage ratings stated on the product. Overloading circuits can cause fires.
