Draw-Tite Hardware Kit For Class 3 Trailer Hitch, 2 Inch 76074 For 2017-2022 KIA Sportage Except SX & SX TurboDraw-tite$55.49Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
These durable custom hitches are manufactured for 2017-2022 KIA Sportage and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2022 | Kia Sportage | Except SX & SX Turbo |
Yes, part numbers 76074, 84074, and CQT76074 are designed for 2017-current Kia Sportage models. Visit the manufacturer's website for the most up-to-date information regarding specific application years and trim levels.
Required tools: ratchet, torque wrench, sockets, 17mm socket, 6" socket extension, adjustable wrench, flat head screwdriver, exhaust removal pliers, and safety glasses. The fastener kit 76074F (7x M10 bolts and 7x 3/8" conical tooth washers) is included.
Yes. The muffler must be lowered by removing the two rearmost rubber hangers before installation. After the hitch is installed and fasteners are tightened, the muffler is raised back into position and the rubber hangers are reattached.
All seven M10 CL10.9 fasteners must be tightened to 42 Lb.-Ft. (57 N·M) using a torque wrench. Proper torque is essential to keep the hitch securely mounted to the vehicle when towing.
Maximum Gross Trailer Weight: 4500 lb. (2043 kg). Maximum Tongue Weight: 675 lb. (306 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
If present on your vehicle, yes. Remove the two plastic underbody appearance panels (one each side) located under the rear bumper and behind the rear wheels using a standard screwdriver to remove plastic push rivets. Set them aside for reinstallation after the hitch is installed.
No drilling is required. The hitch aligns with existing weldnuts in the vehicle's frame rail. However, if additional clearance between the muffler and hitch is needed, two metal exhaust hanger rods must be bent downward (one on each side).

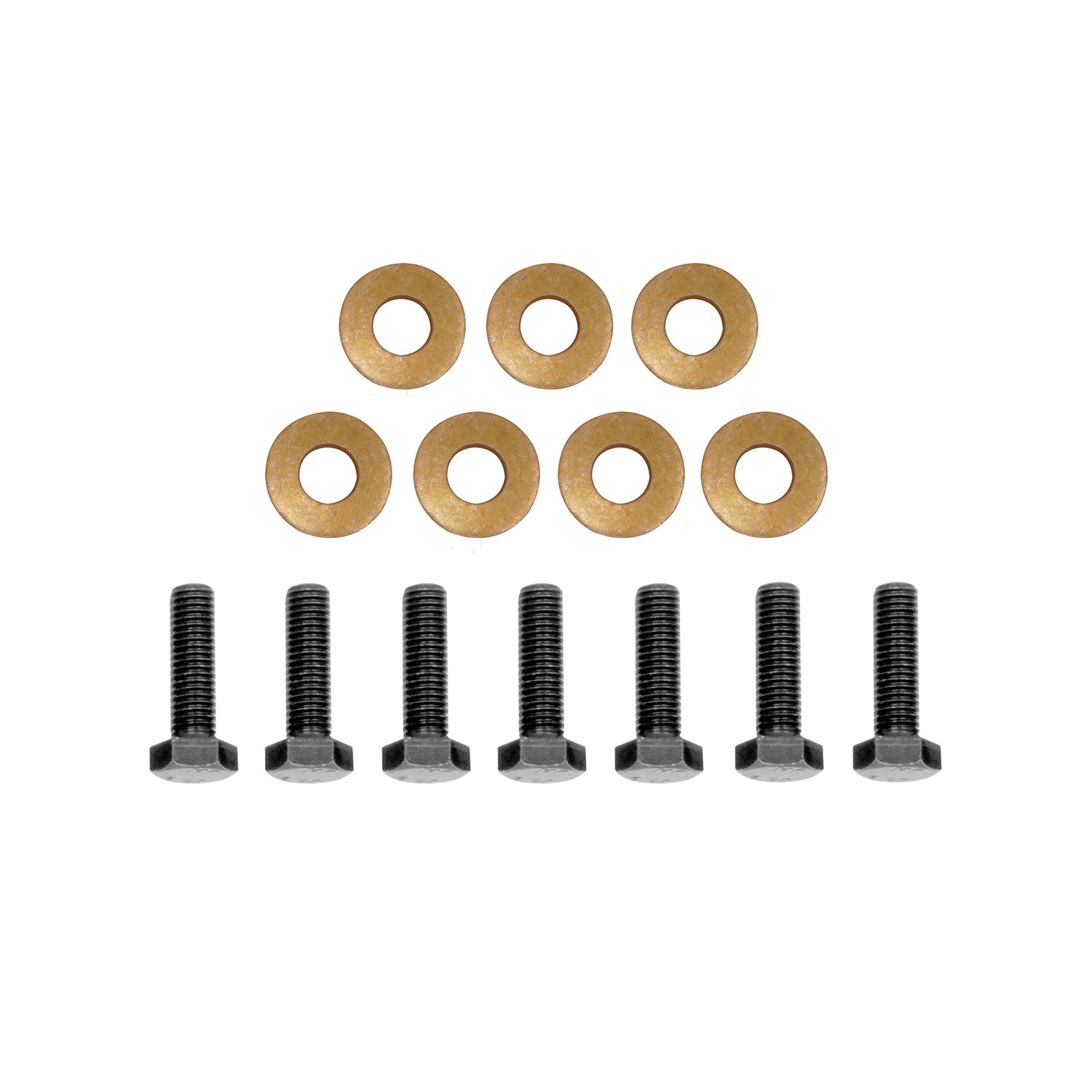

The fastener kit 76074F includes seven M10 x 1.25 x 30mm CL10.9 bolts and seven 3/8" conical tooth washers. The conical washers must be installed with the teeth side facing against the hitch.
Spray a lubricant on the rubber hangers before removal; this makes them slide off the metal pins more easily. Be careful to ensure the exhaust is supported before removing the rubber hangers to prevent the muffler from falling.
The conical tooth washers must be installed with the teeth side facing against the hitch. The washer sits between the bolt head and the hitch mounting surface.
1. Lower the muffler by removing the two rearmost rubber hangers. 2. Remove underbody appearance panels if present. 3. Raise the hitch over the tailpipe(s) and align holes with existing weldnuts in the frame rail. 4. Install the seven M10 bolts and conical tooth washers. 5. Tighten all fasteners to 42 Lb.-Ft. (57 N·M) with a torque wrench. 6. Raise the muffler back into position and reattach rubber hangers. 7. Modify exhaust hangers if additional clearance is needed. 8. Reinstall plastic appearance panels if present.
Bend the two metal exhaust hanger rods downward (one on each side) only if additional clearance between the muffler and hitch is required after the hitch is installed. This is an optional modification performed after the muffler is raised back into position.
No. The manual requires the muffler to be lowered by removing the two rearmost rubber hangers before the hitch can be raised into position over the tailpipe(s). The muffler must be lowered to provide access for hitch installation.
Check that all fasteners and the ball are properly tightened. The manual recommends checking the hitch frequently to ensure all fasteners remain tight and the hitch is securely mounted to the vehicle. Proper torque (42 Lb.-Ft. / 57 N·M) is essential for secure mounting when towing.
If excess sway occurs, remove your foot from the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Slow down when towing and never exceed any posted speed limit.
Load the trailer heavier in the front. This helps with stability and control when towing. Do not exceed the maximum tongue weight of 675 lb. (306 kg) or the maximum gross trailer weight of 4500 lb. (2043 kg).
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath the vehicle. Do not use a torch to cut access or attachment holes. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A damaged hitch or ball must be removed and replaced. Do not attempt to repair a damaged hitch. Contact the manufacturer at 1-800-632-3290 or TechnicalSupport@horizonglobal.com for replacement options.
No. Do not cut, weld, or modify the receiver. Modifications will compromise the structural integrity and safety of the hitch and may void the warranty.
Yes. The 76074 hitch supports both weight-carrying and weight-distributing configurations. Both types have the same maximum gross trailer weight (4500 lb. / 2043 kg) and maximum tongue weight (675 lb. / 306 kg).
The average installation time for professional installers is 25 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, contact a professional installer.
The 76074 hitch is covered by a Limited Lifetime Warranty from Horizon Global. The warranty covers material defects in both material and workmanship, excluding ordinary wear and tear. The warranty is valid only if the product is installed, maintained, and used according to the manufacturer's instructions. To make a warranty claim, contact Horizon Global at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, 1-800-632-3290, or TechnicalSupport@horizonglobal.com. You must provide the product and purchase receipt to process a claim.
The 76074 hitch complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but recommends periodic checks to verify the hitch remains securely mounted to the vehicle.
If your vehicle does not have underbody appearance panels, skip Step 2 of the installation. The panels are noted as "if present," meaning they are optional depending on trim level or configuration. Proceed directly to raising the hitch into position.
If additional clearance between the muffler and hitch is required, bend the two metal exhaust hanger rods downward (one on each side). This is performed after the muffler is raised back into position and the rubber hangers are reattached. Bending the hanger rods will lower the muffler slightly and create additional clearance.
Improper torque is the most likely cause. All M10 CL10.9 fasteners must be tightened to exactly 42 Lb.-Ft. (57 N·M) using a torque wrench. Under-torquing will allow fasteners to loosen during towing vibration. Re-torque all seven bolts to the correct specification. Ensure the conical tooth washers are installed with the teeth side facing against the hitch to provide additional locking.
Ensure the hitch is raised completely over the tailpipe(s) before attempting to align the holes. The hitch must clear the exhaust system to align properly with the existing weldnuts in the frame rail. If the muffler is still in the way, verify that it was lowered completely by removing both rearmost rubber hangers. If alignment is still difficult, the vehicle may have a non-standard exhaust configuration; contact technical support at 1-800-632-3290.

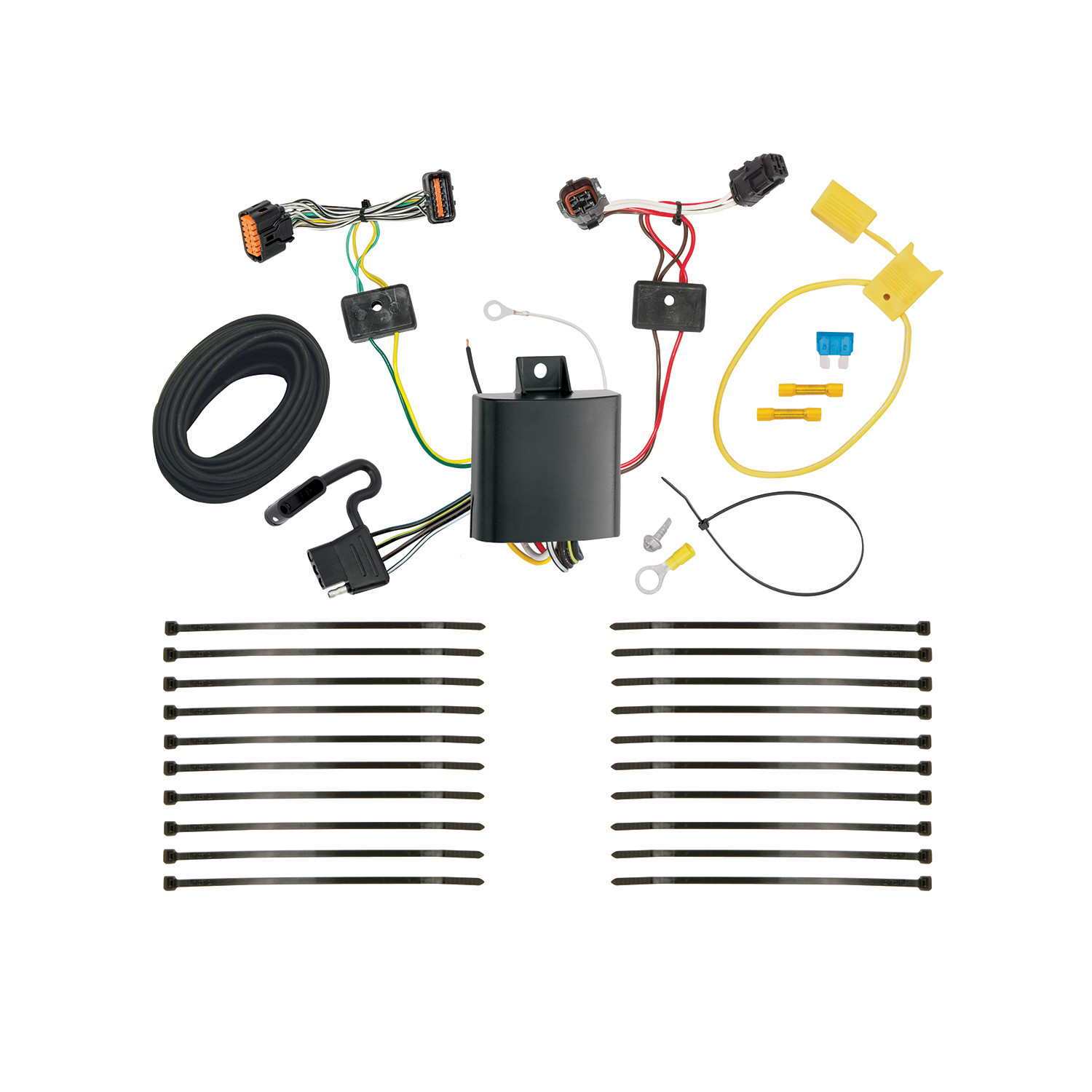

The T-One® T-Connector is a wiring harness that provides trailer lighting connections for towing. It connects to your vehicle's factory wiring and battery to supply power to trailer lights. The system includes a T-connector with yellow, green, red, and brown wires for lighting circuits, a black 12 gauge power wire, a white ground wire, a 15 amp fuse holder, and a 4-flat connector end for the trailer.
Yes, this T-Connector is designed for the Kia Sportage. The manual is specific to this vehicle. However, the manual does not specify which model years are compatible. Contact the manufacturer or your installer to confirm your specific year and trim level are supported.
You will need: a trim panel remover, a drill with a 3/32" drill bit, a Phillips head screwdriver, and a test probe. The test probe is used to verify electrical connections after installation.
The kit includes: a T-connector harness with yellow, green, red, and brown wires; a black 12 gauge power wire; a white ground wire with eyelet and screw; a yellow fuse holder with 15 amp fuse; a yellow butt connector; cable ties; and a 4-flat connector end for the trailer. A bracket or electrical box for mounting the 4-flat end is not included.
Yes. You must disconnect the vehicle's negative (−) battery cable before connecting the fuse holder to the positive (+) battery terminal in step 8. After all connections are complete, you reconnect the negative cable and install the 15 amp fuse in step 9.
The T-Connector installs on the driver's side only. This includes removing the driver's side taillight assembly, the plastic appearance panel underneath the rear on the driver's side, and routing all wires from the driver's side.
The T-Connector has two main connections: (1) Plug the T-connector with yellow and green wires into the vehicle's mating connector underneath the rear on the driver's side (step 4). (2) Route the red/brown wires to the driver's side taillight pocket and plug them into the vehicle's mating connectors (step 6). Ensure all connector surfaces are clean and free of dirt, and fully insert connectors with locking tabs in place.
Yes. You must drill one 3/32" hole to secure the white ground wire. Locate a suitable grounding point near the connector on the driver's side underneath the rear of the vehicle. Clean dirt and rustproofing from the area first, then drill the hole and secure the white wire using the eyelet and screw provided. Always verify what is behind any surface before drilling to avoid damage to the vehicle or personal injury.
Route the black 12 gauge wire from the T-Connector box along the exterior frame or follow existing wiring along the thresholds into the engine compartment up to the battery. Disconnect the vehicle's negative battery cable first. Attach the ring terminal to the fuse holder wire, secure it to the vehicle's positive (+) battery cable, and connect the other end of the fuse holder to the black 12 gauge wire using the yellow butt connector provided. Reconnect the negative battery cable and install the 15 amp fuse.
The T-Connector uses a 15 amp fuse. The fuse holder is provided with the kit. Install the 15 amp fuse into the fuse holder after all other connections are complete and the negative battery cable has been reconnected.
The T-Connector uses the following wires: yellow and green wires connect to the vehicle's mating connector underneath the rear (step 4); red and brown wires connect to the driver's side taillight pocket connectors (step 6); black 12 gauge wire is the power wire that connects to the battery (step 7); white wire is the ground wire that connects to a grounding point (step 5).
Route the black 12 gauge power wire along the exterior frame or follow existing wiring along the thresholds into the engine compartment up to the battery. Avoid areas that may pinch or break the wire. If routing through a grommet and along the exterior of the vehicle, carefully avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
Mount the black box module on a flat surface in an out-of-the-way location to prevent damage or rattling. The exact location is not specified in the manual; choose a location that is protected and does not interfere with vehicle operation.
Secure the remainder of the T-Connector harness with the cable ties provided. Be careful to avoid any areas that would pinch, cut, or melt the wire. Also secure the 4-flat harness underneath and to the center of the vehicle, and mount the 4-flat end in an accessible location with a bracket or electrical box (not included).
Yes. On the driver's side only, remove two screws on the taillight assembly and pull the taillight housing directly rearward to remove it. Set it aside during installation. After routing the red/brown wires to the taillight pocket and connecting them, reassemble the taillight assembly.
Yes. On the driver's side underneath the rear of the vehicle, locate the plastic appearance panel. Using a trim panel puller, remove the clips holding it in place, then remove the plastic nuts to remove the panel. Set it aside during installation. After routing and securing all wires, replace the appearance panel and any other clips that were removed, being careful not to cut or pinch the wires.
All connections must be complete for the T-Connector to function properly. Test and verify installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. Use the test probe to verify electrical connections at the connector.
Do not exceed the lower of the towing manufacturer rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. The manual specifies a 15 amp fuse but does not state the overall product amperage rating. Refer to the product label and your vehicle's owner's manual for the specific towing capacity.
Always wear safety glasses during installation. Read and follow all warnings and cautions printed on the tow vehicle's battery before beginning. Verify what is behind any surface before drilling to avoid damage to the vehicle or personal injury. Do not drill into exposed surfaces. Be careful when routing wires to avoid hot pipes, heat shields, fuel tank, or other points that may pinch or break the wire. Overloading circuits can cause fires—do not exceed stated product ratings.
Yellow and green (vehicle connector), red and brown (taillight connector), black 12 gauge (power), and white (ground).
Do not exceed the lower of your vehicle's towing manufacturer rating or the product's amperage rating. Refer to your vehicle's owner's manual and the product label.
