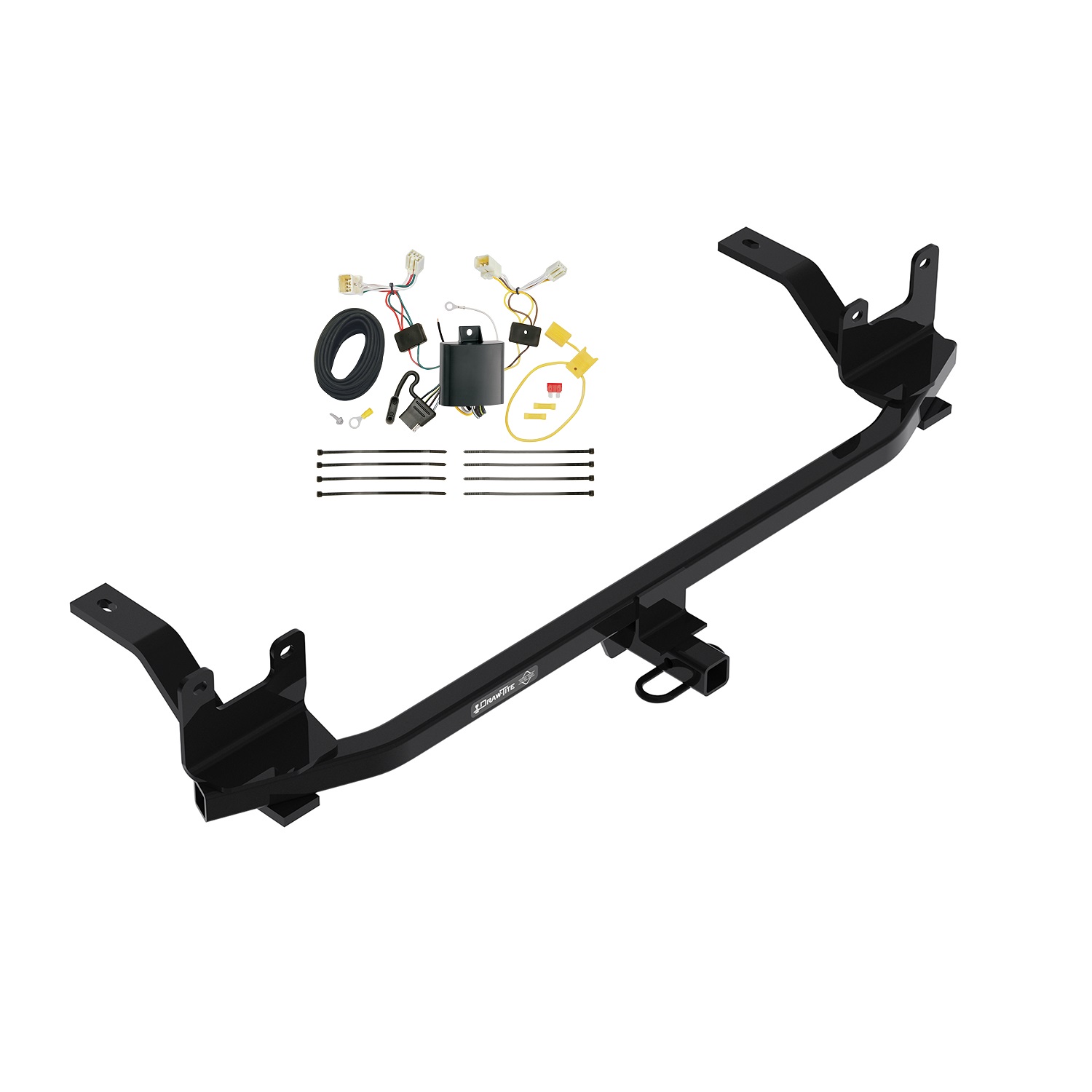

These dependable custom hitches are manufactured for 2018-2020 Hyundai Elantra, 2018-2023 KIA Rio and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 1 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2000 - 2001 | Hyundai Elantra | Except GT & Sport |
Yes, part number 24964 is designed for 2018-current Hyundai Elantra models. However, the installation procedure differs depending on whether your rear bumper fascia has a removable lower panel. If it does, follow the 2018 Elantra instructions; if not, follow the 2019 Elantra instructions. Visit the Horizon Global website for the most up-to-date information regarding specific trim levels.
Yes, part number 24964 is compatible with 2018-current Kia Rio models. The installation procedure for Kia Rio differs from Hyundai Elantra and includes drilling a ½" hole in the frame and ¼" holes for cable ties. Refer to the Kia Rio installation instructions for the complete procedure.
The maximum gross trailer weight is 2000 lb (907 kg) and the maximum tongue weight is 200 lb (91 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools include: ratchet, torque wrench, safety glasses, sockets (8 mm, 10 mm, 12 mm, 13 mm, 14 mm, 11/16"), flat head screwdriver, Phillips screwdriver, exhaust removal pliers, tape measure, marker, tape, drill with ½" and ¼" bits, plastic trim tools, utility knife, and tin snips.
The fastener kit 24964F includes: (2) carriage bolts 7/16-14 x 1.75 GR5, (2) blocks 0.250 x 0.875 x 3 (P/N HE-2370-000), (6) conical washers 7/16" (P/N 01292007), (2) hex nuts 7/16-14 GR2, (2) fish wire 7/16" (P/N 5481), (4) hex bolts M10-1.25 x 35mm CL10.9 (USA models), (4) hex bolts M8-1.25 x 40mm CL10.9 (Korean models), (4) conical washers 3/8" (P/N 01292006), (4) spacers (P/N 03060, 1.5" x 1.0" x 0.25"), and (2) cable ties.
A second person or jack is recommended to steady and support the hitch while lifting it into position and holding it until all bolts are installed. This is especially important for the 2019 Hyundai Elantra and Kia Rio installations.
The average installation time for professional installers is 40 to 60 minutes. If you do not feel comfortable performing the installation on your own or need assistance, contact a professional installer.
Yes, drilling is required for Kia Rio installation. You must drill a ½" hole in the bottom of the frame at the center of the slot in the hitch (both sides) using the hitch as a template. Additionally, you must drill a ¼" hole through the fascia for cable ties, located 13" from the vehicle centerline and 2-1/4" from the forward edge of the lower fascia (both sides).
No drilling is required for Hyundai Elantra installation (either 2018 or 2019 model year). However, trimming of the lower fascia and modification of the heat shield are required.
For Hyundai Elantra: Cut a 3-inch-wide by 5-inch-long section from the center of the lower fascia to provide clearance for the receiver tube. For Kia Rio: Cut a 5-inch-wide by 3-inch-deep notch in the bottom center of the fascia. Use a utility knife and tape measure to mark the section before cutting.
Removal of the heat shield is not required, but it can be removed to assist with modification. If you remove it, cut or bend the area around the rearmost stud to make clearance for the hitch arm, and ensure you leave the hole in the heat shield so it may be reattached. If removed, modify and reattach it.
Torque specifications are: all M8 fasteners to 27 Lb-Ft (37 N·M); all M10 fasteners to 42 Lb-Ft (57 N·M); all 8mm fasteners to 27 Lb-Ft (37 N·M); all 10mm fasteners to 42 Lb-Ft (57 N·M); and all 7/16" fasteners to 50 Lb-Ft (68 N·M). Proper torque is needed to keep the hitch secure to the vehicle when towing.
All 7/16" fasteners should be tightened to 50 Lb-Ft (68 N·M) using a torque wrench. This applies to both Hyundai Elantra and Kia Rio installations.
All M8 fasteners should be tightened to 27 Lb-Ft (37 N·M) using a torque wrench. This applies to Korean-built models of both Hyundai Elantra and Kia Rio.
All M10 fasteners should be tightened to 42 Lb-Ft (57 N·M) using a torque wrench. This applies to USA-built models of both Hyundai Elantra and Kia Rio.
USA-built models use M10-1.25 x 35mm CL10.9 hex bolts and 7/16" conical washers (torque to 42 Lb-Ft / 57 N·M for M10 bolts). Korean-built models use M8-1.25 x 40mm CL10.9 hex bolts and 3/8" conical washers (torque to 27 Lb-Ft / 37 N·M for M8 bolts). Both use 7/16" carriage bolts torqued to 50 Lb-Ft (68 N·M). The installation procedure is otherwise the same.
Attach items j and k (hex bolts and conical washers) to item n (fish wire). Insert the fish wire through the access hole in the vehicle frame. Once the hitch is raised into position, feed the coiled end of the fish wire through the drilled hole and out of the forward access hole. Attach the 7/16" carriage bolt and spacer block to the fish wire and pull the fasteners into position. Then remove the fish wire and install the conical washers and hex nuts onto the carriage bolts.
The teeth side of the conical washer should face against the hitch. This applies to both the 7/16" conical washers and the 3/8" conical washers.
Yes, for 2019 Hyundai Elantra models, you must remove the taillights. Open the trunk, remove the access panel from behind the taillight, use a 10mm socket to remove the two hex nuts securing the taillight, unplug the electrical connector, and gently pull the taillight horizontally rearward. Repeat on the other side. Ensure the filler panel on the side of the light assembly is reinstalled before reinstalling the taillights.
No, taillight removal is not required for 2018 Hyundai Elantra models. The 2018 installation procedure involves removing the plastic cover and lower fascia without removing the taillights.
Yes, for Kia Rio models, you must remove the taillights. Open the liftgate, remove the small access panel from behind the taillights, use a 10mm socket to remove four hex nuts securing the taillights (both sides), unplug the wiring, and gently pull the taillights rearward.
Yes, the exhaust must be lowered for all vehicle models. Use an exhaust hanger removal tool (or pry bar) to remove the rubber isolators from the hangers. Support the exhaust before lowering it. After the hitch is installed, raise the exhaust back into position by reattaching the rubber isolators to the hangers.
The authorized drawbar kit is part number 3593, sold separately. The drawbar must be used in the RISE position only.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Support the exhaust before lowering it. Do not cut access or attachment holes with a torch. Do not cut, weld, or modify the receiver. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch.
Load the trailer heavier in front. Do not exceed the lower of your towing vehicle manufacturer's rating or 2000 lb GVWR / 200 lb tongue weight. Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. Verify that the hitch is securely mounted to your vehicle periodically. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but periodic inspection is recommended to ensure the hitch remains securely mounted to your vehicle.
Yes, part number 24964 is compatible with 2018-current Hyundai Elantra and Kia Rio models. Installation procedures vary by model year and vehicle type.
Maximum gross trailer weight is 2000 lb (907 kg) and maximum tongue weight is 200 lb (91 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
No drilling is required for Hyundai Elantra. Drilling is only required for Kia Rio installation (½" hole in frame and ¼" holes for cable ties).
Required tools: ratchet, torque wrench, safety glasses, sockets (8, 10, 12, 13, 14 mm, 11/16"), screwdrivers (flat and Phillips), exhaust removal pliers, tape measure, marker, tape, drill with ½" and ¼" bits, plastic trim tools, utility knife, and tin snips.
M8 fasteners: 27 Lb-Ft (37 N·M); M10 fasteners: 42 Lb-Ft (57 N·M); 7/16" fasteners: 50 Lb-Ft (68 N·M). Use a torque wrench for proper installation.
Slow down when towing and never exceed any posted speed limit. Always wear your seatbelt.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. Verify that the hitch is securely mounted to your vehicle periodically.
Ensure that the spacer blocks (for Kia Rio) or the blocks are properly aligned with the frame access holes before raising the hitch into position. For Kia Rio, tape the spacer blocks to the end panel aligning the holes in the blocks with the weldnuts in the bumper beam. Use a second person or jack to steady the hitch while lifting into position. Do not push the hardware into the frame.
If the fish wire becomes stuck, do not force it. Ensure that the hitch is properly positioned and that the carriage bolts and spacer blocks are aligned with the frame access holes. For Kia Rio, ensure that the ½" hole has been drilled in the bottom of the frame at the center of the slot in the hitch. The conical washer can be used to hold the bolt in place while removing the fish wire and installing the hex nut.
Ensure that the fascia has been trimmed to the correct size: 3 inches wide by 5 inches long for Hyundai Elantra, or 5 inches wide by 3 inches deep for Kia Rio. For Kia Rio, also ensure that the two raised areas used to connect plastic support brackets have been removed flush to the inside surface of the lower fascia. Align the fascia tabs properly before snapping into place.
Check all fasteners frequently to ensure they are properly tightened. If fasteners are loose, retighten them to the specified torque: M8 fasteners to 27 Lb-Ft (37 N·M), M10 fasteners to 42 Lb-Ft (57 N·M), and 7/16" fasteners to 50 Lb-Ft (68 N·M). Proper torque is needed to keep the hitch secure to the vehicle when towing.
Ensure that the exhaust has been properly lowered before installing the hitch and raised back into position after installation. For Kia Rio, the heat shield may need to be bent down near the exhaust hanger area to allow the hitch side arm to sit flat against the bottom of the frame on the passenger side. Support the exhaust before lowering and ensure the rubber isolators are properly reattached to the hangers.
Yes, this T-Connector is designed for the Hyundai Elantra. The installation instructions are specific to this vehicle model.
The T-Connector is a trailer wiring interface that connects to your vehicle's taillight wiring harness to provide power for trailer lights. It includes a 4-flat connector for the trailer and integrates with your vehicle's existing electrical system.
You will need: trim panel remover, drill with 3/32" drill bit, 1/4" socket, wire crimpers, wire cutters, Phillips head screwdriver, and a test probe. Safety glasses are also required.
Yes. You must disconnect the vehicle's negative (−) battery cable before working with the electrical connections. Reconnect it only after all wiring connections are complete and the 10 amp fuse is installed.
Open the trunk and partially remove the corner felt trunk liner on both sides to expose the vehicle's taillight wiring harness. Locate the taillight wiring harness plugged directly into the taillight socket on both the driver and passenger sides. The T-Connector has two ends: insert the end with the yellow wire on the driver's side and route the end with the green wire under the felt trunk liner to the passenger side, inserting it into the corresponding taillight connector on that side.
Insert each T-Connector end fully between the vehicle's wiring connectors and lock into place. Be careful not to damage the locking tabs. Ensure connectors are fully inserted with locking tabs in place. All connector surfaces must be clean and free of dirt before insertion.
Yes. You must drill a 3/32" hole to secure the white ground wire. Locate a suitable grounding point near the connector, clean dirt and rustproofing from the area, drill the hole, and secure the white wire using the eyelet and screw provided. Do not drill into the vehicle floor, bed, or any exposed surfaces.
Before drilling, verify what is behind any surface to avoid damage to the vehicle and personal injury. Do not drill into the vehicle floor, bed, or any exposed surfaces. Clean dirt and rustproofing from the area first.
The fuse is 10 amps. It is installed in the yellow fuse holder provided with the kit. The fuse holder connects between the vehicle's positive (+) battery cable and the black 12 gauge wire from the T-Connector using a yellow butt connector.
Disconnect the vehicle's negative (−) battery cable first. Remove the fuse from the yellow fuse holder provided. Cut the fuse holder wire, attach the ring terminal, and secure it to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12 gauge wire using the yellow butt connector provided. Do not install the 10 amp fuse until all other connections are complete.
The T-Connector has yellow and green wires that connect to the taillight harnesses (yellow on driver's side, green on passenger side), a white wire that grounds to the vehicle frame, and a black wire that connects to the positive battery circuit via the fuse holder. The T-Connector black box also has a red wire that connects to the black 12 gauge wire using a yellow butt connector.
Route the black wire out of the engine compartment either along the exterior frame and through a grommet, or through the interior following the existing wiring to the rear of the vehicle. Route carefully to avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
Mount the T-Connector black box on the driver's side of the trunk using the double-sided tape provided. Secure the remainder of the T-Connector harness with the cable ties provided to prevent damage or rattling, being careful to avoid areas that would cut or pinch the wire.
Reconnect the vehicle's negative (−) battery cable and install the 10 amp fuse into the fuse holder. Then reinstall the felt trunk liner, threshold plate, and other items removed during installation, being careful not to pinch or cut the wires. Test and verify the installation with a test light or trailer. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
After all connections are complete and the 10 amp fuse is installed, test and verify the installation with a test light or by connecting an actual trailer. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-Connector to function properly.
Do not exceed the lower of your towing manufacturer's rating or: maximum stop/turn light of 1 per side (2.1 amps) and maximum tail lights of 5.6 amps. Overloading the circuit can cause fires. Consult your vehicle's owner's manual and the instruction sheet for additional information.
Store the 4-flat connector in the spare tire compartment when not in use.
Yes, the T-Connector (118692-037) is designed for the Hyundai Elantra.
Trim panel remover, drill with 3/32" bit, 1/4" socket, wire crimpers, wire cutters, Phillips head screwdriver, test probe, and safety glasses.
Yes, disconnect the vehicle's negative (−) battery cable before beginning electrical work. Reconnect it only after all wiring is complete and the 10 amp fuse is installed.
The fuse rating is 10 amps. It is installed in the yellow fuse holder provided with the kit.
Do not exceed the lower of your towing manufacturer's rating or: 1 stop/turn light per side (2.1 amps) and tail lights (5.6 amps). Overloading can cause fires.
