These durable custom hitches are manufactured for 2019-2022 Infiniti QX50 and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2024 | Infiniti QX50 | — |

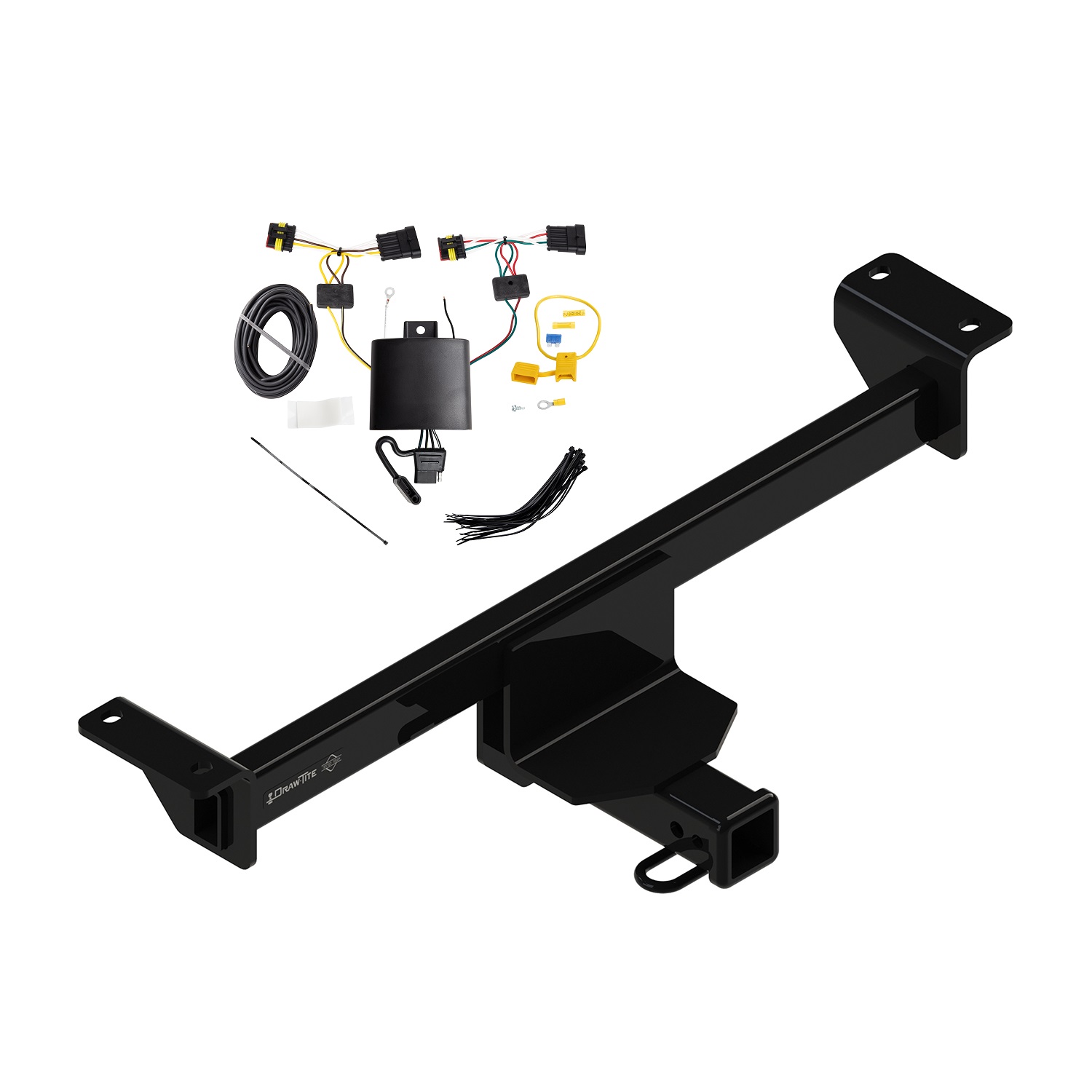

The 2019-2024 Infiniti QX50 Draw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76240-118796) fits 2019-2024 Infiniti QX50 models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2019-2024 Infiniti QX50 Draw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76240-118796) fits the following vehicles: 2019-2024 Infiniti QX50. Always verify your specific year, make, and model before ordering.
Yes, the 2019-2024 Infiniti QX50 Draw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76240-118796) is designed to fit the 2019-2024 Infiniti QX50.
The 2019-2024 Infiniti QX50 Draw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76240-118796) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. Part numbers 76240, 84240, and CQT76240 are designed for 2019-Current Infiniti QX50 models. Visit www.horizonglobal.com for the most up-to-date information regarding application years and trim levels.
The maximum gross trailer weight is 4000 lb. (1816 kg) and the maximum tongue weight is 400 lb. (182 kg). This is a weight-carrying hitch only; weight-distributing capacity is not available. Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Fastener kit 76240F includes (4) M12x1.25x40 bolts, Class 10.9, and (4) conical washers 1/2 inch (part number 01292008).
You will need a ratchet, torque wrench, safety glasses, 19 mm sockets, and a 6-inch socket extension. You will also need an M12x1.25 tap to clean the weldnuts on the frame rails.
Yes. Use an M12x1.25 tap to clean (2) weldnuts on the frame rails on both sides before installation. This is the first step in the installation process.
Raise the hitch into position and slide the brackets above the exhaust pipe. Align the bracket holes to the frame rail weldnuts. Loosely install the M12 bolts and conical washers to the hitch before final tightening.
Tighten all M12 fasteners with a torque wrench to 76 Ft.Lb. (103 N·M). Proper torque is needed to keep the hitch secure to the vehicle when towing.
No. Loosely install the M12 bolts and conical washers during step 2. Tighten all M12 fasteners to 76 Ft.Lb. (103 N·M) only in step 3, after all brackets are aligned.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Do not cut, weld, or modify the receiver.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. Periodically verify that all fasteners remain tight and the hitch is securely mounted to your vehicle.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Slow down when towing and never exceed any posted speed limit. Always wear your seatbelt.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Load the trailer heavier in front. This helps maintain proper weight distribution and towing stability.
A hitch or ball which has been damaged should be removed and replaced. Do not continue towing with a damaged hitch or ball.
The 76240 hitch comes with a Limited Lifetime Warranty. The warranty covers material defects in both material and workmanship, excluding ordinary wear and tear. The warranty is valid only if the product is installed, maintained, and used in accordance with the manufacturer's instructions. To make a warranty claim, contact Horizon Global at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, 1-800-632-3290, or TechnicalSupport@horizonglobal.com.
Yes, part numbers 76240, 84240, and CQT76240 fit 2019-Current Infiniti QX50 models. Check www.horizonglobal.com for the most current trim level information.
Maximum gross trailer weight is 4000 lb. (1816 kg) and maximum tongue weight is 400 lb. (182 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
You need a ratchet, torque wrench, 19 mm sockets, 6-inch socket extension, safety glasses, and an M12x1.25 tap to clean the weldnuts.
No drilling is required. The hitch uses existing frame rail weldnuts. You will need to clean the weldnuts with an M12x1.25 tap before installation.
Tighten all M12 bolts to 76 Ft.Lb. (103 N·M) using a torque wrench.
No. Do not cut, weld, or modify the receiver. Do not cut access or attachment holes with a torch.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Periodically verify that all fasteners remain tight and the hitch is securely mounted.
Yes, the T-One T-Connector (118796-037) is designed for the Infiniti QX50. The installation instructions are specific to this vehicle model.
You will need: trim panel remover, 10mm socket and ratchet or 10mm wrench, drill with 3/32" drill bit, 1/4" socket, wire crimpers, wire cutters, Phillips head screwdriver, test-probe, and Torx 10 driver.
Yes. You must disconnect the vehicle's negative (-) battery cable before connecting the power wire to the positive battery terminal. The negative cable is reconnected after the fuse holder is installed (step 10).
Open the rear tailgate. On both the driver and passenger sides, remove two 10mm screws. Carefully pull the taillight away from the vehicle, being careful not to damage the alignment pins. Remove the taillight housing and set it aside.
Mount the T-Connector black box using the provided double-sided tape behind the rear bumper fascia on the driver's side. Choose a protected area where the unit cannot be damaged by road debris or objects driven over. The epoxy side of the module must point toward the ground to prevent water buildup.
Locate the vehicle's taillight wiring harness on both driver and passenger sides. Separate the connector carefully without breaking the locking tabs. Ensure all connector surfaces are clean and free of dirt. Plug the T-Connector end with the yellow wire between the mating plugs on the driver's side taillight socket and vehicle wiring harness (step 5). Repeat this process on the passenger side with the green wire end (step 6).
Yes. You must drill a 3/32" hole to secure the white ground wire using the provided eyelet and screw. Locate a suitable grounding point near the connector on the vehicle's frame or crossmember. Do not drill into the vehicle floor or bed. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces.
The T-One T-Connector uses a 15 amp fuse. The fuse is installed in the yellow fuse holder provided with the kit after the power wire is connected to the vehicle's positive battery terminal.
Locate the black 12 ga. power wire from the T-Connector box on the driver's side. Route the black wire along the exterior frame or follow existing wiring along the thresholds into the engine compartment up to the battery, avoiding areas that may pinch or break the wire. Disconnect the vehicle's negative battery cable. Attach the ring terminal to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12 ga. wire using the yellow butt connector provided. Reconnect the negative battery cable and install the 15 amp fuse.
Route the black power wire along the exterior frame or follow existing wiring along the thresholds. Route the T-Connector end with green wire to the passenger side underneath the bumper, then up through the opening on the passenger side. Avoid hot pipes, heat shields, the fuel tank, and any other points that may pinch or break the wire. Route the 4-flat harness underneath and to the center of the vehicle. Secure the remainder of the harness with the provided cable ties, being careful to avoid areas that would pinch, cut, or melt the wire.
Mount the 4-flat end in an accessible location with a bracket or electrical box (not included). Route the 4-flat harness underneath and to the center of the vehicle.
All connections must be complete for the T-One T-Connector to function properly. Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Do not exceed the lower of the towing manufacturer's rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. Overloading circuits can cause fires.
Always wear safety glasses and use all safety precautions during installation. Before drilling, verify what is behind any surface to avoid damage to the vehicle and personal injury. Do not drill into exposed surfaces. When mounting under the vehicle, ensure the unit is in a protected area and cannot be damaged by road debris or objects driven over. When routing wires, avoid hot pipes, heat shields, the fuel tank, and any other points that may pinch or break the wire. Read and follow all warnings and cautions printed on the tow vehicle's battery.
The T-One T-Connector (118796-037) is designed for the Infiniti QX50.

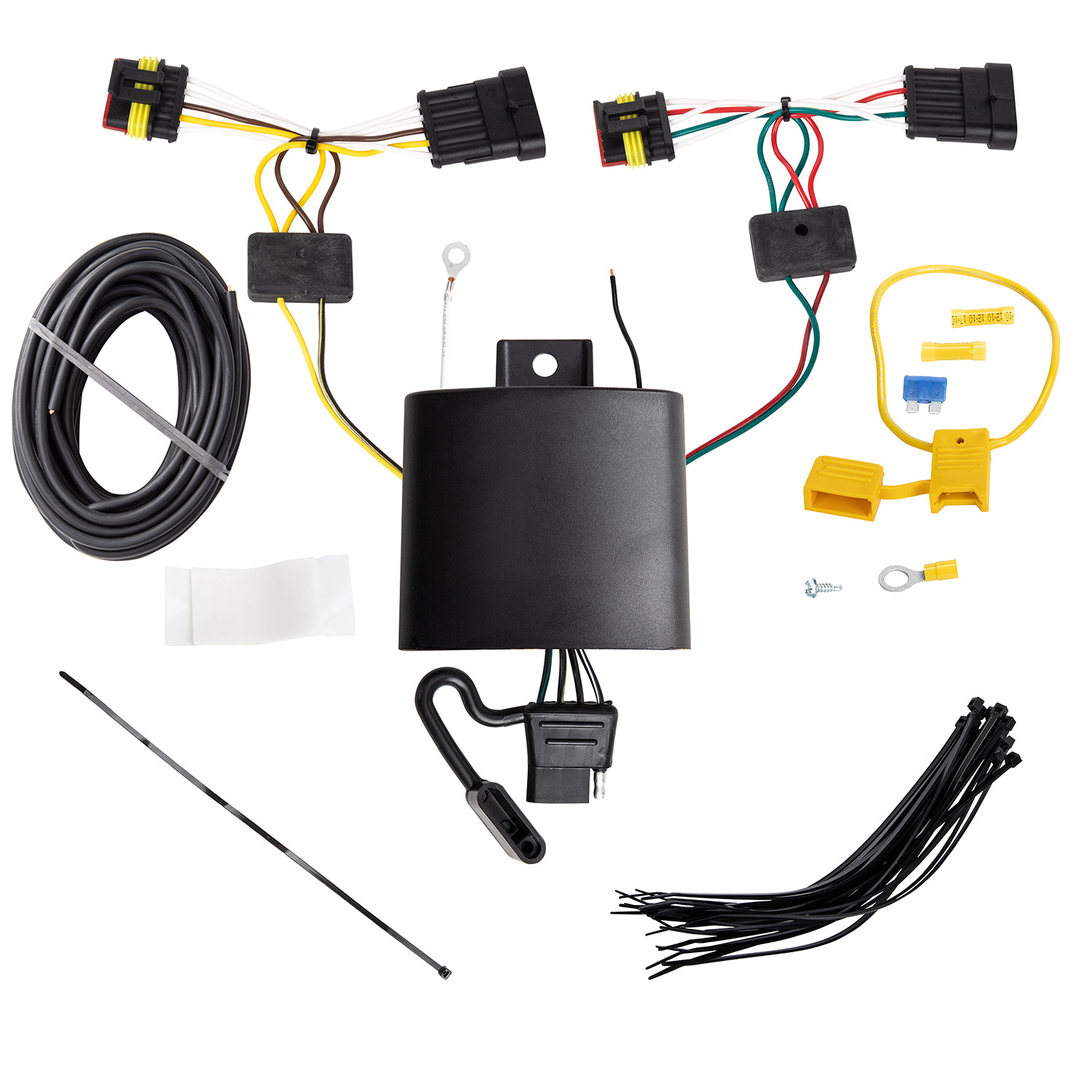

The kit includes the T-Connector black box, double-sided tape, white ground wire with eyelet and screw, black 12 ga. power wire, yellow fuse holder with 15 amp fuse, yellow butt connector, and cable ties.
Yes, you must drill one 3/32" hole for the ground wire. Do not drill into the vehicle floor or bed; verify what is behind any surface before drilling.
Yes, disconnect the vehicle's negative battery cable before connecting the power wire to the positive terminal. Reconnect it after the fuse holder is installed.
The T-One T-Connector uses a 15 amp fuse, installed in the yellow fuse holder provided.
Do not exceed the lower of the towing manufacturer's rating or the specific amperage ratings stated on the product. Overloading circuits can cause fires.
