These dependable custom hitches are manufactured for 2019-2023 Mazda 3 and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 1 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1988 - 2000 | Mazda 3 | Hatchback |
The 2019-2024 Mazda 3 HatchbackDraw-Tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24984-118808) fits the following vehicles: 1988-2000 Mazda 3. Always verify your specific year, make, and model before ordering.
The 2019-2024 Mazda 3 HatchbackDraw-Tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24984-118808) fits 1988-2000 Mazda 3 models. The 2000 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2019-2024 Mazda 3 HatchbackDraw-Tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24984-118808) is designed to fit the 1988-2000 Mazda 3.
The 2019-2024 Mazda 3 HatchbackDraw-Tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24984-118808) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part numbers 24984, 77984, and CQT24984 are designed for 2019-Current Mazda 3 Hatchback models. Visit the Horizon Global website for the most up-to-date information regarding specific application years and trim levels.
This is a weight-carrying hitch with a maximum gross trailer weight of 2000 lb. (908 kg) and maximum tongue weight of 200 lb. (90.8 kg). Do not exceed the lower of your vehicle manufacturer's towing rating or these limits.
Required tools: ratchet, torque wrench, safety glasses, 10 mm socket, 11/16 inch socket, 6 inch socket extension, die grinder, flat head screwdriver, and exhaust removal pliers.
Yes. You must enlarge the existing access holes to 1 inch diameter on each side using a die grinder. Do not use a torch to cut the holes.
Yes. You must lower the exhaust by removing the rearmost rubber hangers using exhaust removal pliers. Support the exhaust to avoid damage. Lubricant or soapy water may ease removal. The exhaust is reinstalled after hitch installation.
All 7/16 inch fasteners must be tightened to 50 Ft.-Lb. (68 N·M) using a torque wrench. Proper torque is required to keep the hitch secure to the vehicle when towing.
The authorized drawbar kit is part number 3593 (sold separately). It must be used in the RISE position only.
The maximum tongue weight is 200 lb. (90.8 kg). Do not exceed the lower of your vehicle manufacturer's rating or this limit.
No. This hitch is designed for 2019-Current Mazda 3 Hatchback models only. Visit the Horizon Global website at www.horizonglobal.com for the most up-to-date information regarding specific application years and trim levels, or contact technical support at 800-632-3290.
This is a weight-carrying hitch. Weight-distributing capability is not available for this model, as indicated by the 'X' in the weight-distributing row of the specifications table.
Fastener Kit 24984F includes: (4) carriage bolts 7/16"-14 x 1.50 GR5; (4) spacers .250 x .875 x 3.00 (P/N HE-2370-000); (4) conical washers 7/16" (P/N 01292007); (4) hex nuts 7/16"-14 GR2; and (4) pull wires 7/16" (P/N 5481).
Remove the underbody appearance panel. Using a flat head screwdriver, remove the rivets from the bottom appearance panel. Using a 10 mm socket, remove one screw from the bottom bracket attachment on each side. Press the bracket inward to release the piece from the plastic tab attached to the frame rails. Return the panel to the vehicle owner.
Feed the carriage bolts and spacers through the access holes using the pull wires. Leave the pull wires attached. Raise the hitch and feed the pull wire previously installed through the hitch bracket slot. Remove the pull wires and loosely install the conical washers and hex nuts to the hitch. Kink the pull wire to keep the spacer independent of the bolt.
Using a die grinder, enlarge the access holes to 1 inch diameter on each side. Do not use a torch to cut the holes.
Yes. Slightly bend the heat shield away from the hitch mounting area. The manual does not specify whether this bending is permanent or reversible.
Fasteners should be loosely installed initially. After all fasteners are in place, tighten all 7/16 inch fasteners with a torque wrench to 50 Ft.-Lb. (68 N·M) as the final step before reinstalling the exhaust.
Raise the exhaust back into position and reinstall all rubber hangers that were removed earlier.
The carriage bolts are 7/16"-14 x 1.50 GR5. Four bolts are included in the fastener kit.
The spacers are .250 x .875 x 3.00 inches (P/N HE-2370-000). Four spacers are included in the fastener kit.
The conical washers are 7/16 inch (P/N 01292007). Four washers are included. The teeth side of the conical washer must be positioned against the hitch.
The hex nuts are 7/16"-14 GR2. Four nuts are included in the fastener kit.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Support the exhaust to avoid damage when lowering it. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. Proper torque is needed to keep the hitch secure to the vehicle when towing.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Load the trailer heavier in front. Do not exceed the lower of your towing vehicle manufacturer's rating or the hitch capacity of 2000 lb. (908 kg) gross trailer weight and 200 lb. (90.8 kg) tongue weight.
Slow down when towing and never exceed any posted speed limit. Always wear your seatbelt.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
No. Do not cut, weld, or modify this receiver. Doing so may compromise the safety and integrity of the hitch.
Return the panel to the vehicle owner. The manual does not specify whether the panel can be reinstalled after hitch installation.
Lubricant or soapy water may ease removal of the rubber hangers when lowering the exhaust.
This product includes a Limited Lifetime Warranty covering material defects in materials and workmanship, excluding ordinary wear and tear. The warranty is valid only if products are returned for inspection, defects are not caused by misuse, neglect, improper installation, or accident, and the product was installed, maintained, and used according to instructions. Product replacement is the sole remedy. Contact Horizon Global at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, or 1-800-632-3290 to make a warranty claim.
The average installation time for professional installers is 30 to 40 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
Contact Horizon Global technical support at 800-632-3290 or TechnicalSupport@horizonglobal.com. You can also visit www.horizonglobal.com for additional information.
Yes. Scan the QR code on the manual or visit http://qr.towingproducts.net/qrproducts/qr-product for step-by-step photo installation instructions.
Check all fasteners and retighten them to 50 Ft.-Lb. (68 N·M) using a torque wrench. The manual recommends checking the hitch frequently to ensure all fasteners and the ball are properly tightened. Loose fasteners can compromise the security of the hitch during towing.
Remove and replace the damaged hitch or ball. Do not continue to use a damaged hitch, as it may fail during towing and cause loss of the trailer.

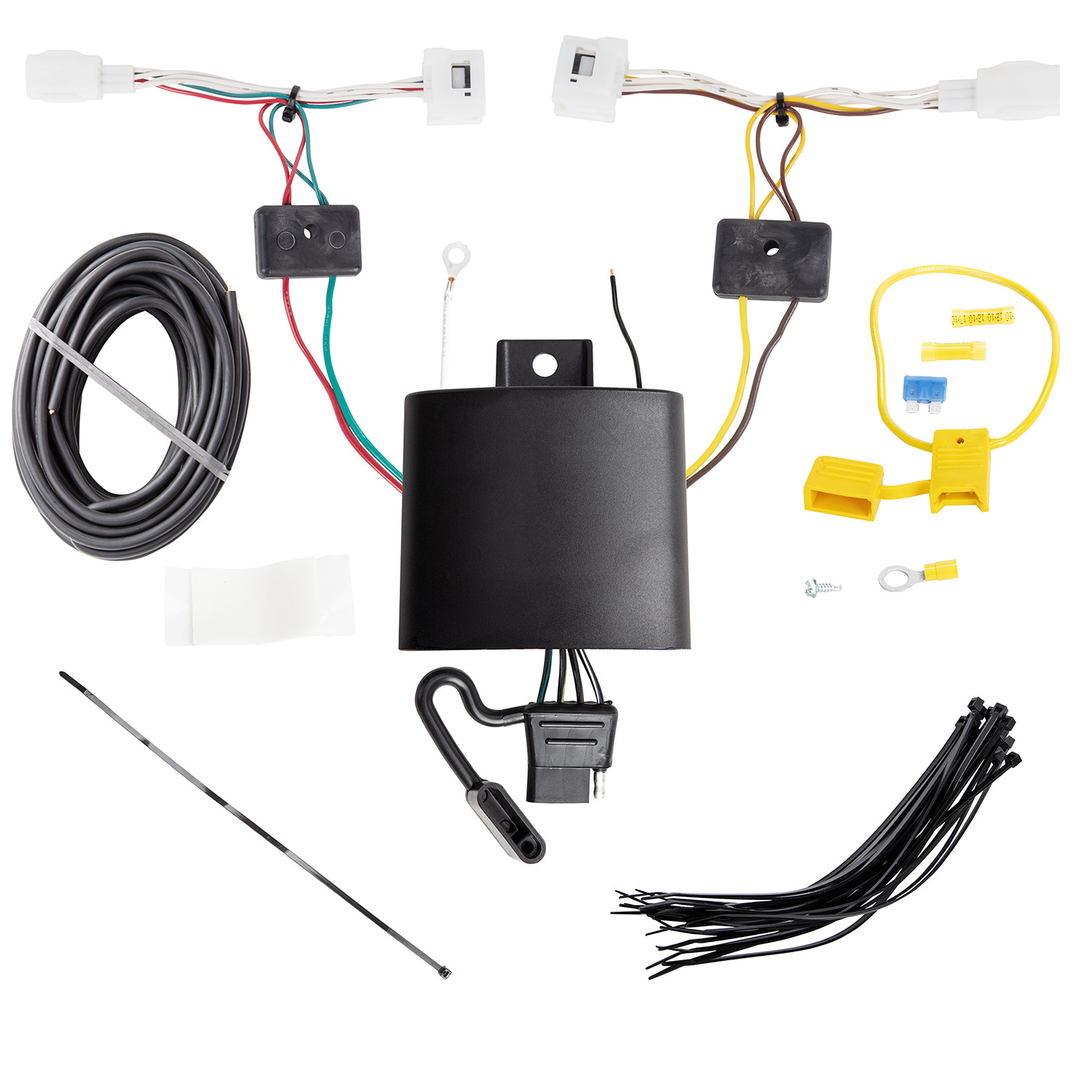

The T-One® Connector is a vehicle-to-trailer wiring interface that taps into your vehicle's taillight wiring harness to provide power for trailer lights. It uses a T-connector design that intercepts the factory wiring on both the driver's and passenger's sides of the trunk, allowing you to connect a 4-flat trailer connector without cutting or permanently modifying the vehicle's original wiring.
Yes, the T-One® Connector 118808-037 is designed for the Mazda 3 Sedan. The manual covers installation for this vehicle specifically. If you have a different Mazda 3 body style (coupe, hatchback) or model year, contact the manufacturer to confirm compatibility, as this manual does not cover those variants.
You will need: a trim panel remover, 10 mm socket and ratchet or 10 mm wrench, a drill with a 3/32" drill bit, wire crimpers, and wire cutters. These tools are required to remove trunk panels, disconnect battery terminals, drill the ground hole, and prepare wire connections.
The kit includes: double-sided tape for mounting the black box, cable ties for securing the harness, an eyelet and screw for the ground wire, a yellow fuse holder, a ring terminal, a yellow butt connector, and a 15 amp fuse. All of these items are provided and should not require separate purchase.
Yes. Step 7 requires you to disconnect the vehicle's negative (−) battery cable before making the final electrical connections to the positive battery terminal. After all wiring is complete and the fuse is installed, you reconnect the negative battery cable in step 8.
Open the trunk and remove the threshold panel. Then partially remove the corner felt trunk liner on both the driver's and passenger's sides to expose the vehicle's taillight wiring harness. Be careful when removing these panels to avoid damage.
On the driver's side, insert the T-One® Connector end with the yellow wire between the vehicle's wiring connectors and lock it into place. Repeat on the passenger's side with the T-One® Connector end with the green wire. Be careful not to damage the locking tabs and ensure connectors are fully inserted with locking tabs engaged. The connector taps into the factory harness without cutting wires.
Mount the T-One® black box on the driver's side using the double-sided tape provided. Secure the remainder of the harness with the cable ties provided, being careful to avoid areas that would cut or pinch the wire. Repeat the same mounting procedure on the passenger's side for the second connector end.
Route the T-One® Connector end with the green wire to the passenger's side behind the panels and along the threshold. Secure it with cable ties as you did on the driver's side, being careful to avoid pinching or cutting the wire.
Drilling is required only for the ground connection. You must locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32" hole to secure the white ground wire using the eyelet and screw provided. Do not drill into the vehicle floor or bed. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury.
Use a 3/32" drill bit to create the hole for the ground wire eyelet. This is the only drilling required during installation.
No. The manual explicitly states: do not drill into the vehicle floor or bed. You must locate an existing ground stud or drill only in areas that do not penetrate the floor or bed structure. Always verify what is behind any surface before drilling.
The T-One® Connector uses three wire colors: yellow (driver's side connector), green (passenger's side connector), and white (ground wire). The yellow and green wires tap into the vehicle's taillight wiring harness on each side. The white wire is the ground connection, secured to an existing ground stud or a drilled hole using an eyelet and screw.
Disconnect the vehicle's negative battery cable. Remove the fuse from the yellow fuse holder provided. Cut the fuse holder wire, attach the ring terminal to the vehicle's positive (+) battery cable, and secure it. Connect the other end of the fuse holder to the black 12 gauge wire using the yellow butt connector provided. Install the 15 amp fuse into the fuse holder. Reconnect the negative battery cable.
Install a 15 amp fuse into the fuse holder. This fuse protects the circuit and must be installed after all wiring connections are complete.
The black wire is 12 gauge (12 ga.). This wire connects the fuse holder to the T-One® Connector circuit.
Always wear safety glasses during installation. Read and follow all warnings and cautions printed on the tow vehicle's battery before beginning. Verify what is behind any surface before drilling to avoid damage to the vehicle or personal injury. Do not drill into exposed surfaces. Be careful not to damage the connector locking tabs or pinch and cut wires during installation and reassembly.
Do not exceed the lower of two ratings: the towing manufacturer's rating (including that in your vehicle owner's manual) or the specific amperage ratings stated on the product. The manual does not specify the product's own amperage rating; check the product label or contact the manufacturer for this information. Overloading circuits can cause fires.
After installation is complete, test and verify the installation with a test light or by connecting an actual trailer. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-One® Connector to function properly.
Route the 4-flat connector through the driver's side trim panel into the storage compartment on the threshold and store it there when not in use. This keeps the connector protected and organized.
Reinstall the plastic trim panels, threshold, storage covers, floor covering, and any other items that were removed during installation. Be careful not to pinch or cut the wires when reinstalling these components.
Yes, you must disconnect the negative battery cable before making electrical connections to the positive battery terminal. Reconnect it after the fuse is installed.
A 15 amp fuse is required. It is installed in the yellow fuse holder provided after all wiring connections are complete.
Do not exceed the lower of the towing manufacturer's rating (in your vehicle owner's manual) or the product's amperage rating. The manual does not state the product's specific rating; check the product label or contact the manufacturer.
