Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2019 - 2025 Ford F-350 Super Duty
Confirmed to Fit
2019 - 2025 Ford F-450 Super Duty
Confirmed to Fit
2019 - 2025 Ford F-550 Super Duty
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

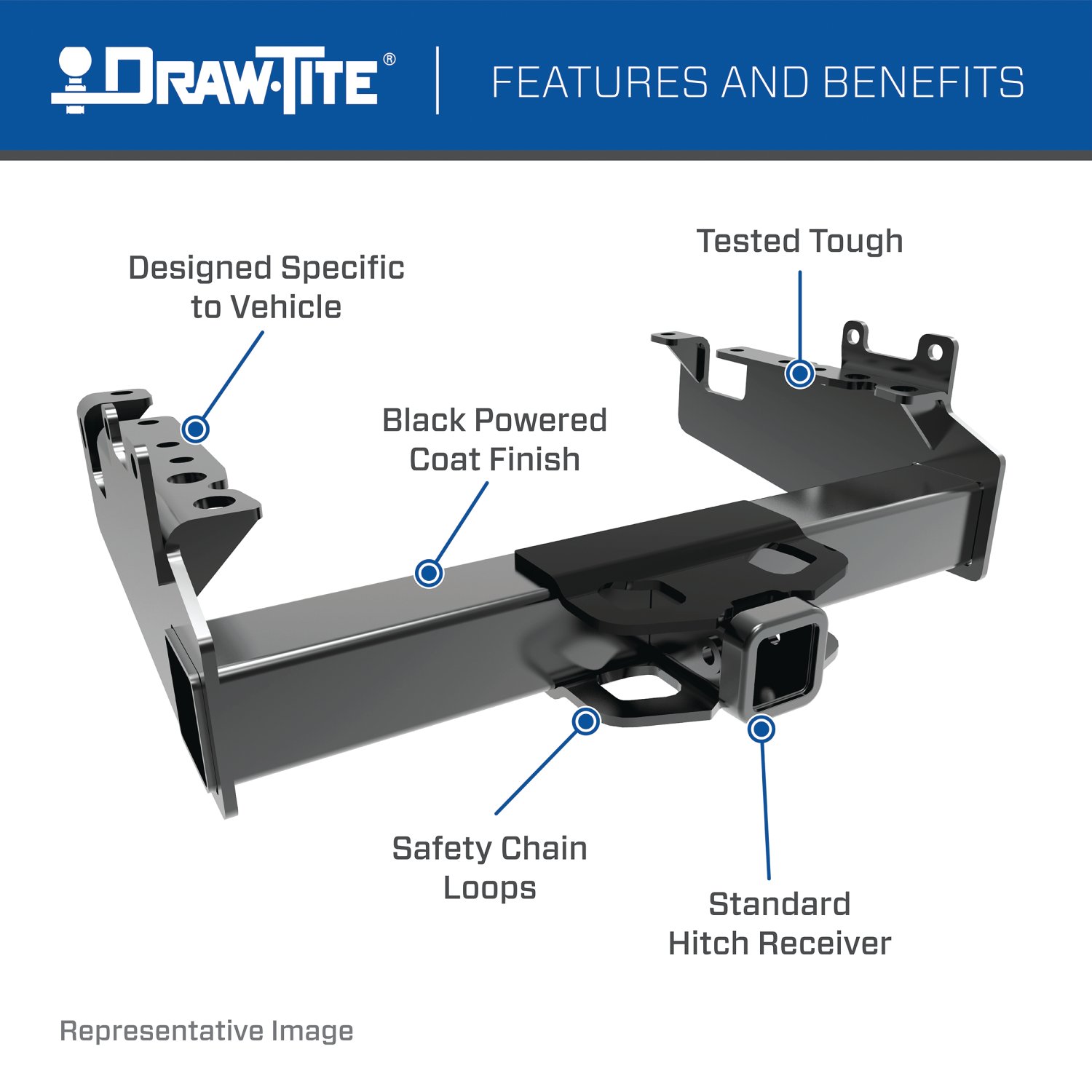

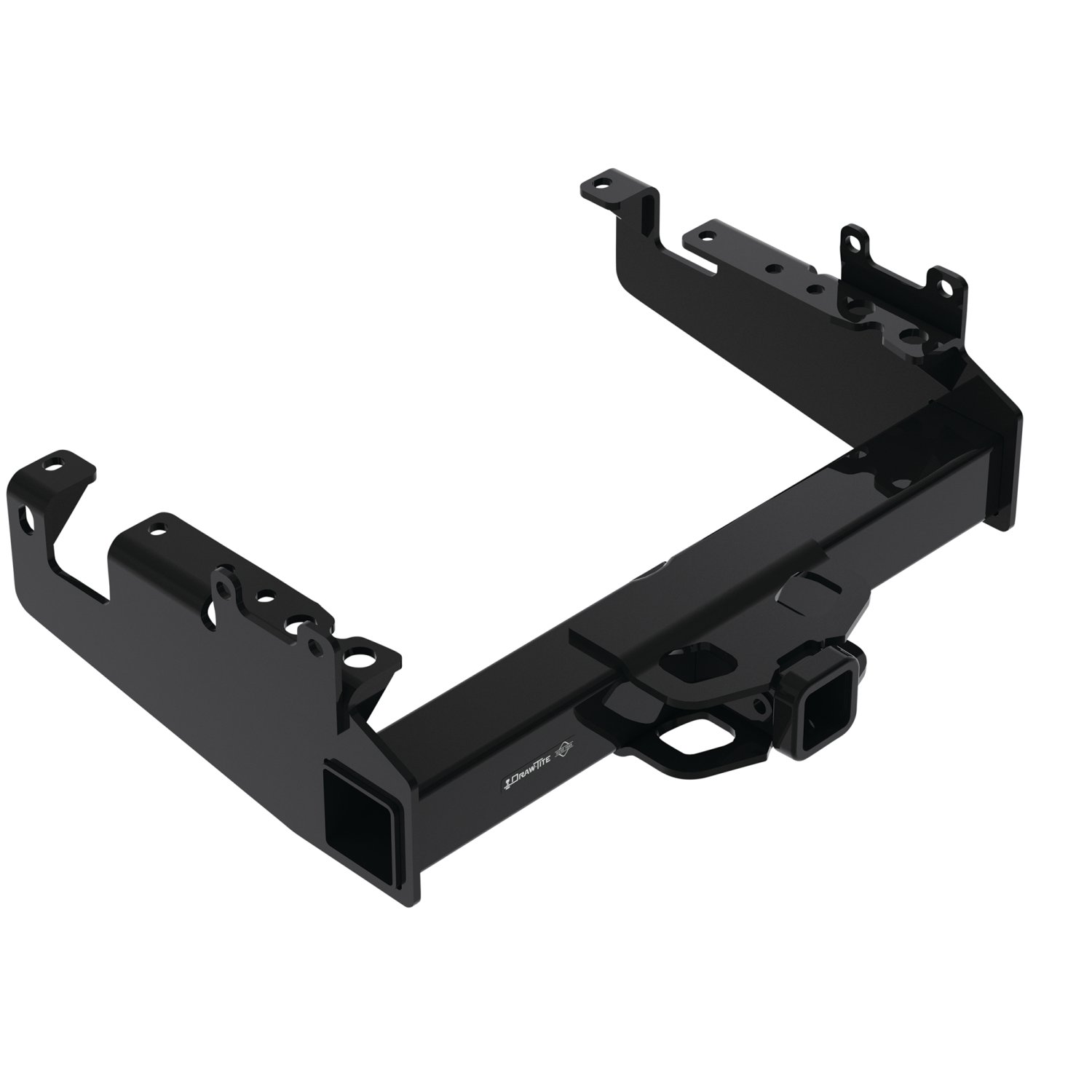

DRAW-TITE Class 5 trailer hitches are the choice of professionals and big toy haulers who need to get the job done! These Class 5 heavy-duty hitches are rated for up to 20,000 lbs. gross trailer weight (GTW) and up to 3,000 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 20,000 lbs. weight distribution (WD) and 2,000 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The 2-1/2 inch square receiver tube opening, bigger chain loops, tighter ball mount fit, and reinforced pin holes make these heavy-duty hitches ideal for toy haulers and commercial vehicles alike. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 45520 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 88.96 LBS |
| GROSS TOWING WEIGHT: | 20,000 LBS. |
| GROSS TONGUE WEIGHT: | 3,000 LBS. |

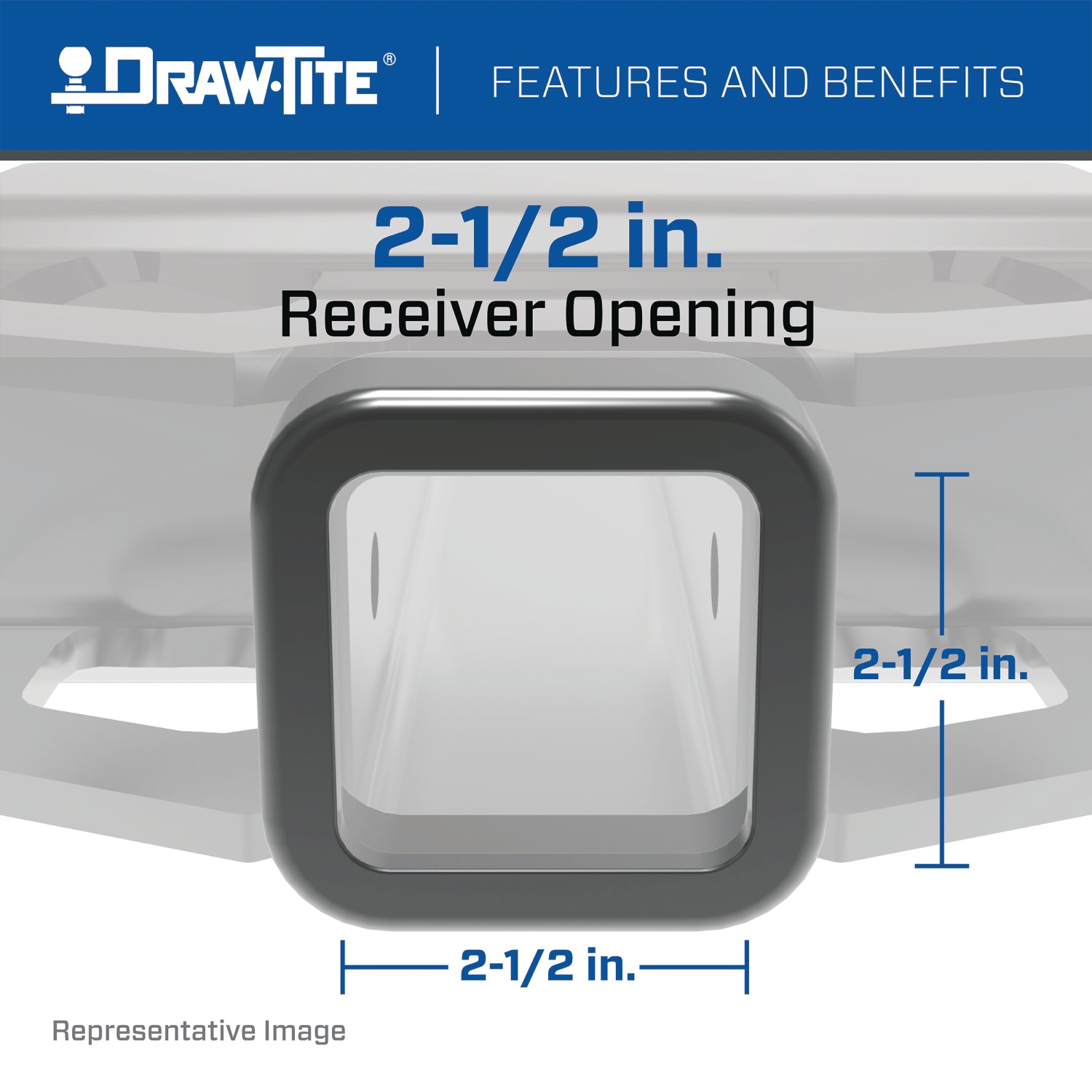

| RECEIVER SIZE: | 2.5 IN. |

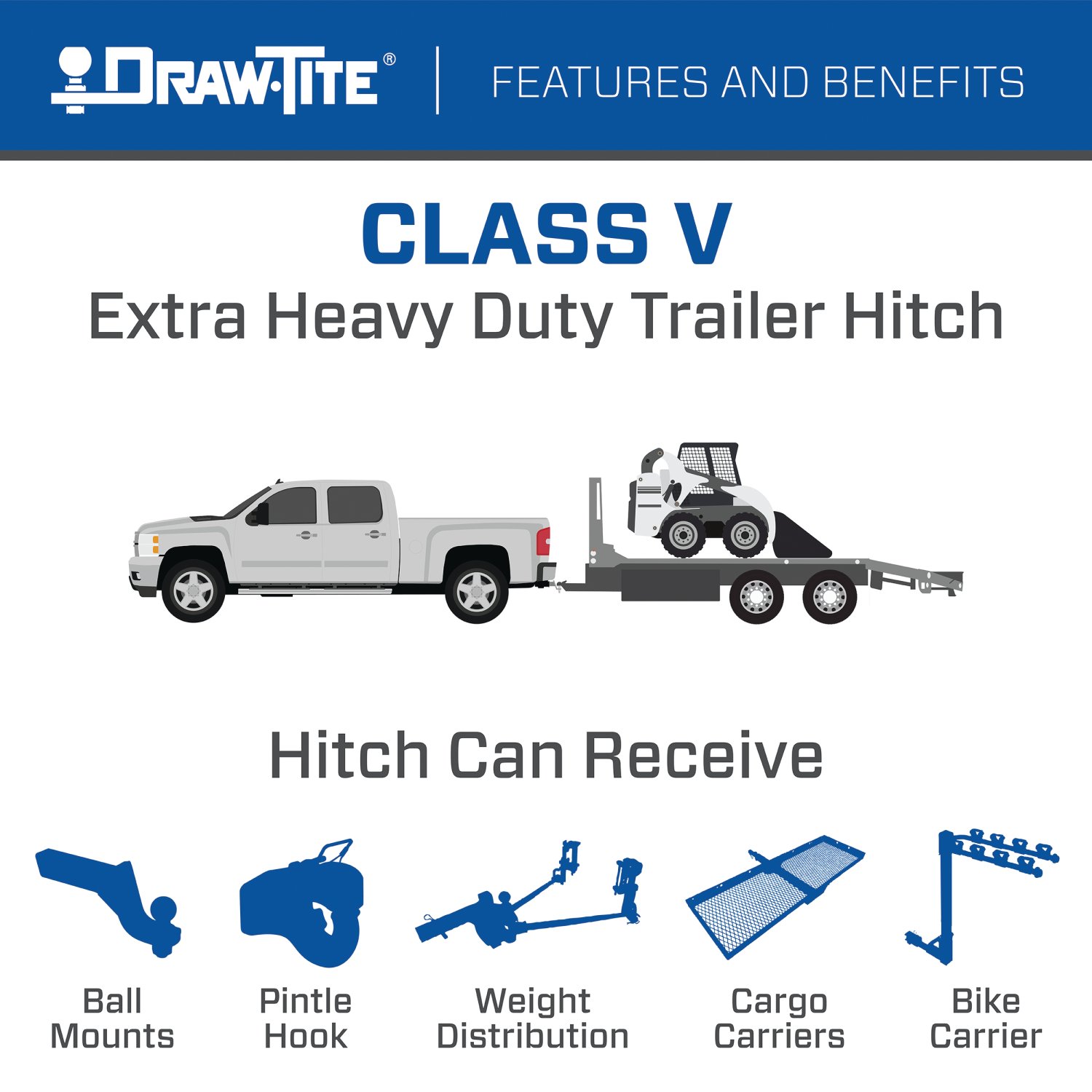

| HITCH CLASS: | V |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 20,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 2,000 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2025 | Ford F-350 Super Duty | Class 5 Trailer Hitch: 20000 lbs 3,000/20,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 2,000/20,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 45 minutes Cab & Chassis Only |
| 2019 - 2025 | Ford F-450 Super Duty | Class 5 Trailer Hitch: 20000 lbs 3,000/20,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 2,000/20,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 45 minutes Cab & Chassis Only |
| 2019 - 2025 | Ford F-550 Super Duty | Class 5 Trailer Hitch: 20000 lbs 3,000/20,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 2,000/20,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 45 minutes Cab & Chassis Only |
The Draw-tite Titan® Class 5 Trailer Hitch, 2-1/2" Square Receiver, Black for Select Ford F-350 Super Duty, Ford F-450 Super Duty, Ford F-550 Super Duty 45520 (Part #DT45520) fits the following vehicles: 2019-2025 Ford F-350 Super Duty; 2019-2025 Ford F-450 Super Duty; 2019-2025 Ford F-550 Super Duty. Always verify your specific year, make, and model before ordering.
The Draw-tite Titan® Class 5 Trailer Hitch, 2-1/2" Square Receiver, Black for Select Ford F-350 Super Duty, Ford F-450 Super Duty, Ford F-550 Super Duty 45520 (Part #DT45520) fits 2019-2025 Ford F-350 Super Duty models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Titan® Class 5 Trailer Hitch, 2-1/2" Square Receiver, Black for Select Ford F-350 Super Duty, Ford F-450 Super Duty, Ford F-550 Super Duty 45520 (Part #DT45520) is designed to fit the 2019-2025 Ford F-350 Super Duty.
The Draw-tite Titan® Class 5 Trailer Hitch, 2-1/2" Square Receiver, Black for Select Ford F-350 Super Duty, Ford F-450 Super Duty, Ford F-550 Super Duty 45520 (Part #DT45520) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. The 45520 hitch is designed for 2019–current Ford F350/450/550 models. For the most up-to-date information regarding specific application years and trim levels, visit the Horizon Global website at www.horizonglobal.com.
Yes. The 45520 hitch is rated for 2019–current Ford F350, F450, and F550 models. Check the Horizon Global website for the most current information on specific trim levels.
The 45520 hitch has a maximum gross trailer weight of 20,000 lb. (9,071 kg) for both weight-carrying and weight-distributing applications. Maximum tongue weight is 3,000 lb. (1,360 kg) for weight-carrying and 2,000 lb. (907 kg) for weight-distributing. Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
The 45520 supports both weight-carrying and weight-distributing configurations. Weight-carrying allows a maximum tongue weight of 3,000 lb. (1,360 kg), while weight-distributing allows 2,000 lb. (907 kg). Both configurations support a maximum gross trailer weight of 20,000 lb. (9,071 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
You will need: a clamp, 24mm socket, 6-inch socket extension, ratchet, torque wrench, crowfoot wrench, and safety glasses. A professional installer typically completes installation in 30 minutes.
The fastener kit 45520F includes 12 M16 × 2.00 × 50mm bolts and 12 M16 × 2.00 CL10 flange lock nuts. Six bolts and six nuts are installed on each side of the hitch to secure the side brackets to the frame rails.
Installation is designed to take approximately 30 minutes for a professional installer. If you do not feel comfortable performing the installation yourself or need assistance, contact a professional installer.
1. Using a clamp, secure and align the side brackets with the attachment holes on the frame rails (see Figure 1). 2. Using a 24mm socket, loosely install 6 M16 bolts and 6 M16 flange nuts on each side to hold the side bracket. 3. Torque all M16 fasteners to 210 lb-ft. (285 N·m). Proper torque is essential to keep the hitch secure during towing.
All M16 fasteners must be torqued to 210 lb-ft. (285 N·m). Proper torque is required to keep the hitch securely mounted to the vehicle when towing.
No. During step 1, loosely install the 6 M16 bolts and 6 M16 flange nuts on each side to hold the side bracket in place. Only after alignment is confirmed should you torque all M16 fasteners to 210 lb-ft. (285 N·m) in step 2.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Load the trailer heavier in front. This helps maintain stability and control while towing.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Regular inspection is important for safe towing.
A hitch or ball that has been damaged should be removed and replaced immediately. Do not continue to use a damaged hitch.
No. Do not cut, weld, or modify the receiver. Modifications will compromise the structural integrity and safety of the hitch.
Slow down when towing and never exceed any posted speed limit. Always wear your seatbelt while towing.
Yes, the 45520 is designed for 2019–current Ford F350, F450, and F550 models. Visit www.horizonglobal.com for the most current trim-level information.
Maximum gross trailer weight is 20,000 lb. (9,071 kg); maximum tongue weight is 3,000 lb. (1,360 kg) for weight-carrying or 2,000 lb. (907 kg) for weight-distributing. Do not exceed your vehicle manufacturer's rating.
You need a clamp, 24mm socket, 6-inch socket extension, ratchet, torque wrench, crowfoot wrench, and safety glasses. Installation takes approximately 30 minutes for a professional.
All M16 bolts and nuts must be torqued to 210 lb-ft. (285 N·m). Proper torque is essential for safe towing.
The manual does not specify whether pre-existing frame holes are required or if drilling is necessary. Contact Horizon Global technical support at 800-632-3290 or TechnicalSupport@horizonglobal.com for clarification.
Always wear safety glasses. Observe safety precautions when working beneath the vehicle. Do not cut holes with a torch. If removed, plug all holes to prevent water and exhaust fume entry.
