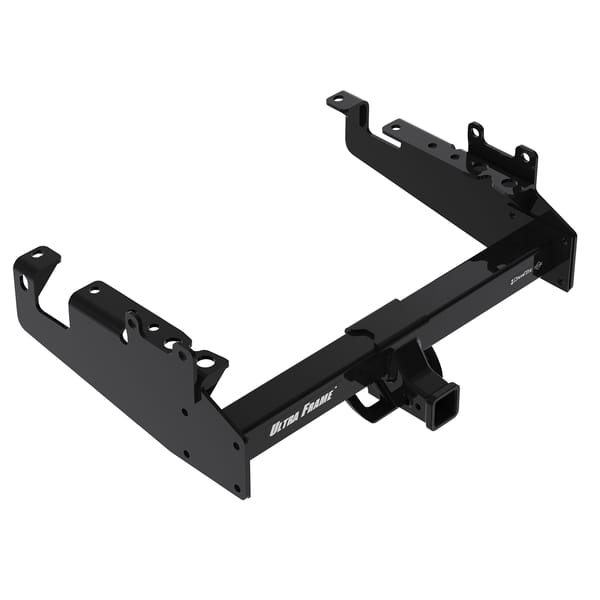

DRAW-TITE Class 5 trailer hitches are the choice of professionals and big toy haulers who need to get the job done! These Class 5 heavy-duty hitches are rated for up to 18,000 lbs. gross trailer weight (GTW) and up to 2,700 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 18,000 lbs. weight distribution (WD) and 2,700 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The 2 inch square receiver tube opening, bigger chain loops, tighter ball mount fit, and reinforced pin holes make these heavy-duty hitches ideal for toy haulers and commercial vehicles alike. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 41953 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 30.7 LBS |
| GROSS TOWING WEIGHT: | 18,000 LBS. |
| GROSS TONGUE WEIGHT: | 2,700 LBS. |

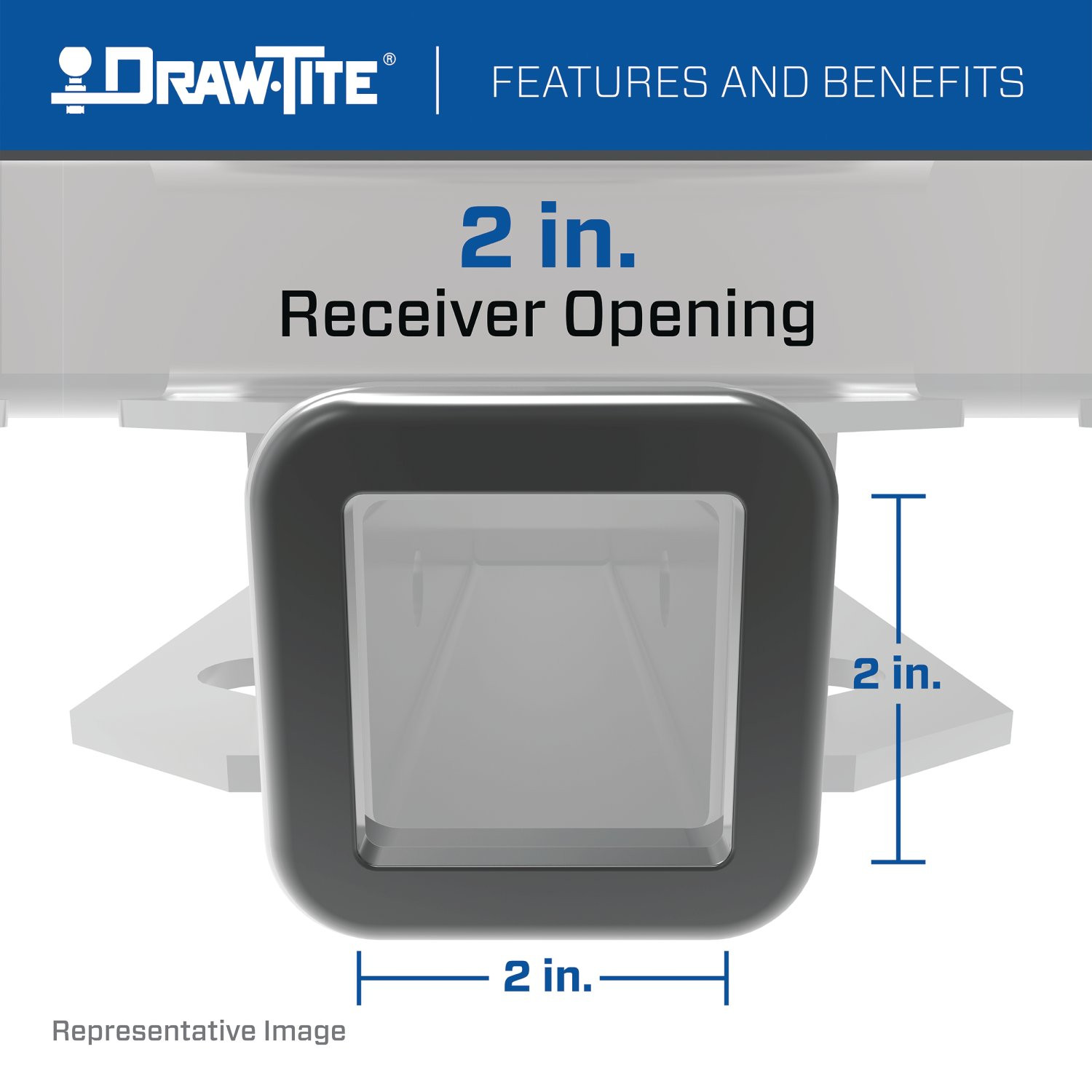

| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | V |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 18,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 2,700 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2025 | Ford F-350 Super Duty | Class 5 Trailer Hitch: 18000 lbs 2,700/18,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 2,700/18,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 45 minutes Cab & Chassis Only |
| 2019 - 2025 | Ford F-450 Super Duty | Class 5 Trailer Hitch: 18000 lbs 2,700/18,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 2,700/18,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 45 minutes Cab & Chassis Only |
| 2019 - 2025 | Ford F-550 Super Duty | Class 5 Trailer Hitch: 18000 lbs 2,700/18,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 2,700/18,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 45 minutes Cab & Chassis Only |
The Draw-tite Ultra Frame® Class 5 Trailer Hitch, 2" Square Receiver, Black for Select Ford F-350 Super Duty, Ford F-450 Super Duty, Ford F-550 Super Duty 41953 (Part #DT41953) fits 2019-2025 Ford F-350 Super Duty models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Ultra Frame® Class 5 Trailer Hitch, 2" Square Receiver, Black for Select Ford F-350 Super Duty, Ford F-450 Super Duty, Ford F-550 Super Duty 41953 (Part #DT41953) is designed to fit the 2019-2025 Ford F-350 Super Duty.
The Draw-tite Ultra Frame® Class 5 Trailer Hitch, 2" Square Receiver, Black for Select Ford F-350 Super Duty, Ford F-450 Super Duty, Ford F-550 Super Duty 41953 (Part #DT41953) fits the following vehicles: 2019-2025 Ford F-350 Super Duty; 2019-2025 Ford F-450 Super Duty; 2019-2025 Ford F-550 Super Duty. Always verify your specific year, make, and model before ordering.
The Draw-tite Ultra Frame® Class 5 Trailer Hitch, 2" Square Receiver, Black for Select Ford F-350 Super Duty, Ford F-450 Super Duty, Ford F-550 Super Duty 41953 (Part #DT41953) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. The 41953 hitch is designed for 2019–Current Ford F350/450/550 models. For the most up-to-date information regarding specific application years and trim levels, visit the Horizon Global website at www.horizonglobal.com.
Yes. The 41953 hitch is compatible with 2019–Current Ford F350, F450, and F550 models.
The 41953 hitch has a maximum gross trailer weight of 18,000 lb. (8,164 kg) and a maximum tongue weight of 2,700 lb. (1,224 kg) for both weight-carrying and weight-distributing configurations. However, you must not exceed the lower of your towing vehicle manufacturer's rating or these limits.
You will need: a ratchet, torque wrench, safety glasses, sockets in sizes 13/16", 7/8", 21mm, and 24mm, a 6'' socket extension, a clamp, and a crowfoot wrench. All fasteners are included in the fastener kit 41953F.
The fastener kit 41953F includes: (12) M16 × 2.00 × 50mm bolts, (12) M16 × 2.00 CL10 flange lock nuts, (8) 9/16-18 × 1.75 GR5 bolts, (8) 9/16-18 flange lock nuts, and (8) 9/16 hardened flat washers.
The average installation time for professional installers is 45 minutes. If you do not feel comfortable performing the installation on your own or need assistance, contact a professional installer.
The manual recommends professional installation if you do not feel comfortable performing the installation on your own or are in need of assistance. The average installation time for professional installers is 45 minutes.
Installation follows three steps: (1) Using a clamp, secure and align the side brackets with attachment holes on the frame rails. Using a 24mm socket, loosely install (6) M16 bolts and (6) M16 flange nuts to hold each side bracket. (2) Raise the center section into position and loosely secure it to the side brackets using (4) 9/16'' bolts, (4) flat washers, and (4) locknuts on both sides. (3) Torque all 9/16'' fasteners to 120 lb.ft. (163 N·M) and all M16 fasteners to 210 lb.ft. (285 N·M).
All fasteners must be installed loosely first. The M16 bolts and flange nuts holding the side brackets, and the 9/16'' bolts, flat washers, and locknuts connecting the center section to the side brackets, are all installed loosely in steps 1 and 2. Final torquing occurs only in step 3.
All M16 fasteners must be torqued to 210 lb.ft. (285 N·M). Proper torque is needed to keep the hitch secure to the vehicle when towing.
All 9/16'' fasteners must be torqued to 120 lb.ft. (163 N·M). Proper torque is needed to keep the hitch secure to the vehicle when towing.
Key safety warnings include: DO NOT cut, weld or modify the receiver. DO NOT cut access or attachment holes with a torch. ALWAYS wear your seatbelt and safety glasses during installation. ALWAYS read and follow all warnings and instructions for your vehicle and other accessories before use. LOAD the trailer heavier in front. DO NOT exceed the lower of your towing vehicle manufacturer's rating or 18,000 lb. GVWR / 2,700 lb. tongue weight. SLOW DOWN when towing and NEVER exceed posted speed limits. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel steady; DO NOT apply brakes or speed up. Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
After installation, check that all fasteners are tight and the hitch is securely mounted to the vehicle. The manual recommends checking the hitch frequently to ensure all fasteners and the ball are properly tightened. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
The manual recommends checking the hitch frequently to ensure all fasteners and the ball are properly tightened. Periodic checks are necessary to keep the hitch secure to the vehicle when towing.
If the hitch or ball has been damaged, it must be removed and replaced. Do not continue to use a damaged hitch.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. DO NOT apply your brakes and DO NOT speed up.
A clamp is used to secure and align the side brackets with the attachment holes on the frame rails before fastening them with bolts and nuts.
Six M16 bolts and six M16 flange nuts are used to hold each side bracket, for a total of 12 bolts and 12 nuts (6 on each side).
Four 9/16'' bolts, four flat washers, and four locknuts are used on each side (8 bolts, 8 washers, and 8 locknuts total) to connect the center section to the side brackets.
Yes, the 41953 is designed for 2019–Current Ford F350, F450, and F550 models. Check the Horizon Global website for the most current application information.
Maximum gross trailer weight is 18,000 lb. (8,164 kg) and maximum tongue weight is 2,700 lb. (1,224 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
You will need a ratchet, torque wrench, safety glasses, sockets (13/16", 7/8", 21mm, 24mm), 6'' socket extension, clamp, and crowfoot wrench. All fasteners are included.
Average installation time for professional installers is 45 minutes. Professional installation is recommended if you are not comfortable performing it yourself.
Torque all 9/16'' fasteners to 120 lb.ft. (163 N·M) and all M16 fasteners to 210 lb.ft. (285 N·M). Proper torque is essential to keep the hitch secure when towing.
No. DO NOT cut, weld, or modify the receiver. DO NOT cut access or attachment holes with a torch.
SLOW DOWN when towing and NEVER exceed any posted speed limit. Always wear your seatbelt.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Periodic checks are necessary to keep the hitch secure when towing.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
