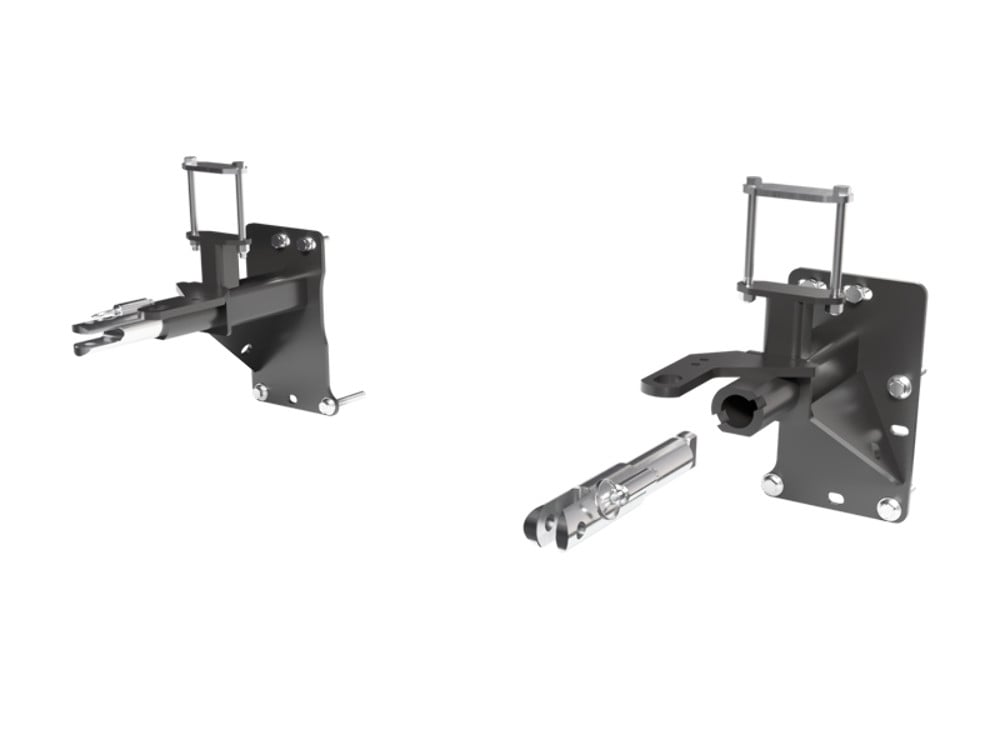

{'feature': 'Custom Design: Each Blue Ox BX1144 Tow Bar Bracket is meticulously designed for a specific towed vehicle, ensuring a perfect fit and optimal performance.', 'benefit': 'This assures a seamless connection between your vehicle and the tow bar.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX1144 Tow Bar Bracket is a perfect blend of durability, versatility, and convenience for all your towing needs. Expertly designed with a custom fit for each specific towed vehicle, this robust tow bar bracket ensures a seamless connection between your vehicle and the tow bar. Made from high-quality steel, this tow bar bracket is built to last with a black powder coat finish that provides extra protection against corrosion and wear. The bolt-on mounting type simplifies installation and ensures a secure fit for your vehicle. With all necessary hardware included, you can effortlessly install the Blue Ox BX1144 Tow Bar Bracket yourself at your convenience.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2023 | Jeep Cherokee | Vehicles with Aluminum Bumper w/out Tow Hooks, Adaptive Cruise Control, Shutters, & Technology Package, 2: Speed Transfer Case, Install Rating 3, Comes with Removable Attachment Tabs, Install Rating 3, Bumper Fascia Must Be Removed/Replaced During Install, Requires Some Trimming of Bumper/Fascia/Plastic/And/Or Grille, Baseplate Has Non 24 in. Spaced Attachment Tabs, Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar, Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP CHEROKEE LMTD W/TECH PK (Part #FDRWBX1144) fits the following vehicles: 2019-2023 Jeep Cherokee. Always verify your specific year, make, and model before ordering.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP CHEROKEE LMTD W/TECH PK (Part #FDRWBX1144) is designed to fit the 2019-2023 Jeep Cherokee.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP CHEROKEE LMTD W/TECH PK (Part #FDRWBX1144) fits 2019-2023 Jeep Cherokee models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP CHEROKEE LMTD W/TECH PK (Part #FDRWBX1144) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BX1144 is designed for 2019-2022 Jeep Cherokee models with an aluminum bumper without tow hooks, Adaptive Cruise Control, Shutters & Technology Package, and a 2-Speed Transfer Case. If your vehicle's front looks different from the reference image in the manual, contact Blue Ox Technical Service at (402) 385-3051 before purchasing.
The BX1144 attachment tabs are 19 inches high and 38 inches wide.
Required tools include: flat screwdriver, utility knife, torque wrench, drill with 1/4" bit, 8MM socket, 10MM socket, 15MM socket, 17MM socket, 7/16" socket, 7/16" wrench, 9/16" socket, 9/16" wrench, 3/4" wrench, T30 Torx, 5/16" nut driver, and Loctite Red.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. If needed, Blue Ox Dealers can be found at www.blueox.com or by contacting Technical Service at (402) 385-3051.
Yes. The fascia and fascia cover must be removed for baseplate installation and then reinstalled after the baseplate is mounted. The manual notes that some trimming of the fascia is required.
Yes. You must drill out three pop rivets underneath the vehicle in front of each tire using a 1/4" drill bit. This is done on both sides of the vehicle. The manual also notes that some trimming of the fascia is required.
Trimming requirements depend on your vehicle configuration. For non-shutter models: trim the fascia on one side to allow room for the electrical bracket, and remove horizontal slats from the corner of the fascia on both sides. For shutter models: trim the fascia to allow room for the electrical bracket, remove the middle shutter to access the shutter housing, cut a hole in the top of the shutter housing for electrical routing, mark and trim the shutter before reinstalling, and optionally trim fascia for the breakaway switch. If installing a breakaway switch, trim fascia and install the switch before reinstalling the shutter.
10MM Grade 8.8 bolts should be torqued to 16 foot-pounds.
1/4"-20 Grade 5 bolts should be torqued to 10 foot-pounds.
3/8"-16 Grade 5 bolts should be torqued to 33 foot-pounds.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. Reference your vehicle owner's manual for manufacturer's towing specifications.
Yes. Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle. Do not mount the cables against wires, hoses or brake lines.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Use Loctite Red on all bolts and tighten to the recommended torque specifications.
Yes. Remove the attachment tabs when not in use, if applicable.
The BX8848 Tail Light Wiring Kit is recommended for this vehicle, but the manual does not explicitly state whether it is required or optional.
The kit includes: 6 existing 10MM bolts (reused from vehicle), 8 10MM-1.25 x 40MM Grade 8.8 bolts, 1 1/4"-20 x 3/4" Grade 5 bolt, 2 1/4"-20 x 1" Grade 5 bolts, 4 3/8"-16 x 4-1/2" Grade 5 bolts, 4 3/8"-16 hex nylon insert lock nuts, 3 1/4"-20 hex nylon nuts, 2 1/4" flat washers, 8 3/8" flat washers, 8 10MM lock washers, 2 Class IV safety cables, 4 1/2" quicklinks, 6 6.3MM plastic rivets, and 2 black cap plug receivers.
Yes. Use a sufficient amount of Loctite Red on all bolt threads before tightening. Tighten all bolts according to the torque chart provided unless specified otherwise.
The installation sequence is: (1) remove fascia cover and fascia; (2) remove wheel well covers and trim; (3) remove frame extension and bumper; (4) slide first baseplate into place and start bolts without fully tightening; (5) tape spacer plate to bumper and reinstall bumper with spacer plate; (6) slide second baseplate into place and start bolts; (7) install bottom bumper bolts; (8) apply Loctite Red to bottom baseplate bolts and tighten all hardware; (9) install brackets on top of bumper; (10) attach safety cables; (11) install electrical bracket and trim fascia as needed; (12) reinstall fascia and fascia cover.
Yes. A spacer plate (part 101-10407, 1/4" x 1" x 4" with slots) is placed between the bumper and the frame at the top of the bumper. The spacer plate is taped in position on the back of the bumper before the bumper is reinstalled.
The frame extension is removed using a 15MM socket to remove three bolts and a 10MM socket to remove the nut. The frame extension will not be reinstalled.
When removing the fascia, unhook the plug on the driver side by pulling out the yellow piece and up on the red part to unhook. Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly.
Yes. Non-shutter models require trimming the fascia for the electrical bracket and removing horizontal slats from the corner. Shutter models require removing the middle shutter, cutting a hole in the shutter housing for electrical routing, trimming the shutter before reinstalling, and ensuring shutters can fully open and close. If installing a breakaway switch on shutter models, trim fascia and install the switch before reinstalling the shutter.
Yes. Some vehicles require using an 8MM socket to remove four bolts from the wheel well edge, then a 10MM socket to remove the bolt behind the trim. Other vehicles require using an 8MM socket to remove two bolts and two push pins from the wheel well edge, then a 10MM socket to remove the bolt behind the trim. Both procedures are done on both sides of the vehicle.
Place all removed components on a flat, sturdy surface. All items will be reinstalled unless otherwise noted after the baseplate is installed. The frame extension will not be reinstalled.
There are thirteen push pins on the fascia cover: six on each side and one in the center.
The electrical bracket is secured using two 1/4" bolts with hardware (nylon nuts and washers). For non-shutter models, the bracket is installed on the side of the fascia. For shutter models, the bracket is installed through a hole cut in the top of the shutter housing.
The breakaway switch is attached to the electrical mounting bracket using one 1/4" bolt and nut. This is optional and requires trimming the fascia to allow room for the switch. If installing on shutter models, trim fascia and install the switch before reinstalling the shutter.
The bracket on top of the bumper is secured to the baseplate using two 3/8" x 4-1/2" bolts with nylon lock nuts on each side of the vehicle.
New plastic rivets (6.3MM) are installed into the underside of the fascia where the factory rivets were removed during the installation process.
Handling of some cosmetic parts may require the use of protective covers, rags, and specialty tools to prevent damage.
Use a good quality paint to spray cut edges of frame to prevent rusting.
When using power drills, be aware of the dangers of torque and drill bit length. When using a reciprocating saw, be aware of objects behind the cutting surface.
Blue Ox offers a three-year limited warranty from the date of delivery to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. The warranty is void if the product is improperly installed, improperly used, modified, neglected, not properly serviced and maintained, misused, damaged in an accident, or if the user fails to follow the instructional material. The warranty does not cover normal wear and tear, paint, or rust. Coverage requires the customer warranty card to be returned within 30 days of purchase and a copy of the original invoice.
Register your product online at www.blueox.com. Registration is crucial to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
Contact Blue Ox Technical Service at (402) 385-3051. You can speak with their technical service team about any questions regarding the performance of the product. Blue Ox is committed to providing exceptional customer care throughout your lifetime with their products.
No. Use only genuine factory replacement parts on the baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Failing to follow this requirement will void the manufacturer's warranty. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor.
Yes. Towing behind a non-motorized vehicle will void the warranty.
You need: torque wrench, drill with 1/4" bit, sockets (8MM, 10MM, 15MM, 17MM, 7/16", 9/16"), wrenches (7/16", 9/16", 3/4"), T30 Torx, 5/16" nut driver, flat screwdriver, utility knife, and Loctite Red.
Torque 10MM Grade 8.8 bolts to 16 foot-pounds. Use Loctite Red on all bolt threads before tightening.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Use Loctite Red on all bolts and tighten to recommended torque specifications.
The dimensional variations between otherwise identical vehicles can be considerable. While the baseplate was designed for easy installation, it may be necessary to tailor the baseplate slightly to compensate for vehicle manufacturer's tolerances. Contact Blue Ox Technical Service at (402) 385-3051 for assistance with fit adjustments.
Do not use the baseplate if it is damaged or missing parts. If the baseplate is in an accident, it must be replaced and not reused, as an accident can cause unseen damage that could result in more damage or serious injury. Contact Blue Ox at (402) 385-3051 for replacement.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. If connections are not working, check that the plug on the driver side is properly reconnected by pulling out the yellow piece and pushing up on the red part to hook it back in.
