Custom-designed for each specific towed vehicle, ensuring a precise and secure fit.
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

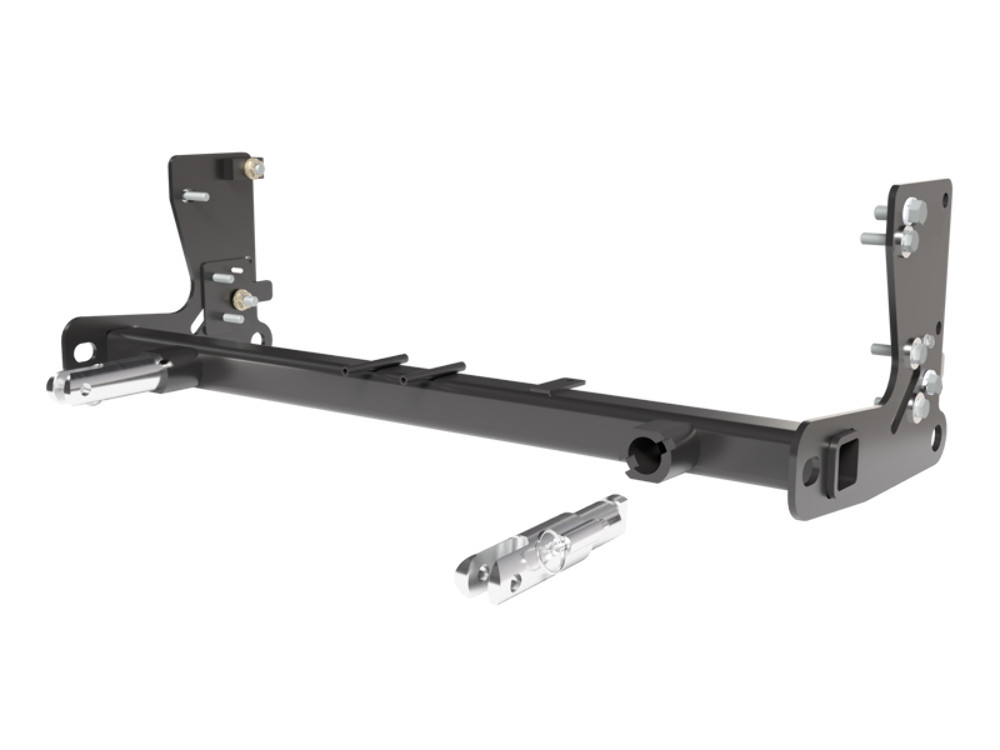

The Blue Ox BX1145 Tow Bar Bracket is a custom-designed towing solution, meticulously engineered for each specific towed vehicle. This high-quality base plate comes with a durable powder coat finish that helps resist corrosion and ensures long-lasting performance. The bolt-on mounting type offers a secure fit and easy installation process. With the Blue Ox BX1145, you can tow with confidence knowing that it's constructed for heavy-duty use. The package includes all the necessary hardware and clear instructions, making installation a breeze even for do-it-yourself enthusiasts. With this premium tow bar bracket, you get uncompromising safety, convenience, and durability.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2026 | Jeep Gladiator | Also Mojave, Vehicles With Adaptive Cruise Control, Install Rating 3, Comes with Removable Attachment Tabs: Bumper Fascia Must Be Removed/Replaced During Install, Requires Some Trimming of the Belly Pan |
The BlueOx Base Plate, Jeep Gladiator BX1145 (Part #FDRWBX1145) fits 2020-2026 Jeep Gladiator models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Base Plate, Jeep Gladiator BX1145 (Part #FDRWBX1145) fits the following vehicles: 2020-2026 Jeep Gladiator. Always verify your specific year, make, and model before ordering.
Yes, the BlueOx Base Plate, Jeep Gladiator BX1145 (Part #FDRWBX1145) is designed to fit the 2020-2026 Jeep Gladiator.
The BlueOx Base Plate, Jeep Gladiator BX1145 (Part #FDRWBX1145) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX1145 baseplate is designed for 2020-2026 Jeep Gladiator models, including the Mojave trim and vehicles with Adaptive Cruise Control. It fits Rubicon, Sport, Sport S, and Overland trim levels. However, the manual notes that dimensional variations between otherwise identical vehicles can be considerable, and the baseplate may need slight tailoring to compensate for manufacturer tolerances.
The attachment tab height is 17.25 inches and the attachment tab width is 24 inches.
Required tools include: large vise grip, reciprocating saw, torque wrench, flat screwdriver, drill, 1/2-inch drill bit, 8MM socket, 10MM socket, 13MM socket, 16MM socket, 18MM socket, 7/16-inch socket, 7/16-inch wrench, 3/4-inch socket, 3/4-inch wrench, and Loctite Red.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051. The manual does not explicitly prohibit DIY installation but strongly recommends dealer installation.
Yes, the bumper must be removed and reinstalled. The installation process requires removing push pins, belly pan, and skid plate (on some models), then removing the bumper using an 18MM socket to remove four nuts holding the bumper to the frame on both sides of the vehicle. The bumper is reinstalled after the baseplate installation is complete.
Yes, drilling is required. Step 10 requires using a 1/2-inch drill bit to drill the top back hole using the baseplate as a guide. This must be done on both sides of the vehicle. The manual also warns to be aware of the dangers of torque and drill bit length when using power drills.
Yes, trimming is required. The belly pan must be trimmed for baseplate clearance using one of two methods: Option 1 is to hold the belly pan as close to the original position, mark, and trim; Option 2 is to measure the distance from the center of the belly pan bracket hole to the inside and outside of the baseplate and mark, then trim accordingly. The manual notes that measurements may need slight adjustment for clearance.
Step 7 requires slotting the middle bottom hole on the frame and bending inward to create an access hole on both sides of the vehicle. Additionally, Step 9 may require reaming out the bottom back hole on both sides. The manual recommends using a good quality paint to spray cut edges of frame to prevent rusting.
The removal sequence is: (1) Remove two push pins from the plastic piece behind the bumper; (2) Remove belly pan using appropriate sockets for your model (13MM for Rubicon, 8MM for Sport/Sport S/Overland); (3) For Sport, Sport S, and Overland models, remove skid plate using 16MM socket; (4) Unplug electrical from passenger side; (5) Remove bumper using 18MM socket; (6) Remove frame bracket and belly pan bracket (if applicable) using 16MM or 10MM socket depending on model; (7) Slot and bend frame holes. All removed items are reinstalled after baseplate installation.
Step 8 requires holding the frame bracket in place with a vise grip, then sliding the baseplate into position and starting the top front 10MM existing bolt with hardware. Ensure all holes line up and the baseplate is level, then snug down the bolt on both sides. Step 9 then installs additional bolts depending on model type (belly pan bracket bolts for Rubicon with steel belly pan, spacer plate bolts for other models, and existing 6MM bolt for Mojave). Step 10 drills and installs the top back hole. All bolts must be tightened with Loctite Red to appropriate torque specifications.
The manual provides general torque charts for metric and inch bolts in Grade 5, Grade 8, Grade 8.8, and Grade 10.9. However, it does not specify which grade applies to each individual bolt in the BX1145 assembly. The manual states to use Loctite Red on all bolt threads and tighten all bolts according to the torque chart provided unless specified otherwise. For specific torque values for individual bolts, contact Blue Ox Technical Service at (402) 385-3051.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for manufacturer's towing specifications.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX1145 includes two Class III Safety Cables (part 226-0049) and two 3/8-inch Quicklinks (part 229-0512). The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must not be mounted against wires, hoses, or brake lines. These cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
If the baseplate is in an accident, it must be replaced. Do NOT use it again, as an accident can cause unseen damage and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Before reinstalling the fascia, ensure that ALL electrical connections are plugged in and accessories are functioning properly. After installation, it is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended specifications. Remove the attachment tabs when not in use (if applicable). Blue Ox offers service at their factory for a nominal fee to service your towing system to ensure it is in proper working condition.
The hardware kit includes: 2 existing 6MM bolts, 6 existing 10MM bolts, 4 Whiz Nuts with 10-inch wire (61-4029), 4 Nut Plates with 14-inch wire (61-5208), 1 Baseplate (61-8436), 2 Attachment Tab Assemblies (62-3468), 2 Spacer Plates (101-10340), 2 Flat washers (102-7778), 1 1/4-inch bolt (201-0050), 4 1/2-inch bolts (201-0068), 2 #10-32 screws (201-0192), 4 3/8-inch bolts (201-0440), 2 #12-14 self-drilling screws (201-0979), 2 #10-32 hex nuts (202-0047), 1 1/4-inch nylon nut (202-0102), 4 3/8-inch flat washers (203-0003), 4 3/8-inch lock washers (203-0010), 4 1/2-inch lock washers (203-0012), 2 #10 lock washers (203-0054), 1 electrical bracket (299-0685), 2 Class III Safety Cables (226-0049), 2 3/8-inch Quicklinks (229-0512), and 2 Black Cap Plug Receivers (290-0437).
The BX8848 Tail Light Wiring Kit is recommended for this vehicle, but the manual does not explicitly state whether it is required or optional. Contact Blue Ox Technical Service at (402) 385-3051 for clarification on whether this kit is necessary for your specific application.
Yes, installation procedures vary by trim level. Rubicon models with plastic bumpers have 4 belly pan bolts; Rubicon models with steel bumpers have 7 belly pan bolts. Sport, Sport S, and Overland models have 8 push pins and 2 bolts on the belly pan, and require removal of the skid plate. Mojave models require additional steps to remove and straighten a hose clamp. Additionally, Rubicon with steel belly pan models use existing 10MM bolts and a belly pan bracket, while other models use spacer plates. The manual provides specific socket sizes and bolt counts for each model.
You must register your product online at www.blueox.com. It is crucial to register your product so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls. The warranty is valid only if the customer warranty card is returned by the original purchaser within 30 days of purchase, and a copy of the original invoice showing date and place of purchase must accompany any warranty claim.
The BX1145 baseplate has a three-year limited warranty from the date of delivery to the original (first) retail purchaser. During this period, Blue Ox will repair or replace any parts found to be defective in material and workmanship under normal use and service. The warranty does not cover incorrect or improper installation, improper use, modification or neglect, failure to properly service and maintain, misuse, accident, normal wear and tear, paint or rust.
Yes, the BX1145 is designed for 2020-2026 Jeep Gladiator models including Mojave and Adaptive Cruise Control versions. Fits Rubicon, Sport, Sport S, and Overland trims. Note that dimensional variations between vehicles can be considerable and slight tailoring may be needed.
Yes, the bumper must be removed and reinstalled. The installation requires removing the belly pan, skid plate (some models), and bumper before installing the baseplate, then reinstalling them afterward.
Yes, a 1/2-inch drill bit is required to drill the top back hole on both sides using the baseplate as a guide. Trimming of the belly pan for clearance is also required.
Required tools include: large vise grip, reciprocating saw, torque wrench, flat screwdriver, drill, 1/2-inch drill bit, sockets (8MM, 10MM, 13MM, 16MM, 18MM, 7/16-inch, 3/4-inch), wrenches (7/16-inch, 3/4-inch), and Loctite Red.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Reference your vehicle owner's manual for manufacturer's towing specifications.
Yes, two Class III Safety Cables and two 3/8-inch Quicklinks are included. Permanent baseplate safety cables are strongly recommended and must be connected from the baseplate to the frame rail or cross member and not mounted against wires, hoses, or brake lines.
Yes, Blue Ox recommends installation by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Find a dealer at www.blueox.com or call (402) 385-3051.
If holes do not line up during Step 8, ensure the baseplate is level and all holes are properly aligned before snugging down the bolt. The manual notes that dimensional variations between otherwise identical vehicles can be considerable, and the baseplate may need slight tailoring to compensate for manufacturer tolerances. If alignment issues persist, contact Blue Ox Technical Service at (402) 385-3051.
Step 9 notes that the bottom back hole may need to be reamed out. If you encounter difficulty drilling or reaming this hole, contact Blue Ox Technical Service at (402) 385-3051 for guidance. Do not force the process, as this could damage the frame or baseplate.
Step 9b states that you may need to use a pry bar to allow more room for the spacer plate to slide into place. If the spacer plate still does not fit after using a pry bar, contact Blue Ox Technical Service at (402) 385-3051 for assistance.
