BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP WAGONEERBlue OxIn Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Blue Ox
Verify Fitment
Select your vehicle to confirm this part fits.
2022 - 2025 Jeep Grand Wagoneer
Confirmed to Fit
2023 - 2025 Jeep Grand Wagoneer L
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!

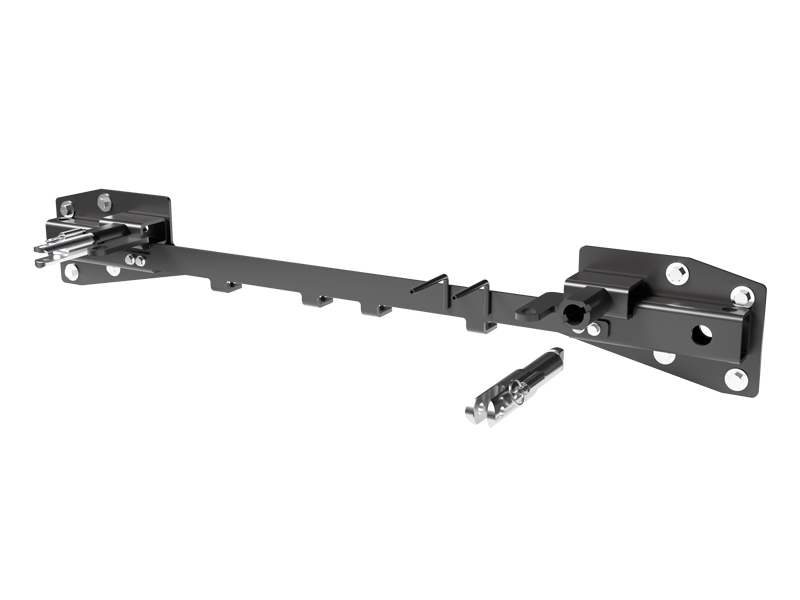

Custom Design: The Blue Ox BX1149 Tow Bar Bracket is meticulously designed for each specific towed vehicle, ensuring a perfect fit and optimal performance.
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX1149 Tow Bar Bracket is a premium, high-quality base plate designed specifically for your towed vehicle. With its durable and corrosion-resistant powder-coat finish, this tow bar bracket is built to last and withstand the toughest conditions. It comes with an easy bolt-on mounting type that requires no complicated tools or professional assistance. Plus, with every purchase, you get all the necessary mounting hardware and comprehensive instructions for a hassle-free, DIY installation. Enhance your towing experience with the reliability and performance of the Blue Ox BX1149 Tow Bar Bracket.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2022 - 2025 | Jeep Grand Wagoneer | No Tow Hooks, Vehicles With Adaptive Cruise Control & Shutters, Comes with Removable Attachment Tabs, Install Rating 3, Bumper Fascia Must Be Removed/Replaced During Install, Requires Some Trimming of Bumper/Fascia/Plastic/And/Or Grill, Minor Drilling Required, Baseplate Has Non 24 in. Spaced Attachment Tabs, Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar, Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
| 2023 - 2025 | Jeep Grand Wagoneer L | No Tow Hooks, Vehicles With Adaptive Cruise Control & Shutters, Comes with Removable Attachment Tabs, Install Rating 3, Bumper Fascia Must Be Removed/Replaced During Install, Requires Some Trimming of Bumper/Fascia/Plastic/And/Or Grill, Minor Drilling Required, Baseplate Has Non 24 in. Spaced Attachment Tabs, Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar, Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
Yes, the BX1149 is designed for 2022-2025 Jeep Grand Wagoneer (No Tow Hooks), including the L model with Adaptive Cruise Control and Shutters. However, if the front of your vehicle looks different than shown in the manual, contact Blue Ox technical service at (402) 385-3051 before proceeding with installation.
No. The BX1149 is specifically designed for the 2022-2025 Jeep Grand Wagoneer with no factory tow hooks. If your vehicle has tow hooks, this baseplate is not compatible. Contact Blue Ox at (402) 385-3051 to confirm your vehicle configuration before purchasing.
The BX1149 attachment tabs are 23 inches in height and 37 inches in width. Ensure your tow bar is compatible with this tab width before purchasing.
Required tools include: large vise grip, flat screwdriver, utility knife, Phillips screwdriver, torque wrench, drill, tape measure, 3/8" drill bit, 10MM socket, 9/16" socket, 9/16" wrench, and Loctite Red. You will also need an 8MM socket, 13MM socket, 18MM socket or wrench, 1/4" drill bit, and 1/2" drill bit during installation.
Yes. Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. The installation involves removal of cosmetic parts, drilling, trimming, and electrical work. Blue Ox Dealers can be found at www.blueox.com or by contacting (402) 385-3051.
The fascia and windshield washer fluid reservoir are removed and reinstalled. The front bumper is removed and will not be reinstalled. A foam piece from behind the fascia is removed and will not be reinstalled. A plastic piece from the bottom of the bumper is removed and will be reinstalled with the baseplate. Place all removed components on a flat, sturdy surface during installation.
Yes. Drilling is required. You will drill out four plastic rivets using a 1/4" drill bit, drill two 1/2" holes in the frame using a 1/2" drill bit (one on each side), and drill the bottom inside hole on the front of the baseplate using a 1/2" drill bit. Additionally, plastic shroud trimming is required using a utility knife on both sides of the vehicle.
Using a utility knife, trim the plastic shroud on both sides of the vehicle as shown in the manual and remove the pieces. Additionally, hold the fascia as close to its original position and mark and trim the fascia around the convenience links and attachment tabs before reinstalling.
For Grade 5 bolts: 78 foot-pounds. For Grade 8 bolts: 119 foot-pounds. The BX1149 uses Grade 5 bolts (1/2"-13 x 1-1/2" hex head bolts) which require 78 foot-pounds of torque. Always use Loctite Red on all bolt threads before tightening.
For Grade 5 bolts: 33 foot-pounds. For Grade 8 bolts: 47 foot-pounds. The BX1149 uses Grade 5 bolts (3/8"-16 x 1-1/4" hex head bolts) which require 33 foot-pounds of torque. Always use Loctite Red on all bolt threads before tightening.
For Grade 5 bolts: 10 foot-pounds. For Grade 8 bolts: 14 foot-pounds. The BX1149 uses Grade 5 bolts (1/4"-20 x 3/4" hex head bolts) which require 10 foot-pounds of torque. Always use Loctite Red on all bolt threads before tightening.
The BX8848 Tail Light Wiring Kit is recommended for this vehicle, but the manual does not explicitly state whether it is required. Contact Blue Ox at (402) 385-3051 or consult your dealer to confirm if this kit is necessary for your specific installation.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. Reference your vehicle owner's manual for manufacturer's towing specifications and ensure you do not exceed your vehicle's GVWR when towing.
Yes. Permanent baseplate safety cables (included: part number 226-0049, Class IV Safety Cables) are strongly recommended and should remain installed as long as the baseplate is installed on the vehicle. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. These cables are to be used in conjunction with, and NOT a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
The permanent baseplate safety cables should be attached to the provided convenience link on the baseplate and secured to a solid piece of the frame of the vehicle. The manual shows recommended installation to the frame. Do not mount the cables against wires, hoses, or brake lines. If additional options interfere with suggested mounting, secure the cables to a solid piece of the frame as described in the General Information sheet. Install on both sides of the vehicle.
Ensure all electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia. Verify that the baseplate is level before final tightening. Check that all bolts are tightened to the appropriate torque specifications using Loctite Red. Ensure safety cables do not rub against any hoses or moving parts. Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended torque specifications. Paint cut edges of the frame with good quality paint to prevent rusting. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls. Blue Ox offers service at rallies and at their factory for a nominal fee.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to use genuine parts will void the manufacturer's warranty.
Yes, the BX1149 is designed for 2022-2025 Jeep Grand Wagoneer (No Tow Hooks) including L models with Adaptive Cruise Control and Shutters. If your vehicle has factory tow hooks, this baseplate is not compatible.
You will need a torque wrench, drill with 3/8" and 1/2" bits, sockets (8MM, 10MM, 13MM, 18MM, 9/16"), utility knife, screwdrivers, tape measure, vise grip, and Loctite Red. Professional installation by a Blue Ox Dealer is recommended.
Yes. You will drill four plastic rivets with a 1/4" bit, two 1/2" holes in the frame, and trim plastic shroud with a utility knife on both sides. Paint cut frame edges to prevent rust.
Use Loctite Red on all bolts. Grade 5 torque: 1/4"-20 = 10 ft-lbs, 3/8"-16 = 33 ft-lbs, 1/2"-13 = 78 ft-lbs. Grade 8 torque: 1/4"-20 = 14 ft-lbs, 3/8"-16 = 47 ft-lbs, 1/2"-13 = 119 ft-lbs.
Yes. Class IV Safety Cables (part 226-0049) and 1/2" Quicklinks (part 229-0512) are included. Mount cables from the baseplate convenience link to the vehicle frame on both sides. Do not mount against wires, hoses, or brake lines.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for towing specifications and do not exceed your vehicle's GVWR.
The fascia and windshield washer fluid reservoir are removed and reinstalled. The front bumper is removed permanently. A foam piece and plastic bumper piece are removed; the plastic piece is reinstalled with the baseplate.
If the front of your vehicle looks different than shown in the manual, contact Blue Ox technical service at (402) 385-3051 before proceeding. Do not force the baseplate into place. The dimensional variations between otherwise identical vehicles can be considerable, and the baseplate may need slight tailoring to compensate for vehicle manufacturer's tolerances.
Ensure all bolts are tightened to the appropriate torque specifications using Loctite Red on all bolt threads. Use a torque wrench to verify: 1/4"-20 Grade 5 = 10 ft-lbs, 3/8"-16 Grade 5 = 33 ft-lbs, 1/2"-13 Grade 5 = 78 ft-lbs. Before each towing trip, inspect all towing equipment for loose bolts and retighten as needed.
Reposition the safety cables so they do not rub against any hoses or moving parts. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. If the recommended mounting interferes with other components, secure the cables to a solid piece of the frame as described in the General Information sheet. Improper cable routing could cause fluid leaks or electrical shorts.
Ensure all electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia. Identify the correct wires using a test light: mark the wire that is live at all times (do not use), mark the wire that is live when running lights are on (use for tail light), and mark the wire that is live when brakes are pushed (use for brake and turn light). Repeat on both sides of the vehicle. If problems persist, consult the BX8848 Tail Light Wiring Kit instructions or contact Blue Ox at (402) 385-3051.
