{'feature': 'Custom Design', 'description': 'Each Blue Ox BX1152 Tow Bar Bracket is uniquely designed to fit specific towed vehicles, ensuring a perfect fit and seamless integration.
Material: Steel
Finish: Powder Coat
Color: Black
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

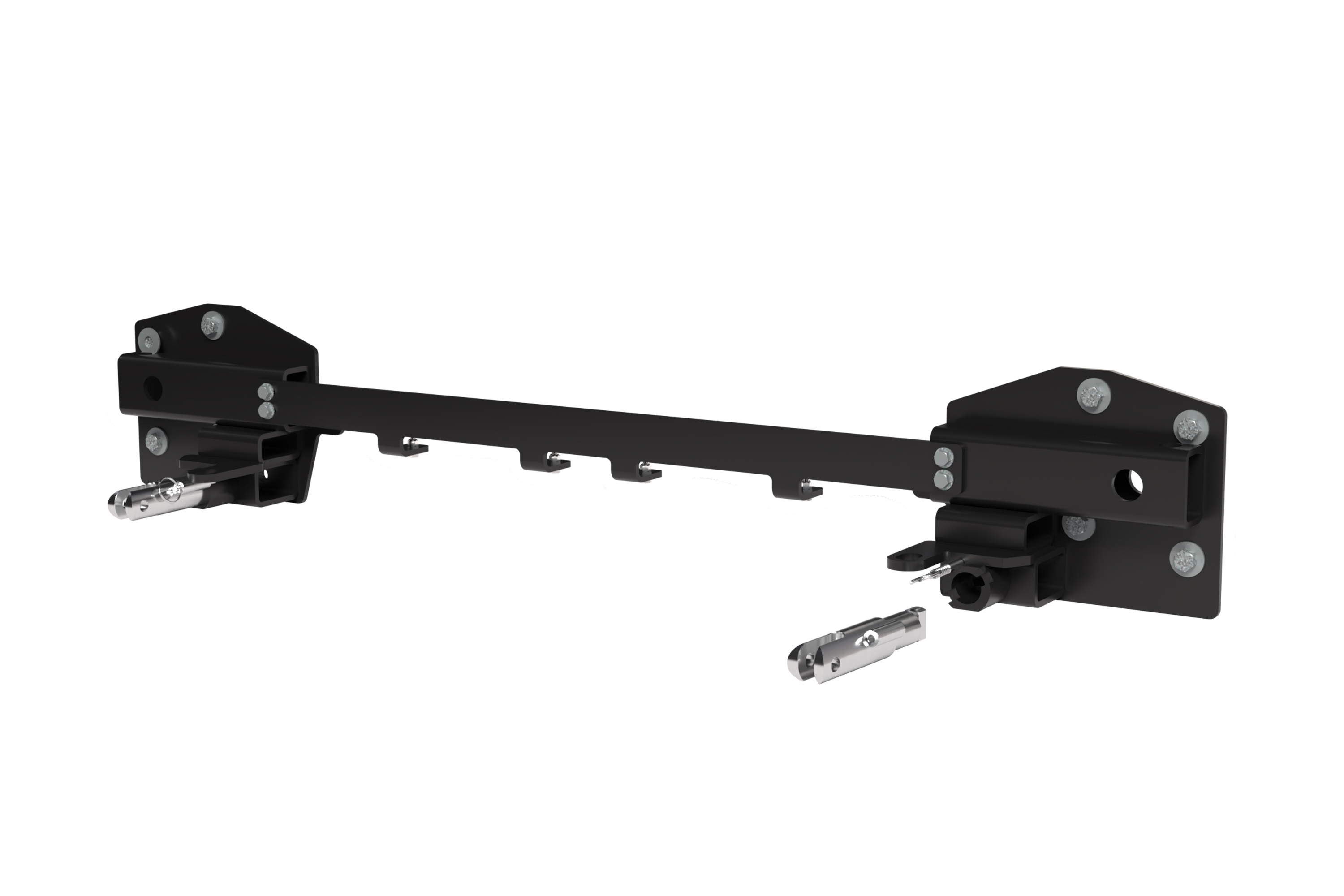

The Blue Ox BX1152 Tow Bar Bracket is a robust, high-quality towing accessory designed meticulously for your specific towed vehicle. Crafted with heavy-duty steel and a superior powder coat finish, this bracket is resilient and reliable, ensuring longevity and peak performance. Its bolt-on mounting type makes for a hassle-free, do-it-yourself installation, backed with all the necessary hardware included in the package. Its sleek black color adds a touch of sophistication to your vehicle while offering optimum functionality.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2022 - 2025 | Jeep Wagoneer | With Tow Hooks, Vehicles With Adaptive Cruise Control & Shutters, Comes with Removable Attachment Tabs, Install Rating 3, Bumper Fascia Must Be Removed/Replaced During Install, Requires Some Trimming of Bumper/Fascia/Plastic/And/Or Grill, Minor Drilling Required, Baseplate Has Non 24 in. Spaced Attachment Tabs, Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar, Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
| 2023 - 2025 | Jeep Wagoneer L | With Tow Hooks, Vehicles With Adaptive Cruise Control & Shutters, Comes with Removable Attachment Tabs, Install Rating 3, Bumper Fascia Must Be Removed/Replaced During Install, Requires Some Trimming of Bumper/Fascia/Plastic/And/Or Grill, Minor Drilling Required, Baseplate Has Non 24 in. Spaced Attachment Tabs, Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar, Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
Yes, the BX1152 is designed for 2022-2025 Jeep Wagoneer with tow hooks, including the L model. It is compatible with vehicles that have adaptive cruise control and shutters. However, the manual notes that the front of your vehicle must match the reference image shown. If it looks different, contact Blue Ox technical service at (402) 385-3051 before proceeding.
Yes, the BX1152 is compatible with vehicles with a secondary radiator. However, installation requires additional steps: the lower shutter housing and radiator mounting bracket must be removed, trimmed, and reinstalled. The shutter housing requires a reciprocating saw cut of 3-1/4" L x 1-1/2" W x 1/4" D on both sides, and the radiator mounting bracket requires trimming with a cutting wheel.
The BX1152 attachment tab height is 18 inches and the attachment tab width is 39.25 inches. Ensure the tow bar being used is compatible with this tab width.
Required tools include: torque wrench, flat screwdriver, reciprocating saw with cutting wheel, drill with 1/4" and 1/2" drill bits, Loctite Red, and the following sockets and wrenches: 5/16" nut driver, 7MM socket, 8MM socket, 10MM socket, 13MM socket, 18MM socket, 21MM socket, 7/16" socket, 7/16" wrench, 9/16" wrench, and 3/4" socket and wrench.
The kit includes: 2 whiz nuts with 10" wire (1/2"-13), 1 cross member, 2 baseplates (driver and passenger side), 2 attachment tab assemblies, 1 electrical bracket with breakaway switch mount, 2 support plates, 5 hex head bolts (1/4"-20 x 3/4"), 12 hex head bolts (1/2"-13 x 1-1/2"), 2 round slotted head screws (#10-32 1/2"), 4 hex head bolts (3/8"-16 x 1-1/4"), 2 self-drilling screws (#12-14 x 1"), 2 hex nuts (#10-32), 4 nylon insert lock nuts (3/8"-16), 10 nylon insert lock nuts (1/2"-13), 5 nylon insert lock nuts (1/4"-20), 4 flat washers (1/4"), 4 flat washers (3/8"), 18 flat washers (1/2"), 2 lock washers (1/2"), 2 lock washers (#10), 2 class IV safety cables, 2 quicklinks (1/2"), and 2 black cap plug receivers.
The BX8848 Tail Light Wiring Kit is recommended for this vehicle, but the manual does not explicitly state whether it is required. Contact your Blue Ox dealer or technical service at (402) 385-3051 to confirm if it is necessary for your specific installation.
Blue Ox recommends that towing products be installed by Blue Ox dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox dealers can be found at www.blueox.com or by contacting technical service at (402) 385-3051. The installation involves fascia removal, drilling, trimming with a reciprocating saw, and precise torque specifications.
The following are removed and reinstalled: fascia, lower shutter housing (vehicles with secondary radiator only), radiator mounting bracket (vehicles with secondary radiator only), and plastic piece from bottom of bumper. The following are removed and NOT reinstalled: tow hooks and bumper. The foam piece and plastic cover on the back of the fascia are removed and not reinstalled.
Place all removed components on a flat, sturdy surface. Most items will be reinstalled after the baseplate is installed. The foam piece on the back of the fascia and the plastic cover on the back of the fascia will not be reinstalled. The tow hooks and bumper will not be reinstalled. Handle cosmetic parts carefully and use protective covers, rags, and specialty tools as needed to prevent damage.
Yes, drilling is required. You must drill a 1/2" hole in the frame on both sides of the vehicle using the support bracket as a template (Step 18), and drill a 1/2" hole in the bottom inside of the frame on both sides using the baseplate as a template (Step 20). Additionally, on vehicles without a secondary radiator, you must drill out four plastic rivets from the plastic piece on the bottom of the bumper using a 1/4" drill bit (Step 15a). On vehicles with a secondary radiator, you must drill out two plastic rivets using a 1/4" drill bit (Step 15b).
Yes, significant trimming is required on vehicles with a secondary radiator. Using a reciprocating saw, trim 3-1/4" L x 1-1/2" W x 1/4" D from the shutter housing on both sides (Step 10). Then carefully trim the indicated area from the shutter housing on both sides, leaving the mounting hole intact for reinstallation (Step 11). Using a cutting wheel, trim the indicated area from the radiator mounting bracket on both mounting brackets (Step 12). After cutting, use good quality paint to spray cut edges of frame to prevent rusting.
When using a reciprocating saw, be aware of objects behind the cutting surface. Additionally, be aware of the dangers of torque and drill bit length when using power drills. Use a good quality paint to spray cut edges of frame to prevent rusting after cutting.
Use the torque chart provided in the manual. For metric bolts: 6MM Grade 8.8 = 6 ft-lbs, 8MM Grade 8.8 = 16 ft-lbs, 10MM Grade 8.8 = 31 ft-lbs, 12MM Grade 8.8 = 54 ft-lbs, 14MM Grade 8.8 = 89 ft-lbs, 16MM Grade 8.8 = 161 ft-lbs, 18MM Grade 8.8 = 222 ft-lbs. For inch bolts: 1/4" Grade 5 = 10 ft-lbs, 5/16" Grade 5 = 19 ft-lbs, 3/8" Grade 5 = 33 ft-lbs, 7/16" Grade 5 = 54 ft-lbs, 1/2" Grade 5 = 78 ft-lbs, 5/8" Grade 5 = 154 ft-lbs, 3/4" Grade 5 = 257 ft-lbs. Always use Loctite Red on all bolt threads before tightening.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. Refer to your vehicle owner's manual for your vehicle's specific GVWR.
The installation sequence is: (1) Remove wheel well trim and bolts on both sides; (2) Remove fascia bolts and unplug electrical; (3) Remove tow hooks and reinstall back bolt; (4) Remove bumper; (5) If secondary radiator present, remove and trim shutter housing and radiator bracket; (6) Remove plastic pieces from bumper; (7) Install baseplate with bolts left loose; (8) Attach support brackets; (9) Drill frame holes using support bracket as template; (10) Install whiz nuts in frame holes; (11) Drill bottom inside frame holes; (12) Install bottom bolts left loose; (13) Reinstall shutter housing and radiator bracket if applicable; (14) Attach cross member and tighten all baseplate bolts; (15) Attach plastic bumper piece; (16) Install safety cables; (17) Trim and reinstall fascia; (18) Reconnect all electrical.
Baseplate bolts should be left loose during initial installation. In Step 16, start the three 1/2" x 1-1/2" bolts with flat washers and nylon lock nuts and snug up the baseplate but leave loose on both sides. In Step 21, install the bottom inside bolts and leave loose at this time. Only after the cross member is attached in Step 23 should you ensure the baseplate is level and tighten the baseplate on each side, then the cross member. Use Loctite Red on all bolt threads and tighten to the appropriate torque specifications.
Pull back the plastic shroud and attach the cross member to the baseplates using four 3/8" x 1-1/4" bolts with flat washers and nylon lock nuts. Start the bolts but do not fully tighten initially. Ensure the baseplate is level, then tighten the baseplate on each side first, followed by the cross member. Use Loctite Red on all bolt threads and tighten to the appropriate torque. Note: Electrical rods should point outward and be above the cross member.
The reattachment method depends on whether your vehicle has a secondary radiator. For vehicles without a secondary radiator (Step 25a), attach the plastic piece using four 1/4" x 1" bolts with flat washers and nylon lock nuts. For vehicles with a secondary radiator (Step 25b), attach the plastic piece using two 1/4" x 1" bolts with flat washers and nylon lock nuts. In both cases, ensure grooves on the plastic piece face forward. Use Loctite Red on all bolt threads and tighten to the appropriate torque.
Hold the fascia as close to its original position as possible, mark and trim the fascia around the electrical rods. Then reinstall the fascia and reconnect all electrical connections. Before reinstalling the fascia, ensure all electrical connections are plugged in and accessories are functioning properly.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. This is critical because if the baseplate is improperly installed against a wire or hose, it could cause fluid leaks or electrical shorts sometime after installation.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. They prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame using the provided quicklinks. Each cable must have adequate weight rating for the towing system; the combined rating of both cables is what matters, not individual ratings. The cables must not be mounted against wires, hoses, or brake lines, and must not rub against any hoses or moving parts. These cables are in addition to, not a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Be sure to use Loctite Red on all bolts and tighten to the recommended torque specifications. It is the owner's responsibility to perform this inspection.
If the baseplate is involved in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
No. Towing behind a non-motorized vehicle will void the warranty.
After installation, verify that all electrical connections are plugged in and functioning properly before reinstalling the fascia. Ensure the baseplate is level when the cross member is attached. Check that electrical rods point outward and are above the cross member. Verify that safety cables do not rub against any hoses or moving parts. Ensure all bolts are tightened to the appropriate torque specifications using Loctite Red. Before the first towing trip, inspect for cracked welds, missing or worn parts, and loose bolts.
Blue Ox offers a three-year limited warranty from the date of delivery to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. To activate coverage, the customer warranty card must be returned within 30 days of purchase, and a copy of the original invoice showing date and place of purchase must accompany any warranty claim. The warranty is non-transferable and does not cover improper installation, modification, neglect, misuse, normal wear and tear, paint, or rust. The warranty is void if the baseplate is used improperly, if the vehicle GVWR is exceeded, or if towing behind a non-motorized vehicle.
Yes, it is crucial to register your product online at www.blueox.com. Registration ensures you will be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
Yes, you should remove the attachment tabs when not in use, if applicable.
Contact Blue Ox technical service at (402) 385-3051. You can speak with their technical service team about any questions regarding the performance of your product. You can also visit www.blueox.com for the latest version of installation instructions and to find Blue Ox dealers in your area.
Yes, the BX1152 is designed for 2022-2025 Jeep Wagoneer with tow hooks, including the L model. Verify your vehicle's front matches the reference image in the manual.
You need a torque wrench, reciprocating saw with cutting wheel, drill with 1/4" and 1/2" bits, Loctite Red, and sockets/wrenches: 7MM, 8MM, 10MM, 13MM, 18MM, 21MM, 7/16", 9/16", 3/4", plus a 5/16" nut driver and flat screwdriver.
Yes. You must drill 1/2" holes in the frame on both sides using the support bracket as a template, and 1/2" holes in the bottom inside frame. You also drill out plastic rivets (1/4" bit) from the bumper plastic piece.
Yes, on vehicles with a secondary radiator. You must trim the shutter housing (3-1/4" L x 1-1/2" W x 1/4" D) and radiator bracket using a reciprocating saw and cutting wheel. Paint cut edges to prevent rust.
Fascia, tow hooks (not reinstalled), bumper (not reinstalled), and on secondary radiator vehicles: shutter housing and radiator bracket (both reinstalled). Plastic bumper piece is removed and reinstalled.
Permanent baseplate safety cables are strongly recommended. They prevent the towed vehicle from breaking loose if the baseplate connection fails. They must be connected to the frame and are in addition to, not a replacement for, legally required safety cables.
Use the torque chart in the manual. For example: 1/2" Grade 5 bolts = 78 ft-lbs, 3/8" Grade 5 = 33 ft-lbs, 1/4" Grade 5 = 10 ft-lbs. Always apply Loctite Red to all bolt threads before tightening.
Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Tighten all bolts to torque specifications using Loctite Red.
The dimensional variations between otherwise identical vehicles can be considerable. While the baseplate was designed for easy installation, it may be necessary to tailor the baseplate slightly to compensate for vehicle manufacturer's tolerances. Contact Blue Ox technical service at (402) 385-3051 for guidance on specific fit issues.
If the front of your vehicle looks different than the reference image shown in the manual, contact Blue Ox technical service at (402) 385-3051 before proceeding with installation. This may indicate a different vehicle variant or model year that requires different installation procedures.
