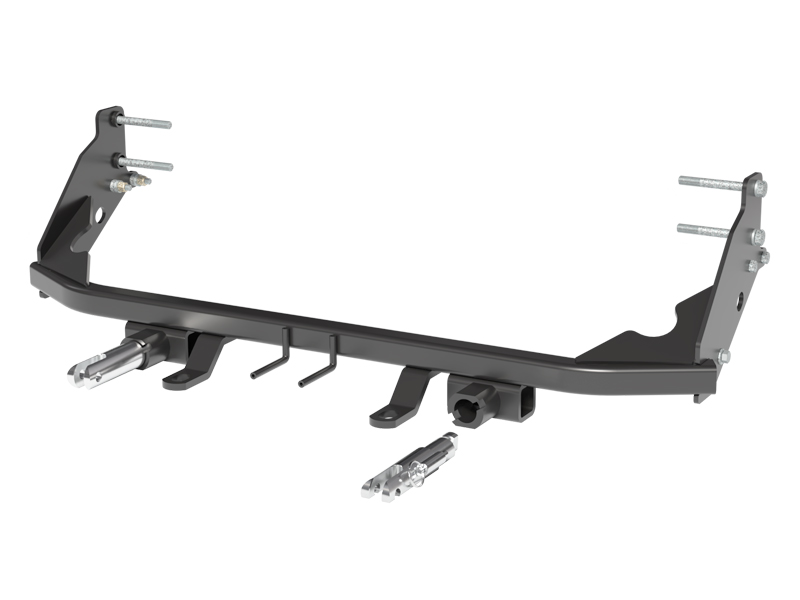

Custom Design: Each Blue Ox BX1312 Tow Bar Bracket is specifically designed for a unique towed vehicle, ensuring a perfect fit and optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Experience the superior design and durability of the Blue Ox BX1312 Tow Bar Bracket. This highly robust bracket is custom-made for each specific towed vehicle, ensuring a perfect fit and easy installation. Constructed from hard-wearing steel and finished with a sleek black powder coat, this bracket is built to last. Every Blue Ox base plate comes with all the necessary mounting hardware and clear, easy-to-understand instructions, making installation a breeze. With its bolt-on mounting type, the BX1312 offers a secure fit and fantastic towing performance.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
2 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2016 - 2020 | Mini Cooper | Convertible | S Only No John Cooper Works Comes with Removable Attachment Tabs Install Rating 3.5 Baseplate Has Non 24 in. Spaced Attachment Tabs Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Require Req. Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Requires Some Trimming Of Bumper Fascia/Plastic/And/Or Grill Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
| 2014 - 2021 | Mini Cooper | Hatchback | S Only No John Cooper Works Comes with Removable Attachment Tabs Install Rating 3.5 Baseplate Has Non 24 in. Spaced Attachment Tabs Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Require Req. Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Requires Some Trimming Of Bumper Fascia/Plastic/And/Or Grill Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, MINI COOPER HARDTOP HATCHBAC (Part #FDRWBX1312) fits 2014-2021 Mini Cooper models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, MINI COOPER HARDTOP HATCHBAC (Part #FDRWBX1312) fits the following vehicles: 2014-2021 Mini Cooper. Always verify your specific year, make, and model before ordering.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, MINI COOPER HARDTOP HATCHBAC (Part #FDRWBX1312) is designed to fit the 2014-2021 Mini Cooper.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, MINI COOPER HARDTOP HATCHBAC (Part #FDRWBX1312) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BX1312 baseplate is designed for 2014-21 Mini Cooper Hardtop (S Only, No JCW) and 2016-20 Mini Cooper Convertible (S Only, No JCW). It does not fit JCW models or non-S models. If your vehicle does not match these specifications exactly, contact Blue Ox Technical Service at (402) 385-3051 before purchasing.
No. The BX1312 is not compatible with JCW models. It is designed only for S models of the Mini Cooper Hardtop (2014-21) and Convertible (2016-20).
The BX1312 attachment tab height is 11 inches and the width is 20 inches.
Required tools are: utility knife, torque wrench, drill, reciprocating saw, tape measure, 3/8" drill bit, 8MM socket, 10MM socket, 18MM socket, 9/16" socket, 9/16" wrench, and T30 Torx. You will also need Loctite Red for all bolt threads.
The kit includes: 1 BX1312 baseplate, 2 attachment tab assemblies with holes, 1 breakaway bracket, 4 3/4" spacer tubes, 2 1/4"-20 x 3/4" hex head bolts (Grade 5), 2 #10-32 1/2" round slotted head screws, 2 3/8"-16 x 1-1/4" hex head bolts (Grade 5), 4 3/8"-16 x 1-1/2" hex head bolts (Grade 5), 4 12MM-1.5 x 110MM hex head bolts, 2 #12-14 x 1" self-drilling screws, 2 #10-32 hex nuts, 6 3/8"-16 hex nylon insert lock nuts, 2 1/4"-20 hex nylon nuts, 4 3/8" flat washers, 2 #10 lock washers, 4 12MM lock washers, 1 4-way bracket, 2 class III safety cables, 2 3/8" quicklinks, and 2 black cap plug receivers.
No. The BX8848 4-Diode Wiring Kit is recommended for this vehicle but is not included. It must be ordered separately.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. If you need assistance, Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Technical Service at (402) 385-3051.
The fascia, horns, and windshield washer fluid reservoir must be removed for baseplate installation. The brake ducts are also removed and can be reinstalled after modification if desired. All removed items will be reinstalled after the baseplate is installed unless otherwise noted.
Yes. Drilling is required. You must drill lower mounting holes through the frame using a 3/8" drill bit on both sides of the vehicle. Additional drilling may be needed for the support bracket holes if they do not align with existing holes in the baseplate. Some drilling and trimming is required as part of the standard installation.
You must trim the plastic shielding on both sides of the vehicle for baseplate clearance (Step 9). The upper section of the support brackets must be trimmed off (Step 11). The brake ducts must be trimmed as needed to clear the baseplate (Step 17). The fascia must be marked and trimmed around the convenience links and attachment tabs (Step 18).
Yes. Trimming of plastic shielding, support brackets, brake ducts, and fascia are permanent modifications. The drilling of frame holes is also permanent. These modifications cannot be easily reversed.
The manual provides a general torque chart for metric bolts but does not specify the exact grade of the 12MM bolts used in baseplate mounting. The torque chart shows 12MM Grade 8.8 bolts should be torqued to 54 foot-pounds and 12MM Grade 10.9 bolts to 70 foot-pounds. Confirm the bolt grade with your installer or contact Blue Ox Technical Service at (402) 385-3051 for the specific torque value for your installation.
The manual provides a general torque chart for inch bolts. The 3/8"-16 bolts used in the BX1312 installation are Grade 5, which should be torqued to 33 foot-pounds according to the chart. However, always use Loctite Red on all bolt threads and tighten all bolts to the appropriate torque as specified in the installation steps.
Yes. You must use Loctite Red on all bolt threads before tightening. This is required for all bolts in the baseplate installation.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. Refer to your vehicle owner's manual for your specific GVWR and towing specifications.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. They must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The cables must not mount against wires, hoses, or brake lines. The BX1312 kit includes 2 class III safety cables and 2 3/8" quicklinks for this purpose. These cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Before reinstalling the fascia, be sure that all electrical connections are plugged in and accessories are functioning properly. This is critical to ensure all systems work correctly before the fascia is reinstalled.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. Permanent baseplate safety cables should remain installed as long as the baseplate is installed on the vehicle. Remove the attachment tabs when not in use.
Yes. You should register your product online at www.blueox.com. Registration is crucial so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Blue Ox offers a three-year limited warranty to the original retail purchaser. The product is warranted to be free from defect in material and workmanship under normal use and service for three years from the date of delivery. Warranty coverage requires that the customer warranty card be returned within 30 days of purchase and a copy of the original invoice accompany any claim. The warranty does not cover incorrect or improper installation, improper use, modification, neglect, failure to properly service and maintain, misuse, accident, or failure to follow guidelines in the instructional material. The warranty is non-transferable and does not cover normal wear and tear, paint, or rust. Visit http://blueox.com/warranty/ to register your warranty.
No. If a bolt is lost or needs replacement, you must use a replacement bolt of the same grade as the original. In most cases it will be Grade 5. Refer to the parts list to identify the correct bolt. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Using incorrect bolts will void the manufacturer's warranty and compromise safety.
The BX1312 fits 2014-21 Mini Cooper Hardtop (S Only, No JCW) and 2016-20 Mini Cooper Convertible (S Only, No JCW). It does not fit JCW or non-S models.
The BX8848 4-Diode Wiring Kit is recommended but not included and must be ordered separately. All mounting hardware is included in the kit.
Yes. You must drill lower mounting holes through the frame using a 3/8" drill bit on both sides of the vehicle. Additional drilling may be needed for support bracket holes.
Yes. Trimming is required on plastic shielding, support brackets, brake ducts, and the fascia. These are permanent modifications.
Yes. Use Loctite Red on all bolt threads before tightening. Tighten all bolts to the appropriate torque specifications.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the warranty. Refer to your vehicle owner's manual for your specific GVWR.
Permanent baseplate safety cables are strongly recommended and included in the kit. They must connect from the baseplate to the frame and must not contact wires, hoses, or brake lines. They supplement, not replace, legally required safety cables.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all electrical connections are functioning properly. Tighten all bolts to recommended specifications using Loctite Red.
