Made from durable steel, ensuring a robust and long-lasting product.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

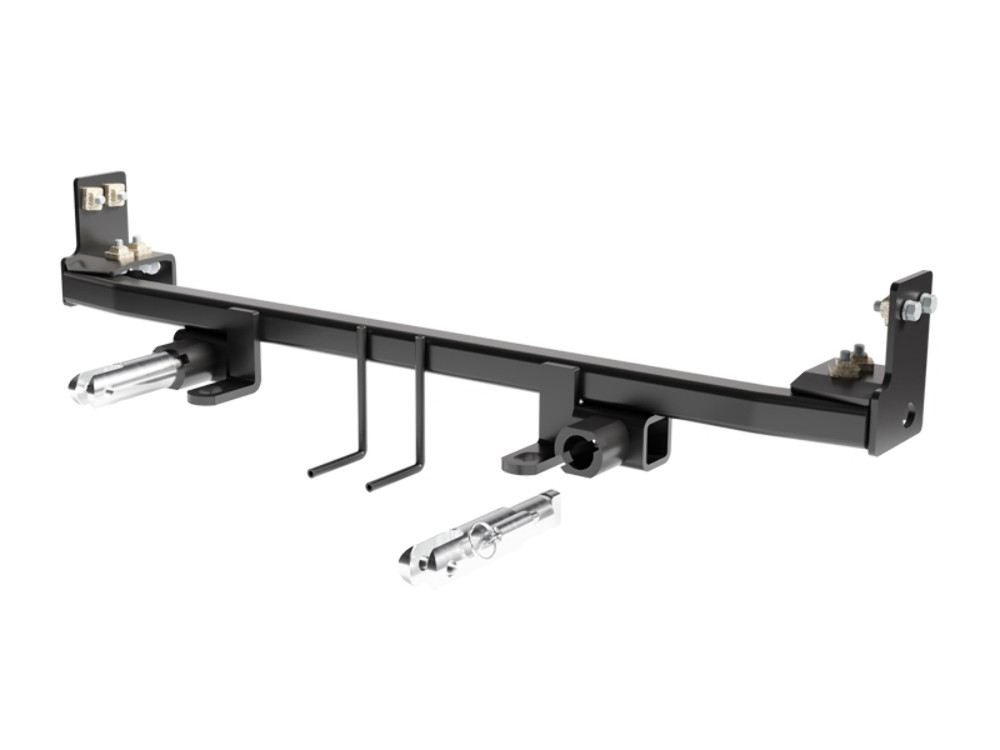

The Blue Ox BX1307 Tow Bar Bracket is a robust and durable accessory designed to enhance your towing capabilities. Made from high-quality steel, this black, powder-coated bracket promises longevity and resistance against wear and tear. The bracket's universal bolt-on design allows for an easy installation process, making it a handy addition for your towing needs. With the Blue Ox BX1307, you can ensure a secure connection between your tow vehicle and the towed vehicle. Each purchase comes complete with all necessary mounting hardware and a comprehensive set of instructions, providing you with everything you need for a smooth, do-it-yourself installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2012 - 2015 | Mini Cooper | Coupe | No S No John Cooper Works Comes with Removable Attachment Tabs Install Rating 3 Baseplate Has Non 24 in. Spaced Attachment Tabs Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Require Requires some trimming of the air dam Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Requires Some Trimming Of Bumper Fascia/Plastic/And/Or Grill Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
Yes, the BlueOx Tow Bar Base Plate For Select BMW MINI COOPER BX1307 (Part #FDRWBX1307) is designed to fit the 2012-2015 Mini Cooper.
The BlueOx Tow Bar Base Plate For Select BMW MINI COOPER BX1307 (Part #FDRWBX1307) fits 2012-2015 Mini Cooper models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate For Select BMW MINI COOPER BX1307 (Part #FDRWBX1307) fits the following vehicles: 2012-2015 Mini Cooper. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate For Select BMW MINI COOPER BX1307 (Part #FDRWBX1307) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BX1307 baseplate is designed for 2011-13 Mini Cooper Hardtop (Includes S), 2012-15 Mini Cooper Coupe (Includes S), 2009-15 Mini Cooper Convertible (Includes S), 2012-15 Mini Cooper Roadster (Includes S), and 2008-14 Mini Cooper Clubman (Includes S). If your vehicle model or year is not listed, contact Blue Ox at (402) 385-3051 to confirm fitment.
Yes, the BX1307 can be installed on vehicles with headlight washers. However, the fluid lines must be disconnected from the fascia and bumper on both sides during installation (steps 3 and 8). Reconnect them after the baseplate installation is complete.
The BX1307 attachment tab height is 13-1/2" and the width is 20".
The BX8848 4-Diode Wiring Kit is recommended for the 2010 Mini Cooper Clubman. The BX8869 Tail Light Wiring Kit is recommended for all other BX1307-compatible vehicles. You will need to drill a hole according to the tail light wiring kit instructions.
Required tools include: reciprocating saw, flat screwdriver, utility knife, Phillips screwdriver, torque wrench, drill, tape measure, 13/32" drill bit, 1-1/4" hole saw, diagonal cutters, T25 Torx driver, 13MM socket, 14MM socket, 9/16" socket, 9/16" wrench, and Loctite Red.
Blue Ox recommends that towing products be installed by Blue Ox dealers who are familiar with the products and have the equipment and knowledge necessary to do "fit work." Blue Ox dealers can be found at www.blueox.com or by contacting (402) 385-3051.
Yes. The grille and fascia must be removed during installation and reinstalled after the baseplate is installed. The installation notes state that "the grille and fascia are removed and reinstalled for the baseplate installation."
Yes. Drilling and trimming are required. You will drill a 1-1/4" hole through the bumper on both sides (step 8), drill 13/32" holes above the bumper (step 10), drill 13/32" side holes through the bumper (step 11), and drill a hole for the tail light wiring kit. Trimming is also required on the fascia, intake scoops, and gusset areas.
The following modifications are permanent: drilling holes in the bumper (1-1/4", 13/32"), trimming the fascia gusset area, trimming the intake scoops, trimming the area above the intake scoops, and relocating the passenger-side sensor. The 1-1/4" hole used for nut plate access can be optionally covered with tape and paint, but the drilling itself is permanent.
For 3/8" Grade 5 bolts, the torque specification is 33 foot-pounds. For 3/8" Grade 8 bolts, the torque specification is 47 foot-pounds. Always use Loctite Red on all bolt threads before tightening.
For 8MM Grade 8.8 bolts, the torque specification is 22 foot-pounds. Always use Loctite Red on all bolt threads before tightening.
Before reinstalling the fascia, ensure that ALL electrical connections are plugged in and accessories are functioning properly. This is critical to avoid electrical issues after the fascia is reinstalled.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. Refer to your vehicle owner's manual for manufacturer's towing specifications.
Permanent baseplate safety cables are strongly recommended and are included with the BX1307 kit. They must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. However, these cables do not replace legally required safety cables that attach the towed vehicle to the towing vehicle. Both sets of cables are necessary.
The permanent baseplate safety cables must be connected to the frame rail or cross member of the vehicle's frame. They must NOT be mounted against wires, hoses, or brake lines, as this could cause fluid leaks or electrical shorts. Ensure the safety cables do not rub against any hoses or moving parts.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Use Loctite Red on all bolts and tighten to the recommended torque specifications.
Yes. The attachment tabs should be removed when not in use.
If the baseplate is in an accident, it must be replaced. Do NOT use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
The BX1307 kit includes: 8 nut plates with wire (3/8"), 1 baseplate, 2 attachment tab assemblies, 1 breakaway bracket, 2 backing plates, 2 1/4"-20 x 3/4" bolts, 2 #10-32 x 1/2" screws, 8 3/8"-16 x 1-1/4" bolts, 2 8MM-1.25 x 50MM bolts, 2 #12-14 x 1" self-drilling screws, 2 #10-32 hex nuts, 2 1/4"-20 hex nylon nuts, 4 3/8" flat washers, 10 3/8" lock washers, 2 #10 lock washers, 1 electrical bracket, 2 class III safety cables, 2 3/8" quicklinks, and 2 black cap plug receivers.
No. If a bolt is lost or needs replacement, use a replacement bolt of the same grade as the original. In most cases this will be Grade 5. Do not substitute homemade or non-typical parts. Replacement parts may be ordered through your nearest Blue Ox dealer or distributor. Failing to use the correct replacement bolt will void the manufacturer's warranty.
1. Remove the four push pins along the top edge of the grille (two on each side). 2. Gently pull the top of the grille away from the vehicle. 3. Release the tabs below by pushing down on the grille and squeezing each of the four tabs together, starting from one side and working across. 4. Set the grille aside.
1. Remove two T25 Torx screws that were behind the grille. 2. Remove two push pins in each wheel well (both sides). 3. Behind each wheel well cover, remove the lower push pin (left side) and upper push pin (right side). 4. Push each fender flare forward and pull it away from the vehicle, then remove the T25 Torx screw behind each flare (both sides). 5. On the underside of the fascia, remove the T25 Torx screw from each corner and the three push pins along the center. On newer models, also remove three Phillips head screws located under cap plugs along the front edge. 6. Pull the fascia forward, disconnect any electrical connections, and set it aside.
Use a 1-1/4" hole saw to drill through the bumper on both sides, using the existing hole on top of the bumper as a guide. This allows access for installing the nut plates.
1. Hold the baseplate in place and start an 8MM-1.25 x 50MM bolt with a lock washer and two flat washers into the existing hole on both sides. Fully tighten. 2. Using a 13/32" drill bit, drill holes above the bumper on both sides. Install two 3/8"-16 x 1-1/4" bolts with 3/8" lock washers and 3/8" nut plates on the inside of the bumper. Fully tighten. 3. Using a 13/32" drill bit, drill the side holes through the bumper on both sides. Install 3/8"-16 x 1-1/4" bolts with 3/8" lock washers and 3/8" nut plates on the inside. Fully tighten. Use Loctite Red on all bolt threads and tighten to the appropriate torque.
Using a 13MM socket, remove the existing nut from the bumper extension on both sides. Install the backing plate onto the stud and reinstall the nut. Do this on both sides of the vehicle.
1. On the back side of the fascia, trim off the gusset area on both sides. On the passenger side, disconnect the wire loom and trim off the tab. Make a notch and relocate the sensor down lower to clear the baseplate. 2. Trim the area above the intake scoops on both sides. 3. Trim the inner areas on the intake scoops and trim off the attachment arms for baseplate clearance. 4. Hold the fascia as close to its original position, mark and trim around the convenience links and attachment tabs. Depending on the model, trimming of the additional chrome piece across the grille opening may be required.
The breakaway switch installation is listed as optional in step 15. If you choose to install it, mount the breakaway bracket onto the front of the frame above the radiator with 1/4" hardware, bend the switch 90 degrees up, and attach the switch to the bracket using 1/4" hardware.
Yes. Use a good quality paint to spray cut edges of the frame to prevent rusting. This is important for protecting the frame from corrosion.
Register your product online at www.blueox.com. It is crucial to register so you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls. The warranty is valid only if the customer warranty card is returned within 30 days of purchase.
The BX1307 fits 2011-13 Hardtop, 2012-15 Coupe, 2009-15 Convertible, 2012-15 Roadster, and 2008-14 Clubman (all Includes S). Contact Blue Ox at (402) 385-3051 if your model year is not listed.
Yes. You will drill a 1-1/4" hole through the bumper, 13/32" holes above and to the sides of the bumper, and a hole for the tail light wiring kit. Trimming of the fascia, intake scoops, and gusset areas is also required.
Required tools include reciprocating saw, drill with 13/32" and 1-1/4" hole saw bits, T25 Torx driver, torque wrench, 13MM and 14MM sockets, 9/16" socket and wrench, utility knife, screwdrivers, diagonal cutters, tape measure, and Loctite Red.
Tighten 3/8" Grade 5 bolts to 33 foot-pounds. Always use Loctite Red on all bolt threads before tightening.
Yes. Two permanent baseplate safety cables are included and must be connected from the baseplate to the vehicle frame. They do not replace legally required safety cables attaching the towed vehicle to the towing vehicle.
Blue Ox recommends installation by Blue Ox dealers familiar with the product and equipped for "fit work." Find a dealer at www.blueox.com or call (402) 385-3051.
Use the BX8848 4-Diode Wiring Kit for the 2010 Clubman, or the BX8869 Tail Light Wiring Kit for all other BX1307-compatible models.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Refer to your vehicle owner's manual for manufacturer's towing specifications.
Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts. Use Loctite Red and tighten all bolts to the recommended torque specifications.
The manual states that "the dimensional variations between otherwise identical vehicles can be considerable" and that "it may be necessary to tailor the baseplate slightly to compensate for vehicle manufacturer's tolerances." If the baseplate does not fit properly, contact Blue Ox Technical Service at (402) 385-3051 for guidance on adjustments.
If the baseplate is in an accident, it must be replaced immediately. Do NOT use it again. An accident can cause unseen damage, and using a damaged baseplate could result in separation of the towed vehicle from the tow bar, causing property damage, loss of vehicle, personal injury or death. Do not use the baseplate if it is damaged or missing parts.
If the baseplate is improperly installed and is against a wire or hose, it could cause fluid leaks or electrical shorts some time after the actual baseplate installation. Before reinstalling the fascia, ensure that ALL electrical connections are plugged in and accessories are functioning properly. The installer must watch for oil cooler and air conditioner lines, electrical wires, and hoses during installation.
