BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, BUICK ENCORE GX AWD, 2024Blue OxIn Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Blue Ox
Verify Fitment
Select your vehicle to confirm this part fits.
2020 - 2023 Buick Encore GX
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Custom Fit Design: The Blue Ox BX1520 is specifically designed for each vehicle model, ensuring a perfect fit and easy installation.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

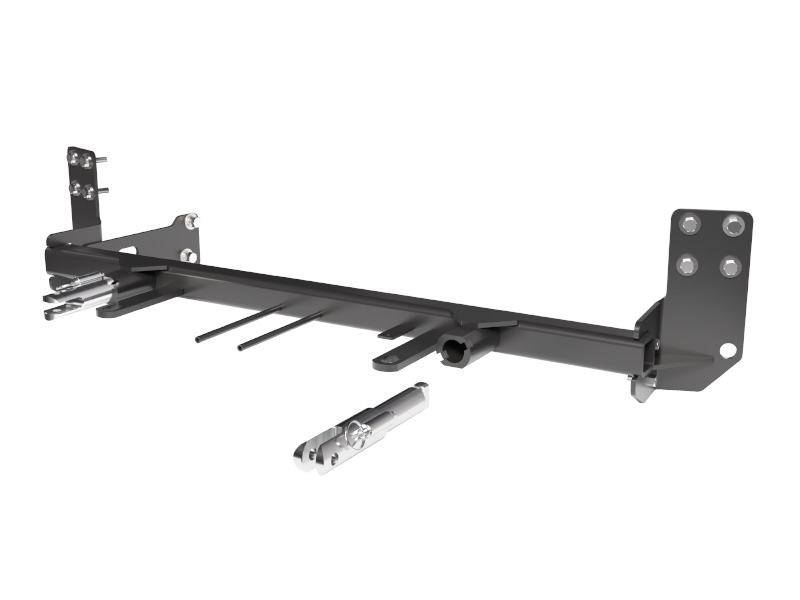

The Blue Ox BX1520 Tow Bar Bracket is a robust, custom-fit solution for your towing needs. Crafted from high-quality steel and finished with a resilient powder coat, this bracket is designed to endure even the toughest of conditions. Its black color adds a sleek, unobtrusive look to your vehicle. The BX1520 Tow Bar Bracket comes with all the necessary hardware needed for installation, alongside detailed, easy-to-follow instructions. This bolt-on style bracket guarantees a secure, reliable connection for safe towing.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2023 | Buick Encore GX | Vehicles with Sport Touring, Adaptive Cruise Control, Turbo, & Top Shutters Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper/Fascia/Plastic/And/Or Grill Minor Drilling Required. |
The BlueOx Base Plate, Buick Encore Gx BX1520 (Part #FDRWBX1520) fits the following vehicles: 2020-2023 Buick Encore GX. Always verify your specific year, make, and model before ordering.
The BlueOx Base Plate, Buick Encore Gx BX1520 (Part #FDRWBX1520) fits 2020-2023 Buick Encore GX models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Base Plate, Buick Encore Gx BX1520 (Part #FDRWBX1520) is designed to fit the 2020-2023 Buick Encore GX.
The BlueOx Base Plate, Buick Encore Gx BX1520 (Part #FDRWBX1520) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BX1520 is a towing baseplate manufactured by Blue Ox designed specifically for 2020–2023 Buick Encore GX vehicles, including Sport Touring, ACC, Turbo, and Top Shutters models. It is used to attach a tow bar to the front of the vehicle for towing purposes. The attachment tab height is 17 inches and width is 24 inches.
The BX1520 is designed for 2020–2023 Buick Encore GX vehicles including Sport Touring, ACC, Turbo, and Top Shutters models. The manual notes that if the front of your vehicle looks different than shown, you should contact Blue Ox at (402) 385-3051 before proceeding with installation.
Required tools include: flat screwdriver, 10MM wrench, torque wrench, 13MM socket, drill, 15MM socket, Loctite Red, 9/16" socket, 1/2" drill bit, 9/16" wrench, 7MM socket, 10MM socket, 3/4" socket, and 3/4" wrench. A T15 Torx driver is also needed for removing fascia bolts. A reciprocating saw may be needed to cut the shroud below the bumper.
The kit includes: 4 whiz nuts with 10" wire (61-4029), 2 attachment tab assemblies with holes (62-3469), 2 support plates (101-10572), 1 hex head bolt 1/4"-20 x 3/4" Grade 5 (201-0050), 4 hex head bolts 1/2"-13 x 1-1/2" Grade 5 (201-0051), 2 self-drilling screws #12-14 x 1" (201-0979), 4 hex head bolts 3/8"-16 x 1-1/4" Grade 5 (201-0368), 2 round slotted head screws #10-32 1/2" (201-0192), 2 hex nuts #10-32 (202-0047), 4 hex nylon insert lock nuts 3/8"-16 (202-0090), 1 hex nylon nut 1/4"-20 (202-0102), 4 flat washers 7/16" (203-0004), 4 lock washers 1/2" (203-0012), 2 lock washers #10 (203-0054), 1 electrical bracket (299-0685), 2 class III safety cables (226-0046), 2 quicklinks 3/8" (229-0359), 2 nylon cable ties 8" (290-0275), and 2 black cap plug receivers (290-0437). The installation also reuses 8 existing 10MM x 1.5 x 40MM bolts and 8 existing 10MM flat washers from the vehicle.
Yes. The fascia and windshield washer fluid reservoir must be removed during installation and reinstalled after the baseplate is installed. The fascia is removed by taking out multiple bolts and push pins from the top edge, wheel well, underside, and lower cover, then unplugging electrical connections. The windshield washer fluid reservoir is removed from the passenger side by removing a push pin, two nuts, and one bolt, and plugging all lines. Both components are set aside and reinstalled at the end of the installation process.
The bumper does not need to be fully removed, but it must be loosened. Four bolts are removed from the front of the bumper on both sides using a 15MM socket, and the bumper is allowed to hang. The baseplate is then slid between the bumper and the frame.
Yes, drilling is required. Using a 1/2" drill bit, you must drill out the top hole on the passenger side of the vehicle. Additionally, the shroud below the bumper must be cut on both sides of the vehicle in the indicated area, and the fascia must be trimmed around the convenience links and attachment tabs after the baseplate is installed.
The drilling of the 1/2" hole on the passenger side and the cutting of the shroud below the bumper are permanent modifications. The fascia trimming around the convenience links and attachment tabs is also permanent. The manual recommends using good quality paint to spray cut edges of the frame to prevent rusting.
1. Remove fascia (steps 1–5). 2. Remove lower cover bolts (step 6). 3. Remove windshield washer fluid reservoir (step 7). 4. Cut and remove shroud below bumper (step 8). 5. Remove bumper bolts and let hang (step 9). 6. Drill top hole on passenger side (step 10). 7. Remove belly pan front bolts and let hang (step 11). 8. Unplug electrical on passenger side (step 12). 9. Slide baseplate between bumper and frame, install existing bolts (steps 13–14). 10. Attach support plates to baseplate (step 15). 11. Attach support plates to frame with wire nuts (step 16). 12. Reconnect electrical (step 17). 13. Attach safety cables (step 18). 14. Reinstall windshield washer fluid reservoir (step 19). 15. Trim fascia and reinstall belly pan and fascia (step 20).
Eight existing 10MM x 1.5 x 40MM bolts and eight existing 10MM flat washers from the vehicle are reused to mount the baseplate to the frame. One bolt is installed on each side to hold the baseplate in place initially, then the remaining three bolts on each side are installed. After all bolts are installed, the starter bolts on each side are removed, Loctite Red is applied to the threads, and they are reinstalled. All bolts must be tightened to the appropriate torque specification.
Torque specifications depend on bolt size and grade. For metric bolts: 10MM Grade 5 = 31 ft-lbs, 10MM Grade 8.8 = 16 ft-lbs, 3/8" Grade 5 = 33 ft-lbs. For inch bolts: 1/4" Grade 5 = 10 ft-lbs, 1/2" Grade 5 = 78 ft-lbs. The manual provides a complete torque chart for Grade 5, Grade 8, Grade 8.8, and Grade 10.9 bolts in various sizes. All bolts must have Loctite Red applied to threads before tightening.
The attachment tab height is 17 inches and the attachment tab width is 24 inches.
Electrical connections on the passenger side of the vehicle must be unplugged before removing the fascia and belly pan. After the baseplate and support plates are installed, these electrical connections are reconnected through the hole in the support plate. The manual recommends the BX8848 Tail Light Wiring Kit for this vehicle. All electrical connections must be plugged in and accessories must be functioning properly before reinstalling the fascia.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. You should reference your vehicle owner's manual for the manufacturer's towing specifications and ensure you do not exceed the GVWR.
Yes. Two class III safety cables are included with the baseplate and must be attached to the baseplate and secured to the frame of the vehicle. The cables must be connected from the baseplate to the frame rail or cross member. The cables must not rub against any hoses or moving parts. The permanent baseplate safety cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
If the baseplate is involved in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. The owner's responsibility includes inspecting all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended specifications. The permanent baseplate safety cables must not rub against any hoses or moving parts.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Ensure Loctite Red is used on all bolts and tighten them to the recommended specifications. The permanent baseplate safety cables should remain installed as long as the baseplate is installed on the vehicle. If attachment tabs are removable, they should be removed when not in use.
Yes. Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051.
Blue Ox offers a three-year limited warranty to the original retail purchaser covering defects in material and workmanship under normal use and service. The warranty is valid only if the customer warranty card is returned within 30 days of purchase and a copy of the original invoice accompanies any claim. The warranty does not cover incorrect or improper installation, improper use, modification, neglect, failure to maintain, misuse, accident, normal wear and tear, paint, or rust. The warranty is non-transferable. Register your product at www.blueox.com/warranty/ to activate coverage.
No. Towing behind a non-motorized vehicle will void the warranty.
The BX8848 Tail Light Wiring Kit is recommended for the 2020–2023 Buick Encore GX when installing the BX1520 baseplate. The manual does not specify whether it is required or optional, only that it is recommended.
Two support plates are attached to the baseplate using two 3/8" x 1-1/4" hex head bolts (Grade 5) with 7/16" flat washers and 3/8"-16 hex nylon insert lock nuts on each side. The support plates are then attached to the frame using two 1/2" x 1-1/2" hex head bolts (Grade 5) with 1/2" lock washers and whiz nuts with 10" wire on each side. On the passenger side only, a washer is inserted between the frame and baseplate on the bottom 1/2" bolt. All bolts must have Loctite Red applied to threads and be tightened to the appropriate torque.
The permanent baseplate safety cables are attached to the provided convenience link on the baseplate using 3/8" quicklinks. The cables are then secured to a solid piece of the frame of the vehicle. The recommended installation shows the cables attached around the frame crossmember or frame rail. The cables must not rub against any hoses or moving parts. This must be done on both sides of the vehicle.
Use a good quality paint to spray cut edges of the frame to prevent rusting.
No. Use only genuine factory replacement parts on the baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to follow these requirements will void the manufacturer's warranty.
Yes, the BX1520 is designed for 2020–2023 Buick Encore GX including Sport Touring, ACC, Turbo, and Top Shutters models. If your vehicle's front looks different than shown in the manual, contact Blue Ox at (402) 385-3051 before installing.
Yes. You must drill a 1/2" hole on the passenger side and cut the shroud below the bumper on both sides. The fascia must also be trimmed around the convenience links and attachment tabs.
You will need a torque wrench, socket set (7MM, 10MM, 13MM, 15MM, 9/16", 3/4"), wrenches (10MM, 9/16", 3/4"), T15 Torx driver, 1/2" drill bit, drill, flat screwdriver, and Loctite Red. A reciprocating saw may be needed to cut the shroud.
Yes. Both must be removed during installation and reinstalled after the baseplate is installed. The fascia requires removing multiple bolts and push pins, and the reservoir requires removing a push pin, two nuts, and one bolt.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for the manufacturer's towing specifications.
Use Loctite Red on all bolt threads. Torque depends on bolt size and grade: 10MM Grade 5 = 31 ft-lbs, 3/8" Grade 5 = 33 ft-lbs, 1/2" Grade 5 = 78 ft-lbs, 1/4" Grade 5 = 10 ft-lbs. Refer to the complete torque chart in the manual for other sizes.
Yes. Two class III safety cables are included and must be attached to the baseplate and secured to the vehicle frame. They must not rub against hoses or moving parts and are required in addition to legally required towing safety cables.
Yes. Blue Ox recommends installation by Blue Ox Dealers who have the equipment and knowledge for fit work. Find a dealer at www.blueox.com or call (402) 385-3051.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. If connections are not working, verify that the electrical connectors on the passenger side have been properly reconnected through the hole in the support plate after installation. Check that all plugs are fully seated and that no wires were damaged during removal or installation.
Do not use the baseplate if it is damaged or missing parts. If the baseplate is involved in an accident, it must be replaced and not reused, as an accident can cause unseen damage that could result in more damage or serious injury. Contact Blue Ox at (402) 385-3051 for replacement parts or a replacement baseplate.
The permanent baseplate safety cables must not rub against any hoses or moving parts. If cables are rubbing, reposition them to a different solid piece of the frame as described in the General Information sheet. Ensure the cables are routed away from oil cooler and air conditioner lines, electrical wires, hoses, and brake lines. If repositioning is not possible, contact Blue Ox at (402) 385-3051 for guidance.
It is the owner's responsibility to inspect all towing equipment for loose bolts before each towing trip. If bolts are found to be loose, tighten them to the appropriate torque specification using Loctite Red on the threads. Refer to the torque chart in the manual for the correct torque value based on bolt size and grade. If bolts repeatedly loosen, ensure that Loctite Red is being applied to all threads before tightening.
