Custom-designed for each specific towed vehicle, ensuring a perfect fit and enhanced towing performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

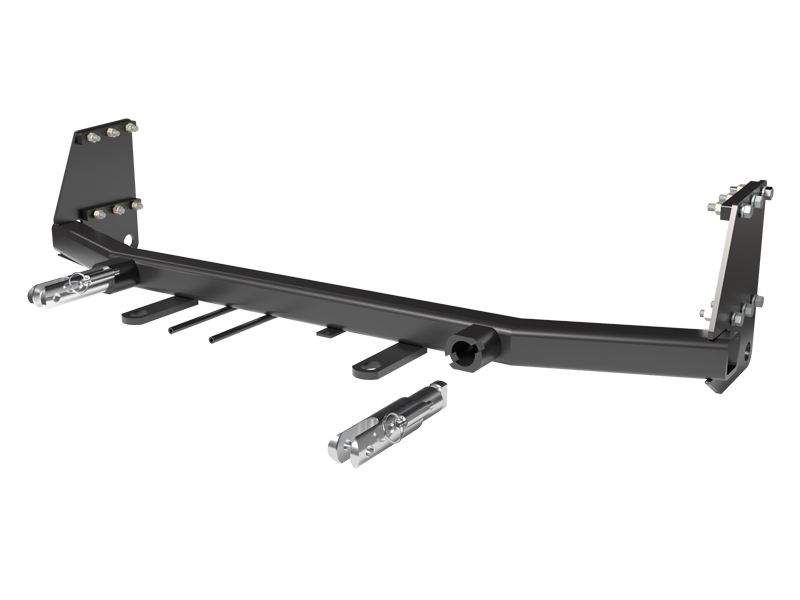

The Blue Ox BX1519 Tow Bar Bracket is the perfect solution for securely attaching your tow bar to your vehicle. This high-quality bracket is crafted from durable steel and finished with a sleek black powder coating for maximum corrosion resistance. Conveniently designed to bolt-on, it comes with all necessary mounting hardware for a seamless DIY installation. Each Blue Ox base plate is meticulously designed to fit your specific vehicle model, ensuring optimal performance and stability. Enhance your towing capabilities with this superior tow bar bracket from Blue Ox.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2020 | Buick Envision | Vehicles With Adaptive Cruise Control Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required |
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, BUICK ENVISION (Part #FDRWBX1519) is designed to fit the 2016-2020 Buick Envision.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, BUICK ENVISION (Part #FDRWBX1519) fits 2016-2020 Buick Envision models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, BUICK ENVISION (Part #FDRWBX1519) fits the following vehicles: 2016-2020 Buick Envision. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, BUICK ENVISION (Part #FDRWBX1519) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX1519 is designed for 2016-20 Buick Envision models and includes ACC (adaptive cruise control) compatibility. However, if the front of your vehicle looks different from the images in the manual, contact Blue Ox technical service at (402) 385-3051 before proceeding with installation.
The BX1519 attachment tabs are 18-1/2" in height and 24" in width.
Required tools include: large vise grip, 3/8" drill bit, flat screwdriver, 7MM socket, utility knife, 7/16" socket, torque wrench, 7/16" wrench, drill, 9/16" socket, reciprocating saw, 9/16" wrench, tape measure, T15 Torx, T25 Torx, 5/16" nut driver, and Loctite Red.
The kit includes: 1 BX1519 baseplate (61-8394), 2 attachment tab assemblies with hole (62-3468), 2 spacer plates (102-7697), 1 1/4"-20 x 3/4" hex head bolt Grade 5, 2 #10-32 1/2" round slotted head screws, 12 3/8"-16 x 1-3/4" hex head bolts Grade 5, 2 #12-14 x 1" self-drilling screws, 2 #10-32 hex nuts, 12 3/8"-16 hex nylon insert lock nuts, 1 1/4"-20 hex nylon nut, 12 3/8" lock washers, 2 #10 lock washers, 1 4-way bracket (299-0685), 2 class IV safety cables (226-0049), 2 1/2" quicklinks (229-0512), 1 8" nylon cable tie (290-0275), and 2 black cap plug receivers (290-0437).
Blue Ox recommends that towing products be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting technical service at (402) 385-3051.
Yes, the fascia cover and fascia must be removed and reinstalled for baseplate installation. The fascia cover is held by nine push pins, the fascia is secured by six bolts at the top edge (T15 Torx), four bolts in the wheel well liner on each side (T15 Torx), and ten bolts on the underside (7MM socket, five on each side). The electrical harness on the passenger side must be unplugged before removing the fascia.
Yes, drilling is required. After positioning the baseplate flush with the top and front lips of the frame, you must drill the bottom holes on each side of the baseplate through the frame using a 3/8" drill bit. Once the first bolts are fully tightened, drill the remaining holes on each side and install the remaining 3/8" hardware.
Trimming is required in several areas: (1) trim the plastic shielding flush under the bumper and across the bottom on both sides; (2) use a reciprocating saw to trim the bracket flush with the bottom side of the bumper on both sides; (3) use a reciprocating saw to trim the end of the bumper flush with the outside of the frame on both sides; (4) trim indicated areas on both sides so they are flush with the frame; (5) on the backside of the fascia, trim the lower tab back flush with the lip on both sides; (6) mark and trim the fascia around the convenience links and attachment tabs before reinstalling.
The plastic housing (removed in step 7) and the lower grille (removed in step 8) are not reinstalled. The plastic reinforcement push pins on the bumper face are also not reinstalled. All other removed components, including the fascia cover, fascia, fender flares, and wheel well liners, are reinstalled after baseplate installation.
The manual provides general torque specifications for metric and inch bolts by grade. For Grade 5 bolts: 1/4" = 10 ft-lbs, 5/16" = 19 ft-lbs, 3/8" = 33 ft-lbs, 7/16" = 54 ft-lbs, 1/2" = 78 ft-lbs. For Grade 8 bolts: 1/4" = 14 ft-lbs, 5/16" = 29 ft-lbs, 3/8" = 47 ft-lbs, 7/16" = 78 ft-lbs, 1/2" = 119 ft-lbs. All bolts must be tightened with Loctite Red applied to the threads. However, the manual does not specify the grade of the 3/8"-16 bolts used to attach the baseplate to the frame.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for the manufacturer's towing specifications and ensure you do not exceed the GVWR.
If the baseplate is in an accident, it must be replaced and cannot be reused. Do not use the baseplate if it is damaged or missing parts. An accident can cause unseen damage, and using it again could result in more damage or serious injury.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX1519 kit includes 2 class IV safety cables (226-0049) and 2 1/2" quicklinks (229-0512). The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must not be mounted against wires, hoses, or brake lines. These cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and all accessories are functioning properly. After installation, verify that the baseplate is flush with the top and front lips of the frame and that it is level. Ensure that the permanent baseplate safety cables do not rub against any hoses or moving parts. Check that all bolts are tightened to the appropriate torque specifications with Loctite Red applied.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended specifications. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls. Remove the attachment tabs when not in use.
The BX8848 4-Diode Wiring Kit is recommended for the BX1519 baseplate on the 2016-20 Buick Envision. The manual does not specify whether this kit is included in the baseplate package or must be purchased separately. Contact your Blue Ox Dealer or technical service at (402) 385-3051 for clarification.
Remove the temperature sensor and let it hang during baseplate installation. After the baseplate is installed, use the supplied 8" nylon cable tie to attach the temperature sensor to the existing hole in the plastic piece below the radiator on the driver side of the vehicle.
Position the baseplate flush with the top and front lips of the frame, level and clamp it into position. Using a 3/8" drill bit, drill the bottom holes on each side of the baseplate through the frame first. Install and fully tighten the 3/8" hardware at these holes. Once the first bolts are fully tightened, drill the remaining holes on each side of the baseplate through the frame. Install and fully tighten the remaining 3/8" hardware.
Pull back the wheel well liner. Using a 7MM socket, remove the bolt (gray arrow). Then release the clips from the fender flare (left, white arrow). Pull straight up on the flare to release the bottom and then pull out away from the vehicle. Repeat on both sides of the vehicle.
Place all removed components on a flat, sturdy surface. All items will be reinstalled unless otherwise noted after the baseplate is installed. The plastic housing and lower grille are not reinstalled. All other components, including the fascia cover, fascia, fender flares, and wheel well liners, must be reinstalled.
Yes, use a good quality paint to spray cut edges of the frame to prevent rusting.
No. Even though bolts may exist on the vehicle, do not assume they are adequate for baseplate mounting. Always use the hardware supplied in the hardware kit and existing hardware as specified in the installation instructions. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Using non-genuine or incorrect bolts will void the manufacturer's warranty.
Yes, the breakaway switch is optional. If you choose to install it, bolt the breakaway to the baseplate bracket with the supplied 1/4" hardware.
When using power drills, be aware of the dangers of torque and drill bit length. Ensure you are using the correct 3/8" drill bit size and take appropriate safety precautions to prevent injury from sudden torque or bit binding.
When using a reciprocating saw, be aware of objects behind the cutting surface. Ensure you understand what is behind the area you are cutting to avoid damaging hidden components, wires, hoses, or other vehicle parts.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The cables should be routed around the crossmember or frame of the towed vehicle. The manual shows recommended installation routing in the photos. Additional options may interfere with suggested mounting; in that case, secure the cables to a solid piece of the frame as described in the General Information sheet. Ensure the safety cables do not rub against any hoses or moving parts on both sides of the vehicle.
On the backside of the fascia, trim the lower tab back flush with the lip on both sides. Hold the fascia as close to its original position as possible, mark and trim the fascia around the convenience links and attachment tabs. Reinstall the fascia and fascia cover, and reconnect all electrical connections.
Yes, the BX1519 is designed for 2016-20 Buick Envision models including those with adaptive cruise control (ACC). If your vehicle's front looks different from the manual images, contact Blue Ox at (402) 385-3051.
Yes. You must drill the bottom holes on each side of the baseplate through the frame using a 3/8" drill bit, then after tightening those bolts, drill the remaining holes and install the remaining hardware.
Yes. Trimming is required on the plastic shielding, bumper bracket, bumper end, and fascia. A reciprocating saw is needed for bracket and bumper trimming.
Required tools include: drill with 3/8" bit, reciprocating saw, torque wrench, T15 and T25 Torx sockets, 7MM and 9/16" sockets, 7/16" wrench, 5/16" nut driver, large vise grip, utility knife, tape measure, and Loctite Red.
Blue Ox recommends installation by Blue Ox Dealers who have the equipment and knowledge for fit work. Find a dealer at www.blueox.com or call (402) 385-3051.
The baseplate is tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for towing specifications.
Yes, the kit includes 2 class IV safety cables and 2 quicklinks. These must be connected from the baseplate to the vehicle frame and are recommended for all towing.
For Grade 5 bolts: 1/4" = 10 ft-lbs, 5/16" = 19 ft-lbs, 3/8" = 33 ft-lbs, 7/16" = 54 ft-lbs, 1/2" = 78 ft-lbs. Apply Loctite Red to all bolt threads before tightening.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and all accessories are functioning properly. If accessories are not working, verify that the electrical harness on the passenger side of the vehicle is fully reconnected and all connectors are properly seated.
If the baseplate is damaged or involved in an accident, it must be replaced immediately. Do not continue to use a damaged baseplate. An accident can cause unseen damage, and using a damaged baseplate could result in separation of the towed vehicle from the tow bar, causing property damage, loss of the towed vehicle, personal injury, or death.
