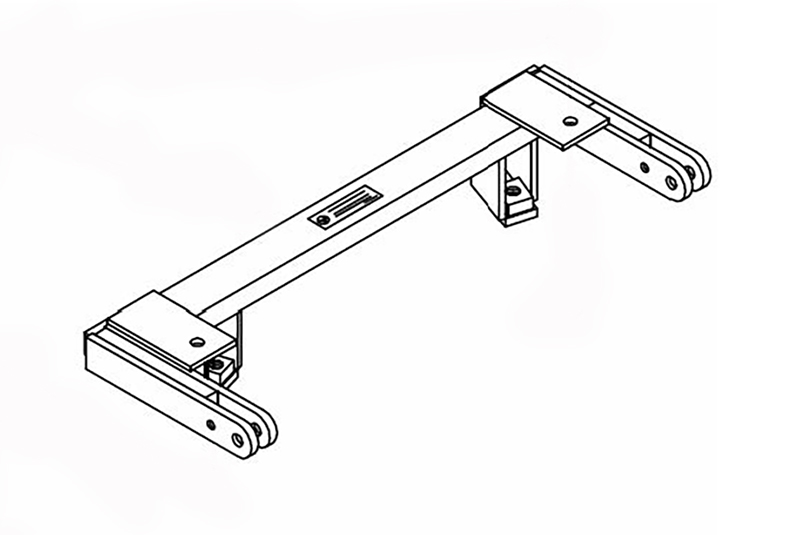

Custom Designed: Each Blue Ox BX1503 base plate is custom designed for each specific towed vehicle, ensuring a perfect fit and seamless integration.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

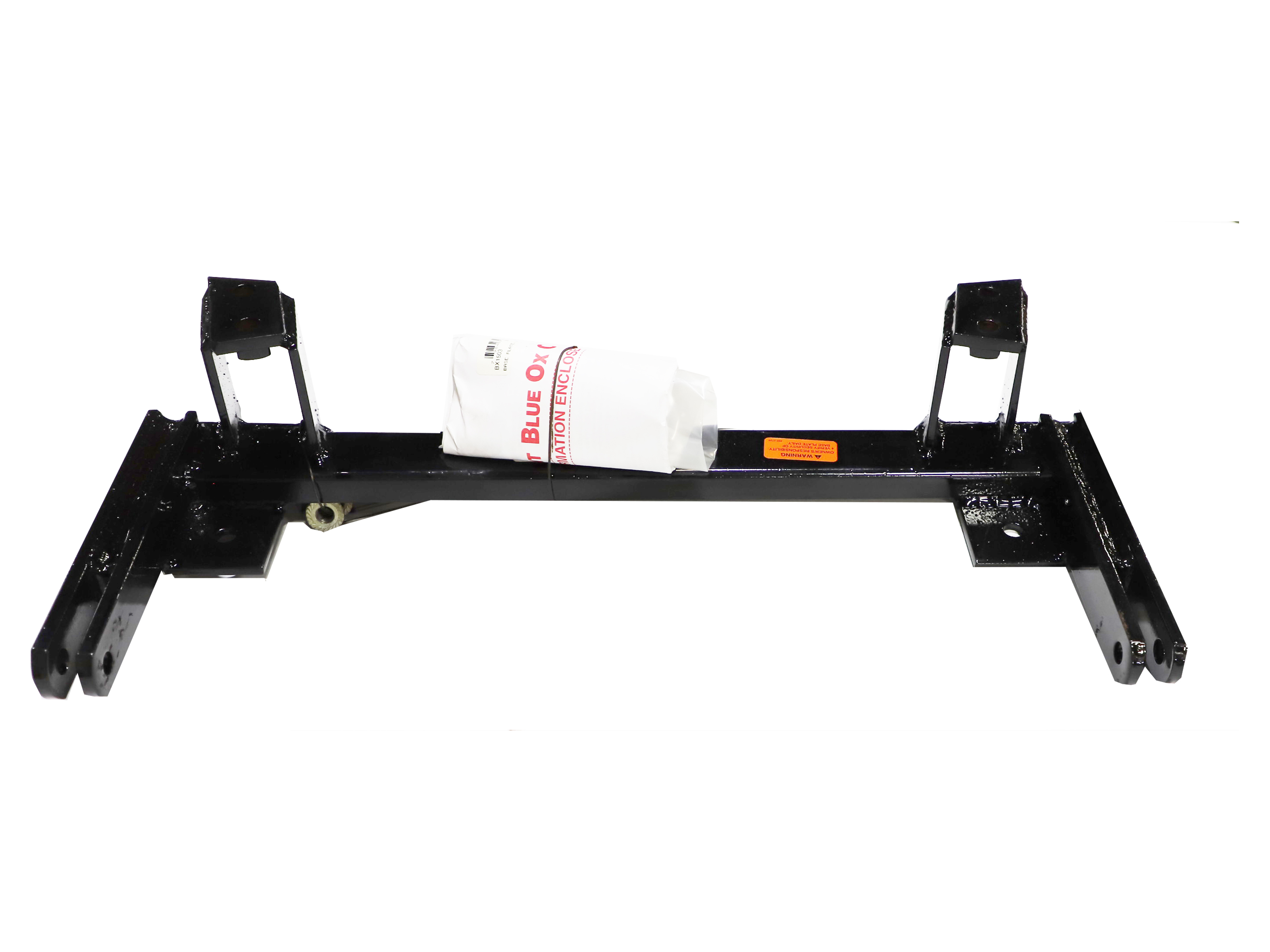

The Blue Ox BX1503 Tow Bar Bracket is a robust, custom-designed solution for your towing needs. Crafted with a sleek black finish, this base plate is made from steel material, ensuring durability and strength. The unique Powder Coat finish enhances corrosion resistance, making it ideal for long-term use under challenging conditions. The bracket comes with a bolt-on mounting type making installation a breeze. The package includes all the necessary mounting hardware, along with clear instructions, ensuring a simple do-it-yourself installation process. The BX1503 Tow Bar Bracket is another testament to Blue Ox's commitment to quality and reliability.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1997 - 2003 | Buick Century | Comes with Standard Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires some trimming of the belly pan |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, BUICK CENTURY (Part #FDRWBX1503) fits the following vehicles: 1997-2003 Buick Century. Always verify your specific year, make, and model before ordering.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, BUICK CENTURY (Part #FDRWBX1503) is designed to fit the 1997-2003 Buick Century.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, BUICK CENTURY (Part #FDRWBX1503) fits 1997-2003 Buick Century models. The 2003 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, BUICK CENTURY (Part #FDRWBX1503) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX1503 is designed for 1997–2003 Buick Century models. However, the manual notes that dimensional variations between otherwise identical cars can be considerable, so some filing of holes may be necessary during installation to allow bolts to clear.
No. The manual states that use of Blue Ox baseplates with any tow bar not approved by Automatic Equipment Mfg. Co. invalidates the limited warranty. You must use only an approved tow bar with this baseplate.
Yes. The bumper molding must be removed to attach the baseplate. Remove the plastic rivets and bolts on the top and bottom of the bumper, then remove the Phillips screws in front of the tires on each side to access the two bolts holding the molding to the side quarter panels. Spread apart and push back the four clips connected to the grill part of the bumper, then pull the bumper off.
Yes. Installation requires drilling 17/32" holes in the vehicle's frame. The baseplate is used as a template to mark hole locations. A 17/32" drill bit and drill are required tools. Additional 17/32" holes must be drilled in the cross frame where the braces attach.
Yes. Both the bumper molding and the bottom air dam will need to be trimmed so they fit around the baseplate after installation. The manual notes that dimensional variations between cars may require filing of holes to allow bolts to clear.
Required tools are: 3/4" wrench, 7mm wrench, Phillips screwdriver, 17/32" drill bit, drill, two C-clamps, and Loctite Blue. The Loctite Blue must be applied to all bolts to prevent loosening.
The kit includes: one weldment baseplate (61-5122), two braces (102-5349), two 1/2" wire nuts (61-4029), two 1/2" nut plates (61-4931), eight 1/2-13 x 1 3/4" hex bolts (201-0068), and eight 1/2" lock washers (203-0012).
Hold the baseplate weldment (Item 1) centered on the bumper and clamp it to the frame using two C-clamps. Use the baseplate as a template to drill 17/32" holes. Insert the nut plates (Item 5) in the bumper and bolt the baseplate to the frame using the 1/2-13 x 1 3/4" hex bolts (Item 4). Apply Loctite Blue to all bolts to ensure they do not loosen.
The two bent braces (Item 2) bolt to the two brackets that extend down from the baseplate. Use the 1/2" bolts (Item 4) and lock washers (Item 7) for this procedure. Hand tighten only at this stage.
Use the braces as a guide to drill 17/32" holes in the cross frame. Bolt the braces to the frame using the 1/2" bolts (Item 4), washers (Item 6), and wire nuts (Item 3). Apply Loctite Blue to all bolts and tighten each bolt securely.
All mounting holes are 17/32" in diameter. This applies to holes drilled in the vehicle's frame for the baseplate and to holes drilled in the cross frame for the braces.
The baseplate and braces are secured with 1/2-13 x 1 3/4" hex bolts (eight total), 1/2" lock washers (eight total), and 1/2" nut plates (two total). All bolts must be secured with Loctite Blue to prevent loosening.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. They prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. The cables must be connected from the baseplate to the frame rail or cross member and must have adequate weight rating. They must not be mounted against wires, hoses, or brake lines.
No. Permanent baseplate safety cables are to be used in conjunction with, and not as a replacement for, legally required safety cables that attach the towed vehicle to the towing vehicle. Both are necessary.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Tighten all bolts to the recommended specifications using Loctite Red.
Yes. It is crucial to register your baseplate online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
Remove the attachment tabs when not in use, if applicable to your installation.
Yes, the BX1503 is designed for 1997–2003 Buick Century. Dimensional variations may require minor hole filing during installation.
Yes. Installation requires drilling 17/32" holes in the vehicle's frame and cross frame. The bumper molding and air dam must also be trimmed.
You need a 3/4" wrench, 7mm wrench, Phillips screwdriver, 17/32" drill bit, drill, two C-clamps, and Loctite Blue.
Yes. The bumper molding must be removed to attach the baseplate. Remove plastic rivets, bolts, and Phillips screws, then spread apart the four grill clips and pull the bumper off.
Eight 1/2-13 x 1 3/4" hex bolts, eight 1/2" lock washers, and two 1/2" nut plates. All bolts must be secured with Loctite Blue.
Yes, strongly recommended. They prevent the towed vehicle from breaking loose if the baseplate connection fails. They must not be mounted against wires, hoses, or brake lines.
Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Tighten all bolts to recommended specifications using Loctite Red.
