Custom Design: Each Blue Ox BX1510 Tow Bar Bracket is tailored to fit the specifics of each vehicle, ensuring a secure and perfect fit every time.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX1510 Tow Bar Bracket is an indispensable tool for any vehicle towing setup. Custom-designed specifically for each vehicle, it ensures a perfect, secure fit every time. Crafted from durable steel and finished with a resilient black powder coat, it resists rust, wear, and tear to ensure longevity. The bolt-on mounting type makes for an easy, do-it-yourself installation, with all necessary hardware included. With its robust construction and easy installation, the Blue Ox BX1510 Tow Bar Bracket is a reliable solution for all your towing needs.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2007 | Buick Terraza | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Always Insure Tow Bar/Hitch Rated For Vehicle Overall Weight |

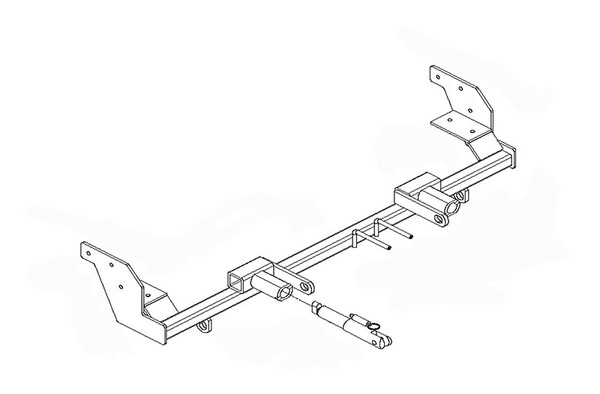

The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, BUICK TERRAZA (Part #FDRWBX1510) fits the following vehicles: 2005-2007 Buick Terraza. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, BUICK TERRAZA (Part #FDRWBX1510) fits 2005-2007 Buick Terraza models. The 2007 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, BUICK TERRAZA (Part #FDRWBX1510) is designed to fit the 2005-2007 Buick Terraza.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, BUICK TERRAZA (Part #FDRWBX1510) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX1510 baseplate is designed for 2005-07 Buick Terraza vehicles. However, confirm towability and pre-towing procedures with your vehicle's owner's manual or manufacturer before installation.
Motorhome mount tow bars are recommended for use with the BX1510. The RangeFinderII, Adventurer, and Ambassador tow bars cannot be used due to the design of the removable tabs. The Acclaim tow bar may be used but will not fold and store on the front of the vehicle. Adapters (except BX8833 and BX88151) cannot be used with this baseplate.
Most tow bar adapters cannot be used with the BX1510 baseplate. The only exceptions are the BX8833 and BX88151 adapters. Additionally, tow bar adapters are not to be used with vehicles weighing over 5,000 lbs.
Required tools are: 10mm socket, 10mm wrench, 9/16" socket, 13mm socket, Phillips screwdriver, large vise grips, utility knife, 20 Torx socket, 13/32" drill bit, tape measure, and Loctite RED.
The hardware kit includes: 1 baseplate weldment (61-6240), 10 nut plates with 14" wire (61-5208), 10 3/8-16 x 1 1/2" Grade 5 hex bolts (201-0440), 10 3/8" lock washers (203-0010), 2 #12-14 x 1" self-drilling screws (201-0979), 2 #10-32 x 1/2" slot round head screws (201-0192), 2 #10 lock washers (203-0054), 2 #10-32 hex nuts (202-0047), 2 4-way connector adapters (101-5822), 2 attachment assemblies (62-3469), 2 black cap plugs (290-0437), 2 3/8" quicklinks (229-0359), and 2 36" Class III baseplate safety cables (226-0046).
The front fascia, horn brackets, and metal bumper must be removed for installation. The air dam must also be trimmed. These components are reinstalled after baseplate installation is complete.
Yes, drilling is required. You must drill two holes into the underside of the frame on each side of the vehicle using a 13/32" drill bit, and three additional holes into the frame endplate on each side using the same drill bit. Nut plates are then inserted into the drilled holes.
The air dam must be trimmed using a utility knife. Trim away the air dam around the soft rubber of the lower portion, then upward to the metal bumper. Finish with a horizontal cut flush with the bottom of the metal bumper. This must be done on both sides of the vehicle to open up the area for baseplate installation.
The drilling of frame holes is permanent. The air dam trimming is also permanent. However, the manual notes that dimensional variations between vehicles can be considerable, and minor adjustments may include filing holes slightly, bending electrical rods, and/or bending end plates to compensate for manufacturer tolerances.
The attachment tab height is 15.5" and the attachment tab width is 20".
The BX8869 Bulb and Socket Wiring Kit is recommended for this vehicle. The manual shows the location for installation on page 8.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. They prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. The cables must be connected from the baseplate to the frame rail or cross member. Two 36" Class III cables are included with the BX1510. These cables should remain installed as long as the baseplate is installed and must be used in conjunction with, not as a replacement for, legally required safety cables.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The cables should then be secured to a solid piece of the vehicle's frame. Do not mount the cables against wires, hoses, or brake lines. If the vehicle has additional options that interfere with the recommended mounting location, secure the cable to an alternative solid frame location as described in the instructions included with the permanent baseplate safety cables.
Ensure that all electrical connections are plugged in properly and functioning before installing the fascia. When reinstalling the horn, verify that it is not touching any metal surface or it may not function properly.
Ensure all pushpins, screws, bolts, and electrical connections are properly installed when reinstalling the fascia. Verify the horn is not touching any metal surface. All electrical connections must be plugged in properly and functioning. Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Use Loctite RED on all bolts and tighten to the recommended specifications. Permanent baseplate safety cables should remain installed as long as the baseplate is installed on the vehicle. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
No. Although the Buick Terraza may have existing holes and hardware, do not assume they are adequate for baseplate mounting. Always use the hardware supplied in the hardware kit or existing hardware specified in the Baseplate Installation Instructions. The manual emphasizes that even though bolts may be present, they must be verified as suitable for baseplate mounting.
Blue Ox towing products and accessories are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Customer Care at (402) 385-3051.
If a bolt is lost or needs replacement, use a replacement bolt of the same grade. In most cases it will be Grade 5. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Do not substitute homemade or non-typical parts.
Yes, the BX1510 is designed for 2005-07 Buick Terraza vehicles. Confirm towability with your vehicle's owner's manual or manufacturer.
Motorhome mount tow bars are recommended. The RangeFinderII, Adventurer, and Ambassador cannot be used. The Acclaim may be used but will not fold and store on the front. Most adapters cannot be used except BX8833 and BX88151.
10mm socket and wrench, 9/16" socket, 13mm socket, Phillips screwdriver, large vise grips, utility knife, 20 Torx socket, 13/32" drill bit, tape measure, and Loctite RED.
The front fascia, horn brackets, and metal bumper must be removed. The air dam must be trimmed. All components are reinstalled after baseplate installation.
Yes. You must drill two holes on each side of the frame and three holes into each endplate using a 13/32" drill bit. Nut plates are inserted into the drilled holes.
The air dam must be trimmed with a utility knife on both sides: trim around the soft rubber lower portion upward to the metal bumper, then finish with a horizontal cut flush with the bottom of the metal bumper.
Yes. Two 36" Class III permanent baseplate safety cables are included. They are strongly recommended and must be attached to the baseplate convenience link and secured to the vehicle's frame rail or cross member.
Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts. Use Loctite RED on all bolts and tighten to specification. Register your product at www.blueox.com for safety bulletins and recalls.
Verify that the horn is not touching any metal surface. If the horn is touching metal, it may not function properly. Reposition the horn bracket to ensure adequate clearance from all metal surfaces.
The manual notes that dimensional variations between otherwise identical vehicles can be considerable. Minor adjustments may be necessary to compensate for manufacturer tolerances. These adjustments may include filing a hole slightly, bending electrical rods, and/or bending end plates. Ensure the baseplate is clamped level on the passenger's side while aligning the lower hole of the baseplate endplate with the lower existing hole in the driver's side of the frame.
