Custom Designed: This tow bar bracket is not a one-size-fits-all product. It is custom designed for each specific towed vehicle, ensuring a perfect fit and optimal performance.
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

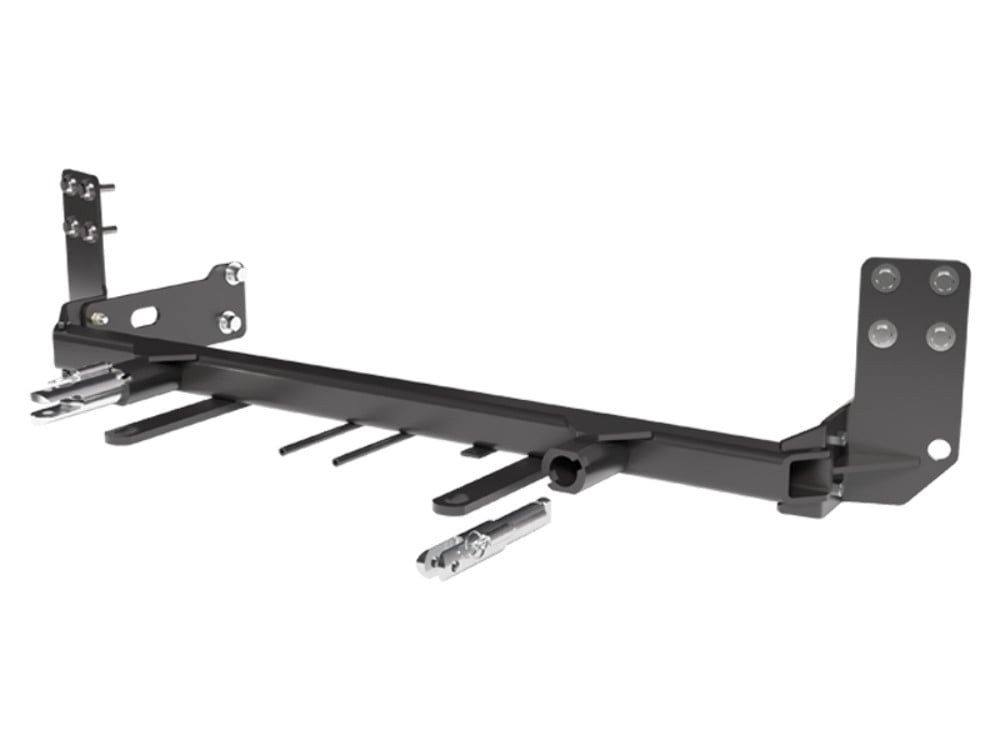

The Blue Ox BX1521 Tow Bar Bracket is the ultimate solution for those seeking a reliable and robust way to connect their vehicle to a tow bar. Custom designed for each specific towed vehicle, this bracket ensures a perfect fit and effortless installation. It is finished in a durable powder coat, resisting corrosion and wear even in harsh environments. The bracket comes with all the necessary hardware, and it's a bolt-on mounting type, offering a secure attachment without requiring extensive modification to your vehicle.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2024 - 2026 | Buick Encore GX | Vehicles With Adaptive Cruise Control, Turbo, & Top Shutters Only, Comes with Removable Attachment Tabs, Install Rating 3, Bumper Fascia Must Be Removed/Replaced During Install, Requires Some Trimming of Bumper/Fascia/Plastic/And/Or Grill, Minor Drilling Required, Requires Some Trimming of the Air Dam. |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, BUICK ENCORE GX AWD, 2024 (Part #FDRWBX1521) fits the following vehicles: 2024-2026 Buick Encore GX. Always verify your specific year, make, and model before ordering.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, BUICK ENCORE GX AWD, 2024 (Part #FDRWBX1521) is designed to fit the 2024-2026 Buick Encore GX.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, BUICK ENCORE GX AWD, 2024 (Part #FDRWBX1521) fits 2024-2026 Buick Encore GX models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, BUICK ENCORE GX AWD, 2024 (Part #FDRWBX1521) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BX1521 baseplate is designed specifically for 2024-2026 Buick Encore GX models that include Adaptive Cruise Control, Turbo, and Top Shutters. If your vehicle does not have all three of these features, contact Blue Ox at (402) 385-3051 to confirm compatibility before purchasing.
No. The BX1521 is designed only for models with Adaptive Cruise Control, Turbo, and Top Shutters. If your vehicle lacks any of these features, this baseplate is not compatible. Contact Blue Ox at (402) 385-3051 for the correct part number for your vehicle.
The BX1521 attachment tab height is 15.5 inches and the width is 24 inches.
Yes. The fascia must be removed during installation and then reinstalled after the baseplate is mounted. The fascia will need to be trimmed on both sides to allow room for the baseplate and convenience link before reinstallation.
Yes. The windshield washer fluid reservoir must be removed from the passenger side of the vehicle during installation. All lines must be disconnected and plugged. The reservoir is then reinstalled and all lines are reconnected after the baseplate is mounted.
Yes. Drilling is required. You must drill a 1/4" starter hole and then a 1/2" hole in the vehicle frame on the passenger side to mount the support plate. Additionally, a hole must be drilled according to the tail light wiring kit instructions.
Yes. The fascia must be trimmed on both sides using a reciprocating saw to allow room for the baseplate and convenience link. Two fascia styles are shown with different trim patterns. You must identify your fascia style and follow the corresponding trim instructions (steps 25a or 25b).
Required tools are: T15 Torx, 7MM socket, 10MM socket, 11MM socket, 15MM socket, 11MM wrench, 9/16" wrench, 3/4" socket, flat screwdriver, torque wrench, reciprocating saw, level, drill, 1/2" drill bit, and Loctite Red.
The kit includes: 4 whiz nuts with 10" wire (61-4029), 2 attachment tab assemblies (62-3469), 2 support plates (101-10572), 1 1/4"-20 x 3/4" hex head bolt Grade 5 (201-0050), 4 1/2"-13 x 1-1/2" hex head bolts Grade 5 (201-0051), 2 #10-32 1/2" round slotted head screws (201-0192), 4 3/8"-16 x 1-1/4" hex head bolts Grade 5 (201-0368), 2 #12-14 x 1" self-drilling screws (201-0979), 2 #10-32 hex nuts (202-0047), 4 3/8"-16 hex nylon insert lock nuts (202-0090), 1 1/4"-20 hex nylon nut (202-0102), 4 7/16" flat washers (203-0004), 4 1/2" lock washers (203-0012), 2 #10 lock washers (203-0054), 1 electrical bracket (299-0685), 2 Class III safety cables (226-0046), 2 8" nylon cable ties (290-0275), 2 3/8" quicklinks (229-0359), and 2 black cap plug receivers (290-0437). The kit also uses 8 existing 10MM x 1.5 x 40MM bolts and 8 existing 10MM flat washers from the vehicle.
Yes. The installation uses 8 existing 10MM x 1.5 x 40MM bolts and 8 existing 10MM flat washers from the vehicle to mount the baseplate to the frame. However, do not assume existing bolts are adequate—always use the hardware supplied in the kit and existing hardware as specified in the instructions.
The BX8869 Tail Light Wiring Kit is recommended for non-LED equipped vehicles. The BX8848 Diode Wiring Kit is recommended for LED equipped vehicles.
The torque specification for 10MM Grade 5 bolts is 31 foot-pounds. All bolts must have Loctite Red applied to the threads before tightening.
The torque specification for 3/8"-16 Grade 5 bolts is 33 foot-pounds. All bolts must have Loctite Red applied to the threads before tightening.
The torque specification for 1/2"-13 Grade 5 bolts is 78 foot-pounds. All bolts must have Loctite Red applied to the threads before tightening.
Yes. During installation, you must disconnect the electrical connection on the wheel well trim (both sides), the electrical connection on the passenger side of the vehicle, and unclip the electrical loom from the shroud on the passenger side. These connections are reconnected after the baseplate is installed. The electrical loom on the driver side must also be unclipped and then reattached after support plate installation.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for the manufacturer's towing specifications and ensure you do not exceed the GVWR.
Yes. Two Class III safety cables are included with the BX1521 kit and must be attached to the baseplate and secured to the vehicle frame. The cables must be connected from the baseplate to the frame rail or cross member and must not rub against hoses or moving parts. These permanent baseplate safety cables are strongly recommended and must be used in conjunction with, not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
No. If the baseplate is in an accident, it must be replaced and cannot be reused. An accident can cause unseen damage, and using it again could result in more damage or serious injury.
Do not use the baseplate if it is damaged or missing parts. Contact Blue Ox at (402) 385-3051 for replacement parts or a replacement baseplate.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and all accessories are functioning properly. This includes the tail light wiring connections and any other electrical components that were disconnected during installation.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended specifications. Paint any cut frame edges to prevent rusting.
Yes. You should register your product online at www.blueox.com. Registration is crucial so you can be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
Blue Ox offers a three-year limited warranty from the date of delivery to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. To activate the warranty, the customer warranty card must be returned within 30 days of purchase, and a copy of the original invoice must accompany any warranty claim. The warranty does not cover incorrect or improper installation, improper use, modification, neglect, failure to maintain, misuse, accident, normal wear and tear, paint, or rust. Register your warranty at http://blueox.com/warranty/
Blue Ox recommends that baseplates be installed by Blue Ox Dealers who are familiar with their products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Customer Care at (402) 385-3051.
The BX1521 fits 2024-2026 Buick Encore GX models with Adaptive Cruise Control, Turbo, and Top Shutters only. Confirm your vehicle has all three features before purchasing.
Yes. You must drill a 1/4" starter hole and then a 1/2" hole in the frame on the passenger side for the support plate, plus a hole for the tail light wiring kit.
Yes. The fascia must be trimmed on both sides with a reciprocating saw to allow room for the baseplate. Two fascia styles are shown with different trim patterns.
T15 Torx, 7MM/10MM/11MM/15MM sockets, 11MM wrench, 9/16" wrench, 3/4" socket, flat screwdriver, torque wrench, reciprocating saw, level, drill with 1/2" bit, and Loctite Red.
31 foot-pounds for Grade 5 bolts. Apply Loctite Red to all bolt threads before tightening.
Yes. Two Class III safety cables are included and must be attached to the baseplate and secured to the vehicle frame. They must not rub against hoses or moving parts.
The baseplate is tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for towing specifications.
Inspect for cracked welds, missing or worn parts, and loose bolts. Ensure all electrical connections are plugged in and functioning. Use Loctite Red on all bolts and tighten to specification before each towing trip.
If the holes on the bumper do not line up with the baseplate, slightly slot the holes in the bumper towards the outside. This adjustment allows the baseplate to be properly positioned while maintaining alignment with the bumper.
Do not mount the permanent baseplate safety cables against wires, hoses, or brake lines. If the recommended mounting location causes the cables to rub against hoses or moving parts, secure the cables to a different solid piece of the frame as described in the General Information sheet. Ensure the cables do not rub against any hoses or moving parts before completing the installation.
