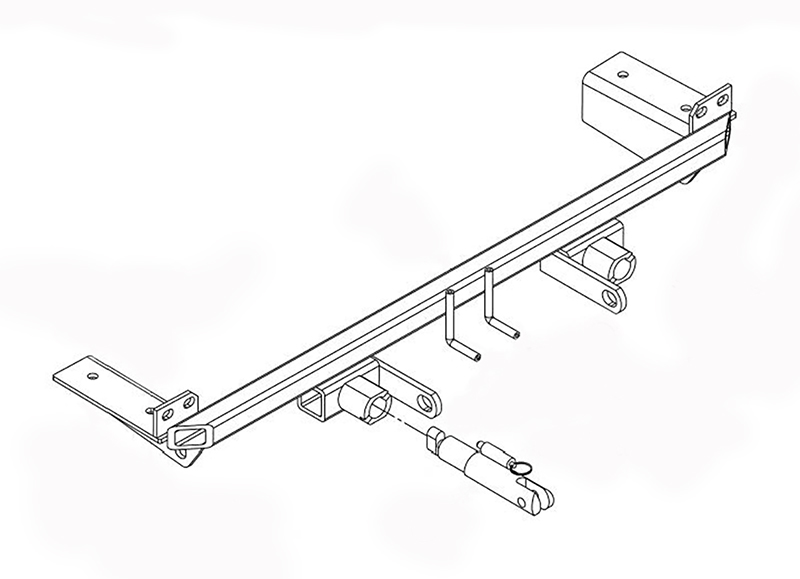

Custom Designed: Each Blue Ox BX1675 Tow Bar Bracket is custom designed for specific towed vehicles for a perfect fit and superior performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX1675 Tow Bar Bracket is the perfect solution for your towing needs. This product is custom designed for each specific towed vehicle, ensuring a perfect fit and superior performance. Manufactured from high-quality steel and finished with a durable black powder coat, the BX1675 offers unparalleled strength and resilience, making it the perfect companion for all your towing activities. The bracket mounts easily with a bolt-on design, and includes all the necessary hardware and instructions, giving you all the tools you need for a hassle-free, do-it-yourself installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2012 | GMC Acadia | No Denali Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight |

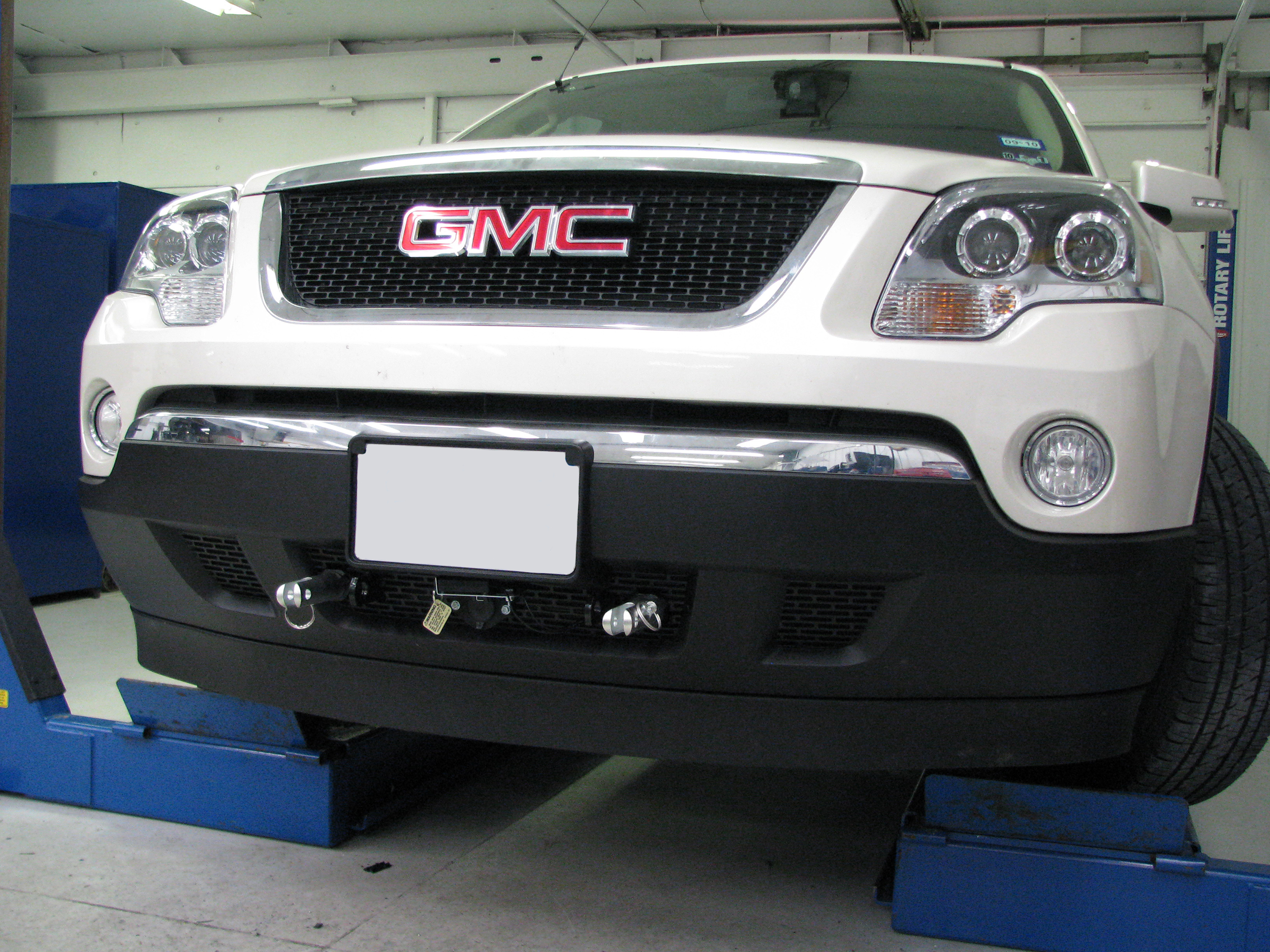

The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, GMC ACADIA (Part #FDRWBX1675) fits 2007-2012 GMC Acadia models. The 2012 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, GMC ACADIA (Part #FDRWBX1675) is designed to fit the 2007-2012 GMC Acadia.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, GMC ACADIA (Part #FDRWBX1675) fits the following vehicles: 2007-2012 GMC Acadia. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, GMC ACADIA (Part #FDRWBX1675) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX1675 is designed for 2007-12 GMC Acadia vehicles. However, vehicle weight is critical: the Acadia is near the Class III 5,000 lb rating limit, and some models with options may exceed this limit. You must confirm your specific vehicle's weight before towing. If your vehicle exceeds 5,000 lbs, you must use an Aventa II or Aventa LX tow bar instead of a tow bar adapter.
The BX1675 is rated for Class III towing with a 5,000 lb maximum rating. However, the 2007-12 GMC Acadia is near this limit, and some models with options may exceed it. You must confirm your specific vehicle's weight before towing. Tow bar adapters cannot be used with vehicles weighing over 5,000 lbs.
The kit includes: one baseplate weldment (61-6385), four 1/2" nut wire weldments, four 1/2-13 x 1 1/2" Grade 5 hex bolts with lock washers, two #12-14 x 1" self-drilling screws, two #10-32 x 1/2" round head screws with lock washers and hex nuts, two 4-way connector adapters (101-5822), two attachment assemblies (62-3468), two black cap plugs, two 3/8" quicklinks, and two 36" Class III baseplate safety cables. You will also reuse four existing bolts from the vehicle bumper.
Required tools are: Loctite RED, hack saw blade, Phillips screwdriver, reciprocating saw, 7MM socket, 10MM socket, 15MM socket, 17/32" drill bit, 1 1/4" hole saw, 9/16" socket, 3/4" socket, Torx 20 screwdriver, and utility knife. A power drill is mentioned for drilling operations.
Blue Ox recommends that baseplates be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge to do "fit work." Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Customer Care at (402) 385-3051. Installation involves fascia removal and reinstallation, drilling, trimming, and frame modifications, which require specialized knowledge and tools.
Yes, the fascia must be removed and reinstalled during installation. The removal process involves removing push pins, Phillips screws, and metric bolts from multiple locations on both sides of the vehicle. The fascia is then carefully set aside and reinstalled after drilling and frame modifications are complete. A hack saw blade is used to cut out an area around the attachment tab receiver to allow it to pass through the fascia.
Yes, drilling is required. You must drill a 1 1/4" hole into the frame on both sides of the vehicle for the nut plates, and a 17/32" drill bit is used to drill two bottom holes into the frame for the main mounting bolts. The manual warns that when using power drills, be aware of the dangers of torque and drill bit length.
Yes, trimming and cutting are required. The fascia must be trimmed using a utility knife along a marked dashed line, and a plastic piece is cut and discarded. The frame must be marked and cut out using a reciprocating saw according to dimensions shown in the manual (7/16", 3 3/4", 2", and 1" measurements). A hack saw blade is used to remove the area around the attachment tab receiver in the fascia. These modifications are permanent.
According to the installation diagram in Step 7, the frame cutout dimensions are: 7/16" width at the top, 3 3/4" total height, 2" width at the middle section, and 1" width at the bottom. These measurements must be marked and cut out using a reciprocating saw on both sides of the vehicle.
The manual provides a torque chart on page 1 for Grade 5 and Grade 8 bolts in both inch and metric sizes. For the 1/2" Grade 5 hex bolts used in this installation, the torque specification is 78 foot-pounds. The manual states to tighten all bolts according to the torque chart on the front page or page 3 of the Baseplate Towing General Instructions. Loctite RED must be applied to all bolts before tightening.
The attachment tab height is 17" and the attachment tab width is 18".
The BX8848 Diode Wiring Kit is recommended for this vehicle. The manual emphasizes that all electrical connections must be plugged in properly and functioning before installing the fascia.
Yes, permanent baseplate safety cables are required. Two 36" Class III baseplate safety cables are included in the kit. They must be attached to the provided convenience link on the baseplate and secured to a solid piece of the frame. The cables must not rub against any hoses or moving parts. These cables prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. They are used in conjunction with, not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Do not use the towed vehicle for storing luggage, equipment, or other items. This may cause you to exceed the towing capacity of the tow bar, baseplate, and its accessories.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure that Loctite RED is used on all bolts and that they are tightened to the recommended torque specifications (78 foot-pounds for 1/2" Grade 5 bolts). Verify that all electrical connections are plugged in properly and functioning.
Yes, the attachment tabs should be removed when not in use, if applicable. The manual shows the baseplate both with and without removable tabs installed.
If the baseplate is in an accident, it must be replaced and not reused. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to follow these instructions or altering the installation instructions will void the manufacturer's warranty.
Yes, towing behind a non-motorized vehicle will void the warranty.
Yes. Confirm the towability and pre-towing procedures for your vehicle with the owner's manual or contact the vehicle's manufacturer for specific towing procedures. You should also read both the BX1675 Installation Instructions and the General Towing Instructions before attempting to install or operate this equipment.
Handling of some cosmetic parts when installing this product may require the use of protective covers, rags, specialty tools, etc. to prevent damage.
The installation sequence is: (1) Remove three push pins from the top plastic piece on both sides; (2) Remove three screws and one push pin from below the top piece on both sides; (3) Remove five screws from the wheel well on both sides; (4) Remove two screws and one bolt from underneath the wheel well on both sides; (5) Remove one metric bolt from the top plastic on both sides; (6) Remove two metric bolts from underneath on both sides and remove the fascia; (7) Mark and cut the frame using a reciprocating saw on both sides; (8) Remove a push pin and cut along a dashed line with a utility knife on both sides; (9) Drill a 1 1/4" hole into the frame on both sides; (10) Remove two bolts from the front bumper on both sides, slide the baseplate back, and reinsert existing bolts snugly; (11) Drill two bottom holes with a 17/32" bit, insert nut plates, install 1/2" hex bolts with lock washers and Loctite Red, and tighten all bolts; (12) Attach permanent safety cables to the baseplate and secure to the frame; (13) Align the fascia and use a hack saw blade to cut around the attachment tab receiver on both sides.
From the top plastic piece: three push pins (both sides). Below the top piece: three screws and one push pin per side (both sides). From the wheel well: five screws per side (both sides). From underneath the wheel well: two screws and one 10MM bolt per side (both sides). From the top plastic: one 7MM metric bolt per side (both sides). From underneath: two 7MM metric bolts per side (both sides). All these fasteners should be set aside to be reinstalled later.
The 1 1/4" hole is drilled into the frame on both sides of the vehicle to allow the 1/2" nut plates to pass through the frame.
Slide the baseplate straight back so that the holes on the baseplate line up with the existing holes of the bumper. Reinsert the existing bolts and tighten them down so they are snug. Do this on both sides of the baseplate.
Two 1/2-13 x 1 1/2" Grade 5 hex bolts with 1/2" lock washers are used to secure the baseplate to the frame on each side. These bolts are inserted through the drilled holes into the 1/2" nut plates. Loctite RED must be applied to all bolts before tightening, and they must be tightened to 78 foot-pounds (the torque specification for 1/2" Grade 5 bolts).
The front bumper bolts should be tightened snugly when the baseplate is first positioned (Step 10). They are then fully tightened after the bottom frame bolts are installed and tightened with Loctite Red (Step 11).
Yes. Be sure that all electrical connections are plugged in properly and functioning before installing the fascia.
The permanent baseplate safety cables must be attached to the provided convenience link on the baseplate and secured to a solid piece of the frame. The cables must not rub against any hoses or moving parts. Specific routing arrangements are shown in the Permanent Baseplate Safety Cable Installation section of the manual.
Two drill bit sizes are used: a 1 1/4" hole saw to drill the frame for the nut plates (Step 9), and a 17/32" drill bit to drill the two bottom holes into the frame for the main mounting bolts (Step 11).
Yes, the BX1675 is designed for 2007-12 GMC Acadia. However, vehicle weight is critical: the Acadia is near the Class III 5,000 lb limit, and some models may exceed it. Confirm your vehicle's weight before towing.
Required tools include: Loctite RED, hack saw blade, Phillips screwdriver, reciprocating saw, 7MM/10MM/15MM sockets, 17/32" drill bit, 1 1/4" hole saw, utility knife, and Torx 20 screwdriver. A power drill is needed for drilling operations.
Yes, Blue Ox recommends installation by Blue Ox Dealers familiar with the product and equipped for "fit work." Installation involves fascia removal, drilling, trimming, and frame modifications. Find a dealer at www.blueox.com or call (402) 385-3051.
Yes. You must drill a 1 1/4" hole for nut plates and a 17/32" hole for mounting bolts on both sides. Trimming of the fascia with a utility knife and reciprocating saw is also required.
The 1/2" Grade 5 hex bolts must be tightened to 78 foot-pounds. Apply Loctite RED to all bolts before tightening.
The BX8848 Diode Wiring Kit is recommended. All electrical connections must be plugged in properly and functioning before reinstalling the fascia.
Inspect for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to 78 foot-pounds with Loctite RED and all electrical connections are functioning.
If the front of your vehicle looks different than the image shown in the manual, call Blue Ox Customer Care at (402) 385-3051. This may indicate a variation that requires special attention or a different installation approach.
The manual notes that dimensional variations between otherwise identical vehicles can be considerable. Minor adjustments may be necessary to compensate for manufacturer tolerances. These adjustments may include filing a hole slightly, bending electrical rods, or bending end plates. If alignment issues persist, contact Blue Ox at (402) 385-3051.
Reposition the safety cables so they do not rub against any hoses or moving parts. The cables must be secured to a solid piece of the frame and routed away from all fluid lines and moving components. If repositioning is not possible, contact Blue Ox at (402) 385-3051 for guidance.
