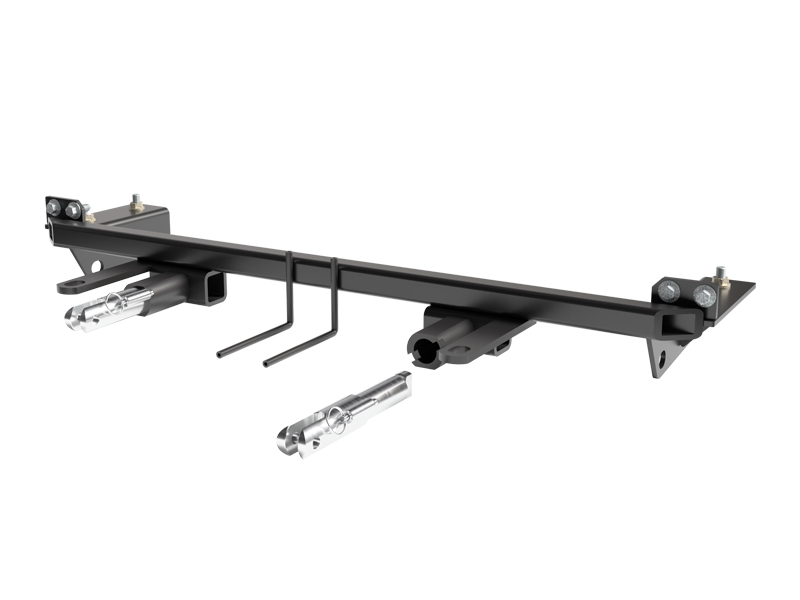

Custom Design: Each Blue Ox BX1708 Tow Bar Bracket is custom designed for a perfect fit to your specific vehicle, ensuring a secure and reliable towing connection.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Introducing the Blue Ox BX1708 Tow Bar Bracket - a robust and reliable towing solution for your vehicle. Manufactured with high-quality steel and finished with a resilient black powder coat, this base plate is custom designed to perfectly fit your specific vehicle. The Blue Ox BX1708 boasts a convenient bolt-on mounting type, making self-installation a breeze. As an added bonus, all required mounting hardware is included with your purchase. With this tow bar bracket, you can trust in a secure and sturdy connection for all your towing needs.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2008 - 2017 | Buick Enclave | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
| 2013 - 2016 | GMC Acadia | Also Denali Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
| 2017 | GMC Acadia Limited | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
Yes, the BlueOx Tow Bar Base Plate For Select GMC ACADIA BX1708 (Part #FDRWBX1708) is designed to fit the 2008-2017 Buick Enclave.
The BlueOx Tow Bar Base Plate For Select GMC ACADIA BX1708 (Part #FDRWBX1708) fits the following vehicles: 2008-2017 Buick Enclave; 2013-2016 GMC Acadia; 2017 GMC Acadia Limited. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate For Select GMC ACADIA BX1708 (Part #FDRWBX1708) fits 2008-2017 Buick Enclave models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate For Select GMC ACADIA BX1708 (Part #FDRWBX1708) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX1708 baseplate is designed for 2013-2016 GMC Acadia models, including the Denali trim. Your 2015 Acadia is within this range and is compatible with this baseplate.
Yes, the BX1708 is compatible with 2008-2017 Buick Enclave models, which includes 2012 models. However, 2012 Enclave fascia removal requires a T20 Torx screwdriver instead of a Phillips screwdriver for certain fasteners, and additional steps are needed to unclip the wheel well liner.
The BX1708 is compatible with 2017 GMC Acadia Limited models. However, it is not listed as compatible with the standard 2017 GMC Acadia (non-Limited). If you have a 2017 Acadia Limited, it will fit.
The BX1708 attachment tab height is 17-3/4" and the width is 18".
Required tools include: large vise grip, utility knife, torque wrench, Phillips screwdriver, drill, reciprocating saw, tape measure, T20 Torx, 7MM socket, 10MM socket, 15MM socket, 3/4" socket, 17/32" drill bit, 7/16" drill bit, and 1-1/4" hole saw. You will also need Loctite Red.
The BX8848 4-Diode Wiring Kit is recommended for the GMC Acadia. For the Buick Enclave, the BX8869 Tail Light Wiring Kit is recommended.
The BX1708 kit includes: 4 existing bumper bolts (reused), 4 Whiz nuts with 10" wire (61-4029), 1 baseplate (61-7189), 2 attachment tab assemblies with holes (62-3469), 1 breakaway bracket (102-7168), 1 1/4"-20 x 3/4" hex head bolt Grade 5 (201-0050), 4 1/2"-13 x 1-1/2" hex head bolts Grade 5 (201-0051), 2 #10-32 1/2" round slotted head screws (201-0192), 1 #10-16 x 1" self-drilling screw (201-0654), 2 #12-14 x 1" self-drilling screws (201-0979), 2 #10-32 hex nuts (202-0047), 1 1/4"-20 hex nylon nut (202-0102), 4 1/2" lock washers (203-0012), 2 #10 lock washers (203-0054), 1 electrical bracket (299-0685), 2 class IV safety cables (226-0049), 2 1/2" quicklinks (229-0512), and 2 black cap plug receivers (290-0437).
Yes, fascia removal is required. The removal procedure varies by vehicle year and model. For 2013-2016 GMC Acadia and 2013-2017 Buick Enclave, you remove push pins and Torx screws from the top, wheel well, and underside. For 2008-2012 Buick Enclave, additional steps include removing Phillips screws, unclipping wheel well liner clips, and removing the horn assembly. All removed components are reinstalled after baseplate installation.
Blue Ox recommends that towing products be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051.
Yes, drilling is required. You must drill a 1-1/4" access hole into the frame on both sides for nut plate installation, and drill two 17/32" holes on the underside of the baseplate on both sides. A 7/16" drill bit is used to drill a new hole in the temperature sensor bracket. Additionally, a hole is drilled according to the tail light wiring kit instructions.
Yes, trimming is required. Using a reciprocating saw, you must notch out the shrouding on both sides for baseplate clearance. On the driver side, you trim the plastic air deflector. The temperature sensor bracket is trimmed after drilling a new hole. Finally, the fascia is trimmed around the convenience links and attachment tabs before reinstallation.
Yes, the modifications are permanent. The reciprocating saw notching of shrouding, trimming of the air deflector, and trimming of the temperature sensor bracket cannot be reversed. The drilling of access holes and mounting holes is also permanent. These modifications are necessary for proper baseplate installation and function.
According to the bolt torque specifications chart, 1/2" Grade 5 bolts should be torqued to 78 foot-pounds.
According to the bolt torque specifications chart, 1/2" Grade 8 bolts should be torqued to 119 foot-pounds.
According to the bolt torque specifications chart, 3/8" Grade 5 bolts should be torqued to 33 foot-pounds.
According to the bolt torque specifications chart, 1/4" Grade 5 bolts should be torqued to 10 foot-pounds.
Yes, permanent baseplate safety cables are strongly recommended and are included with the BX1708. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame on both sides. The safety cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle. Do not mount the safety cables against wires, hoses, or brake lines.
The baseplate is computer tested to your vehicle's GVWR. Exceeding the GVWR weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for the manufacturer's towing specifications and GVWR.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. After installation, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Verify that all bolts are tightened to the recommended torque specifications using Loctite Red.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended specifications. Paint cut edges of the frame to prevent rusting. The attachment tabs should be removed when not in use. Register your product online at www.blueox.com to receive alerts about product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
Blue Ox offers a three-year limited warranty to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. The warranty is valid only if the customer warranty card is returned within 30 days of purchase and a copy of the original invoice accompanies any warranty claim. The warranty does not cover improper installation, improper use, modification, neglect, normal wear and tear, paint, or rust. The warranty is non-transferable.
The BX1708 fits 2013-2016 GMC Acadia (including Denali), 2017 GMC Acadia Limited, and 2008-2017 Buick Enclave. If your vehicle is not in this list, it is not compatible.
For GMC Acadia, use the BX8848 4-Diode Wiring Kit. For Buick Enclave, use the BX8869 Tail Light Wiring Kit.
Yes. You must drill a 1-1/4" access hole and two 17/32" holes, and use a reciprocating saw to notch shrouding and trim the air deflector. The temperature sensor bracket and fascia are also trimmed.
Yes, two class IV safety cables with quicklinks are included. They must be installed on both sides, connecting the baseplate to the vehicle frame, and must not contact wires, hoses, or brake lines.
Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to specification. Paint cut frame edges to prevent rust. Remove attachment tabs when not in use.
