Made from high-quality steel, ensuring durability and robustness.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

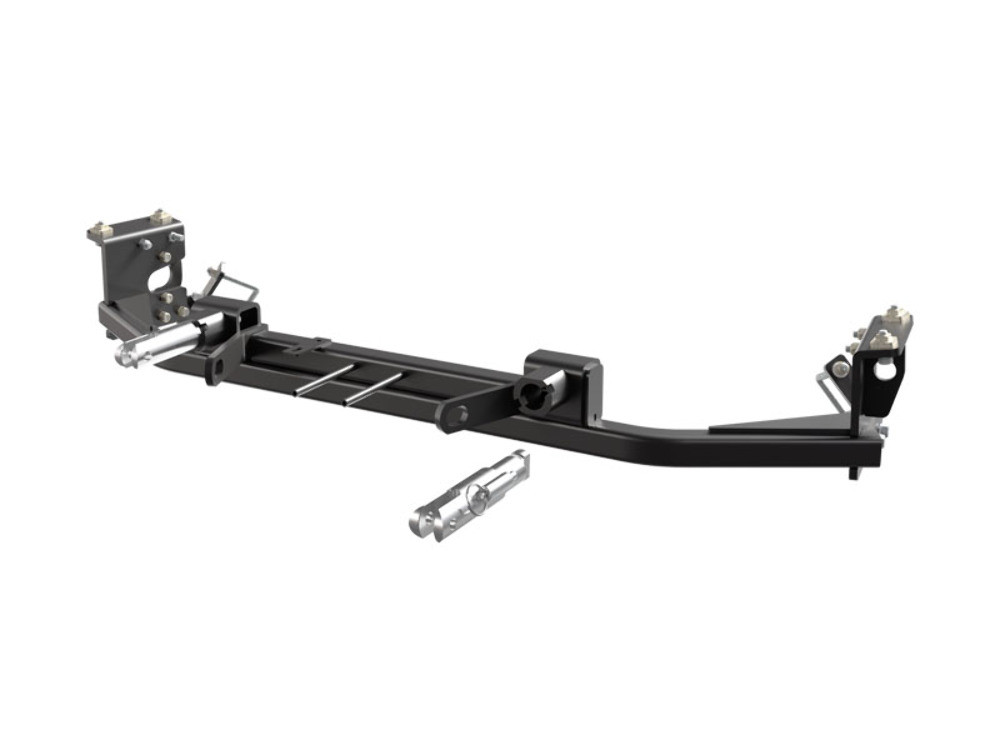

The Blue Ox BX1728 Tow Bar Bracket is a robust and reliable solution for your towing needs. Constructed from high-quality steel, this base plate is custom designed for each specific towed vehicle to ensure a perfect fit. Its sleek black finish, achieved through powder coating, not only enhances the bracket's aesthetic appeal but also provides additional protection against corrosion and wear. The bracket features a convenient bolt-on mounting type, making installation easy and hassle-free. The package also includes all the necessary hardware and clear instructions for a smooth, do-it-yourself installation. With the Blue Ox BX1728 Tow Bar Bracket, you can enjoy a safe and secure towing experience.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2019 | GMC Acadia | Also Denali & All: Terrain No Limited Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select GMC ACADIA DENALI (Part #FDRWBX1728) fits 2017-2019 GMC Acadia models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select GMC ACADIA DENALI (Part #FDRWBX1728) is designed to fit the 2017-2019 GMC Acadia.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select GMC ACADIA DENALI (Part #FDRWBX1728) fits the following vehicles: 2017-2019 GMC Acadia. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select GMC ACADIA DENALI (Part #FDRWBX1728) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
No. The BX1728 is designed for 2017-19 GMC Acadia Denali and All-Terrain models only. It does not fit the Limited trim.
Yes. The BX1728 is designed for 2017-19 GMC Acadia Denali models. However, you should verify that the front of your vehicle matches the reference image on page 1 of the installation instructions. If it looks different, contact Blue Ox at (402) 385-3051 before proceeding.
Yes. The BX1728 is designed for 2017-19 GMC Acadia All-Terrain models. However, you should verify that the front of your vehicle matches the reference image on page 1 of the installation instructions. If it looks different, contact Blue Ox at (402) 385-3051 before proceeding.
The attachment tab height is 16 inches and the attachment tab width is 20 inches.
Required tools include: large vise grip, flat screwdriver, utility knife, Phillips screwdriver, torque wrench, drill, tape measure, 3/8" drill bit, 5/16" nut driver, 7MM socket, 7/16" socket, 7/16" wrench, 9/16" socket, 9/16" wrench, and T15 Torx. You will also need Loctite Red for all bolt threads.
The kit includes: one 3/8" nut plate with 14" wire (61-5208), the baseplate (61-7807), two attachment tab assemblies (62-3468), driver and passenger side braces (102-7719, 102-7720), one flat reinforcement brace (102-7721), one 1/4"-20 x 3/4" hex head bolt Grade 5 (201-0050), two #10-32 1/2" round slotted head screws (201-0192), fourteen 3/8"-16 x 1-1/4" hex head bolts Grade 5 (201-0368), two 3/8"-16 x 3.25 x 2 U-bolts Grade 5 (201-0697), two #12-14 x 1" self-drilling screws (201-0979), two #10-32 hex nuts (202-0047), fourteen 3/8"-16 hex nylon insert lock nuts (202-0090), one 1/4"-20 hex nylon nut (202-0102), four 3/8" flat washers (203-0003), fourteen 3/8" lock washers (203-0010), two #10 lock washers (203-0054), one 4-way bracket (299-0685), two class III safety cables (226-0046), two 3/8" quicklinks (229-0359), and two black cap plug receivers (290-0437).
A tail light wiring kit is recommended but not required. The BX8869 Tail Light Wiring Kit is recommended for standard vehicles. If your vehicle has LED lights, the BX8848 Tail Light Wiring Kit is recommended. You will need to drill a hole according to the tail light wiring kit instructions.
Yes. The fascia must be removed and reinstalled during baseplate installation. The windshield washer fluid reservoir is also removed and reinstalled. All removed items should be placed on a flat, sturdy surface and will be reinstalled after the baseplate is installed unless otherwise noted.
Blue Ox recommends that towing products be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do "fit work". Blue Ox Dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051.
Yes. Drilling is required. You will use a 3/8" drill bit to drill out the back holes on both sides of the vehicle and holes on both sides of the baseplate. The manual also notes that some drilling and trimming is required overall.
Yes. Trimming is required. You will use a reciprocating saw to trim marked areas on both sides of the bumper. The trimming procedure differs slightly between Denali and All-Terrain models, but both require cutting. After baseplate installation, you will also trim the fascia around the convenience links and attachment tabs.
Be aware of objects behind the cutting surface when using a reciprocating saw. After trimming, use a good quality paint to spray cut edges of the frame to prevent rusting.
Be aware of the dangers of torque and drill bit length when using power drills. Ensure you are using the correct 3/8" drill bit size as specified in the instructions.
For 3/8"-16 Grade 5 bolts, torque to 33 foot-pounds. For 3/8"-16 Grade 8 bolts, torque to 47 foot-pounds. The BX1728 kit includes Grade 5 bolts. Always use Loctite Red on all bolt threads before tightening.
For 1/4"-20 Grade 5 bolts, torque to 10 foot-pounds. For 1/4"-20 Grade 8 bolts, torque to 14 foot-pounds. Always use Loctite Red on all bolt threads before tightening.
For 7MM Grade 8.8 metric bolts, torque to 6 foot-pounds. For 7MM Grade 10.9 metric bolts, torque to 8 foot-pounds. Always use Loctite Red on all bolt threads before tightening.
Yes. You must use a sufficient amount of Loctite Red on all bolt threads before tightening. This is required for all bolts in the installation.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. You should reference your vehicle owner's manual for the manufacturer's towing specifications and your vehicle's GVWR.
Yes. Two class III safety cables (226-0046) are included with the baseplate kit. These permanent baseplate safety cables must be attached to the baseplate and secured to the frame rail or cross member of the vehicle's frame. They are strongly recommended to prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. The cables must not be mounted against wires, hoses or brake lines. Safety cables should remain installed as long as the baseplate is installed. These cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The cables should be secured to a solid piece of the frame of the vehicle. Be sure the safety cables do not rub against any hoses or moving parts. Do not mount the cables against wires, hoses or brake lines. The manual provides two recommended installation options on the General Information page. If additional options interfere with suggested mounting, secure the cables to a solid piece of the frame as described in the General Information sheet.
No. Towing behind a non-motorized vehicle will void the warranty.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
Yes. Remove the attachment tabs when not in use, if applicable.
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Blue Ox offers a three-year limited warranty to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. Warranty coverage is valid only if the customer warranty card is returned within 30 days of purchase and a copy of the original invoice accompanies any claim. The warranty is non-transferable and does not cover incorrect or improper installation, improper use, modification or neglect, failure to properly service and maintain, misuse, accident, or failure to follow guidelines in the instructional material. It also does not cover normal wear and tear, paint or rust. Register your warranty at http://blueox.com/warranty/
Contact Blue Ox Technical Service Department at (402) 385-3051. You can also visit www.blueox.com to find a Blue Ox Dealer or to register your product.
Yes, BX1728 fits 2017-19 GMC Acadia Denali and All-Terrain models only (not Limited). Verify your vehicle front matches the reference image on page 1.
You need: torque wrench, drill with 3/8" bit, T15 Torx, 7MM socket, 9/16" socket, 7/16" socket, 5/16" nut driver, reciprocating saw, utility knife, screwdrivers, vise grip, tape measure, and Loctite Red.
Yes. You must drill holes with a 3/8" bit and use a reciprocating saw to trim bumper areas. Paint cut frame edges to prevent rust.
Torque 3/8"-16 Grade 5 bolts to 33 foot-pounds. Use Loctite Red on all bolt threads before tightening.
Yes. Two class III safety cables are included. They must be attached to the baseplate and secured to the vehicle frame, not against wires or hoses. They supplement, not replace, legally required towing cables.
The baseplate is computer tested to your vehicle's GVWR. Exceeding GVWR voids the warranty. Check your vehicle owner's manual for towing specifications.
Yes. The fascia and windshield washer fluid reservoir must be removed and reinstalled during installation.
Ensure all electrical connections are plugged in and accessories are functioning properly. Inspect for cracked welds, missing parts, and loose bolts. Tighten all bolts to specification with Loctite Red.
