Custom Designed For Your Vehicle
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

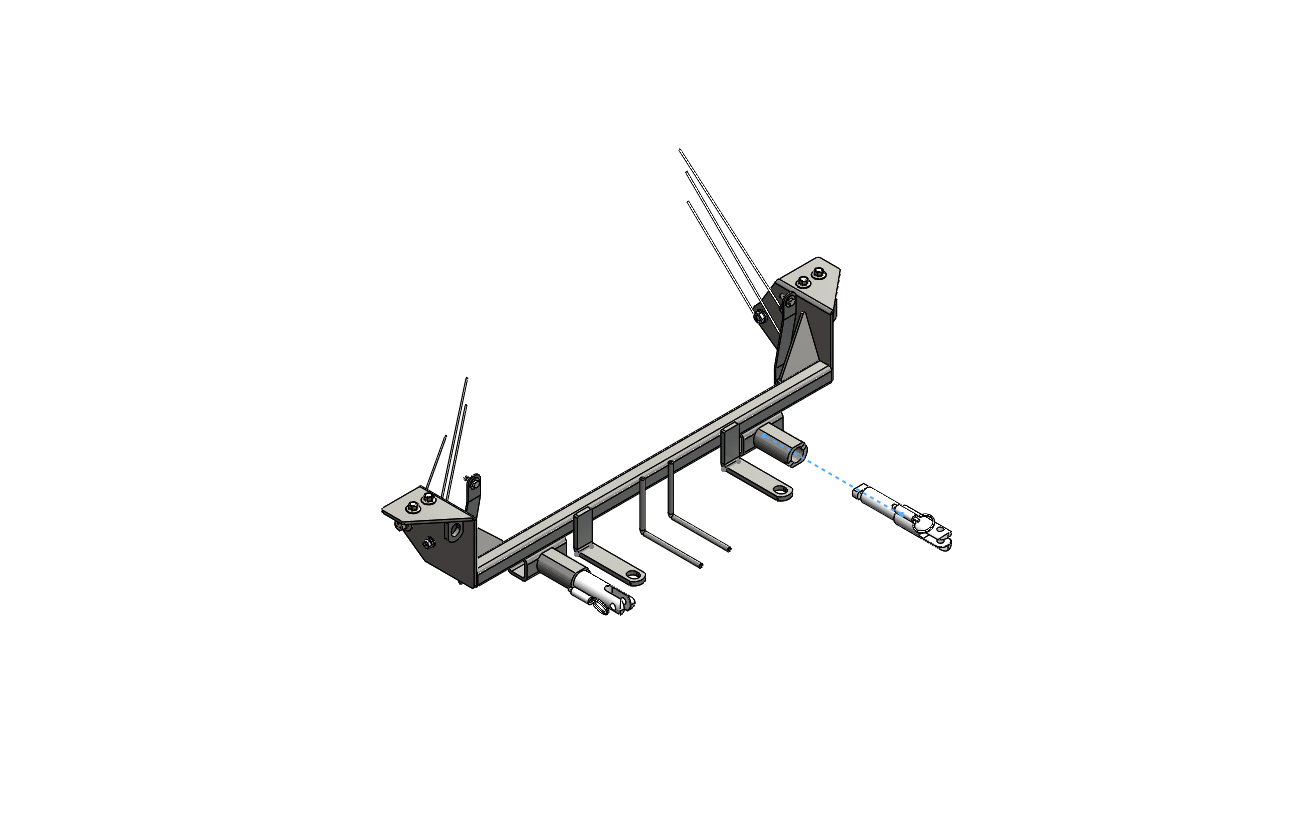

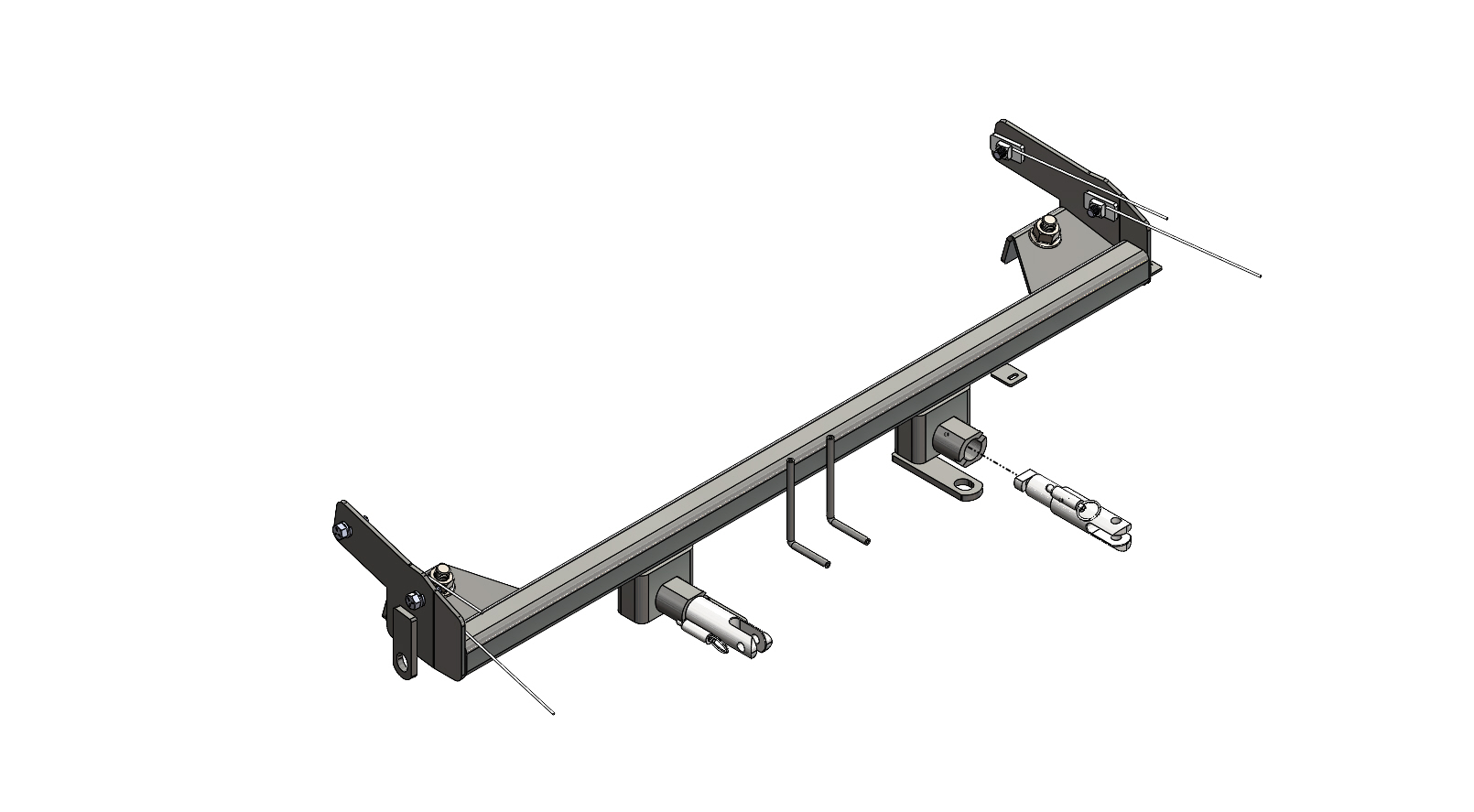

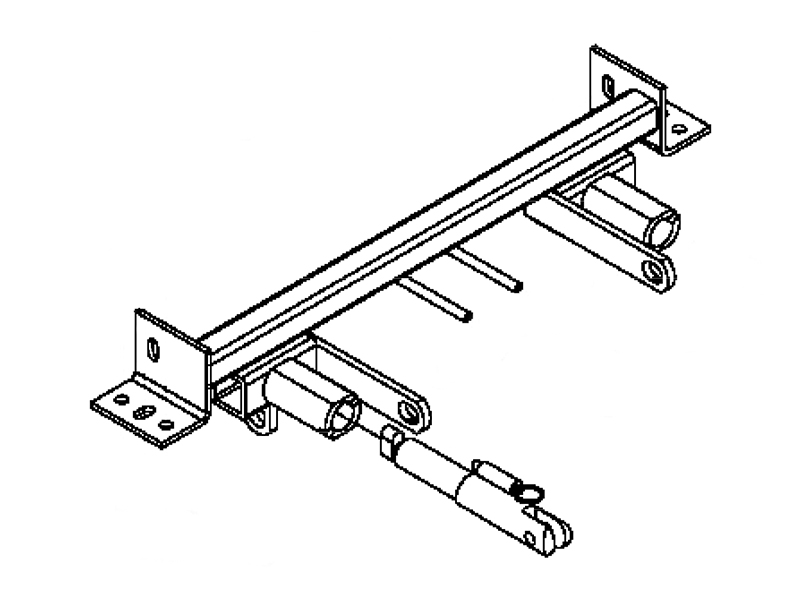

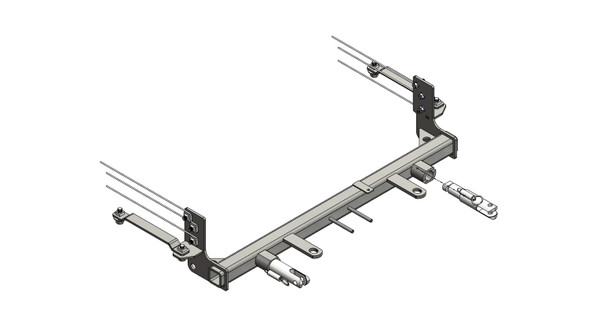

Blue Ox base plates are custom designed for each specific towed vehicle. When you purchase a Blue Ox base plate, it includes all the necessary hardware and instructions for a do-it-yourself installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2016 | Cadillac SRX | All Packages Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CADILLAC SRX (Part #FDRWBX1690) is designed to fit the 2010-2016 Cadillac SRX.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CADILLAC SRX (Part #FDRWBX1690) fits 2010-2016 Cadillac SRX models. The 2016 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CADILLAC SRX (Part #FDRWBX1690) fits the following vehicles: 2010-2016 Cadillac SRX. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CADILLAC SRX (Part #FDRWBX1690) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX1690 baseplate is designed for all 2010-16 Cadillac SRX models. However, dimensional variations between otherwise identical vehicles can be considerable, and it may be necessary to tailor the baseplate slightly to compensate for vehicle manufacturer's tolerances.
The attachment tab height is 16-1/2" and the attachment tab width is 18".
Yes. The fascia, coolant lines, and temperature sensor must be removed and reinstalled for the baseplate installation. The manual notes that some drilling and trimming is required.
Yes. Drilling is required. You will drill using a 1/4" drill bit through the bumper, a 13/32" drill bit for the top front holes on each side, and a 1-1/4" hole saw to drill out holes in the face of the bumper and an access hole on the passenger side. Trimming of plastic along the seam and under the bumper is also required on both sides.
Required tools include: large vise grip, flat screwdriver, Phillips screwdriver, utility knife, torque wrench, drill, tape measure, 1/4" drill bit, 13/32" drill bit, 1-1/4" hole saw, 7MM socket, 10MM socket, 9/16" socket, 9/16" wrench, and 15 Torx (for 2015 models). You will also need Loctite Red.
The kit includes: 6 nut plates with 14" wire (61-5208), 1 baseplate (61-7068), 2 attachment tabs (62-3468), 1 breakaway bracket (102-7186), 1 bolt 1/4"-20 x 3/4" Grade 5 (201-0050), 2 bolts 1/4"-20 x 1" Grade 5 (201-0071), 2 screws #10-32 x 1/2" (201-0192), 4 bolts 3/8"-16 x 1-1/4" Grade 5 (201-0368), 6 bolts 3/8"-16 x 1-1/2" Grade 5 (201-0440), 1 bolt 6MM-1.0 x 16MM Grade 8.8 (201-0461), 2 screws #12-14 x 1" self-drilling (201-0979), 2 hex nuts #10-32 (202-0047), 2 hex flange whiz lock nuts 1/4"-20 (202-0069), 4 hex nylon insert lock nuts 3/8"-16 (202-0090), 1 hex nut 1/4"-20 (202-0102), 6 lock washers 3/8" (203-0010), 2 lock washers #10 (203-0054), 1 electrical bracket (299-0685), 2 class IV safety cables (226-0049), 2 quicklinks 1/2" (229-0512), and 2 black cap plug receivers (290-0437).
Always use the hardware supplied in the hardware kit and existing hardware as specified in the installation instructions. Do not assume existing bolts are adequate for baseplate mounting, even though bolts may already be present.
For 3/8"-16 Grade 5 bolts, the torque specification is 33 foot-pounds. For 3/8"-16 Grade 8 bolts, the torque specification is 47 foot-pounds.
For 1/4"-20 Grade 5 bolts, the torque specification is 10 foot-pounds. For 1/4"-20 Grade 8 bolts, the torque specification is 14 foot-pounds.
For 6MM Grade 8.8 metric bolts, the torque specification is 6 foot-pounds. For 6MM Grade 10.9 metric bolts, the torque specification is 8 foot-pounds.
Position the baseplate with a 3-1/2" gap from the bottom of the bumper to the top of the crosstube of the baseplate. The baseplate should be leveled and securely clamped to the frame at this position.
Yes. Be sure to use a sufficient amount of Loctite Red on all bolt threads before tightening. Tighten all bolts according to the torque chart provided.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. You should reference your vehicle owner's manual for manufacturer's towing specifications.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
The BX8848 4-Diode Tail Light Wiring Kit is recommended for this vehicle, but the manual does not explicitly state whether it is required or optional.
Yes, there are some differences. For 2010-14 models, you must remove a push pin from the backside of the temperature sensor and remove two push pins in the front before pulling the fascia forward. For 2015 models, use a 15 Torx in place of a Phillips screwdriver when removing screws forward of the front tire. For 2010-14 models, zip tie the temperature sensor to the radiator after baseplate installation.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. If additional options may interfere with suggested mounting, secure the cables to a solid piece of the frame as described in the General Information sheet. Be sure the safety cables do not rub against any hoses or moving parts. Install on both sides of the vehicle. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must not be mounted against wires, hoses, or brake lines.
Be sure that all electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
Yes. Remove the attachment tabs when not in use.
Yes. Blue Ox towing products and accessories are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do "fit work". Blue Ox Dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051.
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Failing to follow this requirement will void the manufacturer's warranty.
Place all components that are removed on a flat, sturdy surface. All items will be reinstalled unless otherwise noted after the baseplate is installed.
No. Permanent baseplate safety cables are to be used in conjunction with, and not a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle. The principle function of the permanent baseplate safety cables is to prevent the towed vehicle from breaking loose in the event the connection between the frame of the towed vehicle and the baseplate fails or becomes disconnected.
Yes, the BX1690 is designed for all 2010-16 Cadillac SRX models. Minor tailoring may be needed to compensate for vehicle manufacturer's tolerances.
Yes. You will drill using a 1/4" bit, 13/32" bit, and 1-1/4" hole saw. Trimming of plastic along the bumper seam is also required on both sides.
You will need a drill, torque wrench, sockets (7MM, 10MM, 9/16"), screwdrivers (Phillips, flat), utility knife, tape measure, and Loctite Red. For 2015 models, also a 15 Torx.
Yes. The fascia, coolant lines, and temperature sensor must be removed and reinstalled. Some drilling and trimming is required.
Tighten 3/8"-16 Grade 5 bolts to 33 foot-pounds. Use Loctite Red on all bolt threads before tightening.
The baseplate is rated to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for towing specifications.
Maintain a 3-1/2" gap from the bottom of the bumper to the top of the baseplate crosstube. Level and clamp the baseplate to the frame at this position.
Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts. Use Loctite Red and tighten all bolts to specification. Register your product at www.blueox.com for safety bulletins and recalls.
