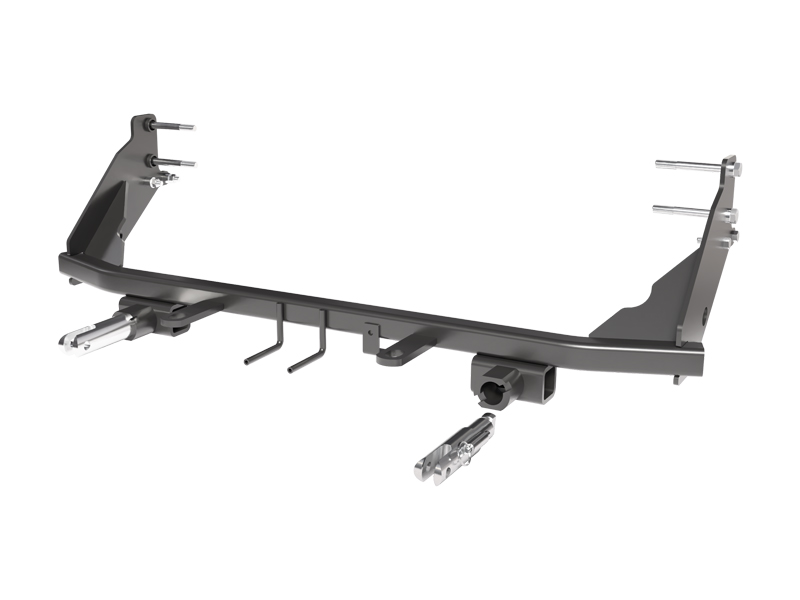

Custom Design: The Blue Ox BX1315 Tow Bar Bracket is custom designed for each specific towed vehicle, ensuring a secure and perfect fit.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX1315 Tow Bar Bracket brings together strength, durability, and ease of installation. Specially crafted for specific towed vehicles, this bracket ensures a perfect fit every time, eliminating the guesswork from your towing setup. Constructed from high-quality steel and finished in a sleek black powder coat, it stands up to the toughest towing tasks while resisting corrosion and wear. It comes complete with all necessary mounting hardware and detailed instructions for a do-it-yourself installation, saving you time and effort.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2019 | Mini Cooper Clubman | Also S No John Cooper Works Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming Of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select MINI COOPER CLUBMAN S (Part #FDRWBX1315) fits 2016-2019 Mini Cooper Clubman models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select MINI COOPER CLUBMAN S (Part #FDRWBX1315) fits the following vehicles: 2016-2019 Mini Cooper Clubman. Always verify your specific year, make, and model before ordering.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select MINI COOPER CLUBMAN S (Part #FDRWBX1315) is designed to fit the 2016-2019 Mini Cooper Clubman.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select MINI COOPER CLUBMAN S (Part #FDRWBX1315) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX1315 baseplate is designed for 2016-19 Mini Cooper Clubman models, including the S variant. However, it does not fit JCW models. Before installation, verify that the front of your vehicle matches the reference image in the manual. If it does not, contact Blue Ox technical service at (402) 385-3051.
The BX1315 is a tow baseplate manufactured by Blue Ox for 2016-19 Mini Cooper Clubman vehicles. It is designed to attach to the vehicle's frame to enable towing. The baseplate includes attachment tabs (11-1/2" height, 24" width) for connecting a tow bar, and must be used with safety cables to prevent the towed vehicle from breaking loose if the baseplate connection fails.
Required tools include: T30 and T25 Torx screwdrivers, 8MM, 10MM, 18MM, and 19MM sockets, 7/16" and 9/16" sockets and wrenches, 5/16" nut driver, large vise grip, flat screwdriver, utility knife, Phillips screwdriver, torque wrench, reciprocating saw, drill with 3/8" drill bit, tape measure, and Loctite Red. Socket sizes 9/16" and 19MM are also needed.
Yes. The fascia and windshield washer fluid reservoir must be removed before baseplate installation and reinstalled afterward. The fascia is removed by taking out five screws from the top edge, two screws from each wheel well outer edge, one screw from behind each fender flare, seven screws from the underside, and two push pins from the edges. The washer reservoir is removed by taking out two screws. All removed items should be placed on a flat, sturdy surface and reinstalled after the baseplate is installed.
Yes. A 3/8" drill bit is required to drill the lower mounting holes through the frame on both sides of the vehicle. The baseplate uses existing frame holes for upper mounting with 12MM hardware, but the lower mounting holes must be drilled. Additionally, drilling is required for the tail light wiring kit installation. The manual also requires trimming of plastic shielding, air baffles, and bumper support brackets using a reciprocating saw.
Three plastic components require trimming: (1) plastic shielding on both sides of the vehicle for baseplate clearance, trimmed with a reciprocating saw; (2) both plastic air baffles before reinstallation; and (3) bumper support brackets. The manual includes diagrams showing the trim lines. Additionally, caulking around the bumper horn may need to be trimmed to ensure proper baseplate fitting. Cut edges of the frame should be painted to prevent rusting.
The installation sequence is: (1) remove fascia by taking out five top screws, two wheel well screws per side, one fender flare screw per side, seven underside screws, and two push pins; (2) remove and disconnect washer reservoir; (3) remove horn screw on driver side; (4) remove support bracket screws and bolts on both sides; (5) remove air baffle push pins and air baffles; (6) remove metal bracket screws; (7) remove bumper horn bolts; (8) trim plastic shielding; (9) install baseplate using existing frame holes with 12MM hardware and drill lower mounting holes with 3/8" hardware; (10) trim air baffles and bumper support brackets; (11) attach safety cables; (12) reinstall washer reservoir and fascia.
The manual provides general torque charts for Grade 5 and Grade 8 bolts in inch sizes, and Grade 8.8 and Grade 10.9 bolts in metric sizes. For example, 1/4" Grade 5 bolts torque to 10 ft-lbs, 3/8" Grade 5 bolts to 33 ft-lbs, and 12MM Grade 8.8 bolts to 54 ft-lbs. However, the manual does not specify which torque values apply to the 12MM hardware used for upper mounting or the 3/8" hardware used for lower mounting. All bolts must be tightened with Loctite Red applied to threads. Contact Blue Ox at (402) 385-3051 for specific torque values for this application.
Two Class III safety cables (part 226-0046) and two 3/8" quicklinks (part 229-0359) are included. The cables must be attached to the baseplate's convenience link and secured to the vehicle's frame rail or cross member. The cables must not rub against hoses or moving parts. Safety cables are strongly recommended to prevent the towed vehicle from breaking loose if the baseplate connection fails. The cables must remain installed as long as the baseplate is on the vehicle. They are required in addition to, not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for the manufacturer's towing specifications and ensure the towed vehicle weight does not exceed the GVWR.
Before reinstalling the fascia, ensure all electrical connections are plugged in and accessories are functioning properly. After installation, inspect the baseplate for proper leveling and ensure all bolts are fully tightened with Loctite Red. Verify that safety cables do not rub against hoses or moving parts. Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Trim the fascia around the convenience links and attachment tabs as needed before reinstallation.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Use Loctite Red on all bolts and tighten to the recommended specifications. If the baseplate is involved in an accident, it must be replaced and cannot be reused, as accidents can cause unseen damage. Do not use the baseplate if it is damaged or missing parts. Register your product at www.blueox.com to receive alerts about maintenance, updates, and safety bulletins.
Yes. Blue Ox towing products are intended to be installed by Blue Ox dealers who are familiar with the products and have the equipment and knowledge necessary to do "fit work." The installation involves removal of multiple vehicle components, drilling, trimming with a reciprocating saw, and precise torque specifications. Blue Ox dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051.
The BX8869 Tail Light Wiring Kit is recommended for the 2016-19 Mini Cooper Clubman when installing the BX1315 baseplate. The kit requires drilling a hole according to its own instructions. The manual does not specify whether the kit is required or optional, but recommends it for this vehicle.
The kit includes: one BX1315 baseplate, two attachment tab assemblies with holes, four 3/4" OD x 1/2" ID x 1/2" tubes, one 1/4"-20 x 3/4" Grade 5 hex head bolt, two #10-32 1/2" round slotted head screws, two 3/8"-16 x 1-1/4" Grade 5 hex head bolts, four 3/8"-16 x 1 1/2" Grade 5 hex bolts, four 12MM-1.5 x 110MM hex head bolts, two #12-14 x 1" self-drilling screws, two #10-32 hex nuts, six 3/8"-16 hex nylon insert lock nuts, one 1/4"-20 hex nylon nut, two #10 lock washers, four 12MM lock washers, one 4-way bracket, two Class III safety cables, two 3/8" quicklinks, and two black cap plug receivers.
Handling of cosmetic parts may require the use of protective covers, rags, and specialty tools to prevent damage. When using power drills, be aware of the dangers of torque and drill bit length. When using a reciprocating saw, be aware of objects behind the cutting surface. Use a good quality paint to spray cut edges of frame to prevent rusting.
If the front of your vehicle looks different than the reference image shown in the manual, contact Blue Ox technical service at (402) 385-3051 before proceeding with installation. This may indicate that your vehicle is not compatible with the BX1315 baseplate or that a different installation procedure is required.
The manual states that many Blue Ox baseplates are designed to use existing holes and hardware, but you should not assume existing bolts are adequate for baseplate mounting. Always use the hardware supplied in the hardware kit and existing hardware as specified in the installation instructions. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (typically Grade 5). Replacement parts may be ordered through your nearest Blue Ox dealer or distributor.
If the baseplate is involved in an accident, it must be replaced and cannot be reused. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Blue Ox offers a three-year limited warranty from the date of delivery to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. To activate coverage, the customer warranty card must be returned within 30 days of purchase, and a copy of the original invoice must accompany any warranty claim. The warranty does not cover incorrect or improper installation, improper use, modification, neglect, failure to maintain, misuse, accidents, normal wear and tear, paint, or rust. The warranty is non-transferable. Register your warranty at http://blueox.com/warranty/.
Yes, the BX1315 fits 2016-19 Mini Cooper Clubman and S models, but not JCW models. Verify the front of your vehicle matches the manual reference image before installing.
Yes. You must drill 3/8" diameter holes through the frame for lower mounting bolts on both sides. Trimming with a reciprocating saw is also required for plastic shielding, air baffles, and bumper support brackets.
You need a torque wrench, reciprocating saw, drill with 3/8" bit, T25 and T30 Torx drivers, sockets (8MM, 10MM, 18MM, 19MM, 7/16", 9/16"), wrenches, vise grip, utility knife, and Loctite Red. Professional installation by a Blue Ox dealer is recommended.
Yes. The fascia and windshield washer reservoir must be removed before installation and reinstalled afterward. This requires removing multiple screws and push pins from the fascia and two screws from the reservoir.
Yes. Two Class III safety cables are included and must be attached to the baseplate and vehicle frame. They prevent the towed vehicle from breaking loose if the baseplate connection fails and must remain installed as long as the baseplate is on the vehicle.
The manual provides general torque charts for Grade 5 and Grade 8 bolts, but does not specify which values apply to the 12MM upper mounting bolts or 3/8" lower mounting bolts. All bolts must use Loctite Red. Contact Blue Ox at (402) 385-3051 for specific application torque values.
The baseplate is tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for towing specifications.
Before each towing trip, inspect for cracked welds, missing parts, and loose bolts. Use Loctite Red on all bolts. If involved in an accident, the baseplate must be replaced and cannot be reused.
