1. Custom Design: The Blue Ox BX4102 Tow Bar Bracket is specifically designed for each towed vehicle, ensuring a perfect fit and optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX4102 Tow Bar Bracket is a premium, custom-designed automotive accessory built to ensure a secure and reliable connection for your towed vehicle. Crafted from high-grade steel, this tow bar bracket boasts ultimate durability and longevity. It features a black powder coat finish that provides a sleek look while offering superior resistance against rust and corrosion. The bolt-on mounting type ensures a firm, steady attachment, enhancing your vehicle's towing capabilities. The package includes all necessary mounting hardware and detailed instructions, enabling a hassle-free, do-it-yourself installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2003 - 2009 | Hummer H2 | Comes with Standard Attachment Tabs Install Rating 1 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Tow Hooks Must be Removed and Remain off the Vehicle After Installation Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight. |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HUMMER H2 (Part #FDRWBX4102) fits the following vehicles: 2003-2009 Hummer H2. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HUMMER H2 (Part #FDRWBX4102) fits 2003-2009 Hummer H2 models. The 2009 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HUMMER H2 (Part #FDRWBX4102) is designed to fit the 2003-2009 Hummer H2.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HUMMER H2 (Part #FDRWBX4102) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX4102 is designed for 2002-09 HUMMER H2 vehicles. However, if the front of your vehicle looks different than shown in the manual, contact Blue Ox Customer Care at (402) 385-3051 before proceeding with installation.
The BX4102 is rated for Class III towing at 5,000 lbs. The HUMMER H2 weight is near this limit, and some models with options may exceed 5,000 lbs. You must confirm your individual vehicle's weight before towing. Tow Bar Adapters cannot be used with vehicles weighing over 5,000 lbs.
Blue Ox baseplates are intended to be installed by Blue Ox Dealers or installers who are familiar with baseplate products and have the equipment and knowledge to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Customer Care at (402) 385-3051.
The metal bumper and tow hooks must be removed for installation. The tow hooks are not reinstalled and should be returned to the customer. The center grill insert and rubber bumper inserts are removed temporarily and reinstalled after baseplate installation.
Yes, drilling is required. In step 7, you must drill through the forward existing hole on the inside of the frame rail on both sides of the vehicle using a right angle drill and a 17/32" drill bit. If a right angle drill is not available, it may be necessary to remove the winch bracket to allow room for drilling.
Required tools are: 18MM socket, 7/16" socket, 3/4" socket, right angle drill, 17/32" drill bit, flat screwdriver, small and large vise grips, hammer, and Loctite RED. When using power drills, be aware of the dangers of torque and drill bit length.

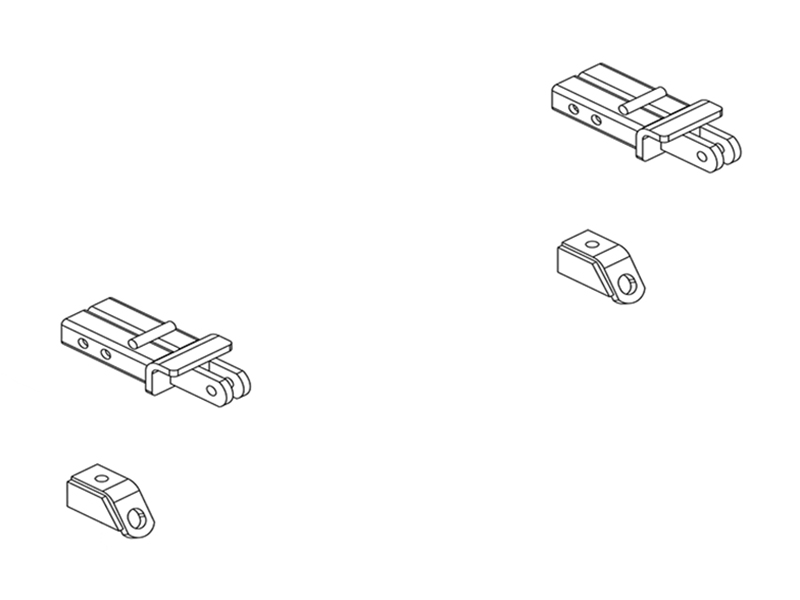

The kit includes: 2 baseplate weldments (61-6034), 2 convenience link weldments (61-6218), 2 backing plates (101-6897), 4 Grade 5 1/2-13 x 4 1/2" hex bolts, 4 1/2" lock washers, 4 1/2-13 hex nuts, 1 electrical bracket (70 degree), 2 1/4-20 x 3/4" slot truss head screws, 2 1/4" lock washers, 2 1/4-20 hex flange whiz lock nuts, 2 #10-32 x 1/2" slot round head screws, 2 #10 lock washers, 2 #10-32 hex nuts, 2 4-way connector adapters, and 2 #10-16 x 1" self-drilling screws. The kit also includes 2 existing metric bolts for reuse.
The BX8869 Bulb and Socket Wiring Kit is recommended for the 2002-09 HUMMER H2, but not stated as required. The manual shows possible locations for the kit installation but does not mandate its use.
1. Remove center grill insert (4 clips). 2. Remove rubber bumper inserts. 3. Remove one metric bolt from top of bumper on each side (18MM socket). 4. Remove two metric bolts below bumper, disconnect fog lights, remove metal bumper. 5. Remove three metric bolts from each tow hook (two inside, one outside), pull tow hooks forward. 6. Insert baseplate weldment into tow hook opening, align backing plate 1/4" forward of frame rail, install 4 1/2" hex bolt, lock washer and hex nut on each side. 7. Drill through forward existing hole on inside of frame rail using right angle drill and 17/32" bit on each side. 8. Reinstall metal bumper fascia using upper existing bolts (do not tighten completely), install convenience link weldment to lower existing bolt, tighten all bolts completely, reinstall rubber inserts, fog lights and grill insert. 9. Install electrical bracket below license plate bracket using 1" self-tapping screw.
For Grade 5 bolts: 1/4" = 10 ft-lbs, 5/16" = 19 ft-lbs, 3/8" = 33 ft-lbs, 7/16" = 54 ft-lbs, 1/2" = 78 ft-lbs, 5/8" = 154 ft-lbs. For Grade 8 bolts: 1/4" = 14 ft-lbs, 5/16" = 29 ft-lbs, 3/8" = 47 ft-lbs, 7/16" = 78 ft-lbs, 1/2" = 119 ft-lbs, 5/8" = 230 ft-lbs.
For Grade 8.8 metric bolts: 6MM = 6 ft-lbs, 8MM = 16 ft-lbs, 10MM = 31 ft-lbs, 12MM = 54 ft-lbs, 14MM = 89 ft-lbs. For Grade 10.9 metric bolts: 6MM = 8 ft-lbs, 8MM = 22 ft-lbs, 10MM = 40 ft-lbs, 12MM = 70 ft-lbs, 14MM = 117 ft-lbs.
Yes, Loctite RED must be used on all bolts before tightening. All bolts must be tightened according to the torque chart on the front page of the instructions or page 3 of the Baseplate Towing General Instructions.
The electrical bracket must be installed below the license plate bracket while ensuring enough clearance for the bracket cover to open. The exact clearance dimension is not specified in the manual.
Before installation, watch for oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame. If the baseplate is improperly installed against a wire or hose, it could cause fluid leaks or electrical shorts sometime after installation. Also check that the front of your vehicle matches the manual photos; if it looks different, call Blue Ox at (402) 385-3051.
Install the tow bar and safety cables according to the instructions included in their packages. Do not substitute other devices if the tow bar pin and clip are lost. Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all electrical connections are plugged in properly and functioning before installing the fascia.
Ensure all electrical connections are plugged in properly and functioning before installing the fascia. It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended specifications.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Use Loctite Red on all bolts and tighten to the recommended specifications. Remove the attachment tabs when not in use. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
If the baseplate is in an accident, it must be replaced. Do not use it again, as an accident can cause unseen damage and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.

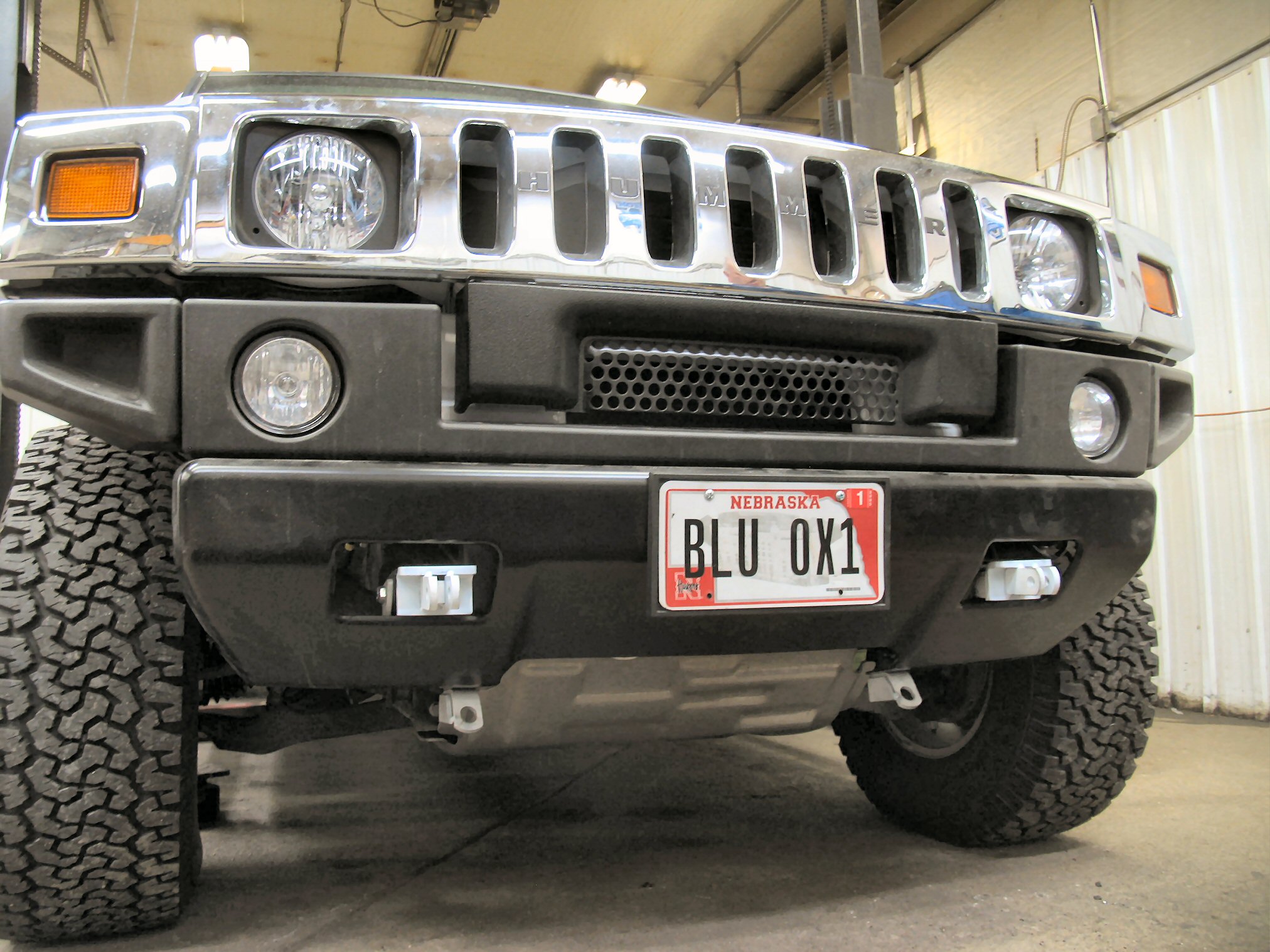

The attachment tab height is 22 1/2" and the attachment tab width is 32 1/4".
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (usually Grade 5). Failing to follow these instructions or altering them will void the manufacturer's warranty. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor.
Handling of some cosmetic parts when installing this product may require the use of protective covers, rags, specialty tools, etc. to prevent damage.
If the front of your vehicle looks different than shown in the manual, call Blue Ox Customer Care at (402) 385-3051 before attempting installation.
Yes, the BX4102 is designed for 2002-09 HUMMER H2 models. Confirm your vehicle's weight does not exceed 5,000 lbs before towing.
Yes. You must drill through the forward existing hole on the inside of the frame rail on both sides using a right angle drill and 17/32" drill bit.
18MM socket, 7/16" socket, 3/4" socket, right angle drill, 17/32" drill bit, flat screwdriver, vise grips, hammer, and Loctite RED.
The metal bumper and tow hooks must be removed. The tow hooks are not reinstalled. The grill insert and rubber bumper inserts are removed temporarily and reinstalled after installation.
Yes, Loctite RED must be used on all bolts before tightening, and all bolts must be tightened to the specified torque.
Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all electrical connections are plugged in and functioning. Install the tow bar and safety cables per their instructions.
Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts. Use Loctite Red and tighten bolts to specification. Register your product at www.blueox.com for safety bulletins and recalls.
The BX4102 is rated for Class III towing at 5,000 lbs. Confirm your HUMMER H2's weight before towing, as some models may exceed this limit.
